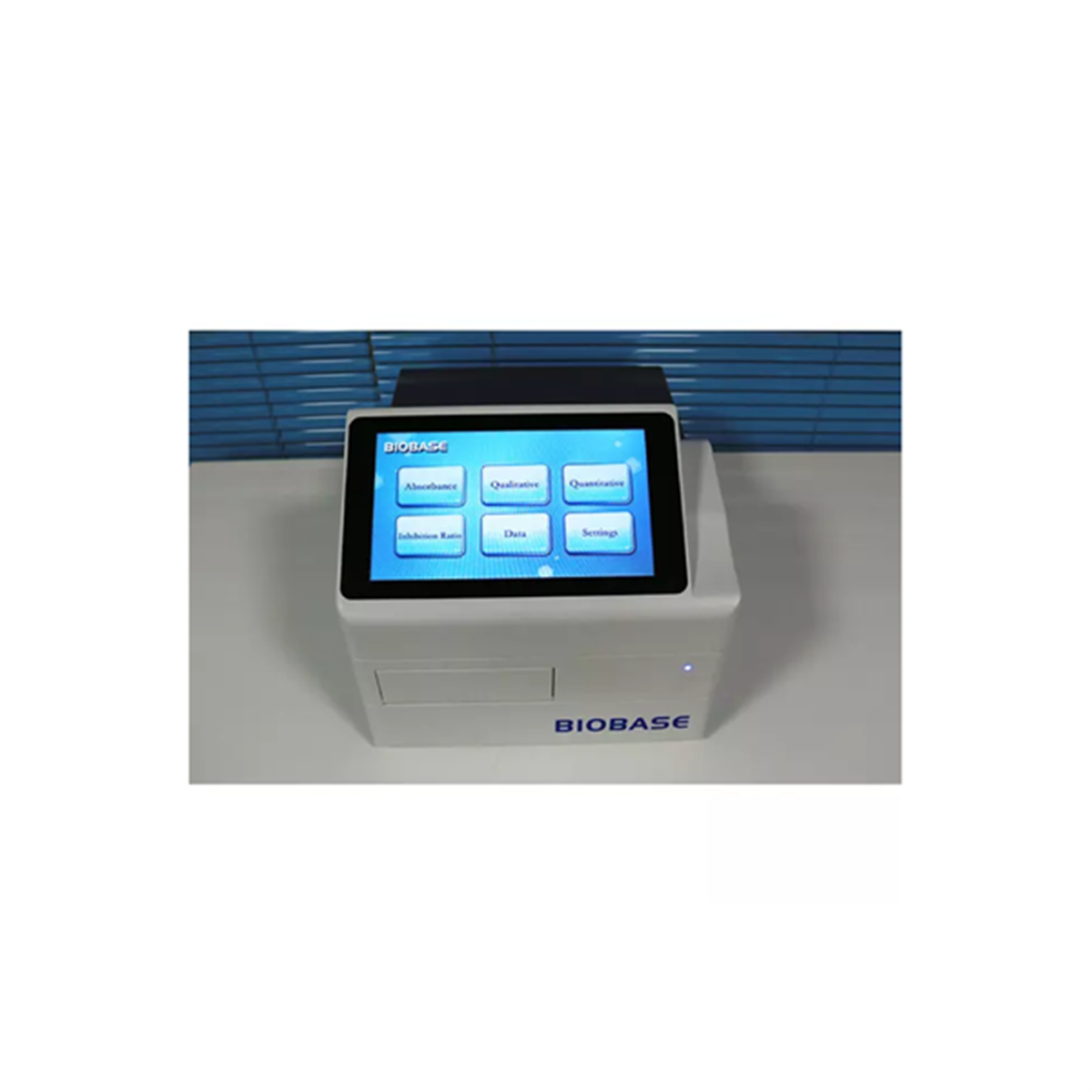

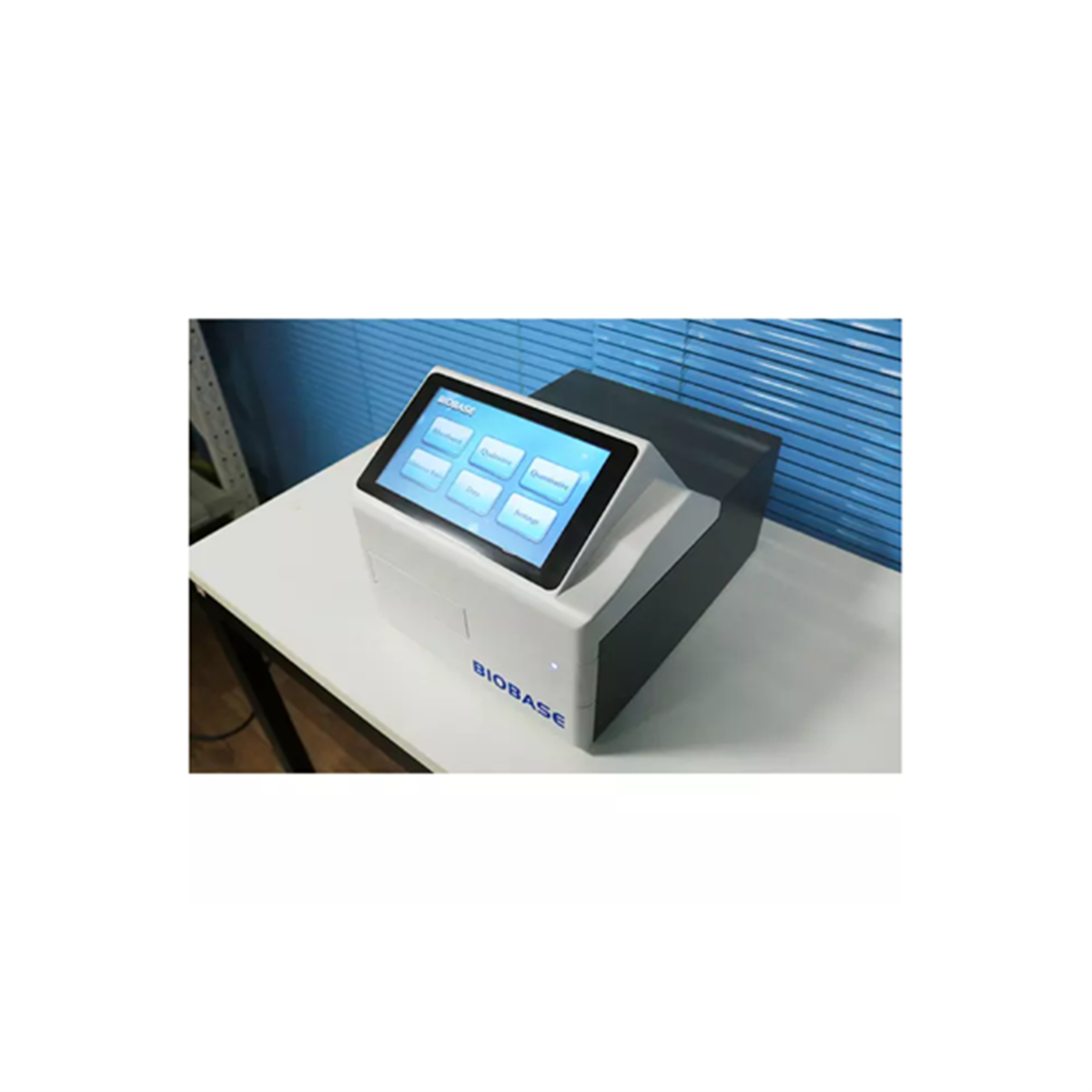

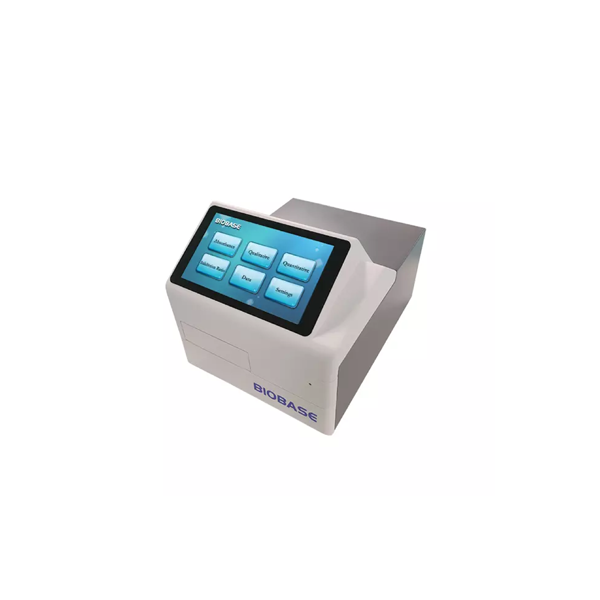

ELISA Microplate Reader (BK-EL10C)
Product#: DCBio-BK-EL10C
$3,600.00
Availability:
Ships in 1-2 Weeks
ELISA Microplate Reader (BK-EL10C)
Cat. No. DCBio-BK-EL10C
Features:

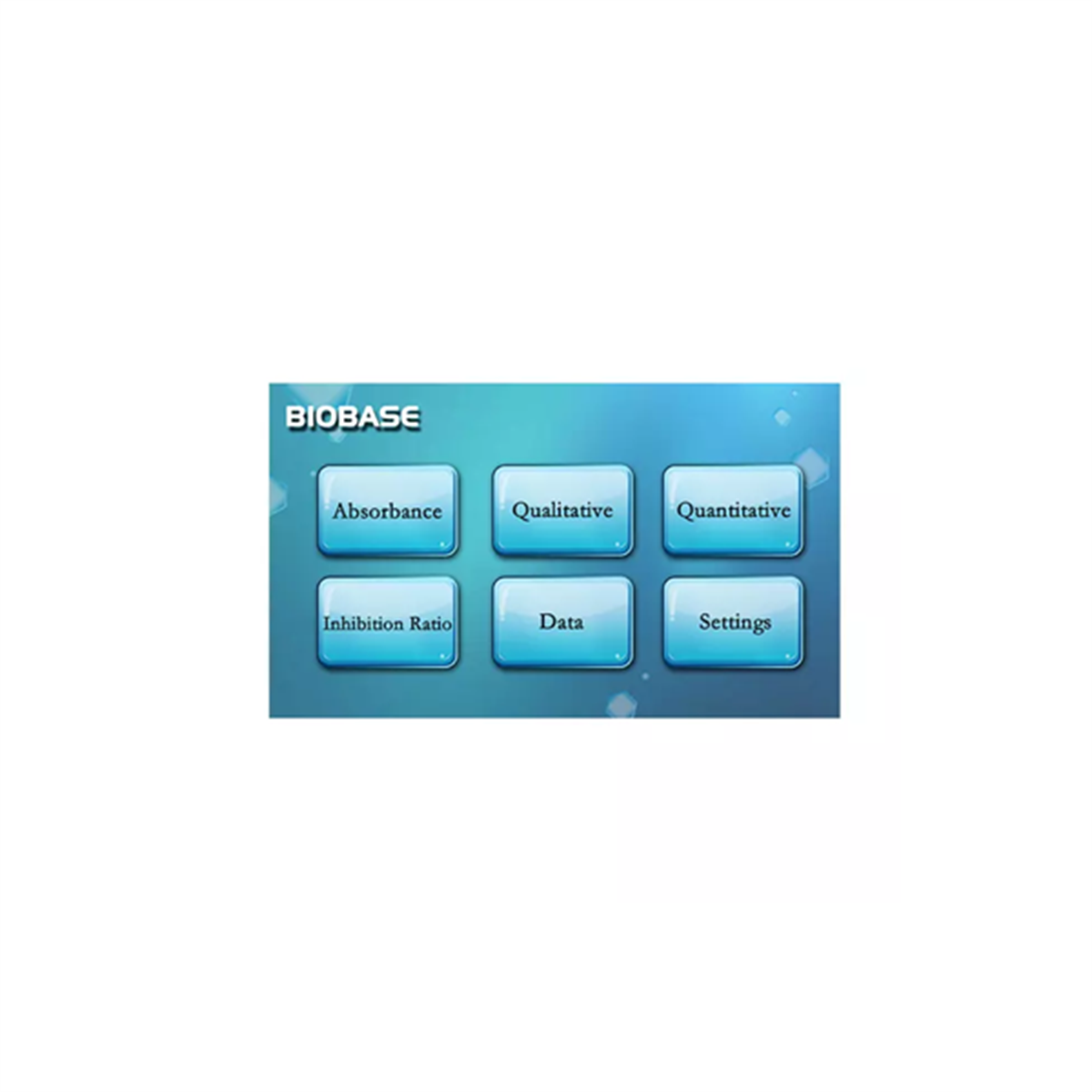

- 10.1-inch large touch screen operation(Except BK-EL10B).
- High precision and accurate results.
- Software: Single wavelength and double wavelengths detection methods.
- BK-EL10D is the Windows operating interface, and BK-EL10DA is the Android operating interface.
For more details please see the below video:
Model
| Model | DCBio-BK-EL10C | ||||||
| Measurement Channel | Vertical 8 optical channels | ||||||
| Plate Type | 96-well microplate | ||||||
| Wavelength Range | 400~750nm | ||||||
| Filter | Standard 4 wavelengths of 405, 450, 492, 630nm(BK-EL10A, BK-EL10B, BK-EL10C) | ||||||
| Standard 5 wavelengths of 340, 405, 450, 492, 630nm(BK-EL10D, BK-EL10DA) | |||||||
| Optional: Up to 10 wavelengths | |||||||
| Linear Range | 0.000~3.000Abs | ||||||
| Reading Range | 0.000~4.000Abs | ||||||
| Resolution | 0.0001Abs | ||||||
| Repeatability | CV≤0.2% | ||||||
| Stability | ≤±0.003Abs/10min | ||||||
| Sensitivity | ≥0.01L/mg | ||||||
| Channel Difference | ≤0.02Abs | ||||||
| Vibration Plate Function | 3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) | ||||||
| 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA) | |||||||
| Incubation Function | Time Range: 0~60min | ||||||
| Temp. Range: RT+4℃~50℃(Only for BK-EL10D, BK-EL10DA) | |||||||
| Software (Standard) |
Detection Mode | Single/double wavelength | |||||
| Qualitative | Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions | ||||||
| Quantitative | Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms | ||||||
| Others | Display | 10.1 inch color touch capacitive screen(BK-EL10A, BK-EL10D, BK-EL10DA) | |||||
| 10.1 inch resistive touch screen(BK-EL10C) | |||||||
| Operating Mode | Touch screen operation, equipped with capacitive stylus, support for external keyboard and mouse(BK-EL10A, BK-EL10D, BK-EL10DA) | ||||||
| Printer(Optional) | BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer(A4 printer can be optional) | ||||||
| BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) | |||||||
| BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) | |||||||

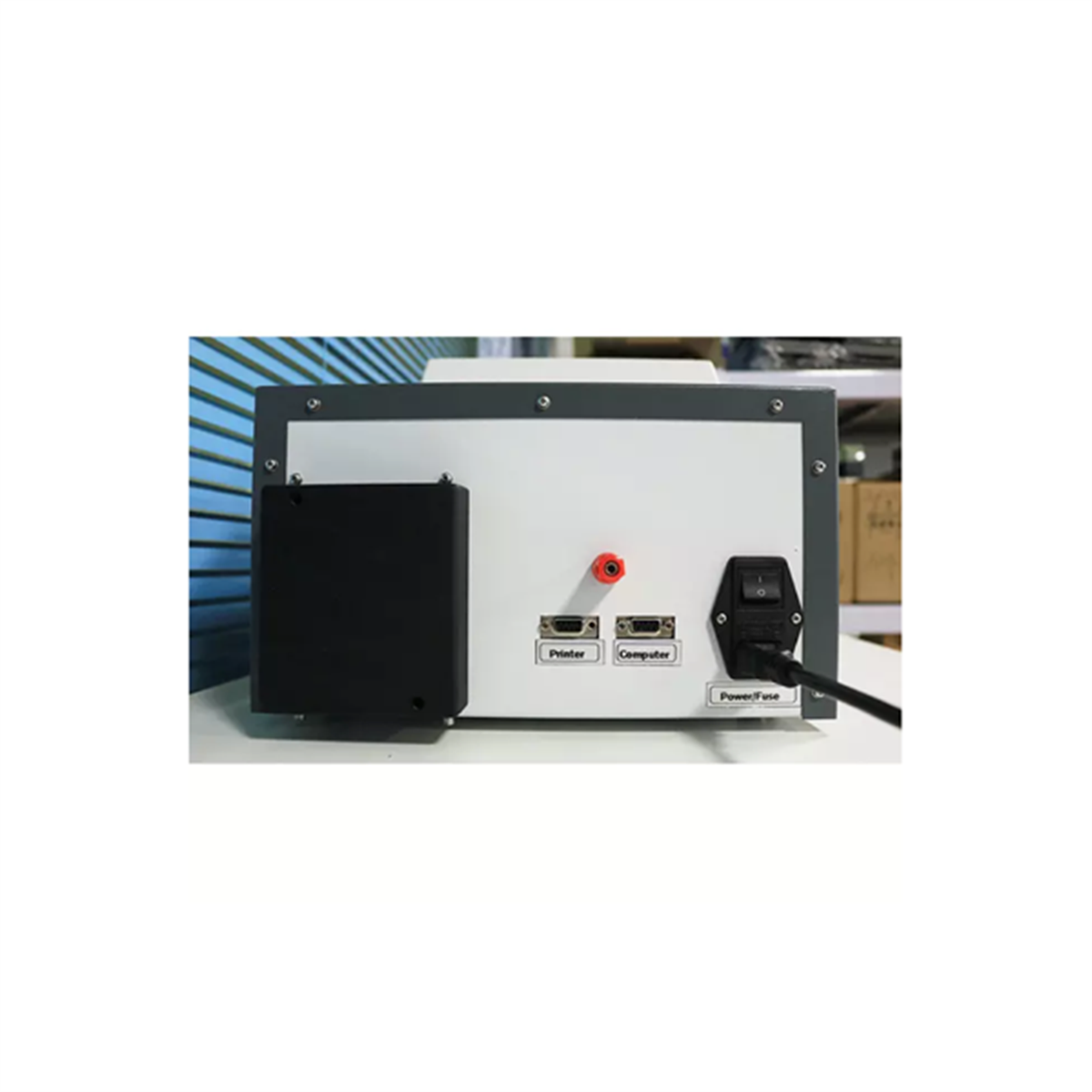

| Interface | USE2.0*4, RJ45 network port*1, RS-232*1(BK-EL10A, BK-EL10D, BK-EL10DA) | ||||||
| RS232 serial port(BK-EL10B) | |||||||
| RS-232*2(Standard RS232 to USB cable)(BK-EL10C) | |||||||
| Power Supply | AC100~240V, 50/60Hz | ||||||
| Instrument Size(W*D*H) | 450*320*300mm | ||||||
| Package Size(W*D*H) | 585*425*405mm | ||||||
| Net/Gross Weight | 11/13kg | ||||||
ELISA Related Products
| Fully Auto ELISA Processor |
| ELISA Microplate Reader |
| ELISA Microplate Washer |
Related Products
Nucleic Acid Extraction System (BNP32)
$14,999.00
$14,999.00
Nucleic Acid Extraction System (BNP48)
$25,499.00
$25,499.00
Nucleic Acid Extraction kit (Magnetic beads)
$390.00
$390.00
Automatic Nucleic Acid Extraction System (BK-HS96)
$45,000.00
$45,000.00
Automatic Nucleic Acid Extraction System (BK-AutoHS96)
$103,500.00
$103,500.00
Auto Chemistry Analyzer (BK-200mini)
$9,000.00
$9,000.00
Auto Chemistry Analyzer (BK-280)
$13,800.00
$13,800.00
Auto Chemistry Analyzer (BK-400)
$19,500.00
$19,500.00
Auto Chemistry Analyzer (BK-600)
$28,500.00
$28,500.00
Auto Chemistry Analyzer (BK-1200)
$60,000.00
$60,000.00
Water Purifier (Automatic RO/Ultra-pure Water)
$1,500.00
$1,500.00
Automated ELISA processors (BIOBASE1000)
$30,000.00
$30,000.00
Nucleic Acid Extraction System (BK-HS32)
$15,900.00
$15,900.00
Automated ELISA processors (BIOBASE2000)
$36,000.00
$36,000.00
Semi-auto Chemistry Biochemistry Analyzer Semi Auto Manufacture
$2,400.00
$2,400.00
No More Sales-3 Part Auto Hematology Analyzer (BK-9610)
$99,999.00
$99,999.00
No More Sales-3 Part Auto Hematology Analyzer (BK-5000)
$99,999.00
$99,999.00

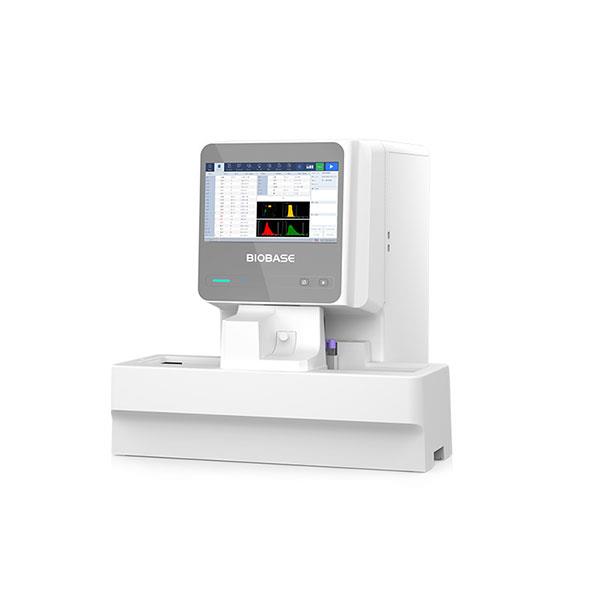

5-Part Auto Hematology Analyzer (BH-HA630)
$13,500.00
$13,500.00
No More Sales-5 Part Auto Hematology Analyzer (BK-6400)
$99,999.00
$99,999.00
5 Part Auto Hematology Analyzer (BH-HA650)
$26,250.00
$26,250.00
ELISA Microplate Reader (BK-EL10C)
$3,600.00
$3,600.00

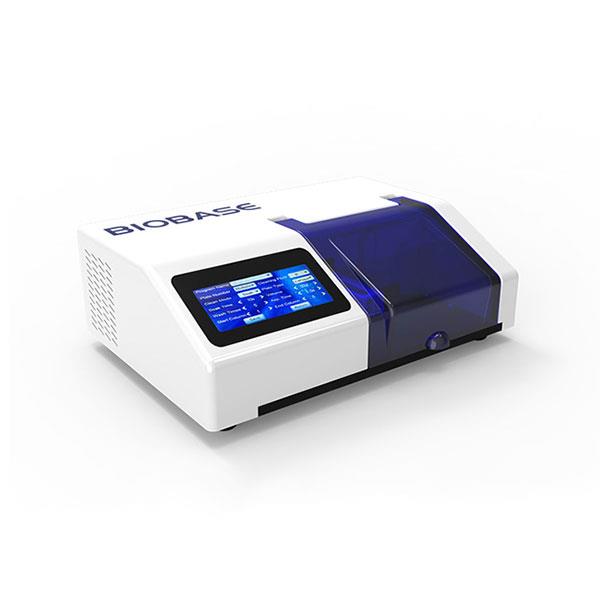

ELISA Microplate Washer (BK-9622)
