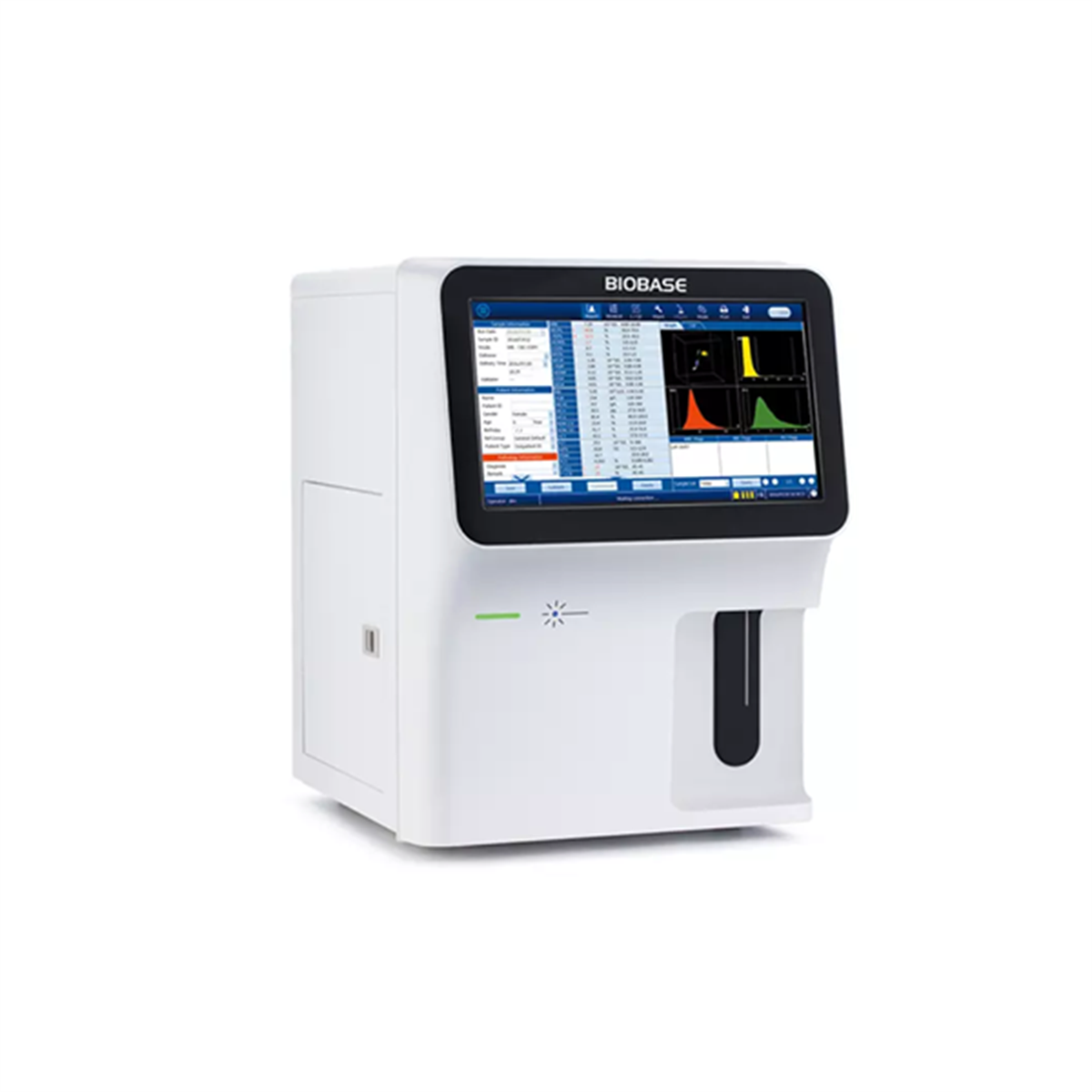

5-Part Auto Hematology Analyzer (BH-HA630)
5-Part Auto Hematology Analyzer (BH-HA630)
Cat. No. DCBio-BH-HA630
Features
- Throughput 60T/H.
- 14 inch touch screen.
- Tri-angle laser scatter + flow cytometry method impedance method for counting.
- 3D holographic scattergram displays the accurate 5 part differentiation of WBC.
- Large storage capacity: 100,000 results(including histogram, scattergram, patient information).
For more details please see the below video:
Model
|
Model |
DCBio-BH-HA630 |
|||
|
Throughput |
60Tests/hour |
|||
|
Assay Items |
5 parts, 29 parameters,3 histograms |
|||
|
Principle |
Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test |
|||
|
Test Mode |
CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted. |
|||
|
Parameters |
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 Research parameters: ALY%, ALY#, IG%, IG# |
|||
|
Performance |
Item |
Linearity range |
Carry Over |
CV |
|
WBC |
(0~300.0x10^9)/L |
≤0.5% |
≤2.0% |
|
|
RBC |
(0~8.00x10^12)/L |
≤0.5% |
≤1.5% |
|
|
HGB |
(0~250) g/L |
≤0.5% |
≤1.5% |
|
|
PLT |
(0~3000x10^9)/L |
≤1.0% |
≤4.0% |
|
|
Sample Volume |
CBC+DIFF mode≤20μl CBC mode≤10μl |
|||
|
Storage |
10,000 results including histograms, scattergrams and patient information |
|||
|
Interface |
4 USB ports, 1LAN port Bi-direction LIS, support HL7 protocol, Internal RFID reader |
|||
|
Power Supply |
AC220V±10% 50/60Hz; 110V±10% 60Hz; 400VA |
|||
|
Package Size |
575*490*690mm(W*D*H) |
|||
|
Gross Weight |
46kg |
|||
|
Reagent Package Size |
330*330*330m, 400*290*240mm, 400*290*240mm (W*D*H) |
|||
|
Reagent Gross Weight |
22kg; 2kg; 1kg |
|||
Note: This product weighs over 50 pounds and requires a liftgate truck for delivery. However, if you have a loading dock for delivery trucks, a liftgate truck may not be necessary. For more information, click here >>> go or refer to the FedEx website >>> go.
