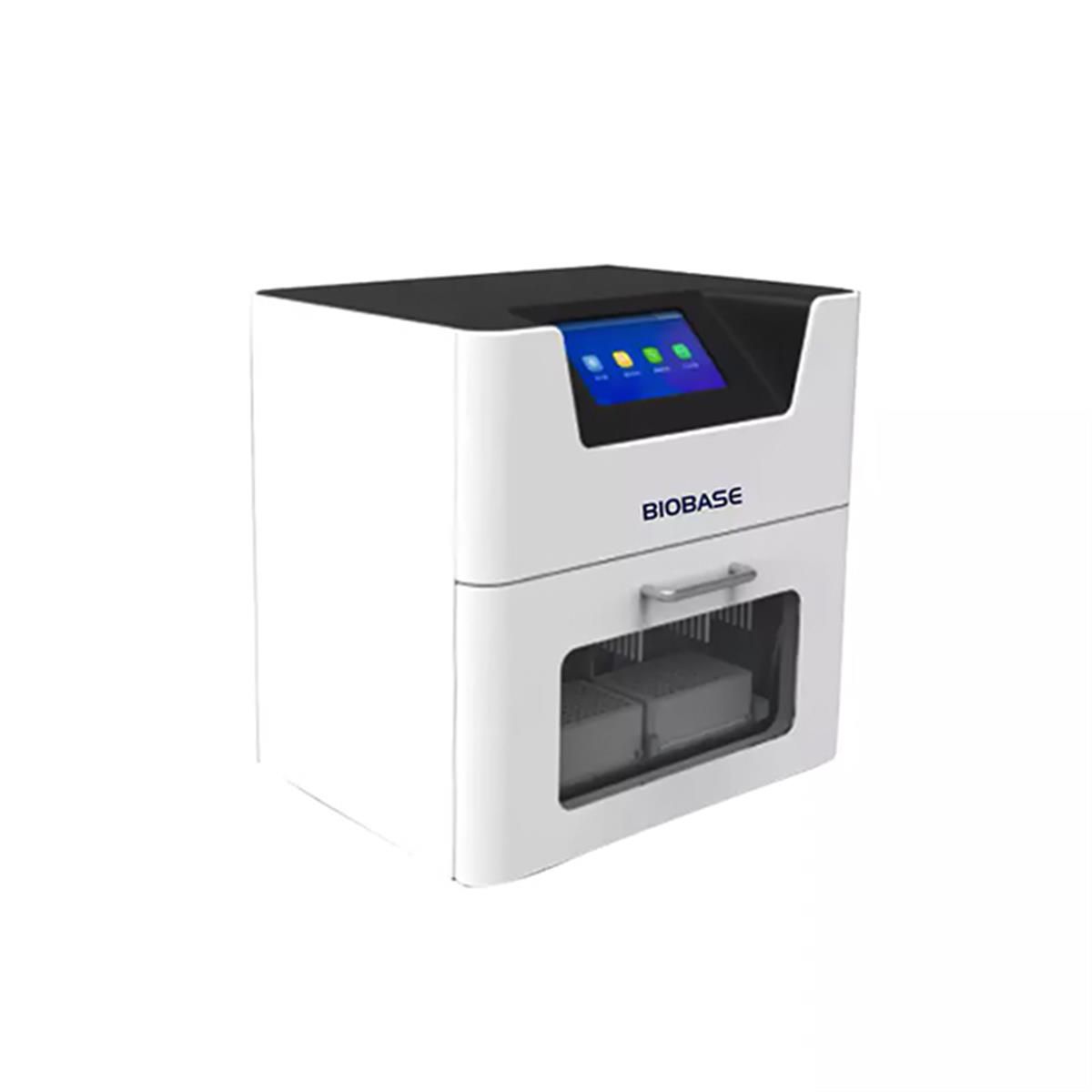

Nucleic Acid Extraction System (BNP32)

Product#: DCBio-23PNB
Ships in 1-2 weeks

Nucleic Acid Extraction System (BNP32)

Cat. No. DCBio-23PNB


  1. 7-inch touch screen, easy to use, fast response.
  2. User-defined cracking and elution temperature.
  3. UV disinfection fuction, time range 1min-24hour.
  4. Automatic control system, no need connect to computer.
  5. Free programming to meet the needs of different reagent.
  6. Open system, fully automatic, stable results and good repeatability.
  7. Extract rapidly 15-40 minutes , 32 samples can be extracted at the same time.

Call inquire your price

Operation Process

Models: DCBio-23PNB

Technical Parameter

Sample Quantity 32 48
Processing Volume 20μL-1000μL
Sample Volume 20-500μL
Sample Throughput Jan-32
Magnetic Bead Recovery >98%
Nucleic Acid Extraction Reagent click here >>> Go detailed Page "Nucleic Acid Extraction Reagent"
Extracting the Difference Between Holes CV≤3%
Heating Temperature 8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs
Oscillating Mixing Low,medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume
Reagent Type Magnetic bead open platform
Extraction Time 15-40 min/round (depending on the reagent used)
Internal Program Be able to store >100 groups of programs
Program Management Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved
Safety Door Design After the safety door is opened,the program operation will be automatically suspended, and the program can continue t run after the safety door closed
Built-in Air Duct No Yes
Ultraviolet Irradiation Yes
Packing Size(W*D*H)mm 580*510*700 700*520*750
GrossWeight(kg) 51 80
