Automatic Nucleic Acid Extraction System (BK-HS96)

Product#: DCBio-69SH-KB
$45,000.00
Availability:
Ships in 1-2 weeks

Automatic Nucleic Acid Extraction System (BK-HS96)


Cat. No. DCBio-69SH-KB

Description

DCBio-69SH-KB is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment, matching nucleic acid extraction kits is used to automatically complete the extraction of sample nucleic acid, flexible, stable result, low cost, equipped with efficient filtration device and safety gate design, it can effectively avoid cross infection and ensure the quality of nucleic acid extraction., guarantee the quality of nucleic acid.

Features
  • Display: 10.1 inch touch screen, easy to operate
  • Accurate temperature control and rapid temperature rise, can be adopted to actively reduce to room temperature and store samples in a short time at low temperature.
  • The module is integrated with shocking and heating, which can be mixed with shock while heating, saving extraction time.
  • Equipped with ultraviolet disinfection lamp, HDPE high efficiency filter and safety door protection function, it can effectively prevent aerosol pollution.
Call inquire your price

Operation Process


Model:

Model

DCBio-69SH-KB

Nucleic Acid Extraction Method

Paramagnetic particle method

Sample Capacity

96-well

Sample Volume

20-1000ul

Extraction Time

15min-60min

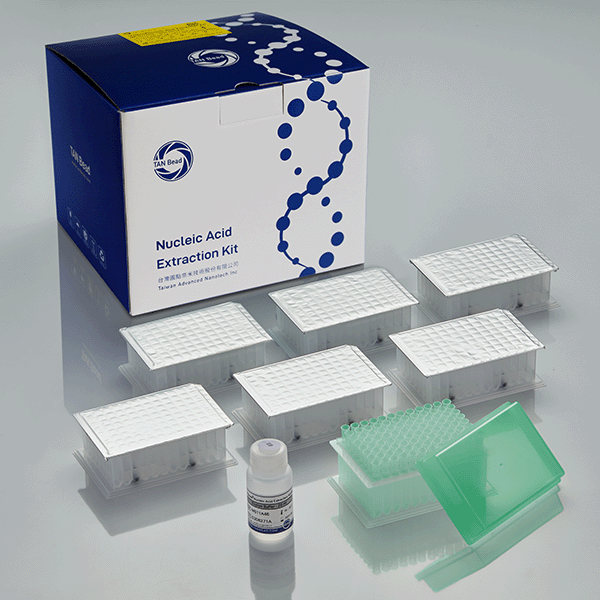

Nucleic Acid Extraction Kit III (Magnetic beads) click here >>> Go detailed Page "Nucleic Acid Extraction Kit III"

Magnetic Bead Recovery

≥98%

Magnetic Flux of Bar

3000-6000Gscan change others

Operating Temperature

RT-105℃

Shock Function

Yes

Temperature Accuracy

0.1℃

Sample Protection Function

Power on self-check, power off protection, high-temperature alarm, over-temperature protection

Disinfection Method

UV Light

Safety Door Design

The instrument is suspended when the safety door is opened

Operating System

Windows system

Scanning

Optional

Storage

>1000

Interface

USB interface

Power Supply

AC100-240V 50Hz/60Hz

Package Size(W*D*H) mm

1138*733*1028

Gross Weight(kg)

70
