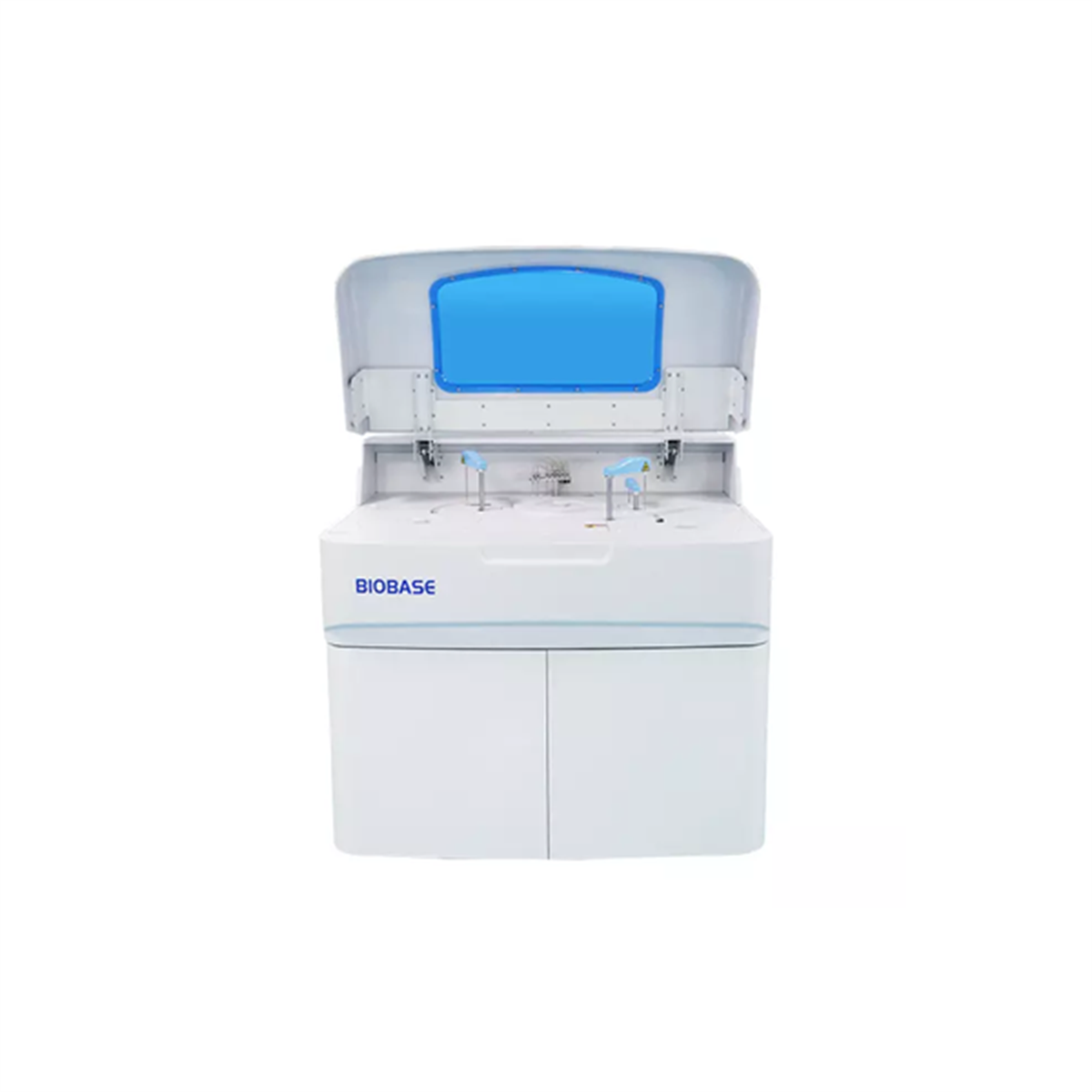

Auto Chemistry Analyzer (BK-400)

Product#: DCBio-004-KB
$19,500.00
Availability:
Ships in 1-2 weeks

Auto Chemistry Analyzer (BK-400)

Cat. No. DCBio-004-KB

Features

  1. 400 tests per hour.
  2. 90 Reagent positions.
  3. 120 Reaction cuvettes.
  4. Built-in sample barcode system optional.
  5. 60 Sample positions(90 sample positions optional).
  6. Probe with anti-collision function, liquid level detection function.

Model:


Model

DCBio-004-KB

Overall

Performance

Throughput

400 Test/hour

Analysis Method

End-point, Fixed-time, Rate(Kinetic), Turbidimetry

Certification

CE, FDA, ISO9001, ISO14001, ISO13485



Sample & Reagent System

Sample Positions

60 or 90 sample positions, built-in barcode system available

Reagent Positions

90 refrigerated reagent positions

Probe Washing

Automatic washing interior and exterior

Reagent Cooling

Refrigerated tray with independent switch



Reaction System

Temperature Control

37±0.1℃, real-time monitoring

Cuvettes

120reusable cuvettes, optical length 6mm

Mixer Probe

Independent stirring

Washing

Automatic cuvettes washing

STAT function

YES

Optical System

Light Source

12V/30W halogen-tungsten lamp

Spectrophotometry

Post-spectral spectrophotometry

Wavelength

340,405,450,510,546,578,630,700nm

Absorbance

0~3.0Abs

Calibration & QC

Calibration

Linear:K factor, 1-point ,2-point and multipoint linear

Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P

Quality Control

Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)

Data Management

Software

Windows 7/8/10 , 32or 64bit

LIS System

Bi-direction,support HL7 protocol

Interface

LAN port access

Printer

External,multiple reporting mode available

Working Conditions

Power Supply

AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W

Temperature

1030℃

Water Consumption

Deionized water:12L/H

Humidity

30-80%

Size & Weight

External Size (W*D*H)

1167*780*1016mm

Net Weight

193kg

Package Size (W*D*H)

1348*928*1399mm

Gross Weight

267kg
