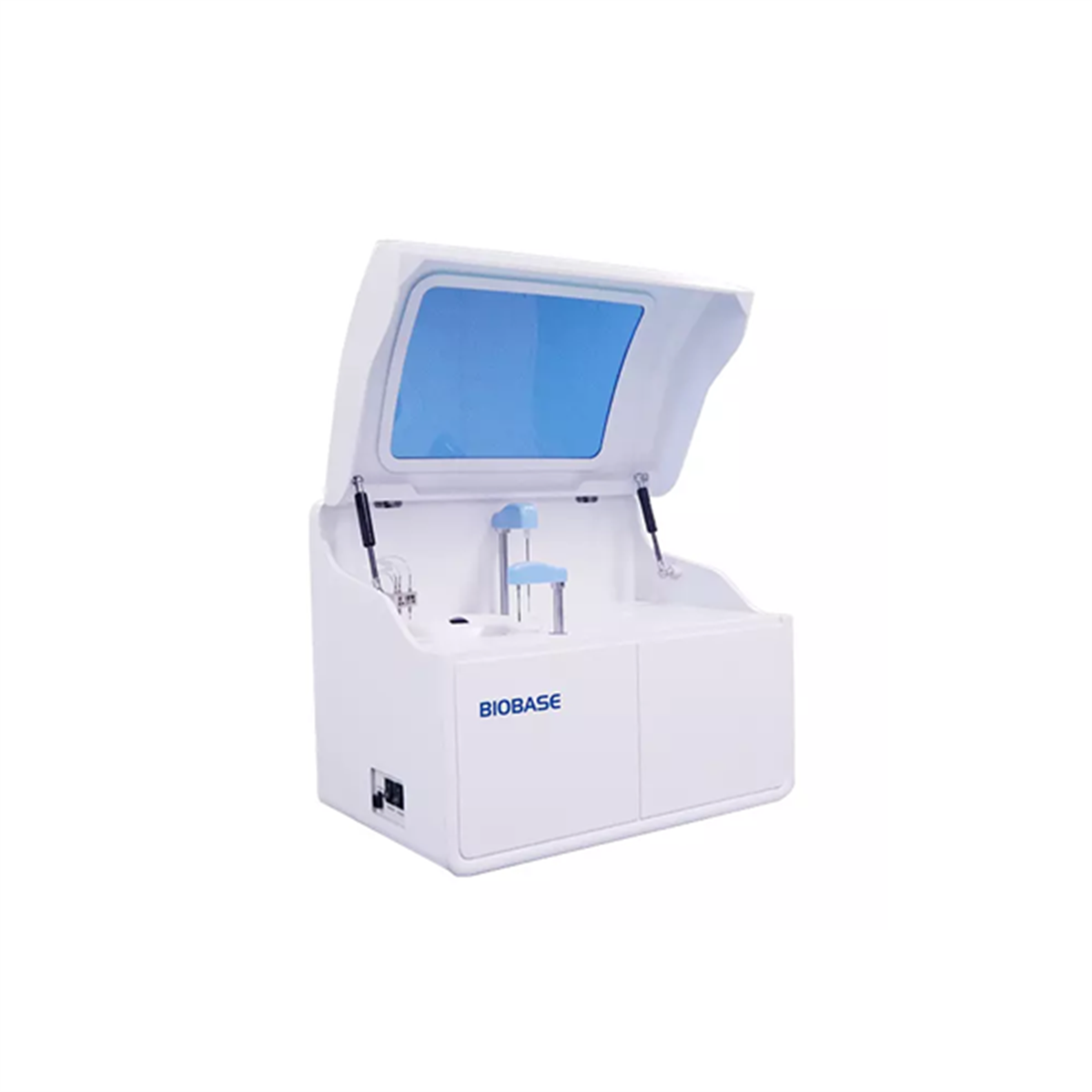

Auto Chemistry Analyzer (BK-200mini)
Auto Chemistry Analyzer BK-200(Previously BK-200mini)
Cat. No. DCBio-BK-200mini
Features
- 37 Sample positions.
- 28 Reagent positions.
- 48 Reaction cuvettes.
- 200 Tests per hour.
- Probe anti-collision function,liquid level dectection function.
For more details please see the video:
Models:
|
Model |
DCBio-BK-200 |
Click here >>> Go detailed page DCBio-BK-280 |
|
Overall |
Throughput |
200 Tests/hour |
|
Analysis Method |
End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
|
|
Certificates |
CE, FDA, ISO9001, ISO13485 |
|
|

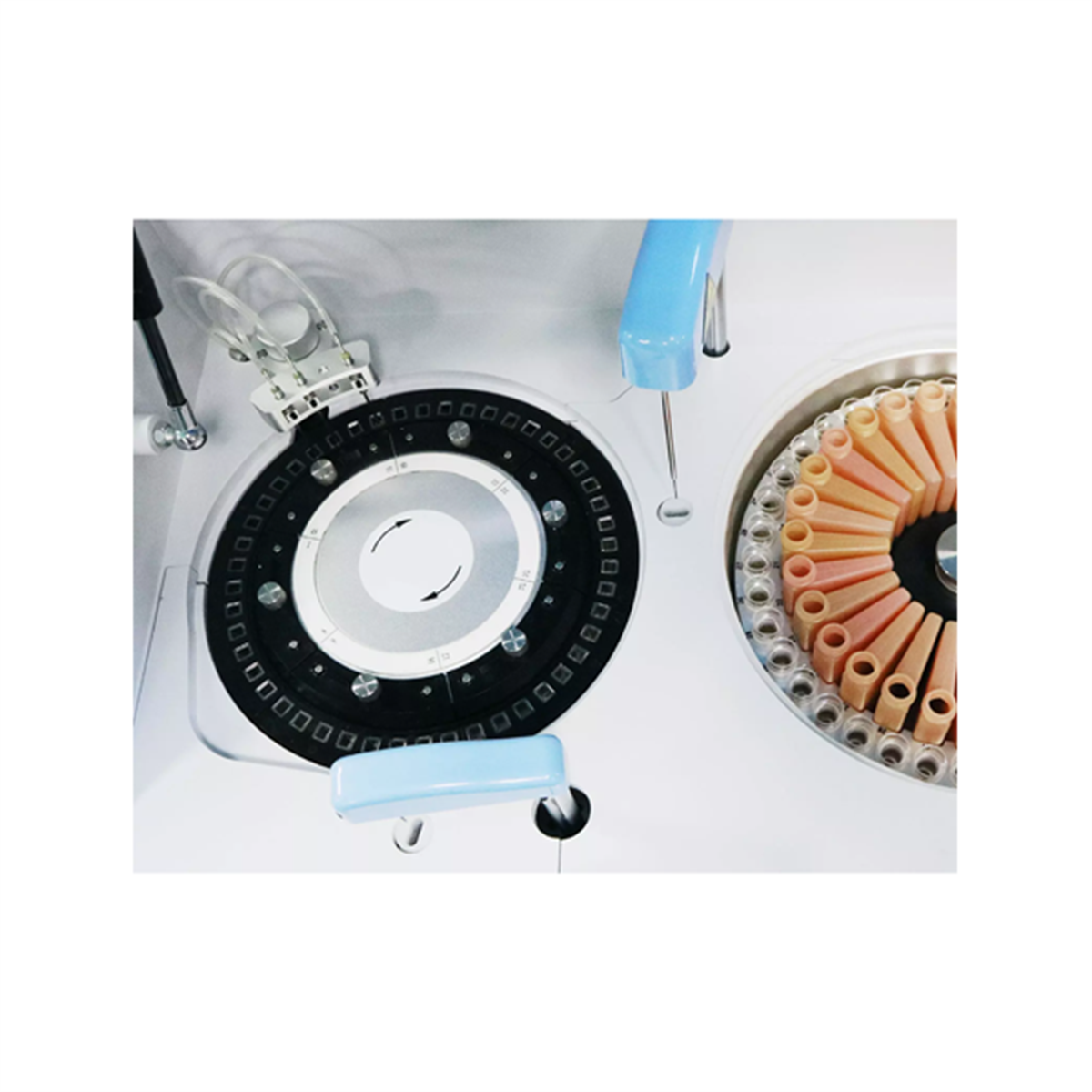

Sample & Reagent System |
Sample Positions |
37 sample positions |
|
Reagent Position |
28 reagent positions |
|
|
Sample Volume |
2~70µl |
|
|
Reagent Volume |
20~350µl |
|
|
Probe |
Teflon coating, with anti-collision function, liquid level detection function |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
Refrigerated tray with independent switch |
|
|
Reaction System |
Temperature Control |
37±0.2℃ |
|

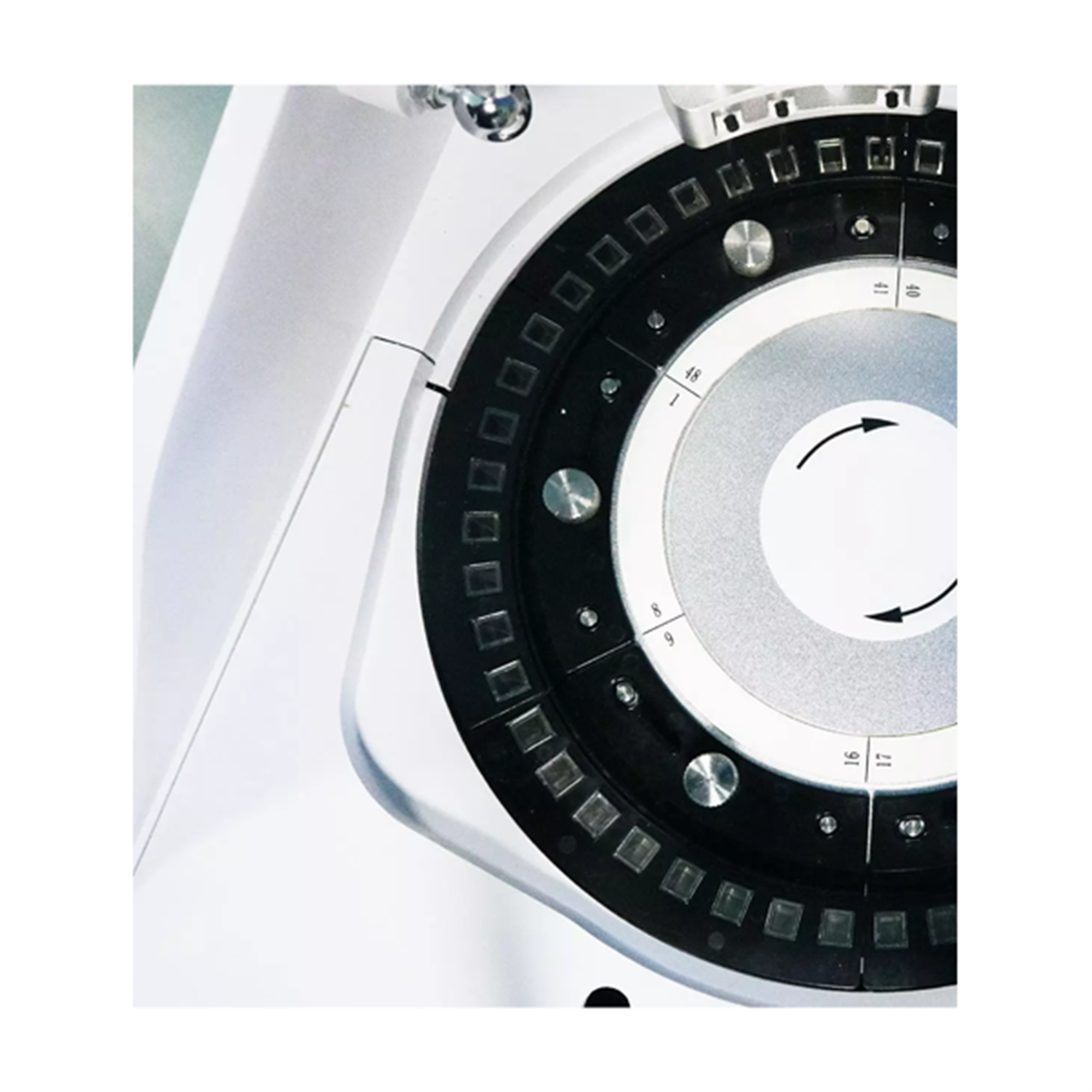

Cuvettes |
48 reusable cuvettes,optical length 6mm |
|
|
Mixer Probe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT function |
YES |
|
|
Optical System |
Light Source |
6V/10W halogen lamp |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
340,405,450,510,546,578,630,700nm |
|
|
Absorbance |
0~3.0Abs |
|
|
Calibration & QC |
Calibration |
Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
|
Quality Control |
Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D), Daily QC, Monthly QC |
|
|
Data Management |
Software |
Windows 7/8/10 , 32or 64bit |
|
LIS System |
Bi-direction,support HL7 protocol |
|
|
Interface |
LAN port access |
|
|
|
Printer |
External optional, multiple reporting mode available |
|
Working Conditions |
Power Supply |
AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W |
|
Temperature |
15～30℃ |
|
|
Water Consumption |
Deionized water:＜5L/H |
|
|
Humidity |
40-85% |
|
|
Size & Weight |
External Size (W*D*H) |
625*425*460mm |
|
Net Weight |
36kg |
|
|
Package Size (W*D*H) |
750*560*900mm |
|
|
Gross Weight |
55kg |
Note: This product weighs over 50 pounds and requires a liftgate truck for delivery. However, if you have a loading dock for delivery trucks, a liftgate truck may not be necessary. For more information, click here >>> go or refer to the FedEx website >>> go.
