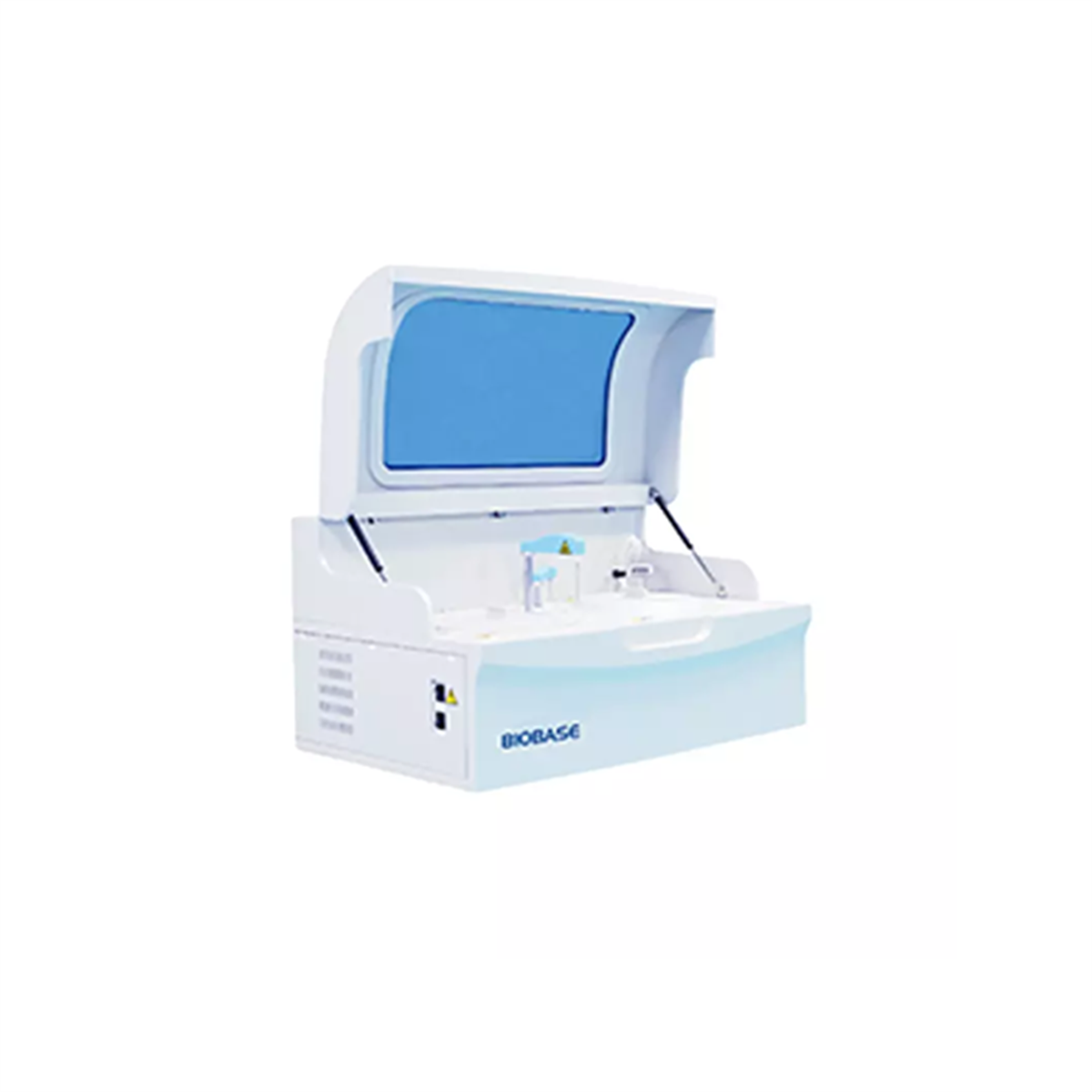

Auto Chemistry Analyzer (BK-280)
Auto Chemistry Analyzer (BK-280)
Cat. No. DCBio-BK-280
Features
- 49 Sample positions.
- 56 Reagent positions.
- 120 Reaction cuvettes.
- 200 Tests per hour.
- Probe with anti-collision function,liquid level dectection function.
For more details please see the video:
Model:
|
Model |
DCBio-BK-280 |
|
|
Overall Performance |
Throughput |
200Tests/Hour |
|
Analysis Method |
End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
|
|
Certificates |
CE, FDA, ISO9001, ISO13485 |
|
|
Sample & Reagent Unit |
Sample Positions |
49 sample positions |
|

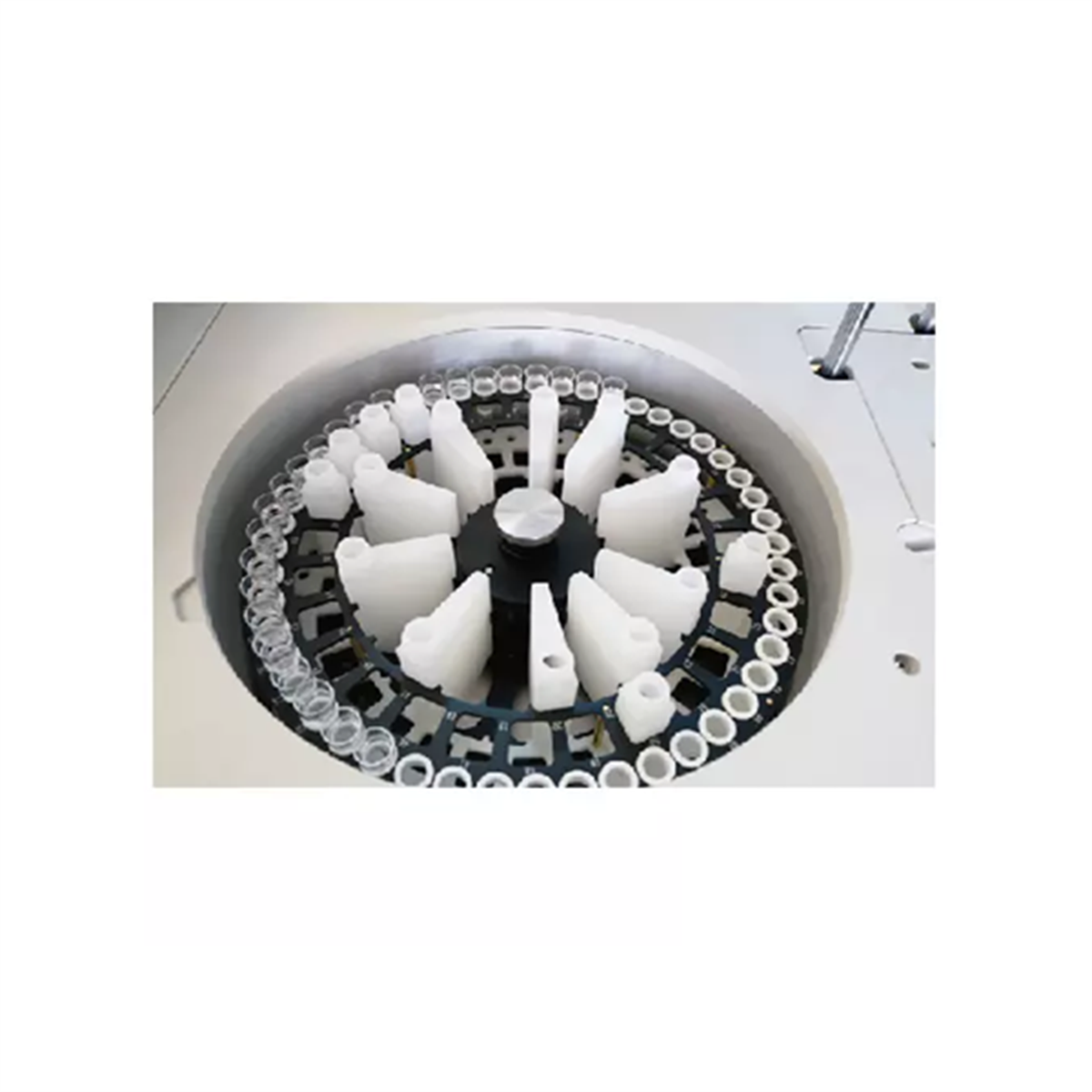

Reagent Positions |
56 reagent positions |
|
|
Sample Volume |
2~70μL |
|
|
Reagent Volume |
20~350μL |
|
|

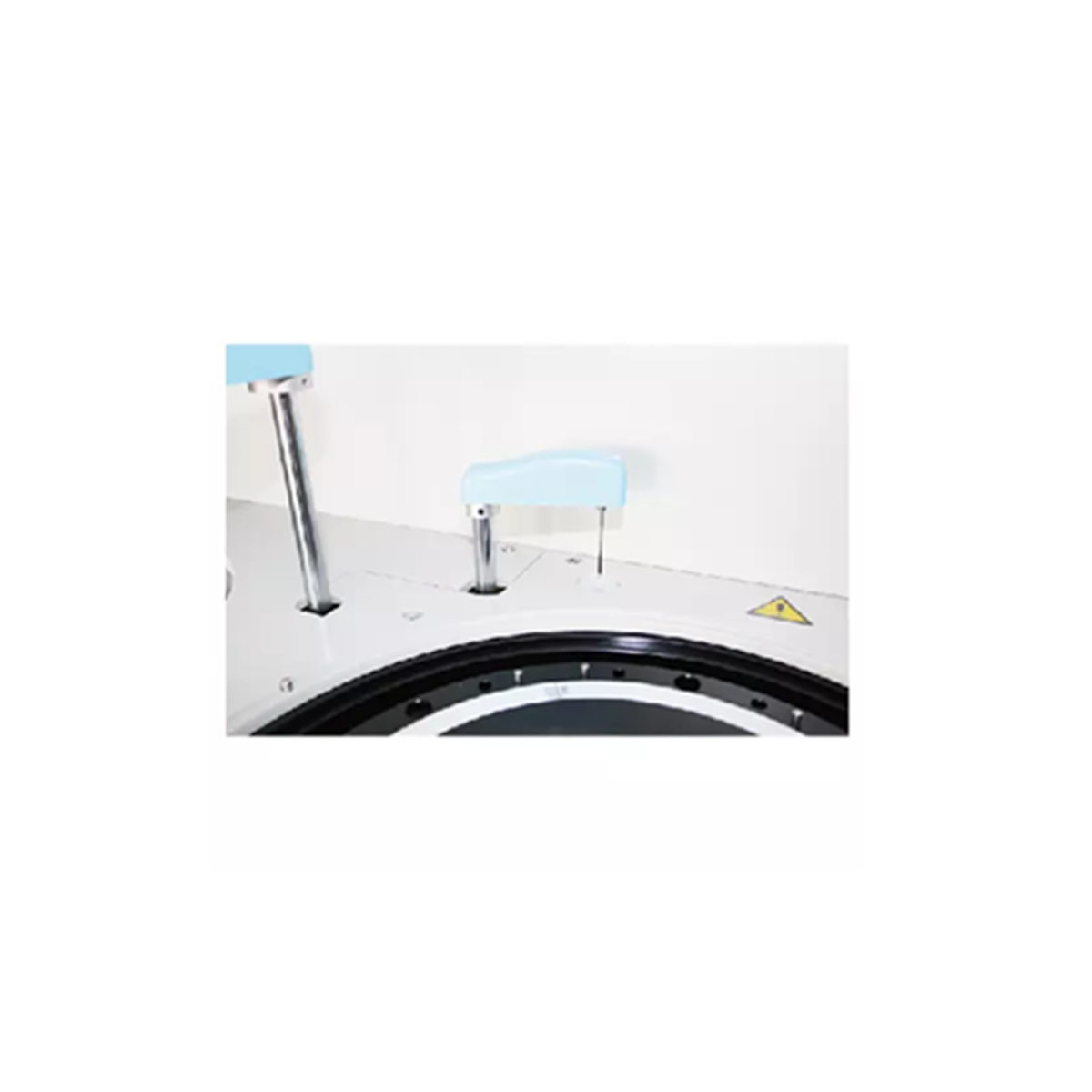

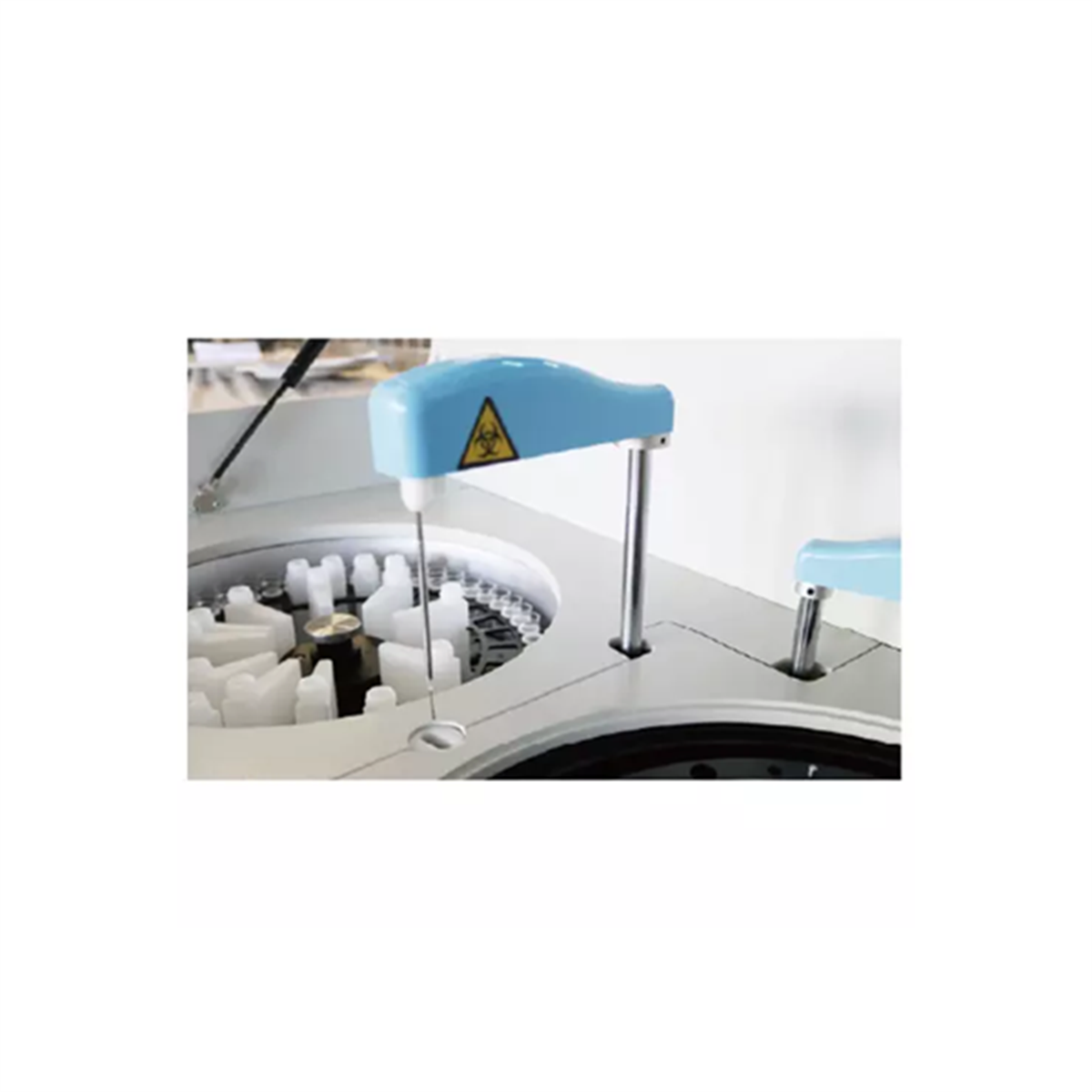

Probe |
Teflon coating, with anti-collision function, liquid level detection function |
|
|
Probewashing |
Automaticwashing interior and exterior |
|
|
ReagentCooling |
Refrigerated tray with independent switch |
|
|
Reaction System |
Temperature Control |
37±0.2℃ |
|

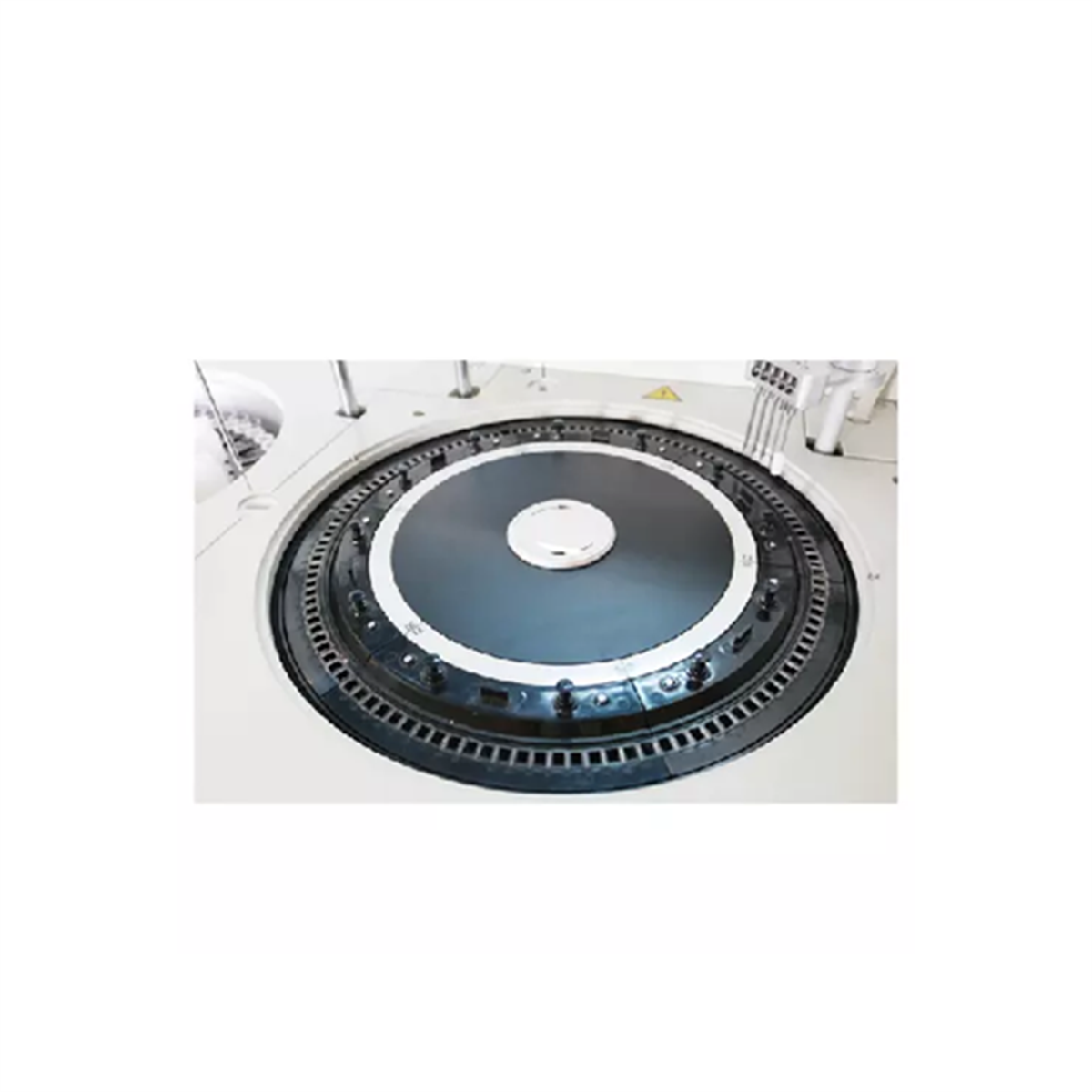

Cuvettes |
120 reusable cuvettes,optical length 6mm |
|
|

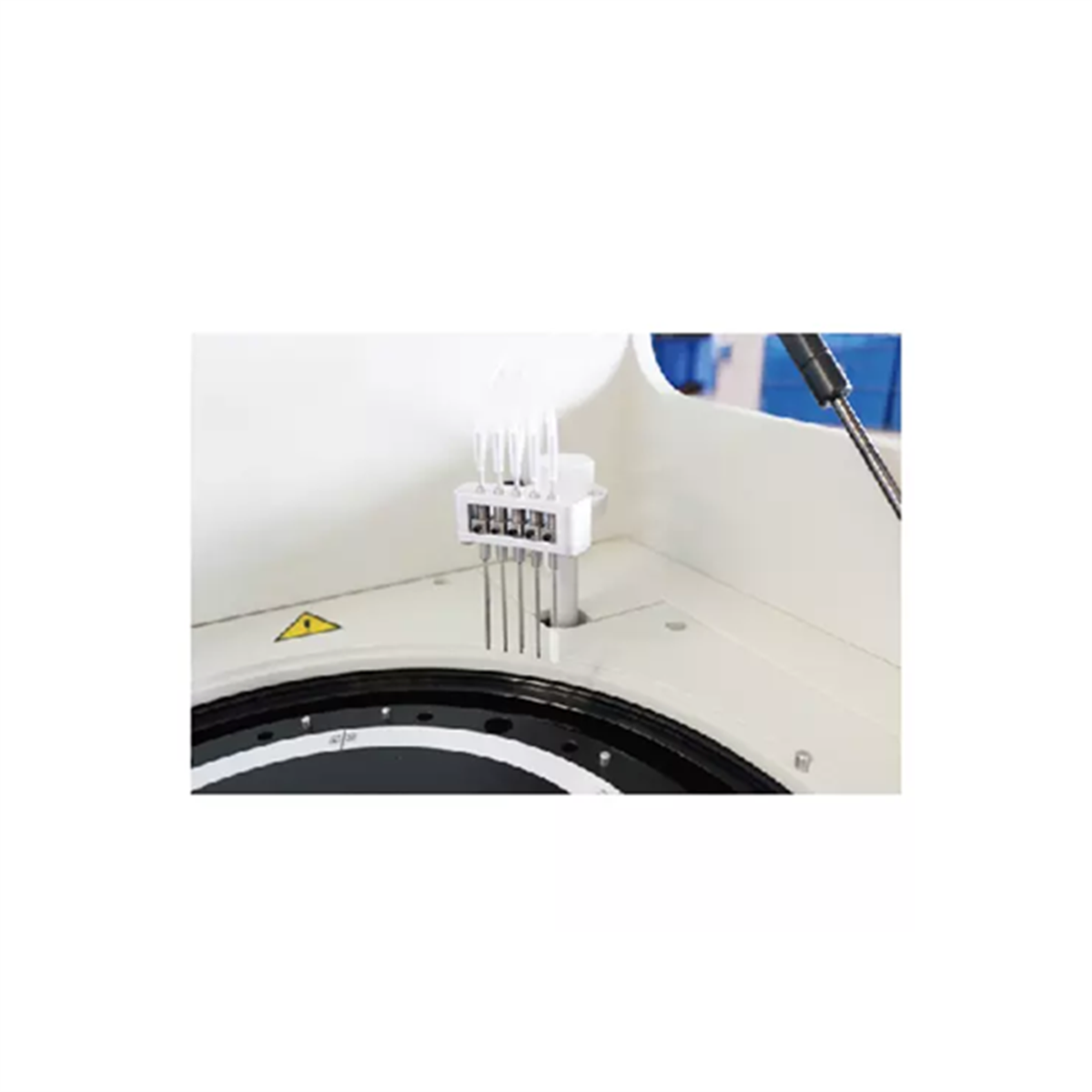

MixerProbe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT function |
YES |
|
|
Optical System |
Light Source |
12V/30W halogen lamp |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm |
|
|
Absorbance |
0~3.0Abs |
|
|
Calibration&QC |
Calibration |
Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Logit-4P,Logit-5P |
|
Quality Control |
Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D), Daily QC, Monthly QC |
|
|
Data Management |
Software |
Windows 7/8/10, 32 or 64 bit |
|
LIS System |
Bi-direction, support HL7 protocol |
|
|
Interface |
LAN port access |
|
|
Printer |
External optional, multiple reporting mode available |
|
|
Working Conditions |
Power Supply |
AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W |
|
Temperature |
15~30℃ |
|
|
WaterConsumption |
Deionized water:5L/H |
|
|
Humidity |
40%~85% |
|
|
Size & Weight |
External Size (W*D*H) |
950*600*515mm |
|
Net Weight |
75kg |
|
|
Package Size(W*D*H) |
1130*735*1040mm |
|
|
Gross Weight |
135kg |
Note: This product weighs over 50 pounds and requires a liftgate truck for delivery. However, if you have a loading dock for delivery trucks, a liftgate truck may not be necessary. For more information, click here >>> go or refer to the FedEx website >>> go.
