Sealing material
Sealing material
Cat No.: RWD-R480-SMStandard packaging unit of 10 qty. per box.
* Smaller size available ONLY when combined with other related Animal Work products.
* Customized Orders available for combining various Animal Work products. Please contact the Diagnocine Support Team before placing your order.
Email: support@diagnocine.com
Phone: 551-245-1033
Description
The RWD-R480-SM Sealing Material is a precision-engineered replacement component specifically designed for the RWD R-480 Nanoliter Microinjection Pump. This sealing material is critical for maintaining the airtight integrity of the injection unit, ensuring consistent, high-precision nanoliter injections with minimal leakage and maximum reproducibility.
Specifications
-
Purpose: Replacement sealing material for the R-480 Nanoliter Microinjection Pump injection unit.
-
Function: Maintains optimal air-tightness between the internal plunger and the glass capillary (electrode), which is essential for accurate and consistent nanoliter-scale injections.
-
Compatibility: Exclusively compatible with the RWD R-480 Nanoliter Microinjection Pump; required for continued performance after routine maintenance or extended use.
-
Installation: User-replaceable; designed for easy replacement inside the injection unit without the need for specialized tools.
Scientific and Laboratory Benefits
-
Reliability: Prevents air or fluid leakage during microinjection, which is vital for reproducible delivery of drugs, nucleic acids, proteins, dyes, and other reagents into animal and cellular models.
-
Maintenance: Regular replacement of the sealing material is recommended as part of standard instrument upkeep to guarantee system longevity and data integrity.
Order Information

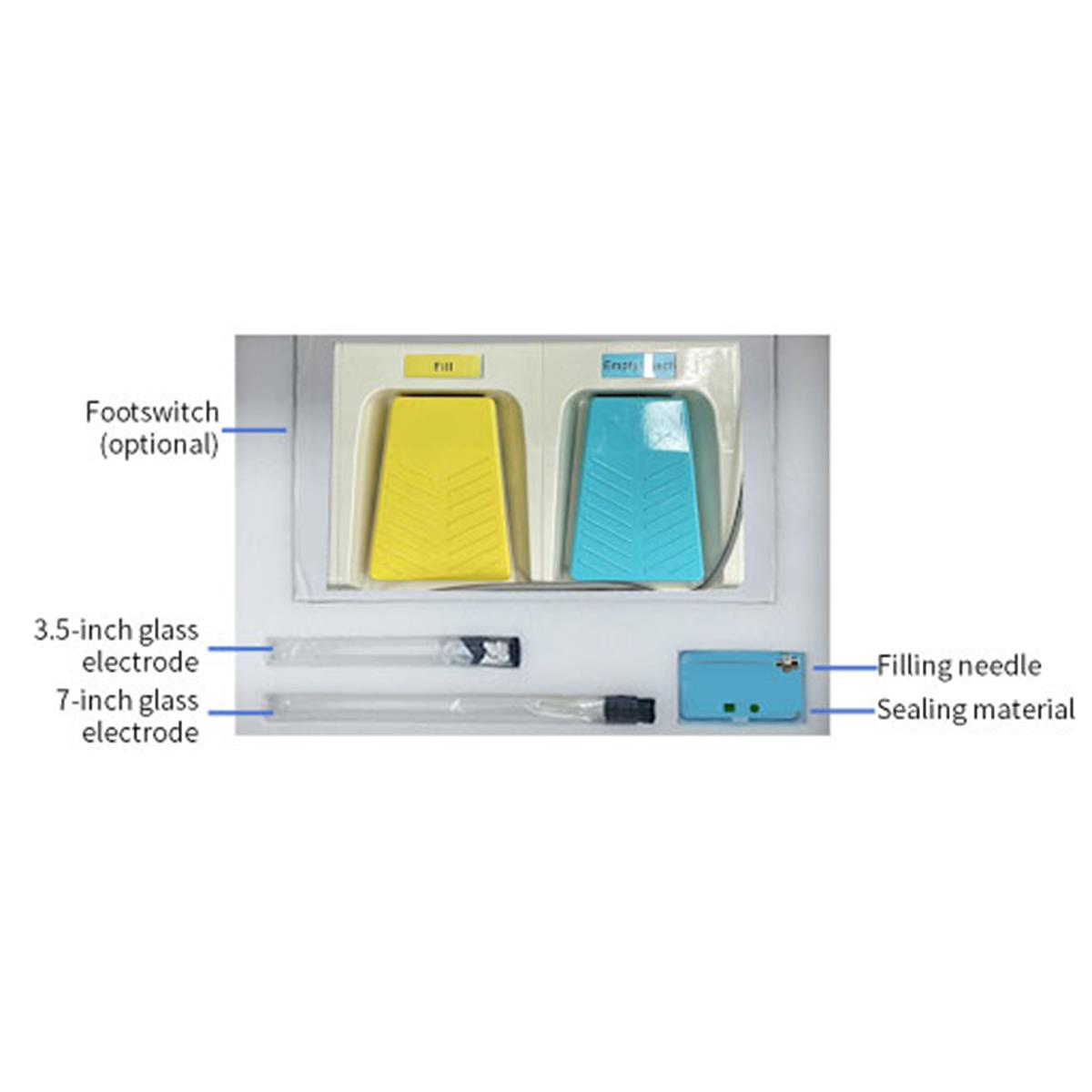

| Name | Model | Standard/optional | Quantity | Usage | Link |
| Nanoliter Injection Pump | RWD-R-480 | N/A | 1 | Designed for high-precision microinjection, with nanoliter volume injection using fine glass capillaries |  |
| Injection unit | N/A | Standard | 1 | For connecting glass electrodes and performing operations such as injection |
N/A |
| Control unit | N/A | Standard | 1 | For setting parameters and controlling the injection unit to perform the corresponding operations |
N/A |
| Connection cable | N/A | Standard | 1 | For connection between the injection unit and the control unit |
N/A |
| 3.5″ (8.89 cm) glass electrode | RWD-GC-3.5 | Standard | 100 | Outer diameter: 1.14 mm; inner diameter: 0.53 mm | |
| 7″ (17.78 cm) glass electrode | RWD-GC-7 | Standard | 100 | Outer diameter: 1.14 mm; inner diameter: 0.53 mm | |
| Universal adapter for all nanojects | RWD-R480-SF | Standard | 1 | For use in conjunction with stereotaxic and micro-manipulator |
N/A |
| Power adapter | N/A | Standard | 1 | For access to power supply | N/A |
| Filling needle | R480-FN | Standard | 1 | For oil fifilling | N/A |
| Sealing material | RWD-R480-SM | Standard | 1 | For replacing the sealing material inside the injection unit |
Current Link |
| Foot switch and connection cable | RWD-R480-FS | Optional | 1 | For controlling injection, emptying and other operations of the injection unit |
N/A |
| Dedicated fastener for micro-manipulation | RWD-R480-AFM | Optional | 1 | A special accessory equipped with RWD electric micro manipulator |
N/A |
| V attachment | RWD-68207 | Optional | 1 | Accessory equipped with stereotaxic instrument | |
