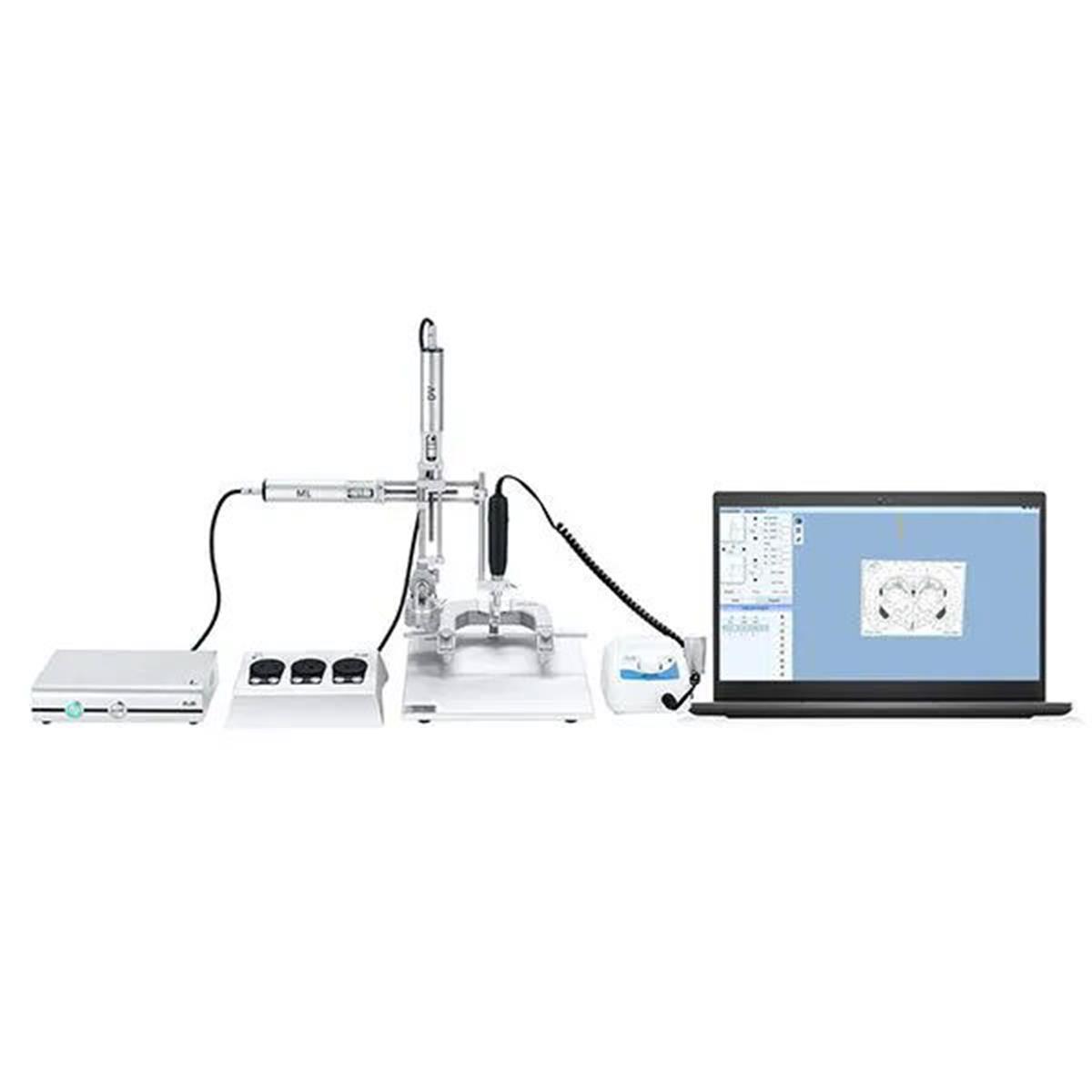

Automated Stereotaxic Basic Frame with Left Manipulator

Cat No.: RWD-RS-S


Description

RS-S is an automated and intelligent stereotaxic instrument with high precision (1 μm). The software has built-in rat and mouse brain atlas and automatic procedures (skull window, tissue removal and automated injection procedure), which can be observing the position of the probe relative to the brain area is convenient and efficient, and the operation is easy to use, greatly reducing the errors and damage caused by manual operation. In addition, it has an anti-collision function to prevent animal damage caused by wrong movement, which is safer.


Features:

★ Precision
1 micron resolution.
Motor instead of manual, precise control of displacement.

★ Precise Positioning Without Leveling
Atlas Calibration Function, accurate positioning without leveling.

★ Atlas Integration
Visualization of probe displacement.

★ Tiltable Injection
Manipulators Tilt Function, no need to manually calculate the positioning path.

★ Automated Functions
Automated procedures such as Skull Window, Tissue Removal, and Automated Injection programs are more efficient and convenient.

★ High Repeatability


Specifications

Working environment	Temperature: 5°C ~ 40°C
	Humidity: 15% ~ 95% (non-condensing）
	Air pressure: 57 kPa ~ 106 kPa
Storage environment	Temperature: -20°C ~ 60°C
	Humidity: 10% ~ 9% (non-condensing）
	Air pressure: 50 kPa ~ 106 kPa
Power supply	AC power: 90 V ~ 264 V, 50/60 Hz
	DC power: 24 VDC, 1.5 A, 36 W
	The voltage fluctuation does not exceed 1% of the working voltage range.

Warranty Period: 12 months
