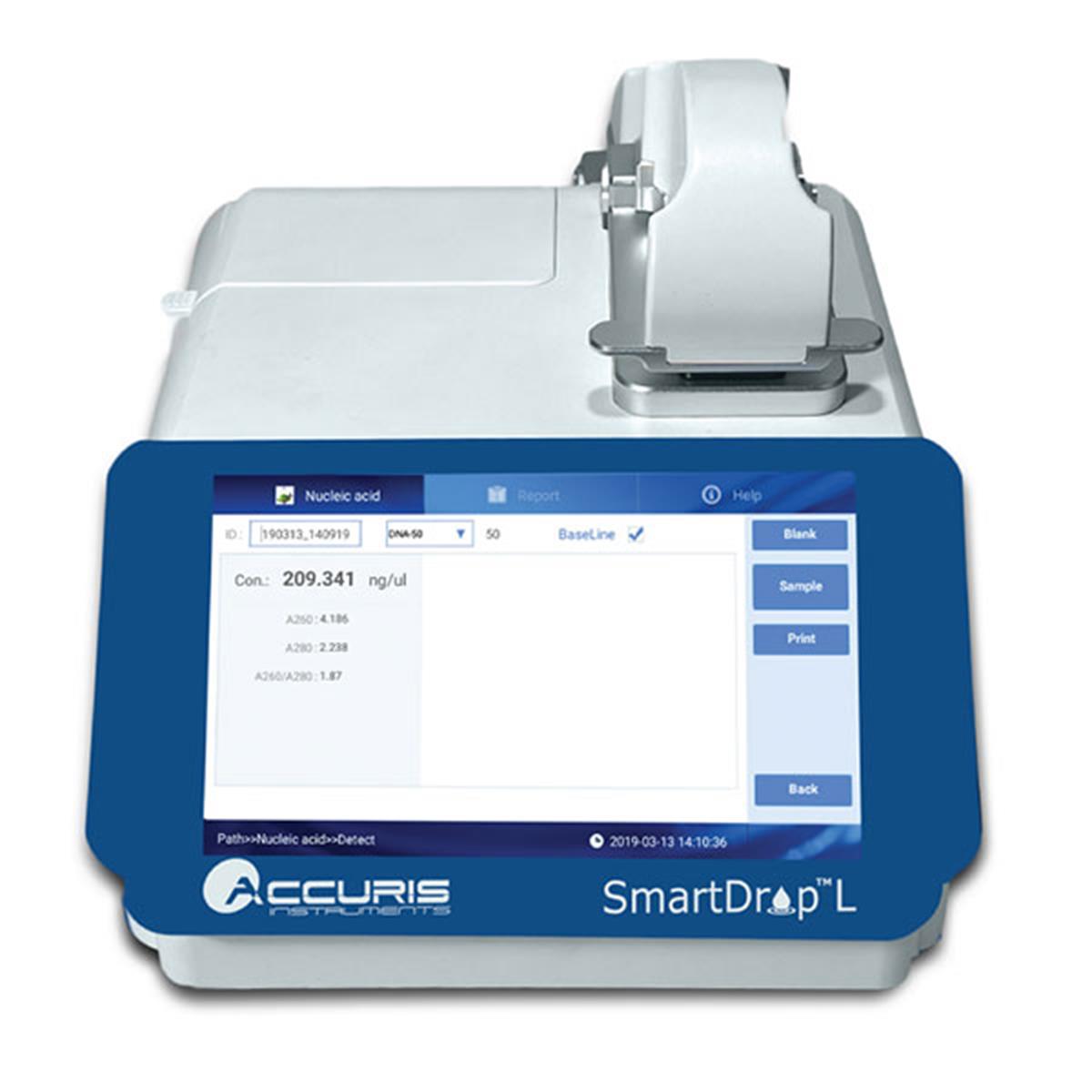

SmartDrop™ L Nano Spectrophotometer, 115V

Product#: BM-NS1000

$6,813.36

Qty:

Availability:

Ships in 48 hours

SmartDrop™ L Nano Spectrophotometer, 115V

Cat. No.: BM-NS1000

DNA/RNA/protein quantification and purity
Nano Spectrophotometer

SmartDrop L

Description

The SmartDrop™ L nano spectrophotometer measures 1.0µL – 2.0µL samples with high accuracy and reproducibility and employs surface tension to position the sample for measurement. The system includes a cuvette slot for OD600 readings & a built-in printer for printing results. The SmartDrop L can measure highly concentrated samples without dilution (100X concentration of samples measured by a standard cuvette spectrophotometer).

Features

User-Friendly Input & Operation – Touch screen for programming and operation (a mouse can also be connected)
Multifunctional software for Nucleic Acids, Protein A280, & OD600 measurements
dsDNA detection range from 10ng/µL – 2500ng/µL
Fast & accurate measurements (< 6 seconds)
2 cuvettes included (optical glass) for OD600 measurements.

SmartDrop L is the affordable choice for laboratories needing to determine nucleic acid and protein concentrations and purity of samples. The LED light source and silicon photocell sensor provide readings at 260 and 280nm. Samples from 1.0 to 2.0μl are loaded directly on the pedestal. Results are provided in about 5 seconds. The software automatically calculates and displays 260/280 ratios.

The Accuris SmartDrop™ series of nano spectrophotometers provides quick and easy quantification of small samples. Utilizing a small sample volume eliminates the need for dilutions, providing more accurate results.

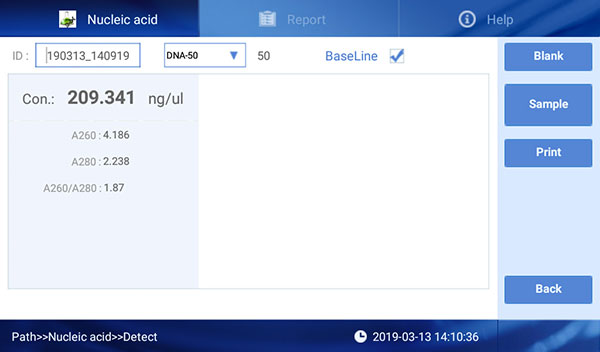

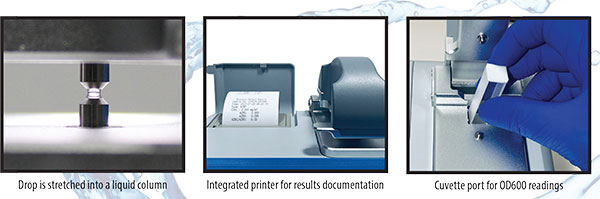

A full color, 7” touchscreen with icon-driven menus and preprogrammed protocols gets users up and running quickly. No external computer is required. Each unit features a quartz pedestal onto which a drop of sample is placed. The arm is lowered and the drop is stretched into a liquid column of specificed length for spectral analysis. DNA, RNA and protein concentrations and purity numbers are displayed in a matter of seconds. The resulting data can be printed, saved in the SmartDrop’s onboard memory or exported via USB as an Excel file. All SmartDrop models include an integrated printer. For OD600 readings, each model includes a cuvette port and two optical glass cuvettes. Three SmartDrop models are available to meet a range of applications and budgets.

The Accuris SmartDrop™ series of nano spectrophotometers provides quick and easy quantification of small samples. Utilizing a small sample volume eliminates the need for dilutions, providing more accurate results. A full color, 7” touchscreen with icon-driven menus and preprogrammed protocols gets users up and running quickly. No external computer is required. Each unit features a quartz pedestal onto which a drop of sample is placed. The arm is lowered and the drop is stretched into a liquid column of specificed length for spectral analysis. DNA, RNA and protein concentrations and purity numbers are displayed in a matter of seconds. The resulting data can be printed, saved in the SmartDrop’s onboard memory or exported via USB as an Excel file. All SmartDrop models include an integrated printer. For OD600 readings, each model includes a cuvette port and two optical glass cuvettes. Three SmartDrop models are available to meet a range of applications and budgets.

SmartDrop L is the affordable choice for laboratories needing to determine nucleic acid and protein concentrations and purity of samples. The LED light source and silicon photocell sensor provide readings at 260 and 280nm. Samples from 1.0 to 2.0µl are loaded directly on the pedestal. Results are provided in about 5 seconds. The software automatically calculates and displays 260/280 ratios

* Other types and Accessaries

Cat. No.	Description	more info.
BM-NS1000	SmartDrop™ L Nano Spectrophotometer, 115V

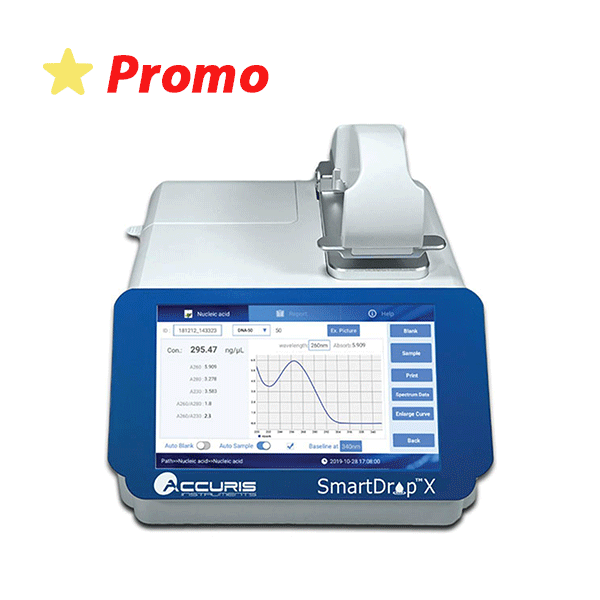

BM-NS1010	SmartDrop™ X Nano Spectrophotometer, 115V
BM-NS1020	SmartDrop™ XF Nano Spectrophotometer, 115V
BM-F1001-T (BM-F1000-HS-100) (BM-F1000-BR-100)	0.5mL Fluorescence Detection Tubes, pack of 250 * Ask for High Sensitivity DNA Quantification Kit /or Broad Range dsDNA Quantification Kit (available now)

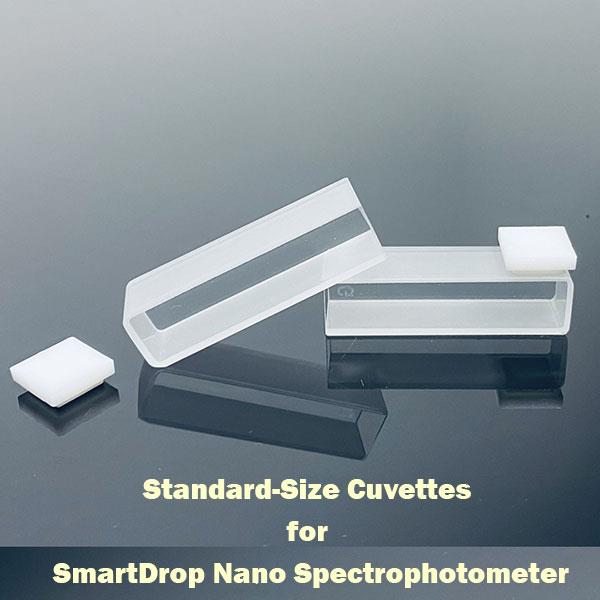

BM-NS1000-C	Additional Standard-Size Cuvettes, pack of 2
BM-NS1000-PA	Extra paper roll for SmartDrop internal printer, Pk 3

Specifications

Model	SmartDrop L (NS1000)	SmartDrop X (NS1010)	SmartDrop XF (NS1020)
Display	7-inch touch screen	7-inch touch screen	7-inch touch screen
Minimum sample size	1.0µl – 2.0µl	0.5µl – 2.0µl	0.5µl – 2.0µl
Path length	0.5mm	0.2mm, 1.0mm	0.05mm, 0.2mm, 1.0mm
Light source	UV LED	Xenon Flash Lamp	Xenon Flash Lamp
Detector	UV Silicon Photocell	2048 Element Linear Silicon CCD Array	2048 Element Linear Silicon CCD Array
Wavelength	260, 280, & 600nm	200 – 800nm (1nm steps)	200 – 800nm (1nm steps)
Absorbance range	0.2 – 50 A (10mm equivalent)	0.04 – 90 A (10mm equivalent)	0.04 – 300 A (10mm equivalent)
Absorbance precision	0.005 A	0.003 A	0.003 A
Lower limit of detection	dsDNA: 10ng/µl	dsDNA: 2ng/µl; BSA: 0.1mg/ml	dsDNA: 2ng/µl ; BSA: 0.1mg/ml
Upper limit of detection	dsDNA: 2,500ng/µl	dsDNA: 4,500ng/µl; BSA: 135mg/ml	dsDNA: 15,000ng/µl; BSA: 360mg/ml
Detection time	< 6 seconds	< 5 seconds	< 6 seconds
Communication ports	USB for data export	USB for data export	USB for data export
Voltage input	DC 24V, 2A	DC 24V, 2A	DC 24V, 2A
Power	25W	25W	25W
Dimensions (WxDxH)	20.8 x 8.0 x 18.6 cm / 8.2 x 11.0 x 7.3 in.	20.8 x 8.0 x 18.6 cm / 8.2 x 11.0 x 7.3 in.	20.8 x 8.0 x 18.6 cm / 8.2 x 11.0 x 7.3 in.
Weight	3.6 kg / 7.9 lbs	2.8 kg / 6.2 lbs	3.6 kg / 7.9 lbs
Cuvette OD600 detection
Absorbance range	0.0 – 4.0 A	0.0 – 4.0 A	0.0 – 4.0 A
Absorbance stability	[0,3) ≤ 0.5%, [3,4) ≤ 2%	[0,3) ≤ 0.5%, [3,4) ≤ 2%	[0,3) ≤ 0.5%, [3,4) ≤ 2%
Absorbance repeatibility	[0,3) ≤ 0.5%, [3,4) ≤ 2%	[0,3) ≤ 0.5%, [3,4) ≤ 2%	[0,3) ≤ 0.5%, [3,4) ≤ 2%
Absorbance precision	[0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%	[0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%	[0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%
Fluorescence detection
Excitation/Emission	N/A	N/A	460 ± 20nm / 525-570nm
Sensitivity	N/A	N/A	dsDNA: 0.5pg/µl
Linearity	N/A	N/A	R² ≥ 0.995
Repeatibility	N/A	N/A	≤ 1.5%
Stability	N/A	N/A	≤ 1.5%
