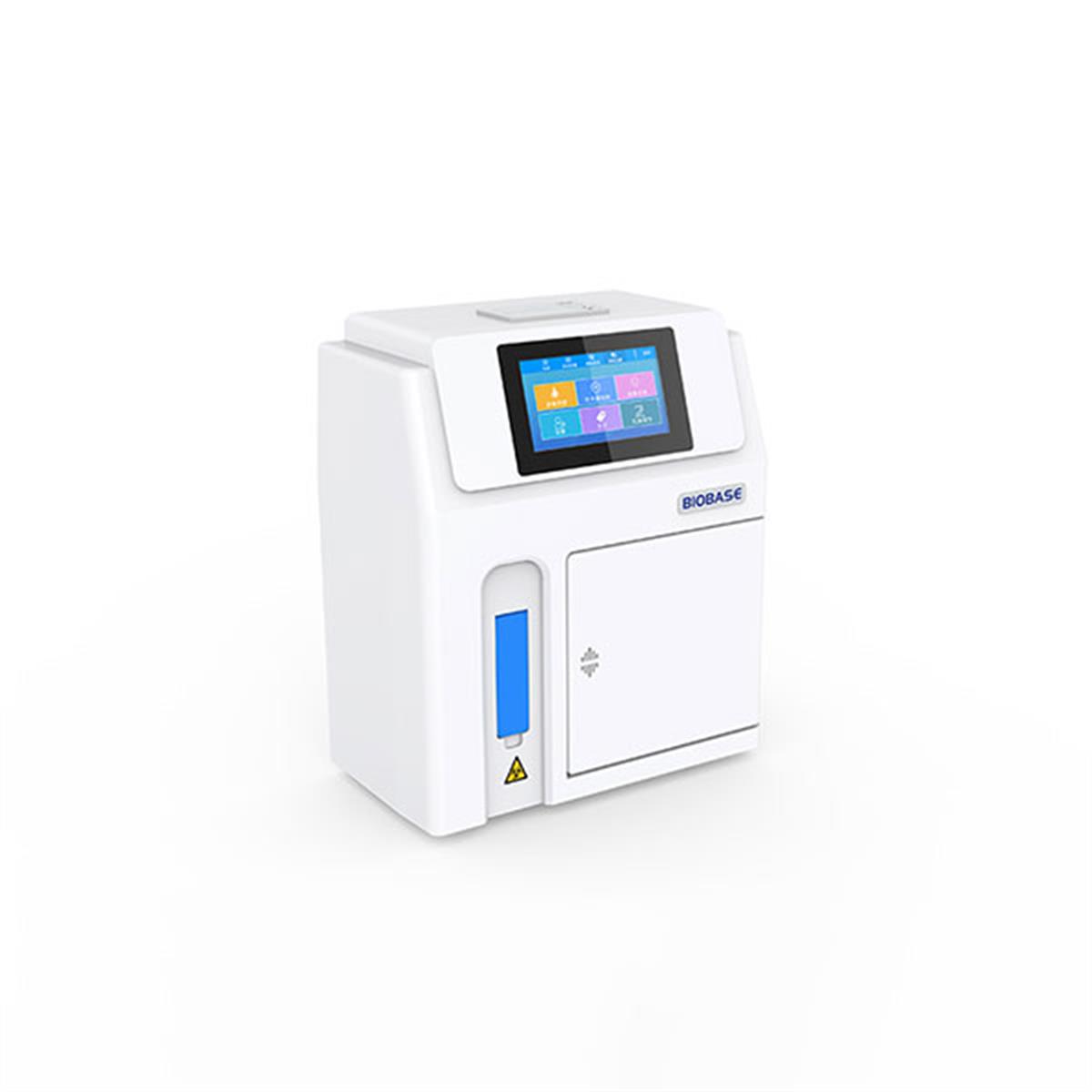

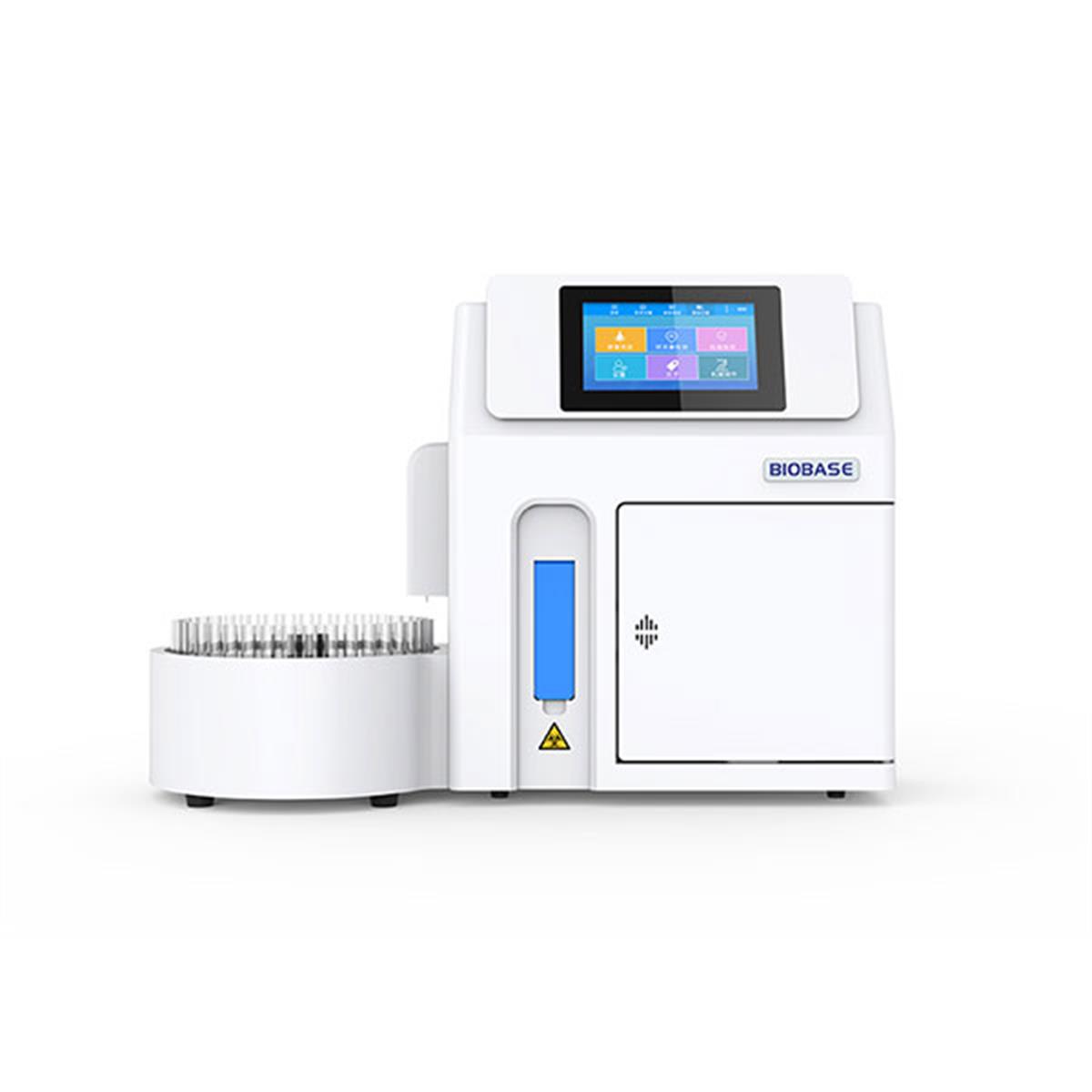

Auto Electrolyte Analyzer
Model:
-
A
-
B
-
C
-
D
-
E
Auto Electrolyte Analyzer
Cat. No. DCBio-BKE
Description
Features
- The software supports automatic potential tracking correction to ensure stable performance
- Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy
- Wave flushing and pipeline flushing can avoid blockage and cross-contamination
- Power-off protection, can protect data storage, the result can be stored up to 50,000
- Low consumption, effectively reducing the cost of consumables
- Wave theory flushing method and direct flushing pipe method.
- 7-inch high-definition touch screen, comprehensive content display
- With the function of automatic fault alarm and elimination, improve work efficiency
|
Model |
Measuring Range |
Resolution |
|
K+ |
0.5~20.0mmol/L |
0.01mmol/L |
|
Na+ |
15~200mmol/L |
0.01mmol/L |
|
Cl- |
15~200mmol/L |
0.01mmol/L |
|
Ca2+ |
0.1~6.0mmol/L |
0.01mmol/L |
|
Mg2+ |
0.1~4.0mmol/L |
0.01mmol/L |
|
Li+ |
0.1~6.0mmol/L |
0.01mmol/L |
|
pH |
4~9pH |
0.01pH |
|
TCO2 |
2.0~70.0mmol/L |
0.1mmol/L |
|
Model |
Test Items |
|
DCBio-BKE_A |
K+, Na+, Cl- |
|
DCBio-BKE_B |
K+, Na+, Cl- |
|
DCBio-BKE_C |
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH |
|
DCBio-BKE_D |
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH |
|
DCBio-BKE_E |
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG |
|
DCBio-BKE_F |
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG |
|
DCBio-BKE_L |
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG, Li+, Mg2+ |
Models:
|
Model |
DCBio-BKE_A/B/C/D |
|
|
Sample |
Serum, plasma, whole blood, cerebrospinal fluid and dilute urine |
|
|
Measuring Speed |
≤25s |
|
|
Analysis Method |
lon selective electrode (ISE) |
|
|
Sample Volume |
60~150μl |
|
|
Sample Position |
30 sample positions, 5 emergency positions(Only for BKE-B/D/F/L) |
|
|
Storage |
Up to 50,000 test results |
|
|
Printer |
Built-in thermal printer |
|
|
Interface |
RS232 port for LIS |
|
|
Display |
7-inch high-definition touch screen |
|
|
Language |
Chinese and English, other languages can be customized |
|
|
Calibration |
Automatic and manual calibration |
|
|
Other Function |
Sample volume detection |
|
|
Power Supply |
AC100~240V, 50/60Hz, 70VA | |
|
Temperature |
+10~+40℃ | |
|
Relative Humidity |
≤80% | |
|
Atmospheric Pressure |
86~106kPa | |
|
Package Size(W*D*H) |
A: 500*390*520mm |
|
|
Gross Weight |
A: 16.08kg |
|
Note: This product weighs over 50 pounds and requires a liftgate truck for delivery. However, if you have a loading dock for delivery trucks, a liftgate truck may not be necessary. For more information, click here >>> go or refer to the FedEx website >>> go.
