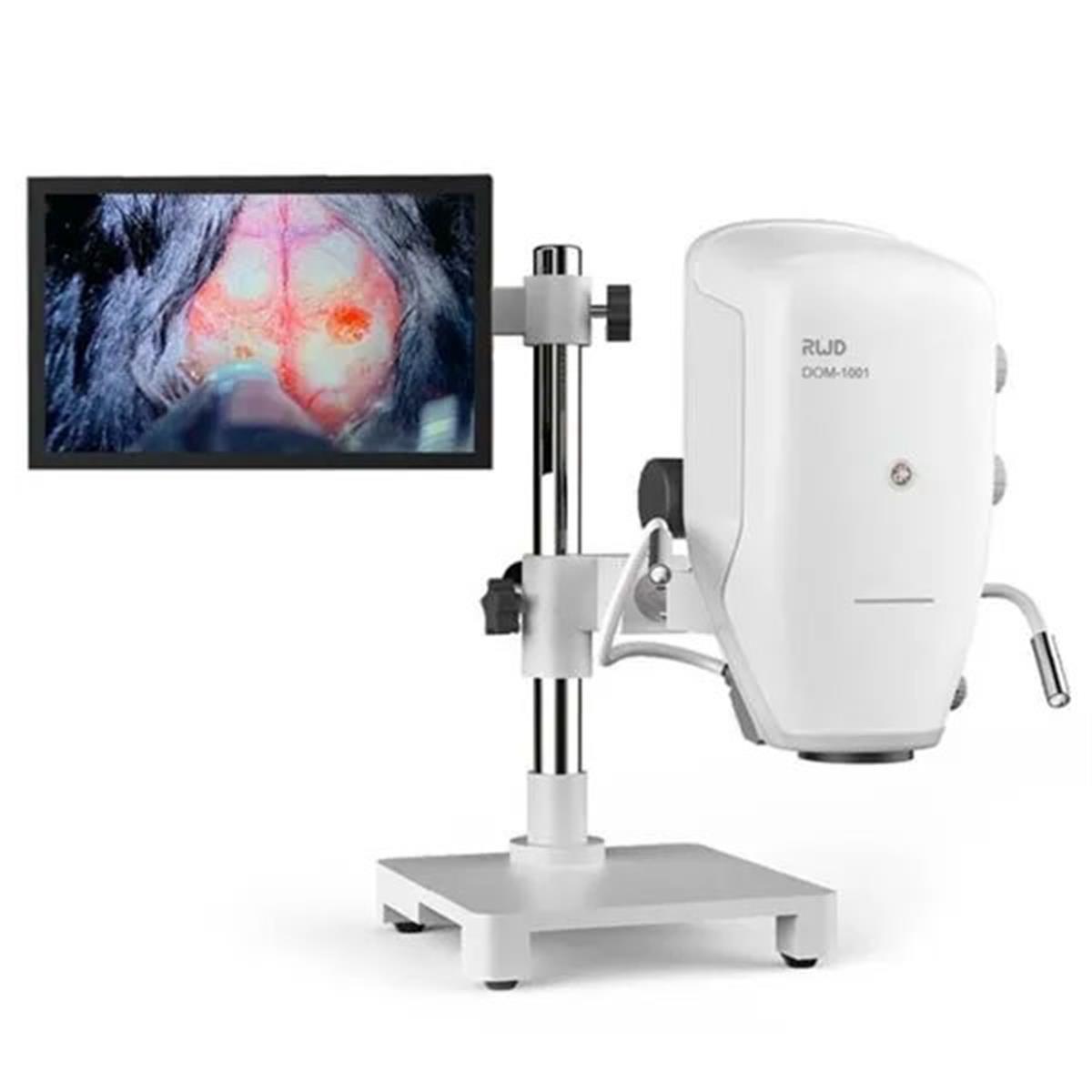

Digital Operating Microscope

Cat No.: RWD-DOM-1001


Description

DOM-1001 is a 16 Million Pixels high-end integrated digital microscope, and enables real-time record, collect, and share high-definition 4K images and videos(1080P).  Multiple people can view samples simultaneously, supporting the whole process of taking pictures and videos. it is widely applied in Life science: dental, animal surgery, tumor, morphological observation, embryologic histology, education, Industry & Manufacturing: electronics& semiconductor, metals, medical, new energy, etc.

Specifications

• Imaging Performance
  • 16MP Panasonic 1/2.33" CMOS sensor
  • Resolution: 1920 × 1080 pixels (Full HD)
  • Pixel size: 1.335μm × 1.335μm
  • Sensor size: 6.18mm × 4.65mm
  • Real-time image output at 60fps
  • Captures 4K still images and 1080P video
• Optical System
  • Magnification range: 18-100x (with 27-inch monitor)
  • 7:1 zoom ratio with switchable locking aperture for rapid magnification changes
  • Working distance: 180mm
  • Depth of field: 6.7mm (highest magnification), 0.41mm (lowest magnification)
• User Experience and Ergonomics
  • Foot pedal for focal length adjustment
• Image Quality and Color Accuracy
  • Fast, automatic one-key exposure with exposure compensation for high-contrast samples
  • Auto/manual one-button white balance and adjustable RGB for true-to-life color reproduction
• Warranty Period: 12 months

Applications

The RWD-DOM-1001 is widely used in:

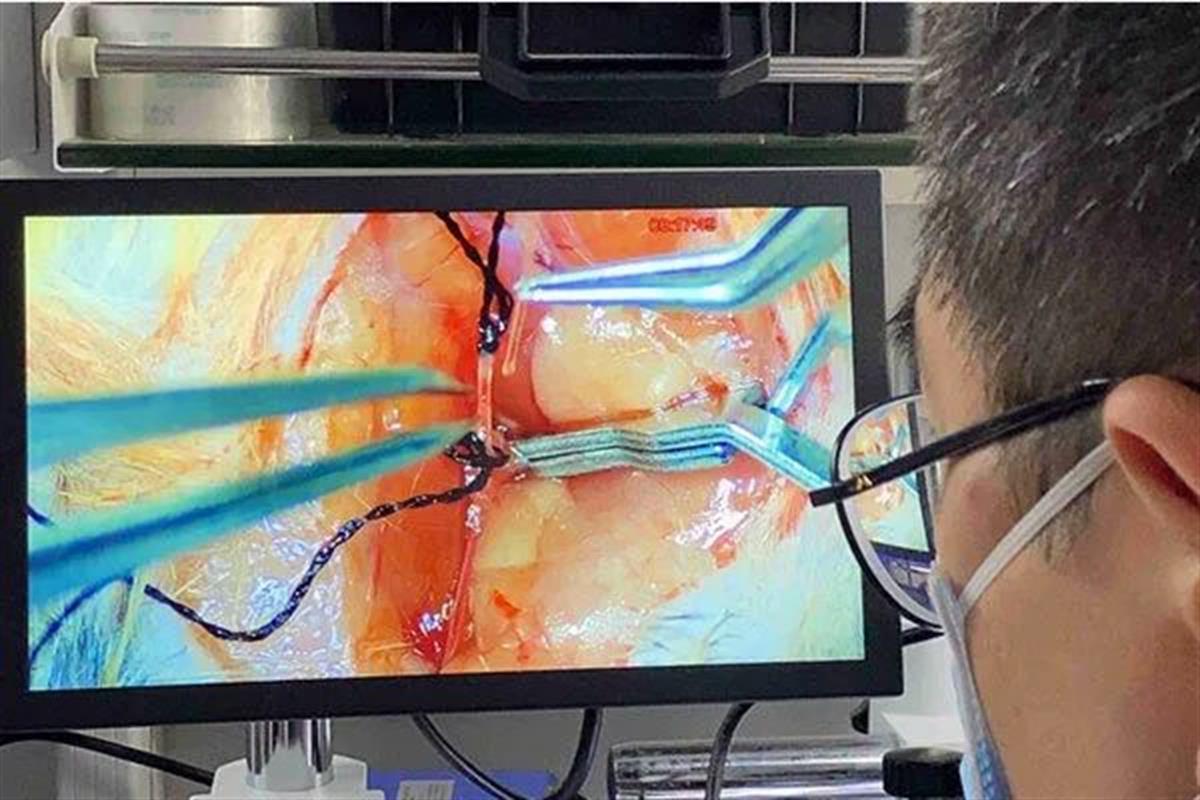

• Life sciences: dentistry, animal surgery, tumor research, morphological observation, embryological histology, and education
• Industry and manufacturing: electronics, semiconductors, metals, medical device inspection, new energy sectors

Customer Benefits

• Delivers perfect image quality for detailed analysis
• Compatible with stereotaxic frames for advanced surgical and research needs
• High stability and portability, making it easy to use and move between workstations
