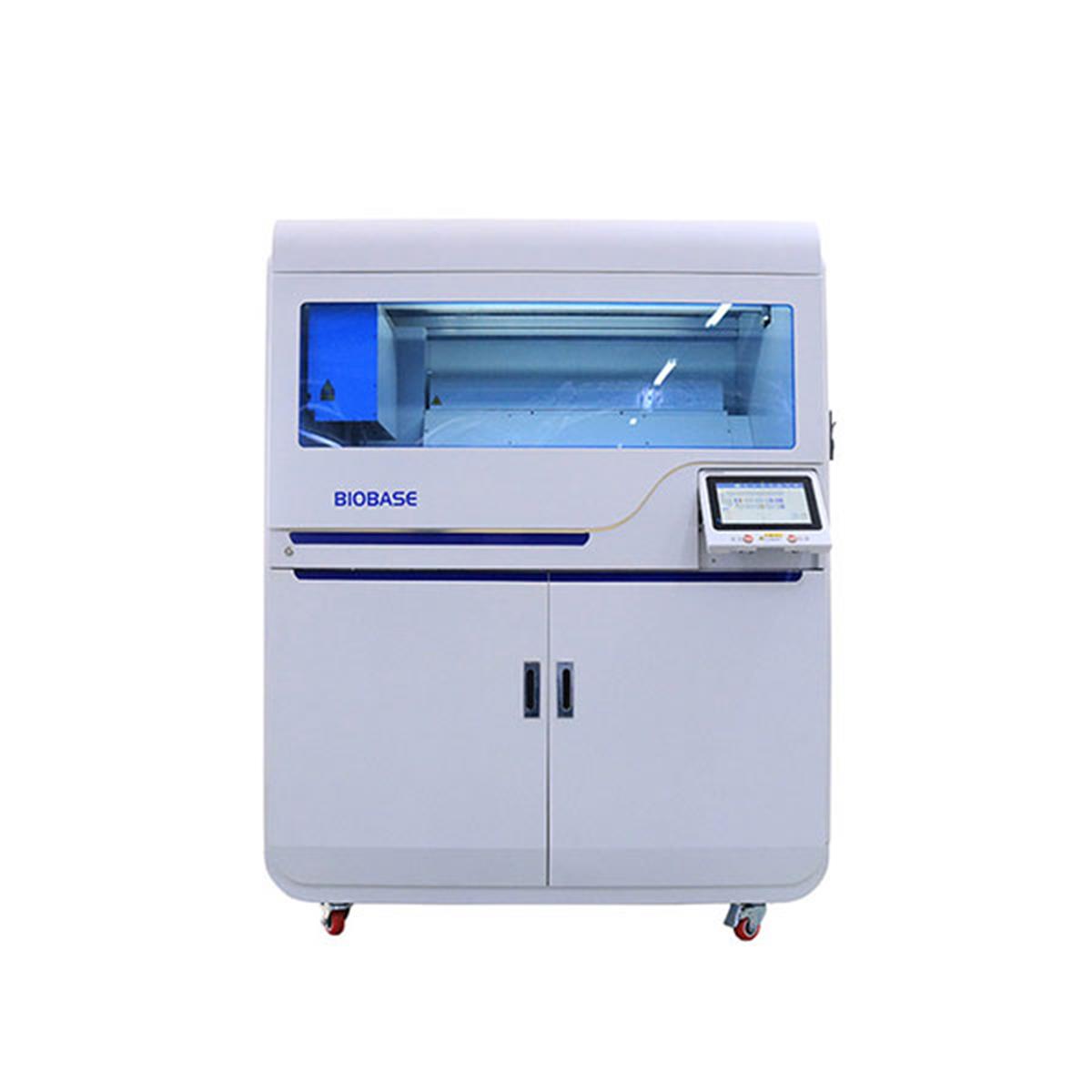

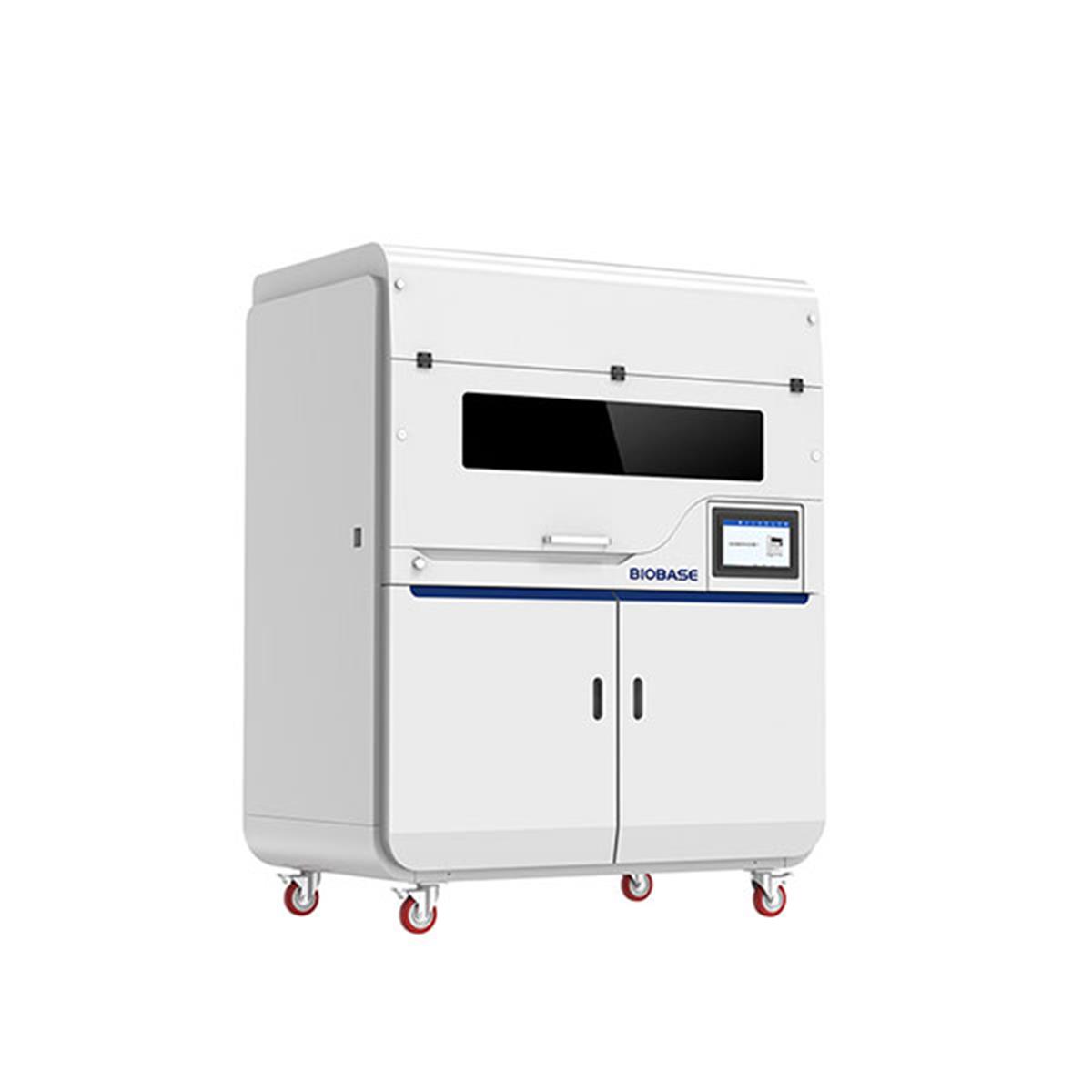

Automatic Nucleic Acid Extraction System (BK-AutoHS96)

Product#: DCBio-Auto69SH-KB
$103,500.00
Availability:
Ships in 1-2 weeks

Automatic Nucleic Acid Extraction System (BK-AutoHS96)


Cat.No. DCBio-Auto69SH-KB

Description

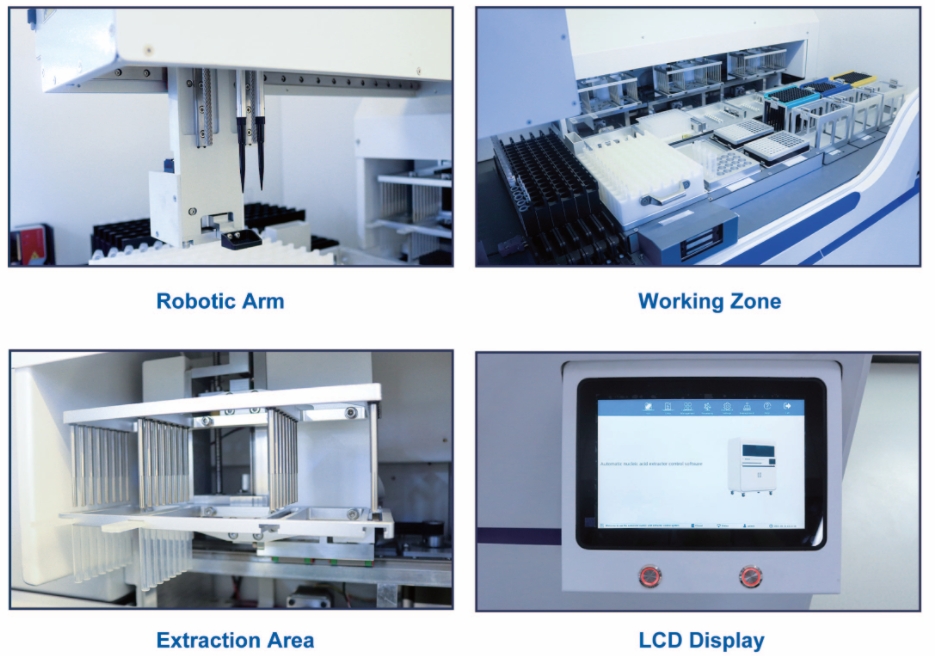

DCBio-Auto69SH-KB adopts vacuum blood vessels directly to the machine, and integrates the sample carrier,reagent carrier, gun head carrier, sample adding arm, grasping arm, oscillation heating module, refrigeration module, magnetic suction module, bar code scanning module,  protection system, transportation system and industrial control system.

With one-button convenient operatio and standardized workflow, it can greatly reduce manual operation errors and improve the accuracy of test results, thus providing a systematic solution for creating a highly refined, simplified, automated and systematic laboratory.

Features
  1. 48/96 sample
  2. Display: 10.4 inch touch screen
  3. Shaking and heating integrated, save extraction time
  4. Pressure heating integrated detection, automatic detection of liquid aspiration and liquid clogging
  5. Build-in operation software with error self-check function, show the remaining time for the completion of the experiment

Call inquire your price

Operation Process




Technical Parameter


Model

BK-AutoHS96

Throughput

48 sample/batch (MB); 96 sample/batch(OT)

Extraction time

MB: 48 samples/120min; OT: 96 samples/40min

Sample

Serum, plasma, throat swab, anal swab, stool, reproductive tract, secretions, exfoliated cells, urine, sputum, etc.

Consumable

All size blood tubes, 1.5ml/2.0ml centrifuge tubes

Supported reagent

Pro HBV, HCV, HPV, STDs, EB, HCMV, TB, HFMD and etc.

Extraction volume

1-3ml

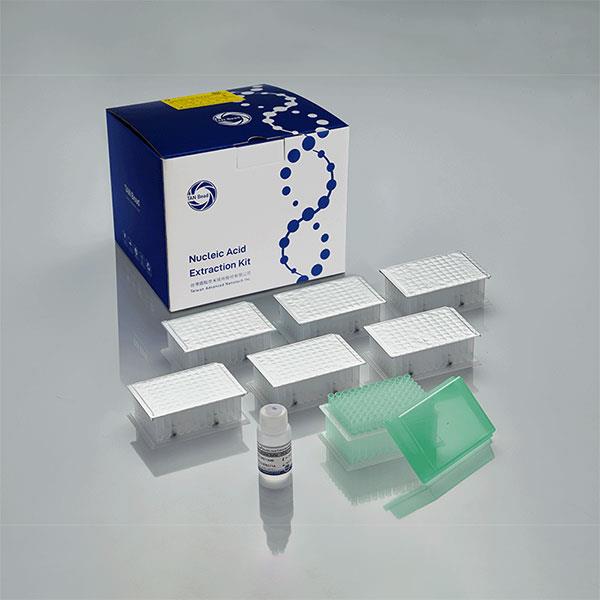

Nucleic Acid Extraction Reagent

click here >>> Go detailed Page "Nucleic Acid Extractin Kit IV"

Pipetting volume

10-1800μL

Pipetting tip

2 channel tip

Operating temperature

15-22℃

Ambient humidity

30-80%

Illumination

White cold light source

Software

Build-in operation software with error self-check function

Interface

2 RS232, 4 USB, 2 network ports, 1 HDMI

Power supply

Input: AC 110V-240V, 50/60Hz, 350VA

Package Size (W*D*H)mm

1400*960*910

1400*960*1110

1500*960*260

Gross Weight(kg)

385
