MonoSpin PBA (50 pieces)

Product#: FNK-501021715
$393.40
Availability:
Ships in 1-2 Weeks

MonoSpin Affinity Columns (PBA, ME, TiO, Phospholipid)

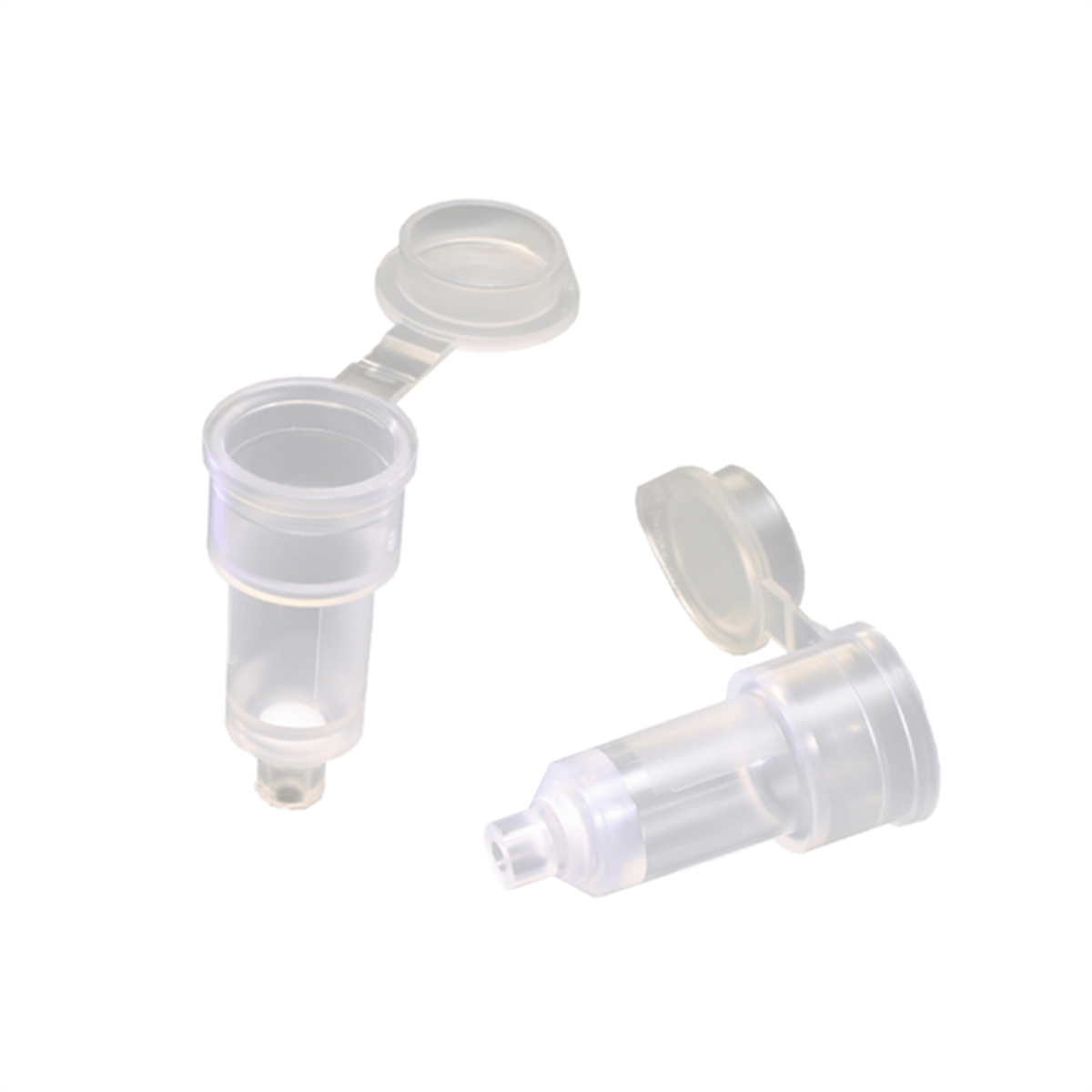

MonoSpin is a monolithic SPE column excellent for the small volume sample with an easy and quick operation by centrifuge.

Description

MonoSpin is a SPE (Solid Phase Extraction) column with monolithic silica (monolith). This is designed for small volume sample preparation by centrifuge. GL Sciences' unique monolith silica technology.
GL Sciences’ monolith silica technology has low-pressure, high-flow, and low-liquid-retention properties, makes it uniquely suited for handling small amount samples.


Features

  • Easy-to-Operate
  • High Throughput and Rapid Operation for Biological Sample
  • Ideal for Small Sample Volumes
  • Selective Purification/Enrichment by Wide Various Functional Groups

S type (Short type) L type (Long type)
MonoSpin_fig2.png MonoSpin_fig3.png
Disc size : Φ 4.2 x 1.5 mm
Sample volume : up to 800 μL
Elution volume : 50 – 800 μL
Centrifuge : 2000 - 10000 x g
Disc size : Φ 9 x 3 mm
Sample volume : up to 8000 μL
Elution volume : 500 – 8000 μL
Centrifuge : 1000 x g


Functional Group

Cat. No. Image Functional Group Type Qty (pcs) Link

MonoSpin PBA


Boronic acid column is optimized for selective extraction of cis diols, such as catecholamines.  This column has high selectivity property for materials that bins to  phenyl boronic acid.

FNK-501021715 GLI_PBA-F2.png PBA S 50  Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine
FNK-501021716 PBA S 100 Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine

MonoSpin ME


Iminodiacetic acid column is optimized for the recovery of trace metals and multiple type of samples.

FNK-501021737 GLI_ME-F2.png ME S 50 Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine
FNK-501021738 ME S 100 Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine
FNK-751011325 ME L 30 Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine

MonoSpin TiO


Monolith skeleton coated with titanium dioxide for phosphopeptide enrichment from complex biological samples. Researchers shown that the use of such type of purification is good for a highly acidic environment in the presence of 2,5-dihydroxybenzoic acid (DHB), phthalic acid, lactic acid, or glycolic acid. The column shows improved selectivity and significantly reducing unspecific binding of non-phosphorylated peptides.

FNK-501021705 GLI_TiO-F2.png TiO S 50 Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine
FNK-501021706 TiO S 100 Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine

MonoSpin Phospholipid


Monolith skeleton coated with TiO2 and ZrO2. This column is excellent for the binding of phospholipids and positive selection.  The column is also used to remove phospholipids from various sample types as a negative selection process.

FNK-501021698 GLI_Phopholipid-F2.png Phospholipid S 50 Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine
FNK-501021699 Phospholipid S 100 Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine
FNK-751011326 Phospholipid L 30 Mammalian Cell Culture, Animal Cell Culture-Classic Media, Diagnocine



Procedure

Example Data

Fig. 1 Purification of pyridylaminated saccharides (MonoSpin NH2)
MonoSpin NH2 shows up to 100% recovery of the pyridylaminated saccharides from original impure sample.
