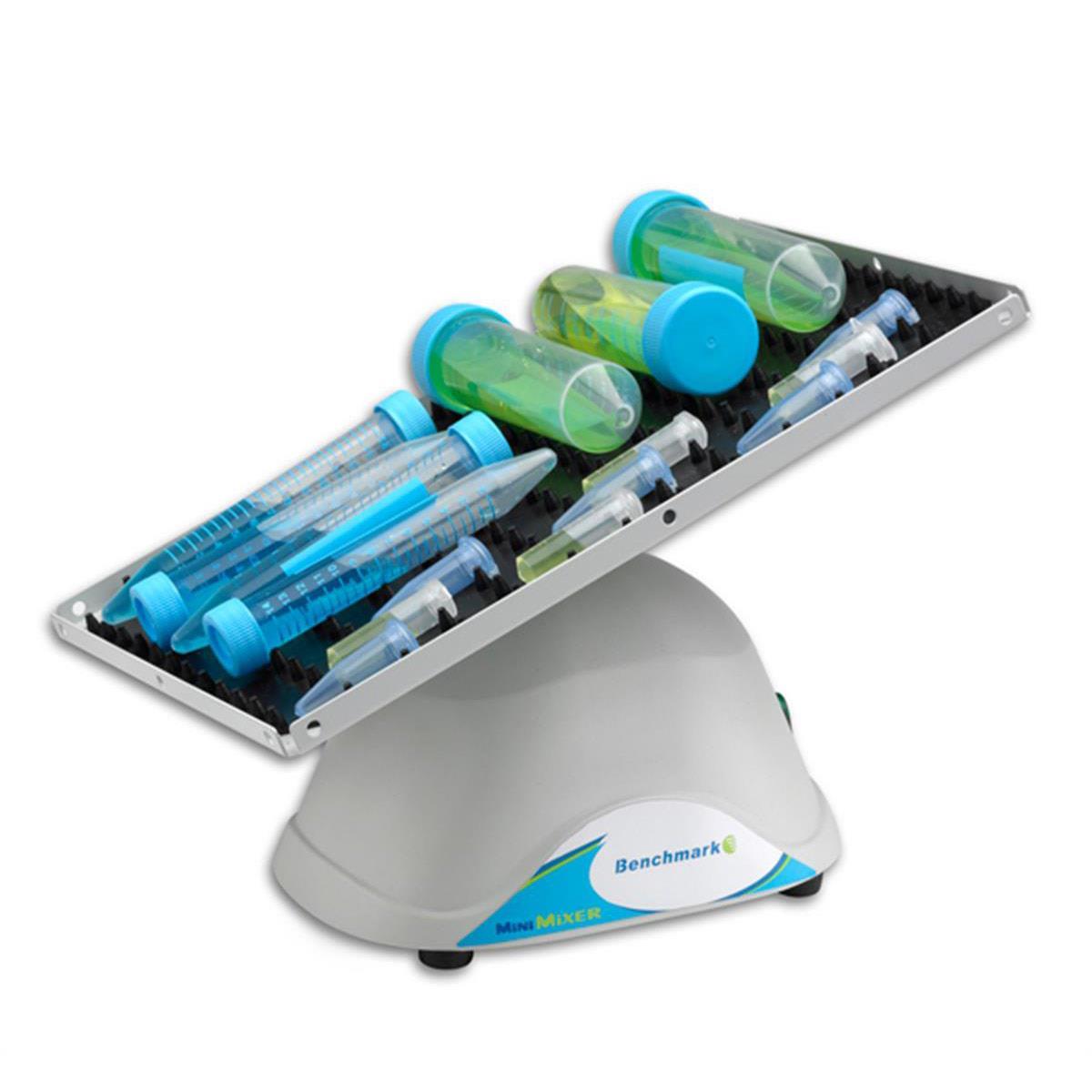

MiniMixer 3D Nutating Shaker, fixed speed 10"x7.5" platform, dimpled mat, 230V
MINIMIXER™ 3D NUTATING SHAKER, FIXED SPEED 10"X7.5" PLATFORM, DIMPLED MAT, 230V
- Includes dimpled mat; ideal for mixing in blood & centrifuge tubes
- Tri-directional motion for thorough, uniform mixing
- Optional stacking platforms available
- Cold room and incubator safe
Description
These multi-functional shakers provide a 3-dimensional “nutating” motion for thorough, foam-free mixing in blood and centrifuge tubes, as well as in a variety of flat vessels. Both models come standard with autoclavable dimpled mats while optional flat mats are also available for mixing other vessel types. Stacking platforms can be purchased as accessories, effectively doubling the usable surface area of each model. Even the smallest single platform configuration has 24% more platform work surface than traditional nutating mixers. These mixers feature maintenance free, brushless motors capable of loads up to 2kg and are safe for use in cold rooms and incubators.
Specifications
|
Speed Range
|
Fixed; 24 rpm (230V: 20 rpm)
|
|
Tilt Angle
|
Fixed; +/- 20°
|
|
Platform Size (1020/1320)
|
10.5x7.5 in./12x12 in.
|
|
Load Capacity
|
4 lbs (1.8kg)
|
|
Operating Temp. Range
|
+4°C to +50°C
|
|
B3D1020 Dims (in/cm)
|
10.5x7.5x8/27x19x20
|
|
B3D1320 Dims (in/cm)
|
12x12x8/30x30x20cm
|
|
Weight
|
4.4lbs (2kg)
|
|
Electrical
|
115 or 230V 50-60Hz; 50W
|
|
Warranty
|
2 years
|
Order Information
| Cat No. | Description | Link |
| BM-B3D1020 | MiniMixer 3D Nutating Shaker, fixed speed 10"x7.5" platform, dimpled mat, 115V |  |
| BM-B3D1020-E | MiniMixer 3D Nutating Shaker, fixed speed 10"x7.5" platform, dimpled mat, 230V | |
Optional Accessories
An optional stacking platform can be purchased as an accessory, effectively doubling the usable work surface (*BR2000-STACK)
| Model | Cat No. | Description | Link |
 |
BM-H1000-MR |
MAGic Clamp™ Universal Platform for Flasks & Tube Racks (11x9.5in)
|
|
 |
BM-BR2000-FLAT | Flat mat, extra large 14" x 12" | |
 |
BM-BR2000-STACK |
Stacking platform, extra large 14" x 12" with flat mat (3.0" separation)
|
|
