MyVolt Touch Power Supply (EU Plug)

Product#: BM-E2301-E

$696.58

Qty:

Availability:

Ships in 48 hours

Description
Reviews (0)

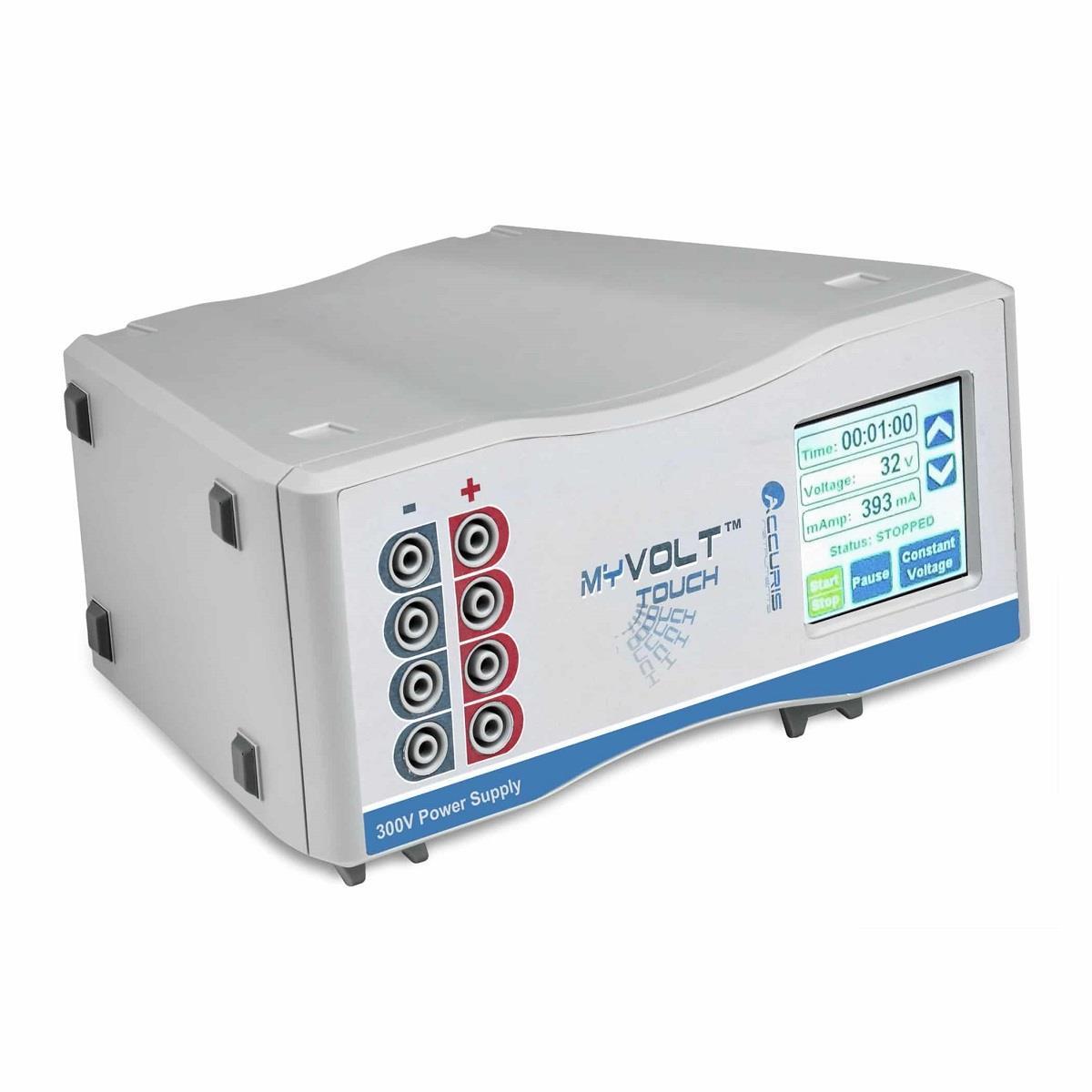

MyVolt Touch Power Supply

Touch screen control
Bright color display
Dual orientation, auto rotating display
High performance specifications
- Max Voltage 300V
- Max Amperage 400mA
- Max Wattage: 100W

Description

Powerful and Capable

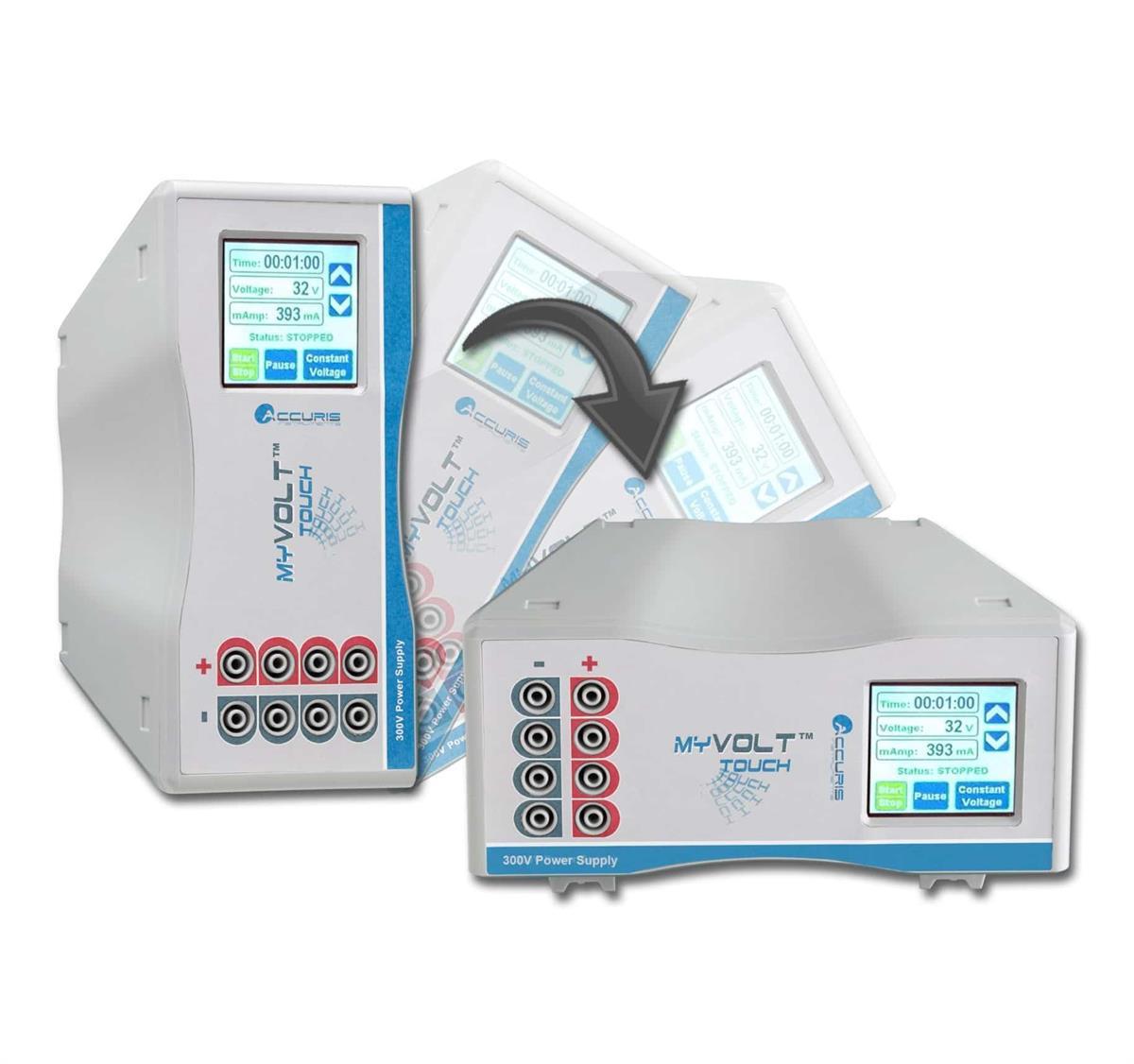

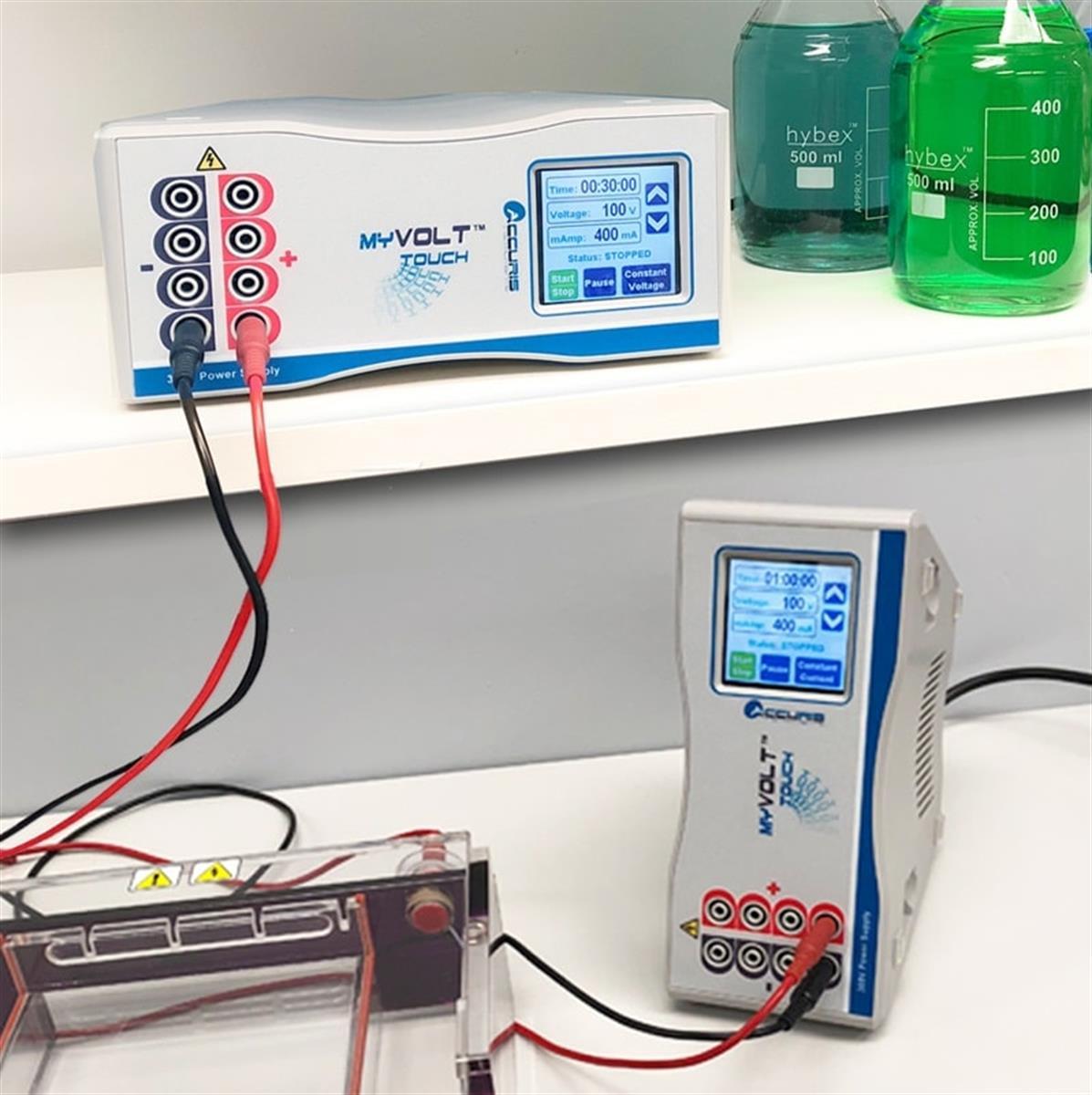

The Accuris myVolt™Touch is a work horse electrophoresis power supply, ideal for efficient separation of nucleic acids and proteins as well as basic western blotting applications. Four pairs of output jacks are wired in parallel for connecting multiple electrophoresis tanks. A color touch screen allows quick setting and monitoring of all run conditions, including run time, voltage, and current. Users can select “Constant Current” or “Constant Voltage” during an electrophoresis run, keeping the chosen parameter fixed as resistance changes. The dual orientation design with rotating display allows the myVolt Touch to be installed in the most convenient location, on a shelf or bench, saving valuable space.

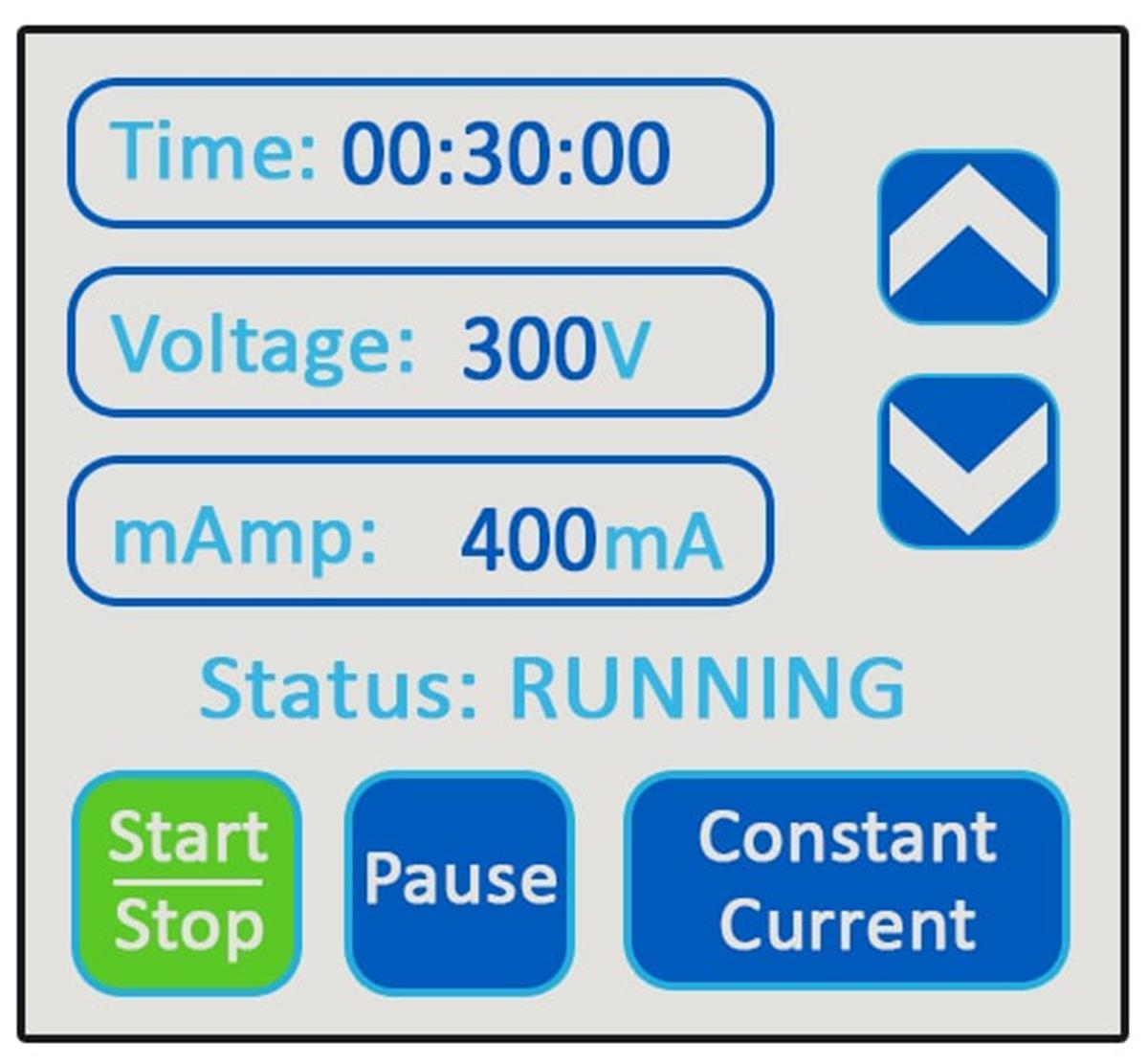

Touch Screen Control Panel:

The myVolt Touch features a logical user interface. Setting up an electrophoresis run couldn’t be easier; simply touch the parameter to select it, press the “up” and “down” arrows to adjust the value, and then touch “Start”. All parameters are always displayed, with no need to toggle between Time, Voltage or Amperage. In addition the run status is always displayed.

Specifications

Output Setting:	Constant Voltage or Constant Current
Voltage Output:	10-300V (1V increments)
Current Output:	4 – 400mA (1 mA increments)
Max Wattage:	100W
Output Terminals:	4 pairs
Timer:	1 min. – 20hrs
Safety:	No load, load change, overload detection
Display:	2 x 2 in. color touchscreen
Weight:	2.0 lbs / 0.9 kg
Dimensions:	8.5 x 6.3 x 4.0 in 21.5x 15.5 x 9.75 cm
Electrical:	100V to 230V, 50/60Hz

Order Information

Item No.	Description:
BM-E2301	MyVolt Touch power supply, 300V, 400mA. Input: 100-240V, 50/60Hz, US plug PRODUCT PAGE LINK
BM-E2301-E	MyVolt Touch power supply, 300V, 400mA. Input: 100-240V, 50/60Hz, EU plug PRODUCT PAGE LINK
