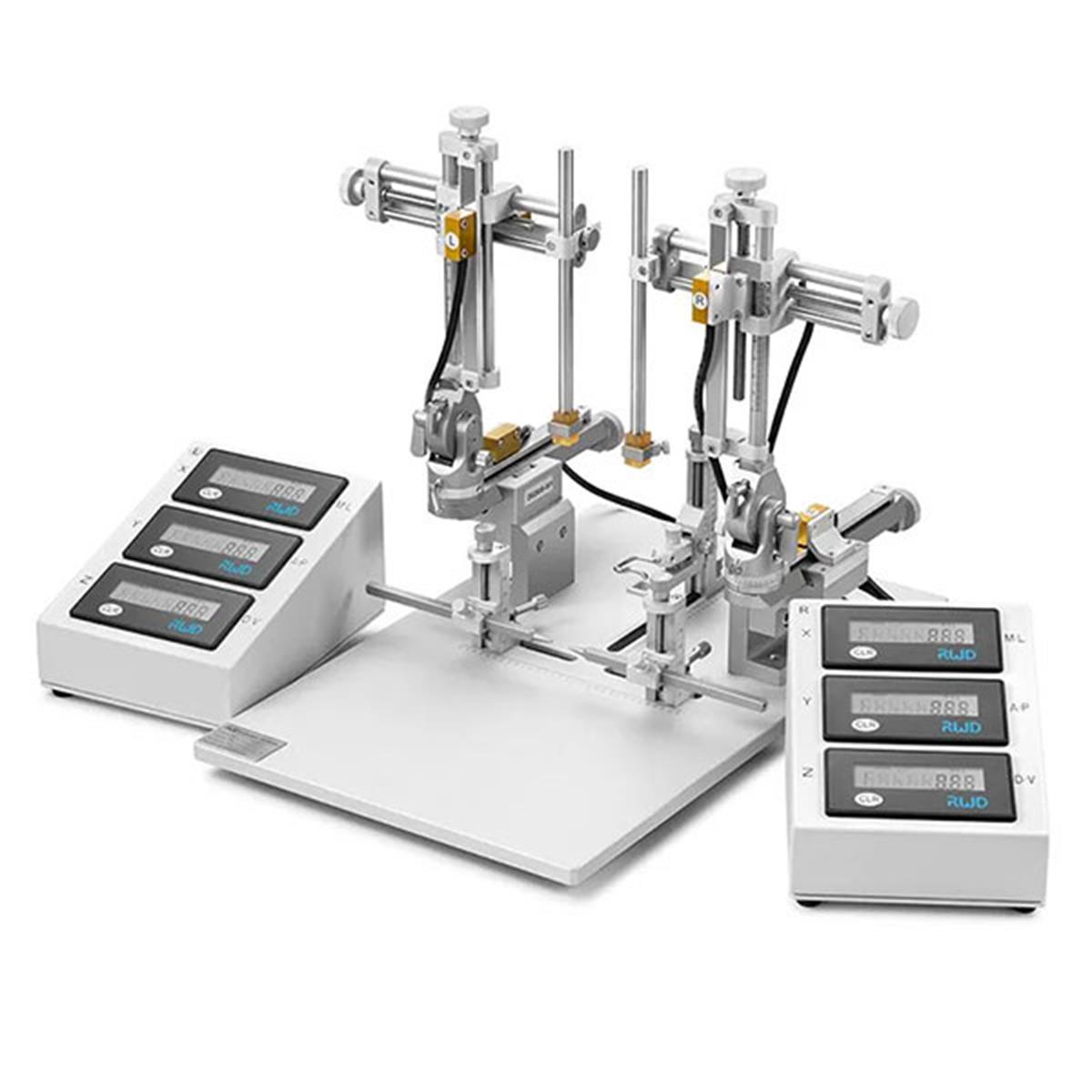

Stereotaxic for Rat and Mouse, Dual M, Digital and Portable. (Basic module)

Cat No.: RWD-68812 Description

The RWD 68812 Digital Portable Stereotaxic Instrument is a compact and precise system designed for dual-manipulator stereotaxic positioning in rat and mouse research. This model integrates 10 μm digital precision with a frameless base design, maximizing workspace accessibility while maintaining stable alignment for small-animal procedures. It supports a wide range of applications in neuroscience, behavioral studies, and microsurgery.

Equipped with dual 3-axis digital manipulators and real-time coordinate display, the system enables accurate bilateral operations, whether for simultaneous injection, recording, or comparative procedures. Its open design facilitates easy integration with external imaging, recording, and surgical devices, enhancing operational flexibility in complex experimental setups.


Features:

• Dual Digital Manipulator System:
  Features both left (68409) and right (68410) 3-axis digital manipulators with 10μm (0.01mm) resolution, enabling simultaneous bilateral targeting, comparative procedures, or concurrent recording and manipulation with digital precision.

• Innovative Frameless Architecture:
  Open design significantly enhances accessibility around the subject, improving integration with imaging systems, recording equipment, and additional instrumentation during complex procedures.

• Comprehensive Range of Motion:
  Offers 80mm working distance in all axes with 180° vertical rotation and 360° horizontal rotation capabilities, providing access to virtually any brain region from multiple angles.

• Enhanced Experimental Ergonomics:
  Laser-engraved scales reduce eyestrain, while the unique anti-clockwise UP indicators prevent incorrect operation during extended experimental sessions.


Technical Specifications:

• Digital Resolution: 10μm (0.01mm) in all three axes

• Base Plate Dimensions: 400mm × 255mm

• Distance Between Ear Bar (sold separately)  and Base Plate: 35.5mm

• Ear Bar Scale Range: 35mm with 1mm resolution

• Ear Bar Slots: Vernier scale with 0.1mm resolution

• Adaptor Adjustment Range: 30mm (+10mm to -20mm) with 0.1mm resolution

• Working Distance: 80mm in all axes (anterior-posterior, medial-lateral, dorsal-ventral)

• Vertical Rotation: 180° with locking at any angle

• Horizontal Rotation: 360° with locking at any angle

• Standard Configuration: 68867D base, 68409 3-axis digital manipulator (left), 68410 3-axis digital manipulator (right)
