Maelstrom 9610 Automated DNA / RNA Purification Platform/IVD
Cat. No.: TAN-088.M1601.00A
Certificate: IVD ( In vitro diagnostics (IVD) are tests done on samples such as blood or tissue that have been taken from the human body.)
*** Click here: Go for more info. & Research Use Only (RUO) Maelstrom 9610 Automated DNA / RNA Purification Platform"
Description
Maelstrom 9610 is an automated nucleic acid platform designed for high-throughput applications. Specialized spin tips enable super mixing efficiency of magnetic beads and larger processing volume. With intuitive interface and flexible program, Maelstrom 9610 can boost molecular diagnostic laboratory productivity by transforming routine operations into a walk- away solution.
Operation Principle

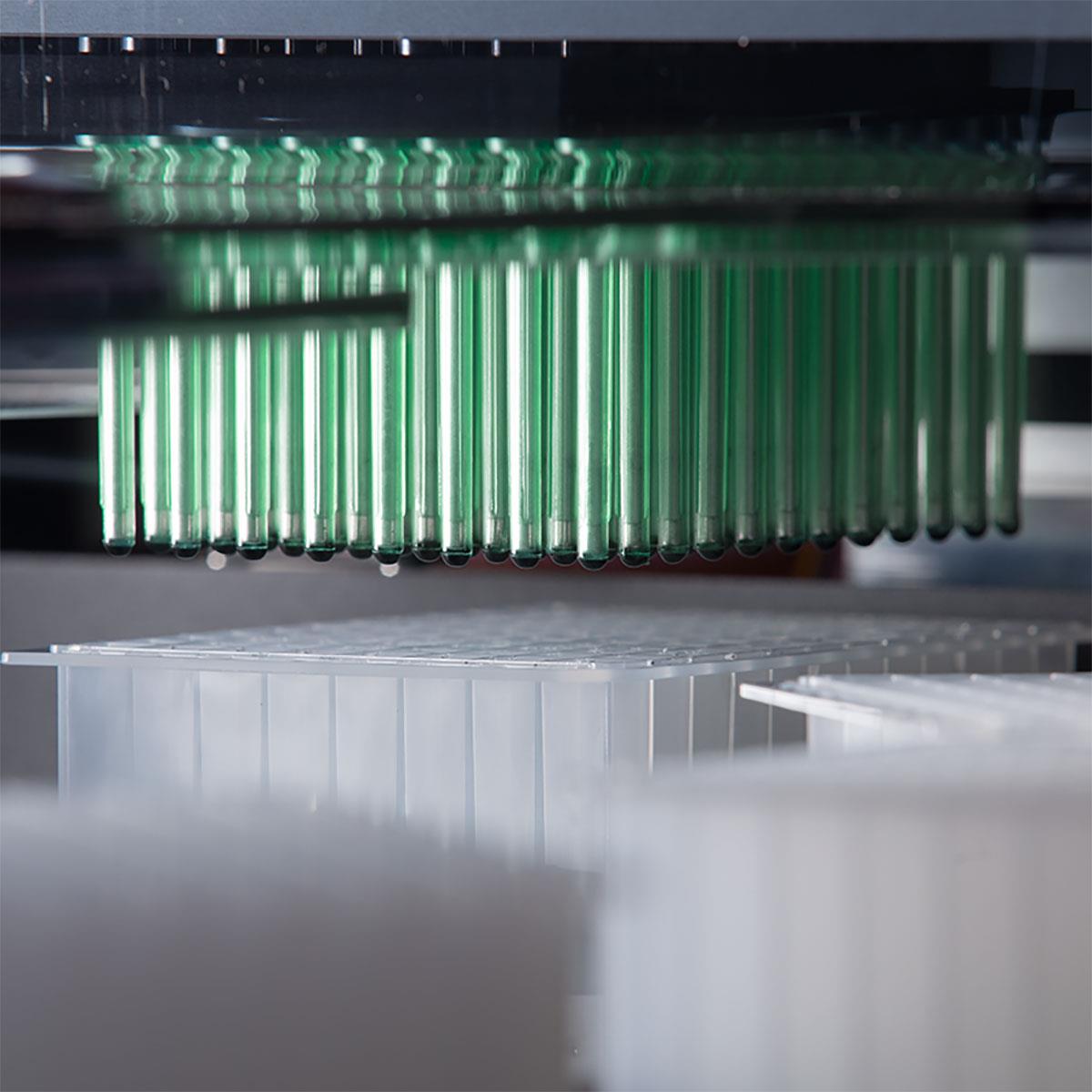

Maelstrom 9610 uses magnetic rods to collect and transfer magnetic beads and spin tips to mix suspension. Rotating the spin tips will mix suspension very well. Extended magnetic rods can collect magnetic beads efficiently. Purified nucleic acids can be obtained after cell lysis, nucleic acids absorption, wash and elution.
Key features
- High-throughput: 96 samples/run
- Efficient whirl stir mixing approach
- Speed and precision: 4 independent temperature control modules
- Flexibility in samples/run: 6, 12 , 18 , 24 , 30 , 36 up to 48 (with single tube) Inquiry
Product Introduction
With the patented technology which can improve the mixing efficiency of magnetic beads and increase the processing sample volume, M9610 has become one of the most competitive automated DNA/RNA extraction instrument. M9610 can process 96 samples per run. Combined with TANBead extraction reagents, our system is highly affirmed by many medical institutions as it can contribute to large scale sample screening request.
Reference list
| Attribute | Description |
| Model | Maelstrom 9610 |
| net weight | 95 kg aprox. |
| Volume | 870 (W) x 575 (L) x 700 (H) mm |
| Power supply | 100~120 V; 50/60 Hz; 8 A / 220~240 V; 50/60 Hz; 3,5 A |
| Fuse | 250 V; 5 A |
| Max. Throughput | 96 samples per run |
| Process. volume | 50μl -1,600μl |
| Spin speed | up to 3000 rpm |
| Heater | 4 independent heating plates |
| Magnetic rod | >3900 gauss |
| Display | 7-inch touchscreen |
| UV & HEPA | UV tipo C 4 W, HEPA E10 |
