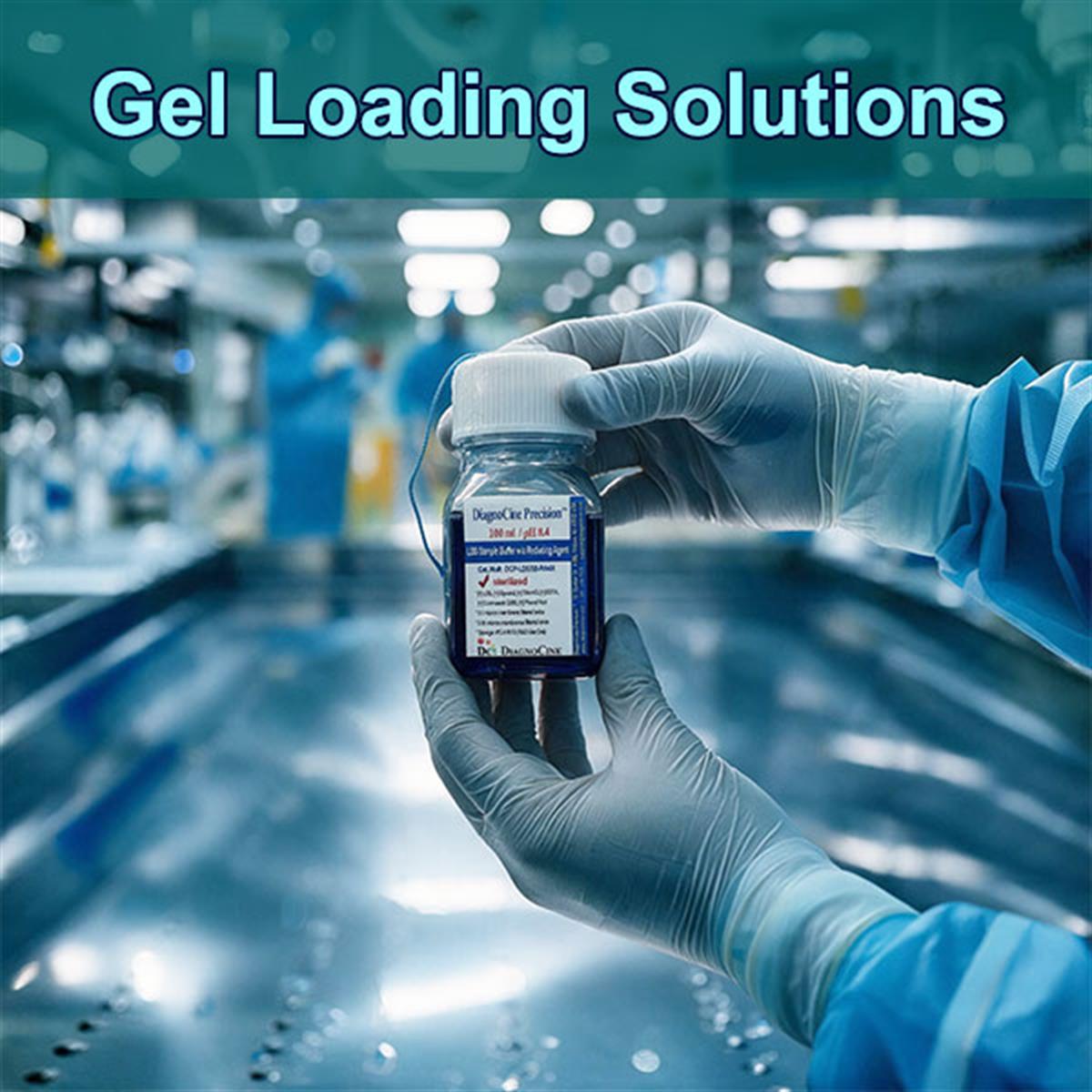

Gel Loading Buffers - A Selection Guide for the Research Laboratory

Product#: Buffers-GelLoadingBuffers
$0.00

Select Buffers-Group

  • see below the table

Availability:
Ships in 24 hours

verified Density · Tracking Dye · Denaturation — Three Jobs Per Well

Gel Loading Buffers — A Selection Guide for the Research Laboratory

Five loading dyes across nucleic acid, RNA-denaturing, sequencing, and protein workflows. Pick the one your sample needs and go straight to its product page — the component reference, the history, and the application guidance follow below.

Gel Loading Buffers — Catalog · 5 Products
Select the loading buffer that matches your sample — click View for the product page.
Product Core Attributes Best Use Product Page
DNA/RNA Loading Buffer Standard nucleic acid loading matrix Routine genomics standard — optimal density and clear tracking bands for everyday non-denaturing agarose or acrylamide DNA/RNA runs Viewarrow_forward
Protein Loading and Sample Buffers Formulated with SDS and density components Standard for SDS-PAGE (Laemmli-style) — coats proteins in negative charge via detergent while weighting the sample down for vertical polyacrylamide well entry Viewarrow_forward
Gel Loading Solution [6X] High-concentration (6X) master mix Maximum sample-volume efficiency — minimal buffer volume needed relative to sample (e.g., 2 µL buffer to 10 µL sample), preserving precious analyte Viewarrow_forward
Formaldehyde Gel-Loading Buffer [10X] Contains formaldehyde/denaturants Optimized for Northern blotting — keeps single-stranded RNA fully denatured during handling and well entry so migration reflects sequence length, not secondary structure Viewarrow_forward
Denaturing Gel-Loading Buffer with Dye Intense denaturant base with tracking dyes Standard for sequencing and oligonucleotide PAGE — urea/formamide-rich formulation for high-resolution separation of single-stranded DNA probes or structural RNA fragments Viewarrow_forward

Not sure which dye? See the dye & density component reference · Browse applications · Compare the denaturant systems · Read the FAQ

Category Snapshot

What goes into the well before the sample does

Before DNA, RNA, or protein samples can be separated on an electrophoresis gel, they need to be prepared for loading into wells. Gel loading buffers (loading dyes) are concentrated solutions mixed directly into the sample before it goes into the well; they ensure the sample sinks cleanly, remains in the correct conformation, and can be tracked visually as the run proceeds.

  • Five formulations stocked across routine nucleic acid work, a 6X master mix, formaldehyde-based RNA loading, urea/formamide sequencing buffers, and Laemmli-style protein sample buffers.
  • High density (weighing down): dense additives (glycerol, sucrose, Ficoll) ensure the sample sinks uniformly to the bottom of the well rather than diffusing into the running buffer.
  • Visual tracking: colored dye fronts migrate at predictable rates relative to molecular size, telling researchers when to stop the run before samples run off the gel.
  • Denaturation preservation: denaturants (urea, formamide, SDS) and reducing agents keep nucleic acids or proteins linearized, preventing secondary structure (hairpins, folding) from skewing true size-based migration.[2,3]
  • Visual loading contrast: strong coloration makes it far easier to track which wells have already been filled during high-throughput pipetting, reducing loading errors.
  • Tracking dyes named: Bromophenol Blue and Xylene Cyanol FF, whose front positions correlate with base-pair size across gel percentages.[1]
  • The problem this solved: nucleic acid and protein extracts have densities close to that of the running buffer, so an unmodified sample injected into a submerged well would float upward and diffuse into the buffer tank instead of settling and migrating cleanly.
6X & 10X Concentrates BPB · Xylene Cyanol FF RUO
CATEGORY REFERENCE · GEL LOADING BUFFERS
Selection at a glance — concentrations and components as the source states them
  • Products in this group5
  • Gel Loading Solution concentration6X
  • Formaldehyde Gel-Loading Buffer10X
  • Example 6X usage ratio2 µL buffer : 10 µL sample
  • Density additives namedglycerol, sucrose, Ficoll
  • Tracking dyes namedBromophenol Blue, Xylene Cyanol FF
  • Denaturants namedurea, formamide, SDS
  • RNA denaturing conditions (1977)formaldehyde / glyoxal / urea
  • Protein buffer templateLaemmli-style
  • Applications listed6
Why Gel Loading Buffers Are Needed

Six things that happen between the pipette and the first band

A loading buffer is not a diluent. Every item below is a specific job it performs, and each maps to a way the run goes wrong without it.

water_drop

The sample would otherwise float away

Nucleic acid and protein extracts have densities close to that of the running buffer, so an unmodified sample injected into a submerged well would float upward and diffuse into the buffer tank instead of settling and migrating cleanly. Sample loss was a major practical barrier to reliable gel electrophoresis.

south

High density (weighing down)

Dense additives (glycerol, sucrose, Ficoll) ensure the sample sinks uniformly to the bottom of the well rather than diffusing into the running buffer.

visibility

Visual tracking

Colored dye fronts migrate at predictable rates relative to molecular size, telling researchers when to stop the run before samples run off the gel — without staining the (invisible) nucleic acid or protein itself.

straighten

Denaturation preservation

For specific applications, denaturants (urea, formamide, SDS) and reducing agents keep nucleic acids or proteins linearized, preventing secondary structure (hairpins, folding) from skewing true size-based migration.[2,3]

palette

Visual loading contrast

Strong coloration makes it far easier to track which wells have already been filled during high-throughput pipetting, reducing loading errors.

table_chart

Timing the run by eye

Dye-migration tables correlate Bromophenol Blue / Xylene Cyanol front position with base-pair size across gel percentages, giving labs a practical, reproducible way to time electrophoresis runs by eye.[1]

Concentration is about how much sample you keep

A high-concentration master mix exists for a specific reason: minimal buffer volume needed relative to sample — for example 2 µL of buffer to 10 µL of sample — preserving precious analyte. When the sample is the scarce thing, the concentrate is what protects it.

6X
Gel Loading Solution master mix — e.g. 2 µL buffer to 10 µL sample
10X
Formaldehyde Gel-Loading Buffer, for Northern blotting
History of Gel Loading Buffers

From lost samples to a standard formulation

Reproduced from the source's era table, one step per era, in the order the source presents them.

  1. 1

    1960s–1970s Samples were routinely lost

    Early electrophoresis users routinely lost samples: nucleic acid and protein extracts have densities close to that of the running buffer, so an unmodified sample injected into a submerged well would float upward and diffuse into the buffer tank instead of settling and migrating cleanly. This identified sample loss as a major practical barrier to reliable gel electrophoresis.

  2. 2

    1970s Density additives and tracking dyes

    Researchers began adding dense, chemically inert additives — glycerol, sucrose, or Ficoll — to weigh samples down, paired with tracking dyes such as Bromophenol Blue and Xylene Cyanol FF that migrate through the gel at predictable, size-correlated rates. This solved the sample-loss problem and gave researchers a way to visually monitor run progress without staining the (invisible) nucleic acid or protein itself.

  3. 3

    1970 The Laemmli template for protein buffers

    Laemmli's discontinuous SDS-PAGE paper established the standard formulation criteria for denaturing protein sample buffers — SDS for uniform negative charge, glycerol for density, plus a reducing agent and tracking dye. It became the template for virtually all modern protein (Laemmli-style) sample buffers.[2]

  4. 4

    1977 Rigorous standards for RNA sizing

    Lehrach, Diamond, Wozney & Boedtker critically re-examined RNA molecular weight determination by denaturing gel electrophoresis, establishing rigorous standards for RNA denaturation and sizing under formaldehyde/glyoxal/urea conditions — underpinning modern formaldehyde-based RNA (Northern blot) loading buffers.[3]

  5. 5

    Ongoing The dye-migration tables

    Molecular Cloning: A Laboratory Manual (Sambrook & Russell, Cold Spring Harbor Laboratory Press) has served, since its first edition, as the field's standard reference for dye-migration tables that correlate Bromophenol Blue / Xylene Cyanol front position with base-pair size across gel percentages. This gave labs a practical, reproducible way to time electrophoresis runs by eye.[1]

Dye & Density Component Reference

What is actually in a loading buffer

Every component the source names, and the job it does once the sample is in the well.

Component Class Role as the source states it
Glycerol Density additive Dense, chemically inert additive that weighs the sample down so it sinks uniformly to the bottom of the well rather than diffusing into the running buffer; also the density component of the Laemmli-style protein sample buffer[2]
Sucrose Density additive Dense, chemically inert additive used to weigh samples down
Ficoll Density additive Dense, chemically inert additive used to weigh samples down
Bromophenol Blue Tracking dye Migrates through the gel at a predictable, size-correlated rate; its front position is correlated with base-pair size across gel percentages in the standard dye-migration tables[1]
Xylene Cyanol FF Tracking dye Migrates through the gel at a predictable, size-correlated rate; its front position is correlated with base-pair size across gel percentages in the standard dye-migration tables[1]
A dye front is not a fixed base-pair size. The source is explicit that the dye-migration tables correlate Bromophenol Blue / Xylene Cyanol front position with base-pair size across gel percentages — the correlation is percentage-dependent, not a single universal number. Read the row for the gel percentage you actually poured before deciding when to stop the run, rather than carrying one remembered value between gel types.
Applications

Six workflows, grouped by what is being loaded

The source's full application list. Select a group to see what it covers.

Horizontal, non-denaturing nucleic acid runs
  • Agarose gel electrophoresis — loading PCR products, restriction digests, or plasmid/genomic DNA
  • Southern blotting sample prep — loading digested genomic DNA for downstream hybridization
Vertical, high-resolution, urea/formamide
  • Denaturing polyacrylamide gels (PAGE) — sequencing fragments, small RNAs, or denatured proteins for high-resolution vertical separation
  • DNA sequencing gel loading — urea/formamide-based buffers for single-stranded DNA and oligonucleotide separation
Formaldehyde-based RNA denaturation
  • Northern blotting sample prep — keeping RNA fully single-stranded during loading and initial separation[3]
Laemmli-style protein electrophoresis
  • SDS-PAGE (Laemmli-style protein electrophoresis) — denaturing and charge-normalizing proteins before vertical gel entry[2]
Denaturant Systems Compared

Which denaturant, which molecule, which product

Denaturation is what separates the four buffer families in this catalog. Each system keeps a different molecule linearized, and each maps to a different product.

Denaturant system What it does, as the source states it Product family
None (non-denaturing) Optimal density and clear tracking bands for everyday non-denaturing agarose or acrylamide DNA/RNA runs DNA/RNA Loading Buffer; Gel Loading Solution [6X]
Formaldehyde Keeps single-stranded RNA fully denatured during handling and well entry so migration reflects sequence length, not secondary structure; the formaldehyde/glyoxal/urea conditions established for rigorous RNA sizing[3] Formaldehyde Gel-Loading Buffer [10X]
Urea / formamide Urea/formamide-rich formulation for high-resolution separation of single-stranded DNA probes or structural RNA fragments; the base for sequencing and oligonucleotide PAGE Denaturing Gel-Loading Buffer with Dye
SDS (plus reducing agent) Coats proteins in negative charge via detergent while weighting the sample down for vertical polyacrylamide well entry; the Laemmli criteria are SDS for uniform negative charge, glycerol for density, plus a reducing agent and tracking dye[2] Protein Loading and Sample Buffers
FAQ

Frequently asked questions

The questions that come up most often between pipetting the sample and calling the run finished.

Gel loading buffers (loading dyes) are concentrated solutions mixed directly into the sample before it goes into the well; they ensure the sample sinks cleanly, remains in the correct conformation, and can be tracked visually as the run proceeds. Concretely that means four things: high density to weigh the sample down, visual tracking of run progress, denaturation preservation where required, and visual loading contrast so you can see which wells you have already filled.
Because the densities are too close. Nucleic acid and protein extracts have densities close to that of the running buffer, so an unmodified sample injected into a submerged well floats upward and diffuses into the buffer tank instead of settling and migrating cleanly. Dense, chemically inert additives — glycerol, sucrose, or Ficoll — are what solve it.
When sample volume is the constraint. The Gel Loading Solution [6X] is a high-concentration master mix for maximum sample-volume efficiency — minimal buffer volume needed relative to sample, for example 2 µL of buffer to 10 µL of sample, preserving precious analyte. For everyday non-denaturing agarose or acrylamide DNA/RNA runs where volume is not tight, the standard DNA/RNA Loading Buffer is the routine genomics choice.
The Formaldehyde Gel-Loading Buffer [10X]. It is optimized for Northern blotting and keeps single-stranded RNA fully denatured during handling and well entry so migration reflects sequence length, not secondary structure. That requirement traces to the 1977 re-examination of RNA molecular weight determination, which established rigorous standards for RNA denaturation and sizing under formaldehyde/glyoxal/urea conditions.[3]
They serve different gels. The formaldehyde-based 10X buffer is the Northern blotting option, for keeping RNA fully single-stranded during loading and initial separation. The Denaturing Gel-Loading Buffer with Dye is an intense denaturant base with tracking dyes, described as the standard for sequencing and oligonucleotide PAGE — a urea/formamide-rich formulation for high-resolution separation of single-stranded DNA probes or structural RNA fragments.
SDS, and a reducing agent. Protein Loading and Sample Buffers are formulated with SDS and density components, and are the standard for SDS-PAGE (Laemmli-style) — coating proteins in negative charge via detergent while weighting the sample down for vertical polyacrylamide well entry. Laemmli's 1970 discontinuous SDS-PAGE paper established those formulation criteria: SDS for uniform negative charge, glycerol for density, plus a reducing agent and tracking dye.[2]
By the dye front. Colored dye fronts migrate at predictable rates relative to molecular size, telling researchers when to stop the run before samples run off the gel. The standard dye-migration tables correlate Bromophenol Blue / Xylene Cyanol front position with base-pair size across gel percentages — note the “across gel percentages” part: the correlation depends on the percentage of the gel you poured, so check the row for your gel rather than reusing one remembered value.[1]
Key References

The three sources this category rests on

The primary record behind the statements above, reproduced from the source guide. Each entry was checked against the published work before this page was written.

  1. Sambrook, J., & Russell, D. W. (2001). Molecular Cloning: A Laboratory Manual (3rd ed.). Cold Spring Harbor Laboratory Press. — The field's canonical bench reference, including standard dye-migration tables for Bromophenol Blue and Xylene Cyanol across gel percentages.
  2. Laemmli, U. K. (1970). Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature, 227(5259), 680–685. — Defines the classic SDS/glycerol-based formulation criteria for denaturing protein sample (loading) buffers.doi:10.1038/227680a0
  3. Lehrach, H., Diamond, D., Wozney, J. M., & Boedtker, H. (1977). RNA molecular weight determinations by gel electrophoresis under denaturing conditions, a critical reexamination. Biochemistry, 16(21), 4743–4751. — Establishes the rigorous standards for RNA sizing under denaturing electrophoresis conditions, underlying modern formaldehyde-based RNA loading buffers.doi:10.1021/bi00640a033
Loading buffer support. For help matching a loading buffer to a specific gel, sample type, or denaturing requirement, for a custom concentration or dye combination, or for documentation requests, contact support@diagnocine.com. Ready to order? Back to the Gel Loading Buffers catalog.

Related Products

Recently Viewed

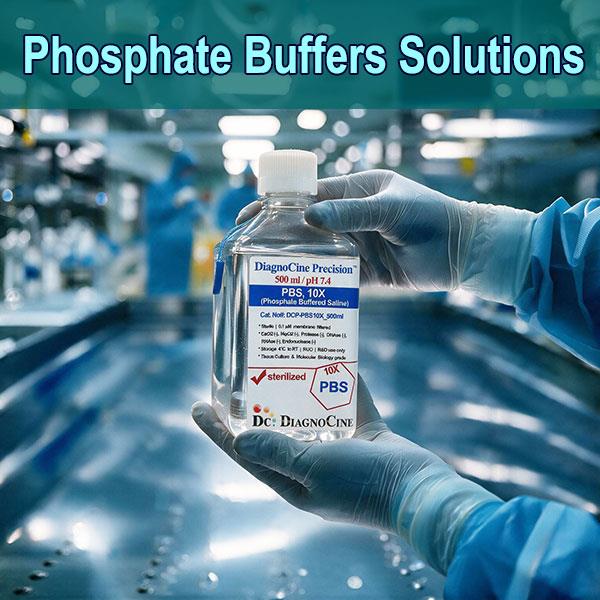

Phosphate Buffers - Category Selection Guide
