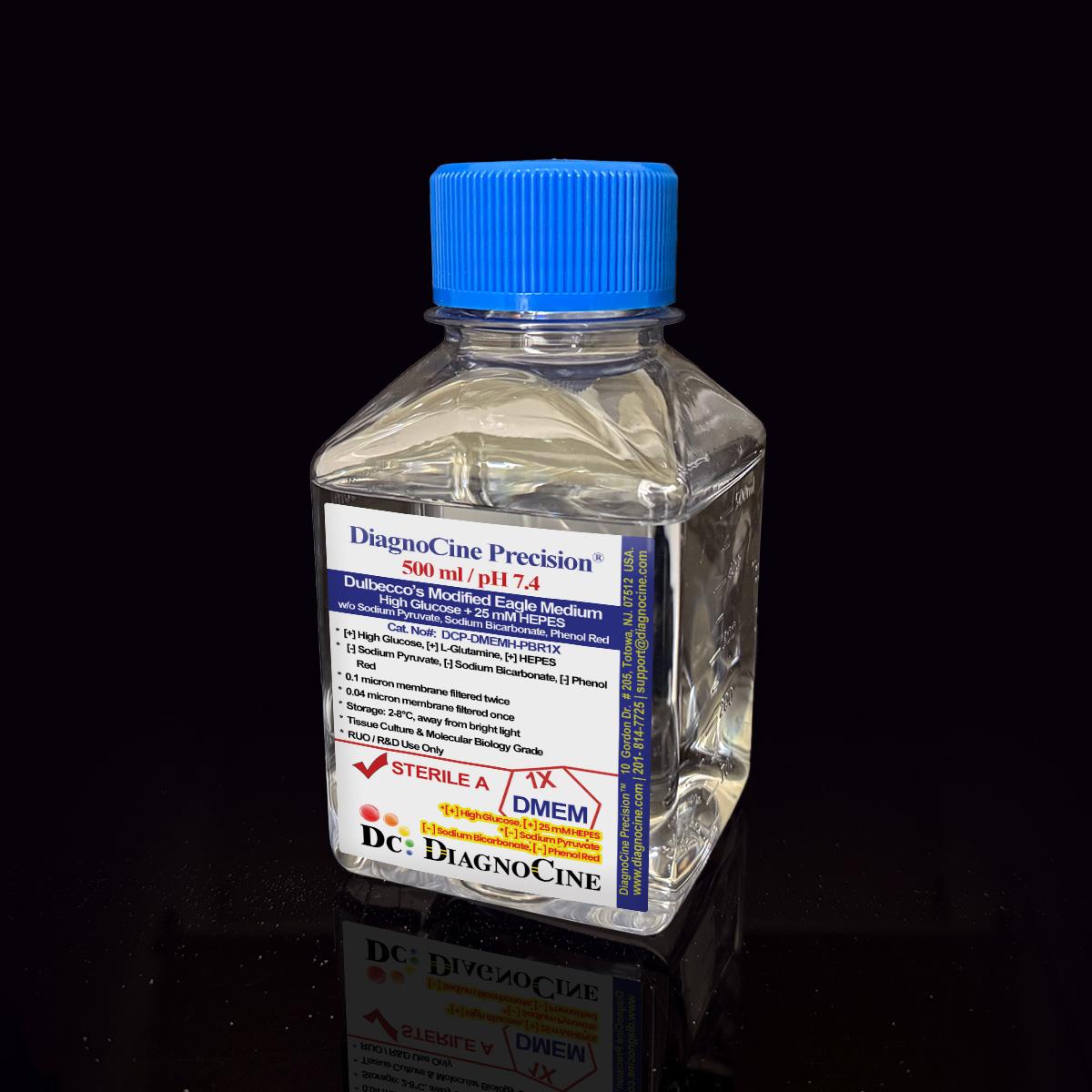

FluxMPS™ Dulbecco's Modified Eagle Medium (DMEM), High Glucose & 25mM HEPES w/o Sodium Pyruvate, Sodium Bicarbonate, Phenol Red: 1X Liquid
FluxMPS™ Dulbecco's Modified Eagle Medium (DMEM), High Glucose & 25mM HEPES w/o Sodium Pyruvate, Sodium Bicarbonate, Phenol Red: 1X Liquid
FluxMPS™ DCP-DMEMH-PBR1X is a Microfluidics Suitable, quadruple-stage ultra-filtered (0.1 µm ×2 + 0.04 µm ×2) DMEM High Glucose (4.5 g/L) formulation buffered with 25 mM HEPES, engineered for organ-on-a-chip (OoC), microphysiological systems (MPS), and CO₂-independent or open-top microfluidic platforms. A quadruple-stage train (0.1 µm ×2 + 0.04 µm ×2) reaches a 0.04 µm final cut-off, five times finer than the 0.22 µm membranes used for conventional sterile filtration. HEPES (25 mM, pKa 7.3 at 37°C) provides CO₂-independent pH buffering. Formulation: [+] High Glucose (4500 mg/L), [+] L-Glutamine, [+] 25mM HEPES, [+] Calcium, [+] Magnesium | [-] Sodium Pyruvate, [-] Sodium Bicarbonate, [-] Phenol Red.
- High Glucose (4.5 g/L) — supports neurons, cardiomyocytes, cancer lines, and aerobically active cells
- 25 mM HEPES (pKa 7.3 at 37°C) — CO₂-independent pH buffering, ideal for open-top and atmospheric culture
- Quadruple-stage filtration (0.1 µm ×2 + 0.04 µm ×2) reaching a 0.04 µm final pore size for microfluidic channel safety
- Endotoxin release specification: < 0.05 EU/mL (LAL, USP <85>)
- Formulation excludes sodium pyruvate, sodium bicarbonate and phenol red — a HEPES-only, CO₂-independent, optically clean base
- Manufactured under an ISO 13485:2016 quality management system; final QA at Diagnocine, Totowa, NJ
- 31 verified ingredients at 4× BME amino acid and vitamin concentrations, released per lot with a Certificate of Analysis
- Custom pH, glucose, HEPES concentration, salts, and nutrient adjustments available on request
- Glucose4500 mg/L (4.5 g/L, High Glucose)
- HEPES25 mM (5958 mg/L), pKa 7.3 at 37°C
- Formulation[+] High Glucose, [+] L-Glutamine, [+] HEPES, [+] Calcium, [+] Magnesium | [-] Sodium Pyruvate, [-] Sodium Bicarbonate, [-] Phenol Red
- AppearancePale yellow-colored, clear solution
- pH (USP <791>)7.4
- Osmolality (USP <785>)310–350 mOsm/kg H2O
- Endotoxin (USP <85>)< 0.05 EU/mL
- Filtration0.1 µm ×2 + 0.04 µm ×2 (Quadruple-stage)
- Storage2–8°C, away from light
- Shelf Life12 months from date of manufacture, unopened
Engineered where standard media fails
Conventional 0.22 µm–filtered DMEM passes mycoplasma, subvisible particulates, and endotoxin fragments that clog microfluidic channels. Standard DMEM also lacks HEPES buffering, causing pH instability whenever chips are handled outside incubators. FluxMPS™ addresses both failure modes simultaneously.
Microchannel-safe purity
0.04 µm final filtration and USP <788> particulate compliance support safe perfusion in fine chip geometries, including sub-100 µm channels.
High-energy cell support
4.5 g/L glucose sustains energy-demanding cell types — primary neurons, iPSC-derived cardiomyocytes, Warburg-active cancer lines — in long-duration perfusion.
HEPES: CO₂-stable pH
25 mM HEPES (pKa 7.3 at 37°C) helps maintain stable pH regardless of CO₂ fluctuation — useful for open-top chips, point-of-care devices, and atmospheric incubation.
Low background for imaging
Ultra-low particulate baseline supports confocal and biosensor platforms on chip.
Rich, stable nutrient profile
31 ingredients verified per lot; 4× BME amino acid/vitamin concentrations; micro-batch production with full traceability.
Customization on demand
pH, glucose, HEPES concentration, salts, and nutrients adjustable. Contact support@diagnocine.com.
Quadruple-stage filtration system
Four serial filtration stages, run as two dedicated prefilter + final-filter pairs, reaching a final 0.04 µm polish under aseptic fill conditions.
-
1
0.1 µm Prefiltration I
Large particulate, cell debris and protein aggregate removal; protects the first 0.04 µm cartridge.
-
2
0.04 µm Final filtration I
First 0.04 µm pass; retains sub-micron particulates and microaggregates that pass a 0.22 µm filter.
-
3
0.1 µm Prefiltration II
Second dedicated prefilter, protecting the second 0.04 µm cartridge.
-
4
0.04 µm Final filtration II — Polish
Ultimate polishing filter; aseptic fill & finish.
Performance vs. conventional media
© Diagnocine® — DCP-DMEMH-PBR1X
Designed for next-generation cell models
FluxMPS™ DCP-DMEMH-PBR1X combines high-glucose energy support with HEPES pH stability — supporting platforms from open-top microfluidic chips and CO₂-free bioreactors to multi-organ body-on-a-chip systems.
Automated Bioreactors & Robotics
HEPES buffering removes CO₂ dependency in automated bioreactor perfusion. An optional 0.01 µm (10 nm) MPS Grade ultra nano-filtered variant is available on request for robotic liquid handlers where even trace particulates cause valve failure.
- Total Particulate Exclusion: 10 nm filtration removes nanoparticulate aggregates from bioreactor media lines
- pH-Stable Automated Delivery: HEPES maintains pH during robotic media exchanges without CO₂ re-equilibration delays
- Extended Perfusion Stability: Consistent high-glucose delivery with stable pH over weeks-long culture
Inquiry Required: Contact support@diagnocine.com for the 0.01 µm MPS Grade variant.
Open-Top & CO₂-Free Chips
HEPES buffering enables pH-stable culture in open-top microfluidic devices, atmospheric incubators, and multi-compartment chips with heterogeneous CO₂ environments.
Primary Neurons & Brain-on-Chip
High glucose (4.5 g/L) plus HEPES stability supports primary neurons and iPSC-neuronal networks in long-duration microfluidic perfusion without pH drift.
Cardiomyocyte & Heart-on-Chip
High-glucose DMEM plus HEPES is a common base for iPSC-CM maturation and heart-on-chip functional assays requiring stable pH and high energy substrate.
Warburg Effect & Cancer Models
High glucose supports aerobic glycolysis in cancer lines; HEPES helps stabilize pH during rapid glucose consumption spikes in Warburg-active tumour models.
Metabolic Flux Analysis
Defined high-glucose, bicarbonate-free, phenol-red-free formulation for ¹³C isotope tracing and Agilent Seahorse XF assays; HEPES allows sampling outside incubators without pH artefacts.
Microscopy & Optical Sensing
HEPES-stabilized pH during imaging sessions; ultra-low particulate baseline for confocal and biosensor platforms on chip.
Analytical release specifications
Every lot released against the full specification matrix. CoA: support@diagnocine.com.
| Parameter | Specification |
|---|---|
| Formulation | [+] High Glucose (4500 mg/L), [+] L-Glutamine, [+] 25mM HEPES, [+] Calcium, [+] Magnesium | [-] Sodium Pyruvate, [-] Sodium Bicarbonate, [-] Phenol Red |
| Appearance | Pale yellow-colored, clear solution |
| Glucose | 4500 mg/L (4.5 g/L, High Glucose) |
| L-Glutamine | 584 mg/L |
| HEPES | 25 mM (5958 mg/L), pKa 7.3 at 37°C |
| Sodium Pyruvate | None / Not added |
| Sodium Bicarbonate | None / Not added (HEPES-buffered, CO₂-independent) |
| Phenol Red | None / Not added |
| pH USP <791> | 7.4 |
| Osmolality USP <785> | 310–350 mOsm/kg H2O |
| Total ingredients | 31 |
| Parameter | Specification |
|---|---|
| Endotoxin USP <85> BET | < 0.05 EU/mL |
| Sterility USP <71> | No growth / 14 days |
| Mycoplasma | 0.1 µm mycoplasma-retentive filtration (not tested per lot) |
| Particulate ≥10 µm USP <788> | NMT 25/mL |
| Particulate ≥25 µm USP <788> | NMT 3/mL |
| Water purity | Type 1, 18.2 MΩ·cm |
| Manufacturing std. | ISO 13485:2016 |
| Fill environment | ISO Class 5 (Class 100) |
| Parameter | Specification |
|---|---|
| Storage temperature | 2–8°C, away from light |
| Freeze-thaw | Do not freeze |
| Shelf life | 12 months from date of manufacture, unopened |
| Shipping condition | Cold pack |
| CO₂ requirement | CO₂-independent — HEPES (25 mM) alone maintains pH in the 7.2–7.4 range at 37°C without gas supplementation |
| Parameter | Specification |
|---|---|
| Raw material grade | Reagent / cell culture grade |
| Traceability | Full lot traceability per ISO 13485 |
| Manufacturing QMS ISO | ISO 13485:2016 certified |
| UNSPSC | 41116155 — Molecular biology and cell culture growth media (UNv260801) |
| Regulatory alignment | 21 CFR Part 820 (QMSR) aligned |
| Production method | Micro-batch, per-lot QC release |
| Intended use | Research Use Only (RUO) |
Full composition (mg/L)
DMEM High Glucose + HEPES is a modification of Basal Medium Eagle (BME) with 4× BME amino acid and vitamin concentrations. 31 ingredients verified per lot with CAS numbers for raw-material traceability. HEPES (25 mM = 5958 mg/L) is listed in the OTHERS group.
| Component | CAS Number | mg/L |
|---|---|---|
| INORGANIC SALTS | ||
| Calcium chloride dihydrate | 10035-04-8 | 265.000 |
| Ferric nitrate nonahydrate | 7782-61-8 | 0.100 |
| Magnesium sulfate anhydrous | 7487-88-9 | 97.720 |
| Potassium chloride | 7447-40-7 | 400.000 |
| Sodium chloride | 7647-14-5 | 6400.000 |
| Sodium dihydrogen phosphate anhydrous | 7558-80-7 | 109.000 |
| Component | CAS Number | mg/L |
|---|---|---|
| AMINO ACIDS | ||
| Glycine | 56-40-6 | 30.000 |
| L-Arginine hydrochloride | 1119-34-2 | 84.000 |
| L-Cystine dihydrochloride | 30925-07-6 | 62.570 |
| L-Glutamine | 56-85-9 | 584.000 |
| L-Histidine hydrochloride monohydrate | 5934-29-2 | 42.000 |
| L-Isoleucine | 73-32-5 | 105.000 |
| L-Leucine | 61-90-5 | 105.000 |
| L-Lysine hydrochloride | 657-27-2 | 146.000 |
| L-Methionine | 63-68-3 | 30.000 |
| L-Phenylalanine | 63-91-2 | 66.000 |
| L-Serine | 56-45-1 | 42.000 |
| L-Threonine | 72-19-5 | 95.000 |
| L-Tryptophan | 73-22-3 | 16.000 |
| L-Tyrosine Disodium Salt dihydrate | 69847-15-0 | 103.790 |
| L-Valine | 72-18-4 | 94.000 |
| Component | CAS Number | mg/L |
|---|---|---|
| VITAMINS | ||
| Choline chloride | 67-48-1 | 4.000 |
| D-Ca-Pantothenate | 137-08-6 | 4.000 |
| Folic acid | 59-30-3 | 4.000 |
| Nicotinamide | 98-92-0 | 4.000 |
| Pyridoxal hydrochloride | 65-22-5 | 4.000 |
| Riboflavin | 83-88-5 | 0.400 |
| Thiamine hydrochloride | 67-03-8 | 4.000 |
| OTHERS | ||
| i-Inositol | 87-89-8 | 7.200 |
| D-Glucose | 50-99-7 | 4500.000 |
| HEPES | 7365-45-9 | 5958.000 |
Manufacturing & compliance
Every FluxMPS™ product is manufactured and released under a multi-layer quality system spanning raw materials, in-process controls, and final-product testing.
ISO 13485:2016 Quality Management
Manufactured under ISO 13485:2016-certified facilities. Final QA and testing at the Diagnocine R&D Center, Totowa, NJ, USA.
Ultrapure Type 1 Water
18.2 MΩ·cm resistivity — supports trace-metal and organic-carbon (TOC) control for sensitive cell signaling and sensor assays.
ISO Class 5 Fill & Finish
Aseptic fill in validated ISO Class 5 (Class 100) laminar-flow workstations, supporting container-closure integrity.
Micro-Batch Precision
Small-batch production, full per-lot traceability, Certificate of Analysis for every lot.
Endotoxin — USP <85> BET
LAL assay, batch release specification: < 0.05 EU/mL.
Particulate — USP <788> Method 1
Light obscuration: NMT 25/mL (≥10 µm), NMT 3/mL (≥25 µm).
Osmolality — USP <785>
Freezing-point osmometry. Target: 310–350 mOsm/kg H2O.
Documentation & CoA
Full CoA with raw-material traceability available for every lot on request.
- Endotoxin — LAL assay, USP <85> Bacterial Endotoxins Test; assay sensitivity 0.005 EU/mL; release specification < 0.05 EU/mL
- pH, osmolality, conductivity, appearance and clarity
- Sterility
How DCP-DMEMH-PBR1X compares
FluxMPS™ DCP-DMEMH-PBR1X vs. conventional 0.22 µm–filtered DMEM High Glucose formulations.
| Parameter | DCP-DMEMH-PBR1X (FluxMPS™) | Conventional DMEM HG (0.22 µm filtered) |
Standard DMEM HG + HEPES (0.22 µm filtered) |
|---|---|---|---|
| Grade | Microfluidics Suitable | Not specified | Not specified |
| HEPES-only CO₂-free — no Pyruvate, no Phenol Red — optically clean atmospheric High Glucose base | check_circle Yes | cancel No | cancel No |
| Final filtration pore size | 0.04 µm | 0.22 µm | 0.22 µm |
| Number of filtration stages | 4 (Quadruple) | 1 | 1 |
| Mycoplasma-retentive filtration | check_circle Yes (0.1 µm) | cancel No | cancel No |
| HEPES buffer (25 mM) | check_circle Yes | cancel No | check_circle Yes |
| Endotoxin (release specification) | FluxMPS™ — < 0.05 EU/mL | Corning classical liquid media — < 0.25 EU/mL Sigma-Aldrich DMEM complete medium — ≤ 2 EU/mL Gibco classical DMEM — Not specified (recorded per lot) |
|
| USP <788> particulate tested | check_circle Yes | cancel No | cancel No |
| Water quality | Type 1, 18.2 MΩ·cm | Purified water | Purified water |
| Manufacturing QMS | ISO 13485:2016 | ISO 9001 or none | ISO 9001 or none |
| Microfluidic channel compatibility | check_circle Microfluidics Suitable | cancel Risk of clogging | cancel Risk of clogging |
| Custom formulation | check_circle Available | cancel Fixed | cancel Fixed |
Comparison figures from published supplier specifications, accessed 2 September 2026. Suppliers that publish no numeric endotoxin specification are shown as "Not specified".
Frequently asked questions
Common questions about FluxMPS™ DCP-DMEMH-PBR1X DMEM High Glucose + 25mM HEPES.
Supporting literature
Key peer-reviewed publications supporting Microfluidics Suitable, HEPES-buffered, ultra-filtered DMEM High Glucose in organ-on-a-chip and metabolic research.
- Huh D, et al. Reconstituting organ-level lung functions on a chip. Science. 2010;328:1662–1668. doi:10.1126/science.1188302
- Bhatia SN, Ingber DE. Microfluidic organs-on-chips. Nat Biotechnol. 2014;32:760–772. doi:10.1038/nbt.2989
- Warburg O. On the origin of cancer cells. Science. 1956;123:309–314. doi:10.1126/science.123.3191.309
- Novak R, et al. Robotic fluidic coupling and interrogation of multiple vascularized organ chips. Nat Biomed Eng. 2020;4:407–420. doi:10.1038/s41551-019-0497-x
- Katt ME, et al. In vitro tumor models: advantages, disadvantages, variables, and selecting the right platform. Front Bioeng Biotechnol. 2016;4:12. doi:10.3389/fbioe.2016.00012
- Jang KJ, et al. Human kidney proximal tubule-on-a-chip for drug transport and nephrotoxicity assessment. Integr Biol. 2013;5:1119–1129. doi:10.1039/c3ib40049b
- Schimek K, et al. Integrating biological vasculature into a multi-organ-chip microsystem. Lab Chip. 2013;13:3588–3598. doi:10.1039/c3lc50217a
- Luni C, et al. High-efficiency cellular reprogramming with microfluidics. Nat Methods. 2016;13:446–452. doi:10.1038/nmeth.3832
- Sung JH, et al. Microfabricated mammalian organ systems and their integration into models of whole animals and humans. Lab Chip. 2013;13:1201–1212. doi:10.1039/c3lc41017j
