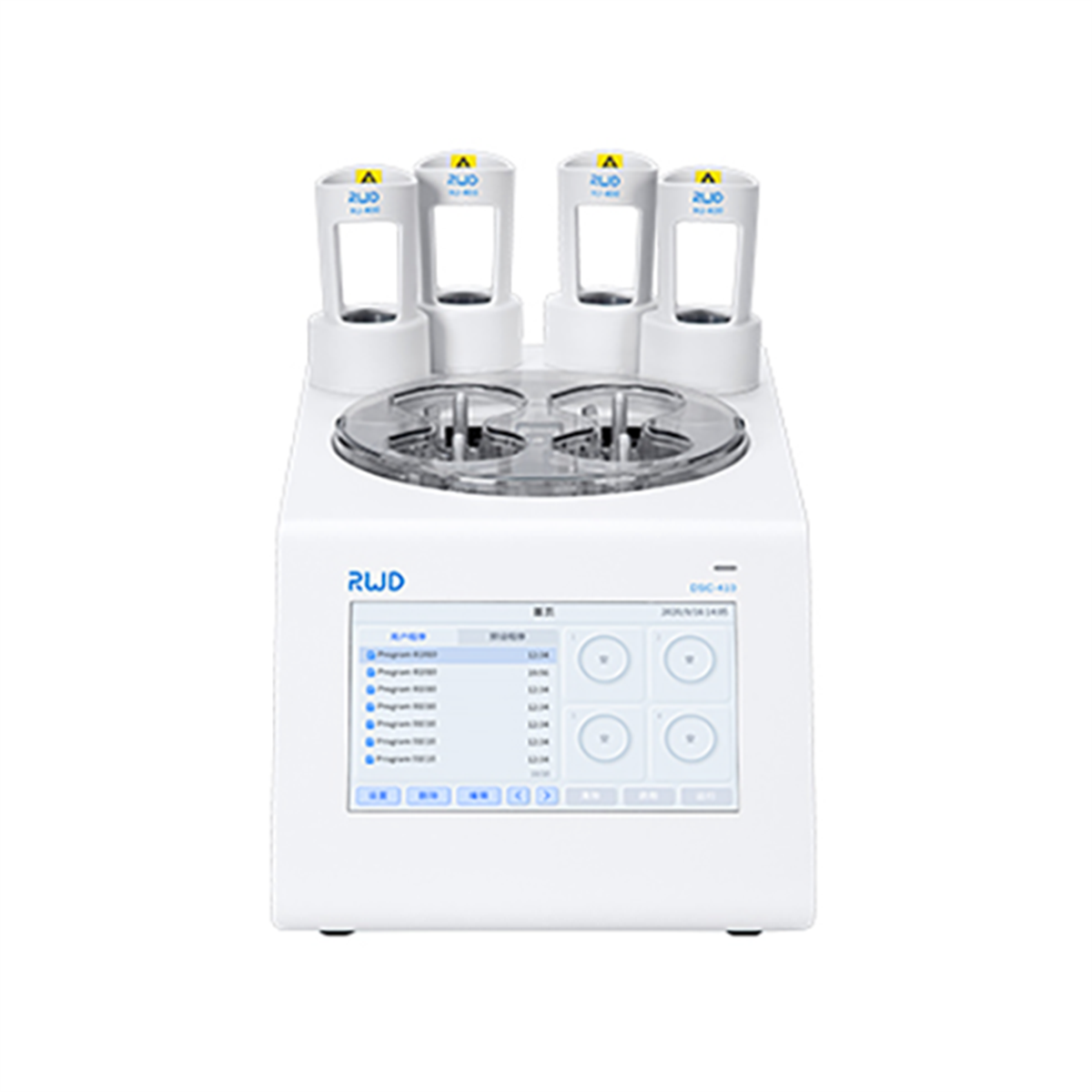

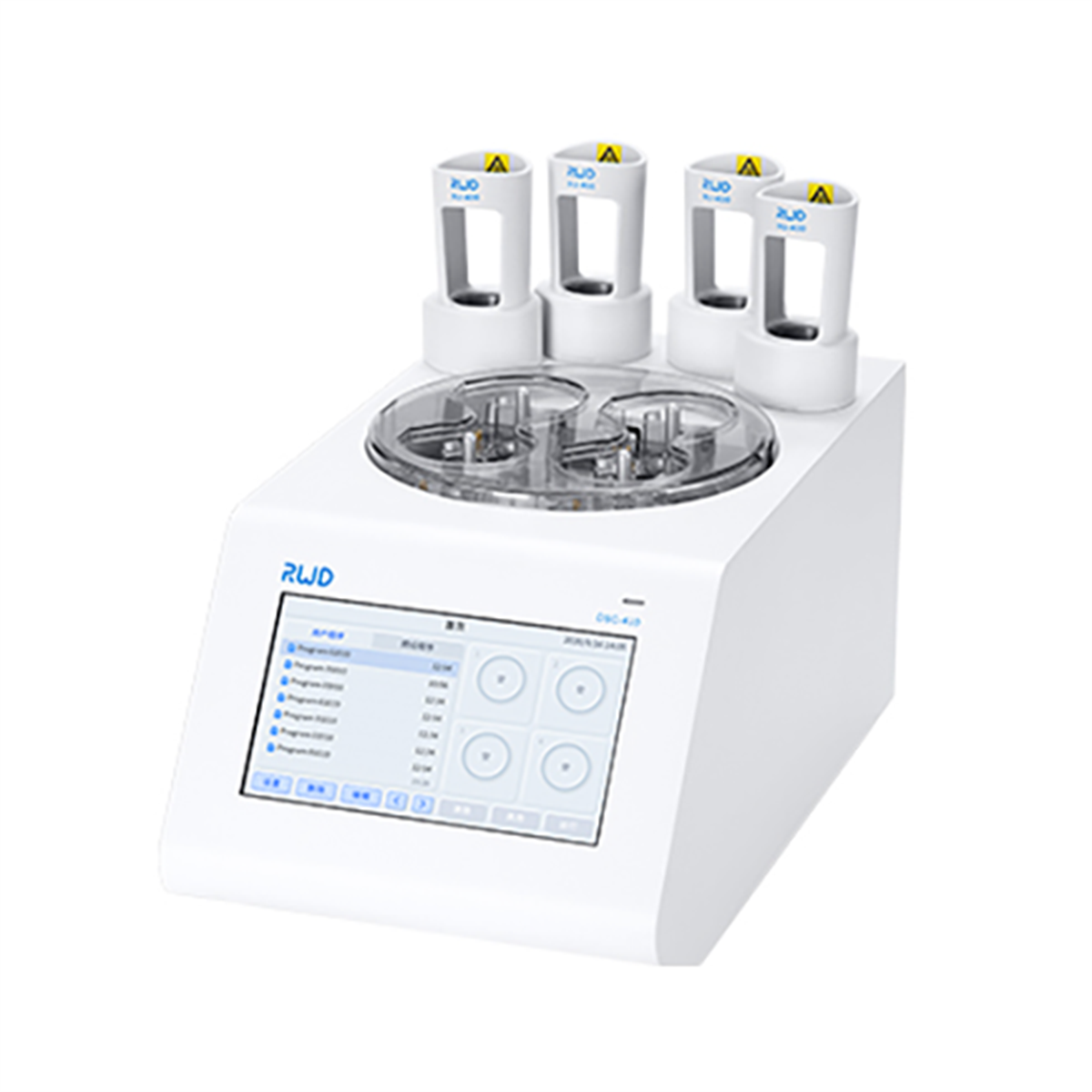

Single Cell Suspension Dissociator - 4 Channels (With 4 Heating Jacket)

Cat No.: RWD-GTD-4


Description

The RWD-GTD-4 Single Cell Suspension Dissociator is engineered for rapid, gentle dissociation of fresh tissue samples into high-viability single-cell suspensions or tissue homogenates. Featuring four independently controlled channels, each equipped with a dedicated heating jacket, this instrument enables simultaneous processing of multiple tissue samples, greatly increasing laboratory efficiency and throughput. It is compatible with RWD tissue processing tubes, dissociation kits, and programmable protocols optimized for a wide range of tissue types. Typical preparation times range from 15 to 30 minutes per run.

Specifications

• Simultaneous Multi-Sample Processing:
  Four independent channels allow parallel processing of up to four tissue samples, each with customizable protocols. Channels can run different programs simultaneously, maximizing lab efficiency and throughput.

• Automated, Reproducible Dissociation:
  Built-in preset and user-editable programs ensure standardized, gentle dissociation and high cell viability. Heating jackets automate temperature control (37°C), eliminating the need for water baths and improving enzymatic digestion consistency.

• Wide Tissue Compatibility:
  Efficiently dissociates human and animal tissues, including tumors, brain, neural tissue, spleen, lung, lamina propria, lymph gland, testicles, liver, adipose tissue, and epidermis-supporting both routine and challenging sample types.

• User-Friendly Operation:
  Large color touchscreen and intuitive software enable one-touch operation for preset or custom protocols. All parameters (speed, duration, temperature) are easily adjustable for experimental flexibility.

• Performance and Specifications:

  • Sample volume: 20–4000 mg

  • Buffer volume: 0.3–10 mL

  • Speed: 0–4000 rpm

  • Temperature: 37°C (with heating jacket)

  • Channels: 4 (independent)

  • Operation: Touch screen interface

  • Dimensions: 215 × 380 × 190 mm (8.46 x 14.96 x 7.48 in)

  • Weight: ~10.3 kg

• Warranty Period: 12 months

Applications

• Flow cytometry and fluorescence-activated cell sorting (FACS)

• Primary cell culture and cell therapy research

• Single-cell sequencing and omics sample preparation

• Compound toxicity evaluation and drug development

Order Information
  Note: One box of tissue processing tubes (SCT-25) is provided free of charge with each Single Cell Suspension Dissociator order.

Model				SCT-25
Sample volume				20-4000mg
Buffer volume				0.3-10mL
Dimensions				35*89mm(1.38*3.5in)
Package				25pcs/box
