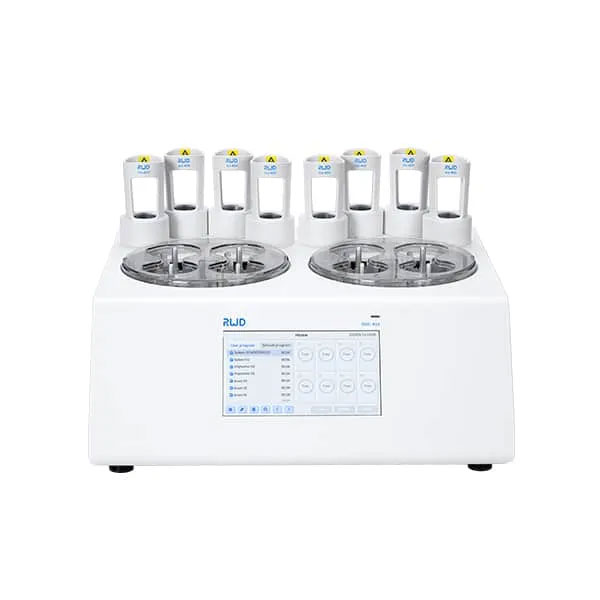

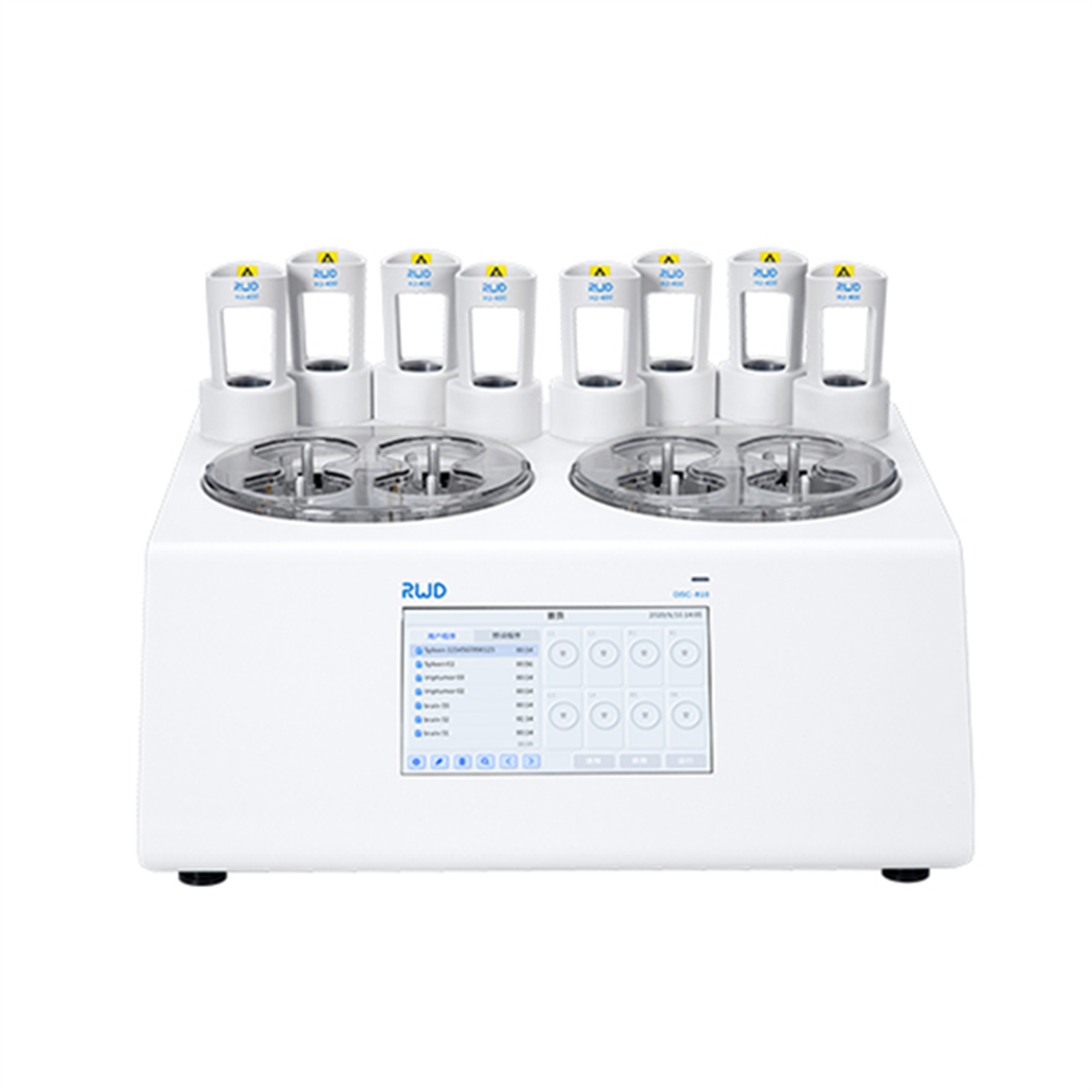

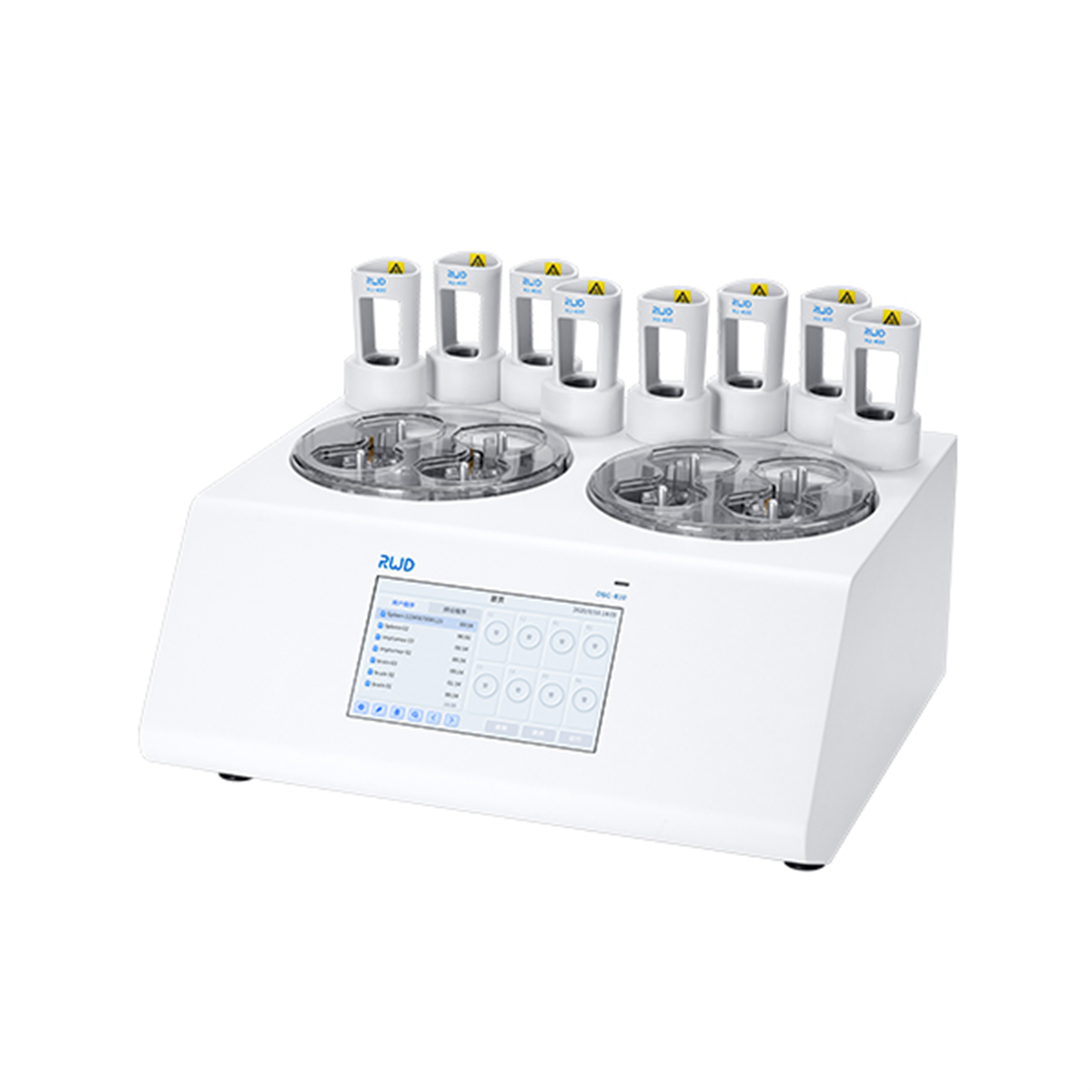

Single Cell Suspension Dissociator - 8 Channels (With 8 Heating Jacket)

Cat No.: RWD-GTD-8


Description

The RWD-GTD-8 Single Cell Suspension Dissociator enables fast, gentle dissociation of fresh tissue into highly viable single-cell suspensions or tissue homogenates. Eight fully independent channels, each equipped with dedicated heating jackets, allow simultaneous sample processing, maximizing throughput and efficiency for laboratories. Compatible with RWD tissue processing tubes and tissue dissociation kits, the instrument supports standardized and customizable protocols optimized for different tissue types. Standard dissociation or homogenization runs are completed within 15–30 minutes, delivering reliable and reproducible results for a wide range of downstream applications.

Specifications

• Eight Independent Channels:
  Each channel operates autonomously, supporting different protocols and tissue types in parallel. This multi-sample capability maximizes throughput and experimental flexibility.

• Automated Heating Jackets:
  Integrated heating jackets maintain a stable 37°C environment for optimal enzymatic digestion, eliminating the need for manual water baths and ensuring consistent cell viability and yield.

• Rapid, Standardized Dissociation:
  Predefined and customizable programs enable gentle, reproducible dissociation of fresh or frozen tissue into high-viability single-cell suspensions within 15–30 minutes.

• Wide Tissue Compatibility:
  Efficiently processes a broad range of tissues, including human and animal tumors, brain, neural tissue, spleen, lung, lamina propria, lymph gland, testicles, liver, adipose tissue, and epidermis.

• User-Friendly Touchscreen Interface:
  Large color touchscreen (7 inches) with intuitive software for one-touch operation, preset protocols, and easy customization of speed (0–4000 rpm), time, and temperature.

• Technical Specifications:

  • Sample volume: 20–4000 mg

  • Buffer volume: 0.3–10 mL

  • Speed: 0–4000 rpm

  • Temperature: 37°C

  • Channels: 8 (independent)

  • Operation: Touch screen interface

  • Dimensions: 415 × 381 × 256 mm (16.34 x 15.0 x 10.08 in)

  • Weight: 18 kg (39.7 lbs)

• Warranty Period: 12 months

Applications

• Single-cell sequencing and omics sample preparation

• Flow cytometry and fluorescence-activated cell sorting (FACS)

• Primary cell culture and cell therapy research

• Compound toxicity evaluation and drug development

Order Information
  Note: One box of tissue processing tubes (SCT-25) is provided free of charge with each Single Cell Suspension Dissociator order.

Model				SCT-25
Sample volume				20-4000mg
Buffer volume				0.3-10mL
Dimensions				35*89mm(1.38*3.5in)
Package				25pcs/box
