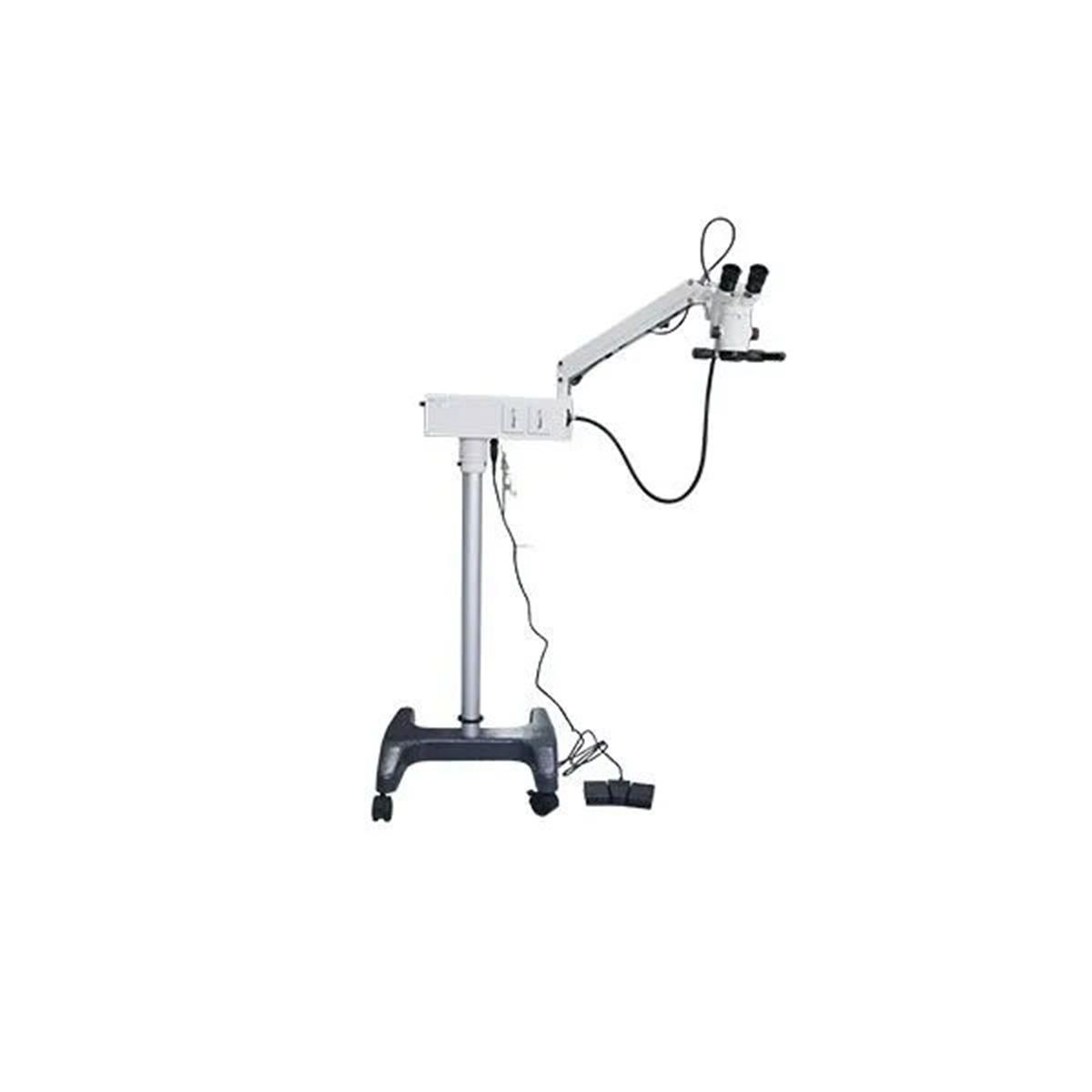

77002 Binocular Surgical Microscope

The 77002 Binocular Surgical Microscope is a precision instrument engineered for general ophthalmic and animal microsurgery. This compact, mobile microscope features a single-person binocular coaxial illumination system, designed for high flexibility and ease of use in both clinical and mobile medical environments.

Specifications

• Optical System

  • Eyepieces: 12.5x with a 200 mm objective focus length

  • Total Magnification Options: 5.3x, 8x, 12x

  • Working Distance: 190 mm

  • Visual Field Diameters: 38 mm, 25 mm, 17 mm (depending on magnification)

  • Diopter Adjustment Range: +5D

  • Pupil Distance Range: 50-70 mm

• Illumination

  • Bulb: 12V/100W medical halogen lamp with cold reflection for safe, bright illumination

  • Illumination Type: 6° + 0° cold light source coaxial illumination

  • Intensity: ≥20,000 Lux

• Mechanical and Ergonomic Design

  • Maximum Arm Stretching Radius: 870 mm for broad operational reach

  • Vertical Movement Range (floor to objective): 700–1100 mm

  • Fine Focusing Adjustment Range: 30 mm

  • Net Weight: 41 kg

  • Compact and lightweight for easy mobility and deployment in various medical settings

• Power and Safety

  • Input Voltage: AC220V ±10%, 50Hz ±1Hz

  • Input Power: 120 VA

  • Fuse: AC250V T1.25A


Applications

• General ophthalmic microsurgery

• General animal microsurgery

• Suitable for mobile medical use due to compact design and high flexibility
