Trinocular Stereo Microscope

The RWD-77008S Trinocular Stereo Microscope is a high-performance optical instrument designed for detailed three-dimensional observation and real-time digital imaging in scientific research, biomedical laboratories, and industrial applications. Building on the foundation of the binocular model, the 77008S adds a trinocular interface, allowing the integration of a camera or video device for live observation, image capture, and documentation without interrupting visual inspection.

Specifications

• Zoom ratio: 0.67X – 4.5X (6.7:1)
• Field of view: 31.2 mm – 5.1 mm
• Total magnification: 6.7X – 45X (with 10X eyepiece); 3.35X – 22.5X (with 10X eyepiece + 0.5X auxiliary objective)
• Working distance: 105 mm (10X eyepiece); 177 mm (10X eyepiece + 0.5X auxiliary objective)

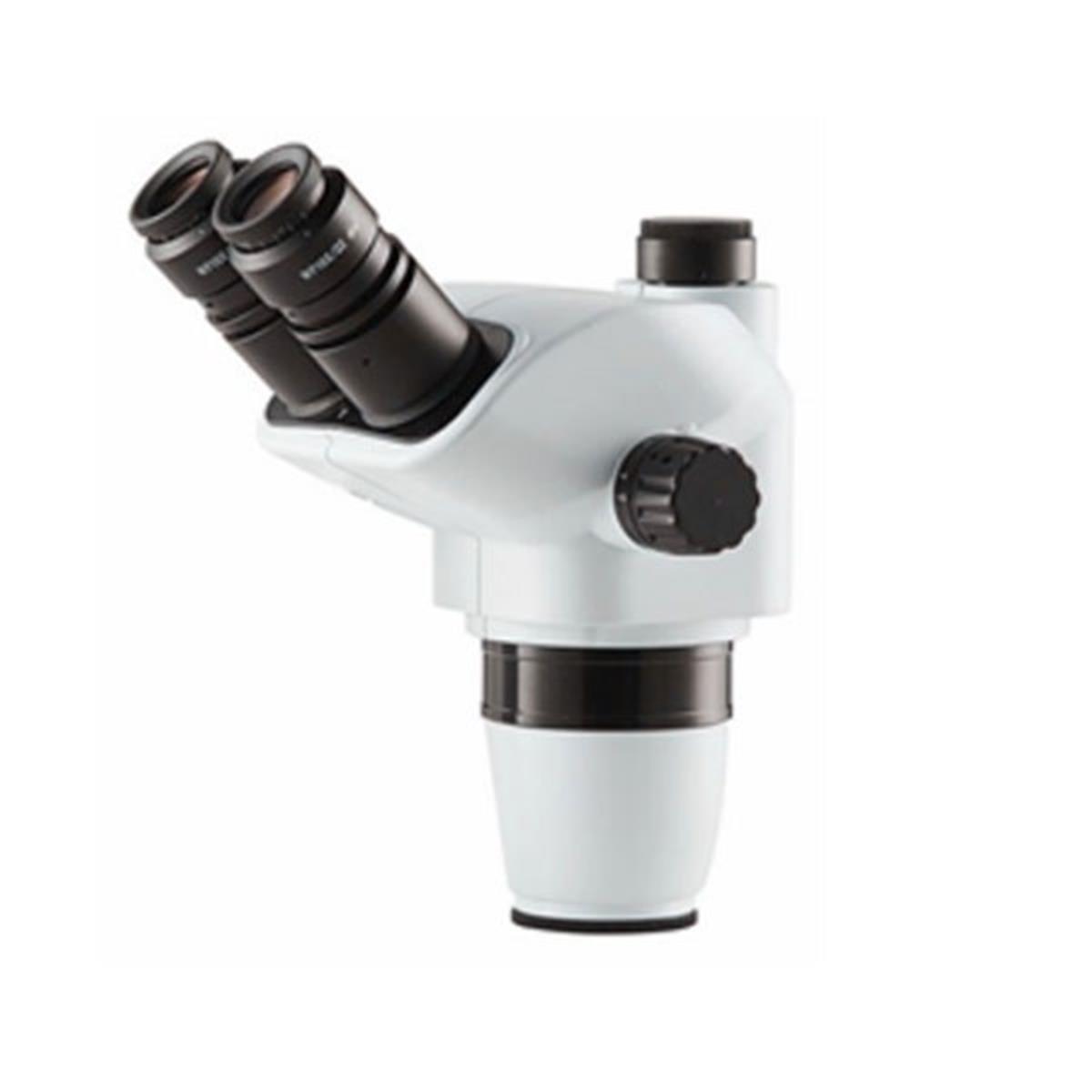

• Observation head: Trinocular, 45° inclined, 360° rotatable; interpupillary distance 55–77 mm; diopter adjustment ±5
• Eyepiece: 10X large field of view (Φ22 mm)

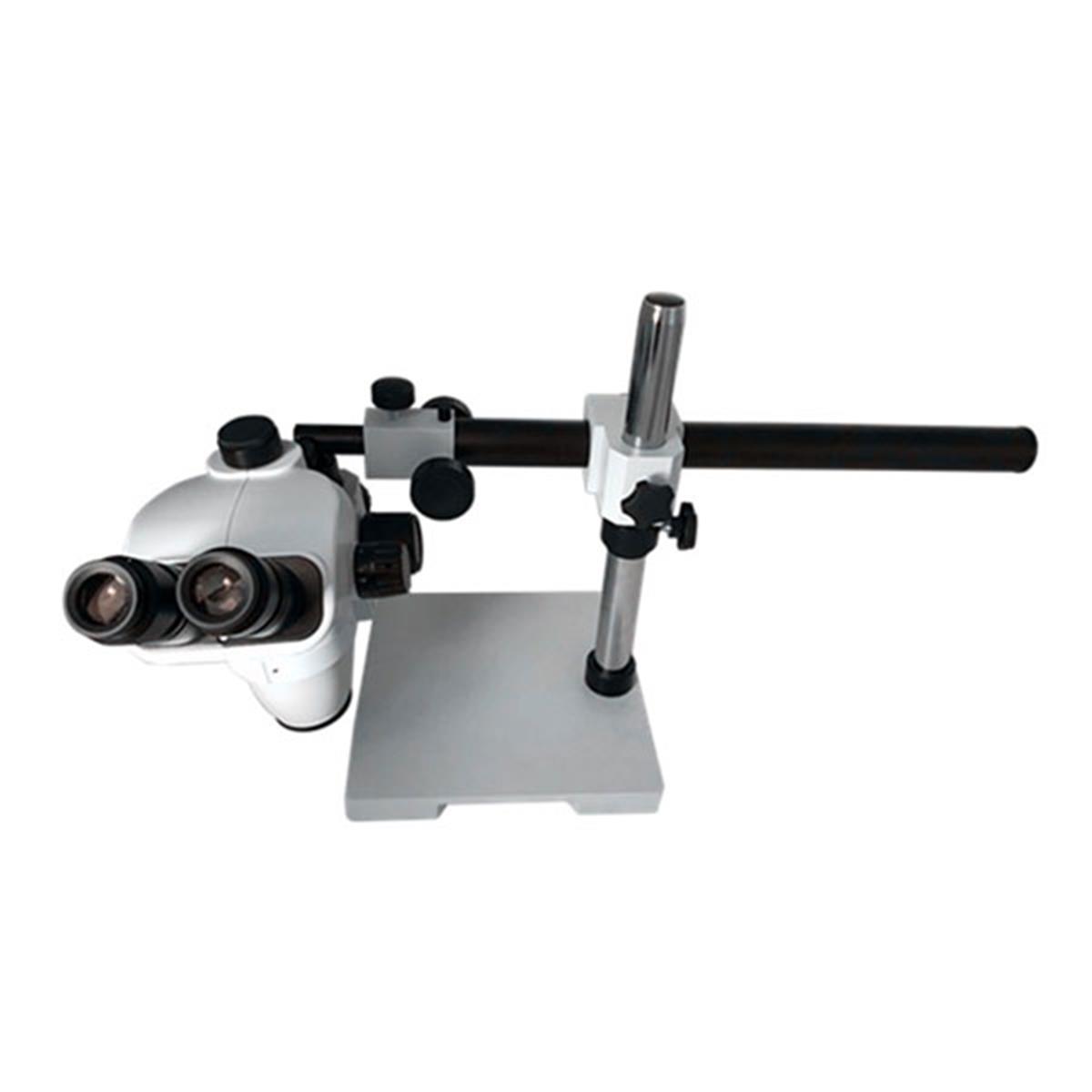

• Stand: Universal stand, 360° rotatable, adjustable arm length for flexible positioning

Order Information

Cat No.	Product Description	Link
RWD-77001S	Binocular Stereo Microscope
RWD-77008S	Trinocular Stereo Microscope	Current Link
