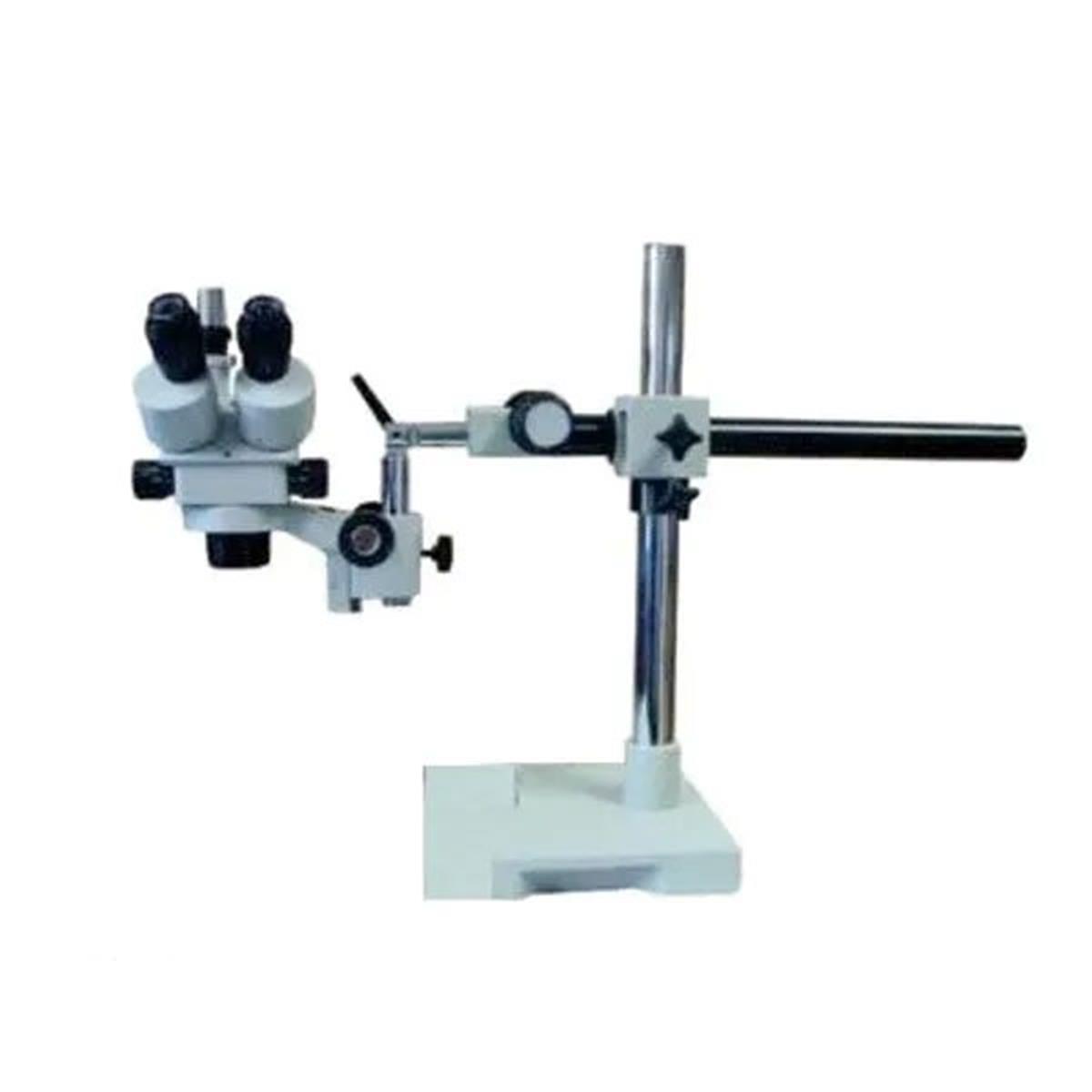

Binocular Stereo Microscope

Cat No.: RWD-77001S


Description

The RWD-77001S Microscope is a binocular universal continuous polyploidy microscope designed for professional and scientific applications. Equipped with a universal support stand, the RWD-77001S allows for 360° rotation and flexible length adjustment, expanding the operating range and enabling observation of specimens from any direction and angle. The microscope delivers high-resolution, high-definition imaging with a strong stereoscopic effect, making it suitable for detailed analysis and research.


Specifications

• Eyepiece: 10x large flat field eyepiece, 22 mm diameter

• Objective Magnification: 0.67x–4.5x, objective multiple ratio 6.7:1

• Total Magnification: 6.7x–45x (with 10x eyepiece); 3.35x–22.5x (with 10x eyepiece + 0.5x auxiliary eyepiece)

• Binocular Head: Pupil distance adjustment 54–75 mm, ±5 diopters, 45° tilt, 360° rotation

• Field of View: 31.2 mm–5.1 mm

• Working Distance: 100 mm (10x eyepiece); 177 mm (10x eyepiece + 0.5x auxiliary eyepiece)

• Focusing Mechanism: Handwheel adjustable

• Universal Stand: 360° rotation, freely stretchable in length

Applications

The 77001S Microscope is widely used in:

• Teaching demonstrations and scientific research experiments

• Small animal operations and seed inspection/screening

• Criminal detection and forensic analysis

• Electronic precision parts assembly and overhaul

• Textile industry quality control

• Auxiliary identification of cultural relic stamps

• Surface observation of various substances

Order Information

Cat No.	Product Description	Link
RWD-77001S	Binocular Stereo Microscope	Current Link
RWD-77008S	Trinocular Stereo Microscope
