3.5-inch (8.89cm) glass capillary, 100pcs/pkg
3.5-inch (8.89cm) glass capillary, 100pcs/pkg
Cat No.: RWD-GC-3.5
Standard packaging unit of 5 qty. per box.
* Smaller size available ONLY when combined with other related Animal Work products.
* Customized Orders available for combining various Animal Work products. Please contact the Diagnocine Support Team before placing your order.
Email: support@diagnocine.com
Phone: 551-245-1033
Description
The RWD-GC-3.5 is a precision-engineered 3.5-inch (8.89 cm) glass capillary, specifically designed for high-accuracy microinjection and nanoliter delivery in scientific and biomedical research. Manufactured from high-quality borosilicate glass, each capillary features an outer diameter of 1.14 mm and an inner diameter of 0.53 mm, ensuring optimal compatibility with nanoliter injection systems such as the RWD R-480 Nanoliter Injection Pump and similar microinjection platforms.
Specifications
-
Material: Borosilicate glass capillary without filament
-
Length: 3.5 inches (88.9 mm)
-
Outer Diameter (O.D.): 1.14 mm
-
Inner Diameter (I.D.): 0.53 mm
-
Quantity: Supplied in packs of 100 for laboratory efficiency
Applications
-
Microinjection: Ideal for nanoliter-scale injection of drugs, nucleic acids, proteins, viruses, dyes, and other reagents into animal and cell models, including rodents (stereotaxic brain injections), zebrafish, Xenopus embryos, and insect larvae.
-
Electrophysiology: Suitable for use as glass electrodes in intracellular recording and patch-clamp experiments.
-
Compatibility: Designed for seamless integration with RWD nanoliter injection systems and is also compatible with other leading microinjection devices.

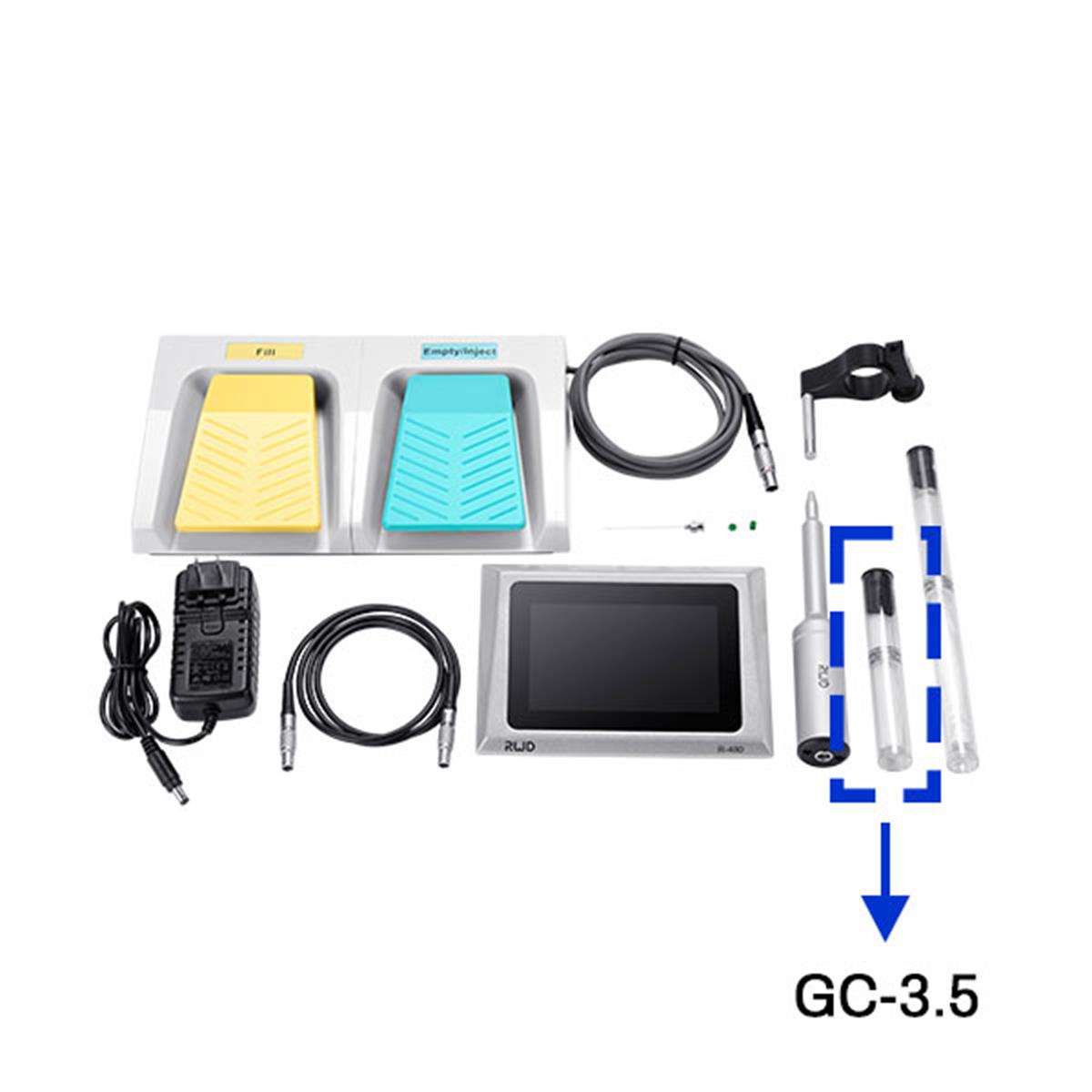

| Name | Model | Standard/optional | Quantity | Usage | Link |
| Nanoliter Injection Pump | RWD-R-480 | N/A | 1 | Designed for high-precision microinjection, with nanoliter volume injection using fine glass capillaries |  |
| Injection unit | N/A | Standard | 1 | For connecting glass electrodes and performing operations such as injection |
N/A |
| Control unit | N/A | Standard | 1 | For setting parameters and controlling the injection unit to perform the corresponding operations |
N/A |
| Connection cable | N/A | Standard | 1 | For connection between the injection unit and the control unit |
N/A |
| 3.5″ (8.89 cm) glass electrode | RWD-GC-3.5 | Standard | 100 | Outer diameter: 1.14 mm; inner diameter: 0.53 mm | Current Link |
| 7″ (17.78 cm) glass electrode | RWD-GC-7 | Standard | 100 | Outer diameter: 1.14 mm; inner diameter: 0.53 mm | |
| Universal adapter for all nanojects | RWD-R480-SF | Standard | 1 | For use in conjunction with stereotaxic and micro-manipulator |
N/A |
| Power adapter | N/A | Standard | 1 | For access to power supply | N/A |
| Filling needle | R480-FN | Standard | 1 | For oil fifilling | N/A |
| Sealing material | RWD-R480-SM | Standard | 1 | For replacing the sealing material inside the injection unit |
|
| Foot switch and connection cable | RWD-R480-FS | Optional | 1 | For controlling injection, emptying and other operations of the injection unit |
N/A |
| Dedicated fastener for micro-manipulation | RWD-R480-AFM | Optional | 1 | A special accessory equipped with RWD electric micro manipulator |
N/A |
| V attachment | RWD-68207 | Optional | 1 | Accessory equipped with stereotaxic instrument | |
