Nanoliter Injection Pump
Nanoliter Injection Pump
Cat No.: RWD-R-480Description

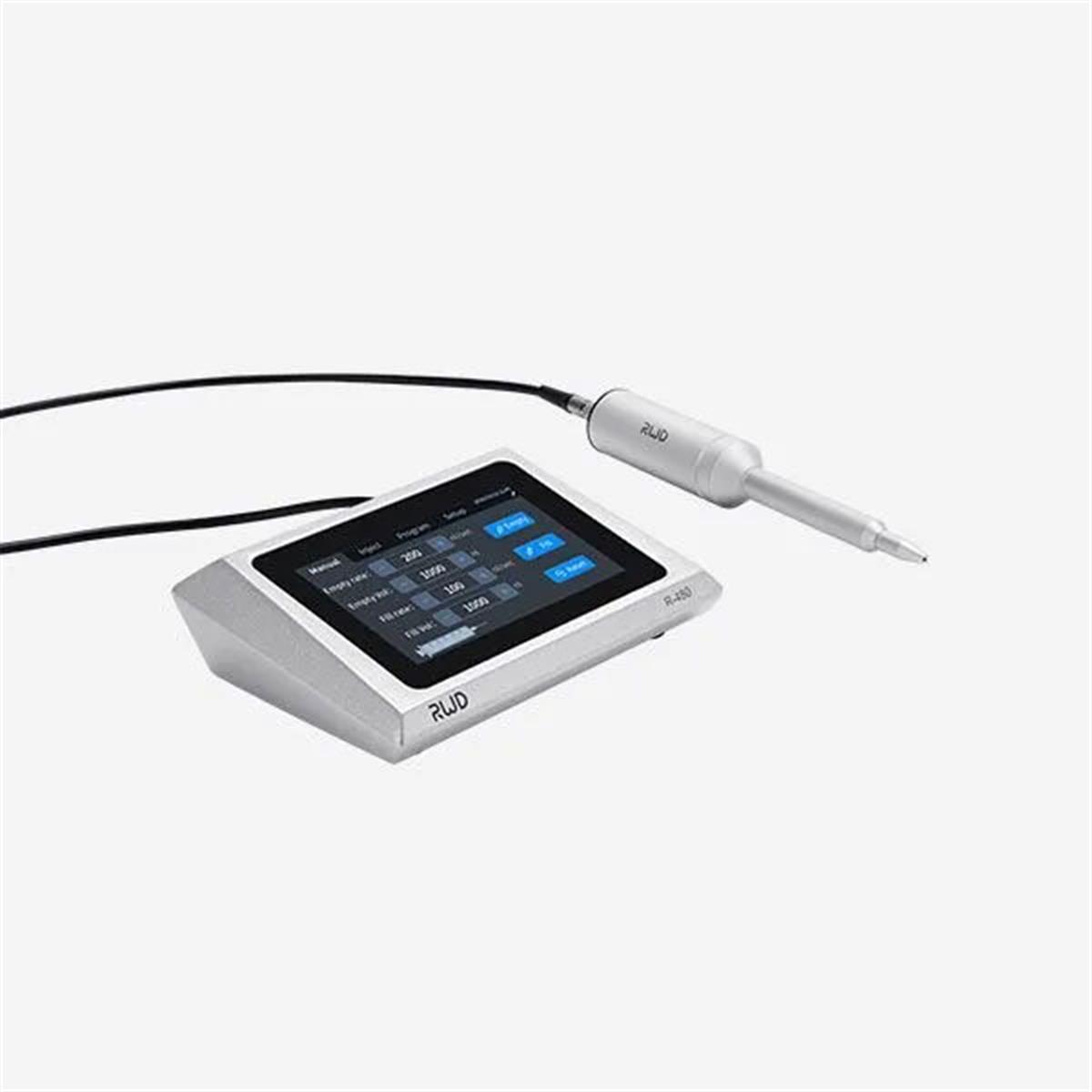

The R-480 Nanoliter Injection Pump is a high-precision microinjection system engineered for delivering nanoliter-scale volumes using fine glass capillaries. With advanced plunger control and a unique sealed ring mechanism for enhanced airtightness, it ensures exceptional accuracy and reproducibility for ultra-small volume injections. The R-480 is ideal for neuropharmacology, gene delivery, embryo/larvae studies, and microinjections in rodents, fish, amphibians, and insects.
Specifications
|
Control Unit Size (L × W × H) |
170 × 120 × 45 mm |
|
Injection Unit Size (L) |
20 cm |
|

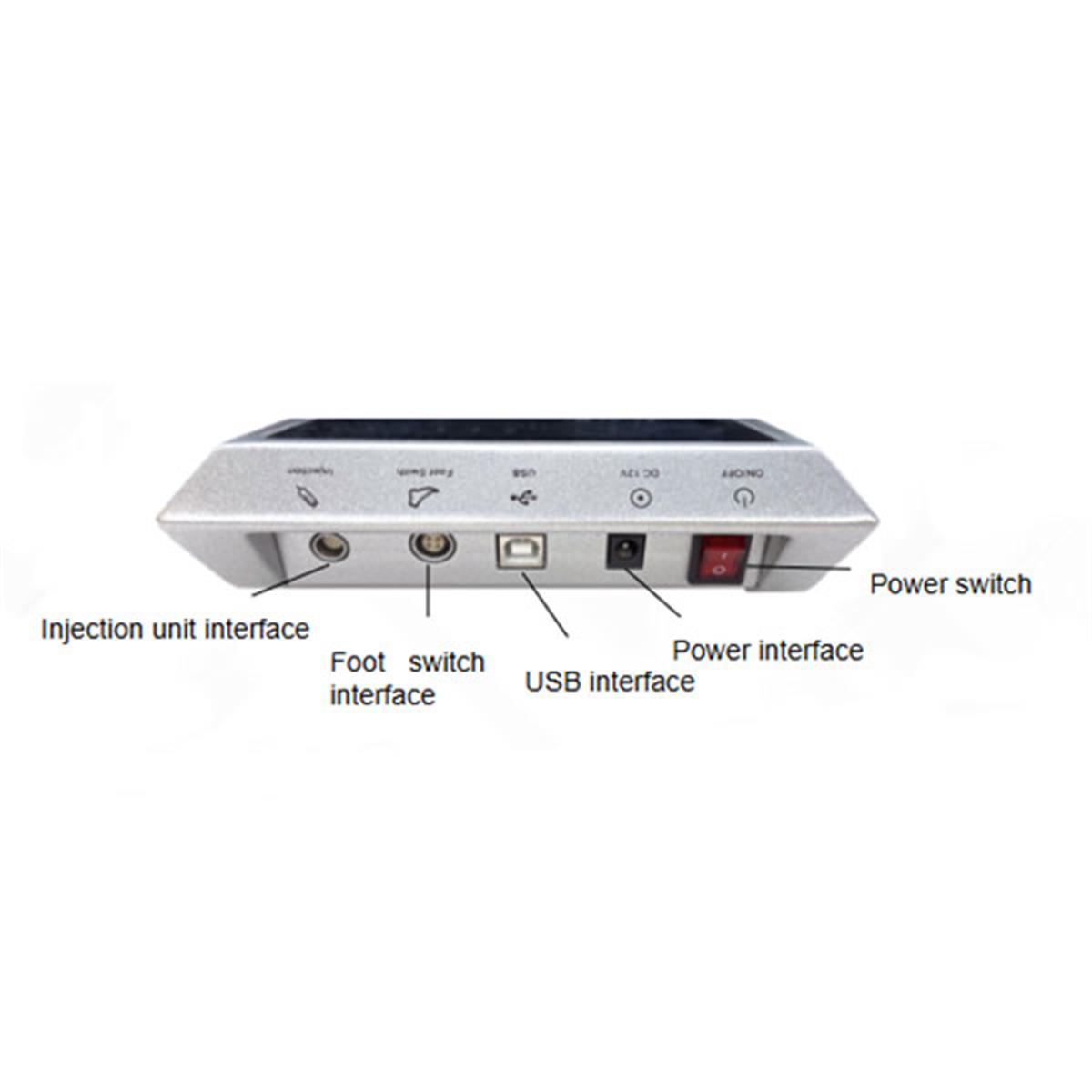

Connection Cable (Injection Unit–Control Unit) |
100 cm |
|
Connection Cable (Footswitch–Control Unit) |
200 cm (optional accessory) |
|
Display |
5.0 inch capacitive touch screen resolution: 800×480 px |
|
Weight |
Control unit 0.8 kg; Injection unit 0.2 kg; Footswitch 1.5 kg |
|
Minimum Injection Rate |
0.02 nL/s (1.20 nL/min) |
|
Maximum Injection Rate |
200 nL/s (12,000 nL/min) |
|
Rate Minimum Resolution |
0.01 nL/s (0.1 nL/min) |
|
Fill/Empty rate |
0.02–200 nL/s (1.20–12,000 nL/min) |
|
Reset Rate |
200 nL/s (12,000 nL/min) |
|
Minimum Injection Volume |
0.6 nL |
|
Maximum Injection Volume |
5000.0 nL |
|
Minimum Volume Resolution |
0.1 nL |
|
Plunger Travel Distance |
28 mm |
|
Cycle |
1-8000 |
|
Delay |
1-999 s |
|
Glass Electrode Dimension |
O.D. 1.14 mm, I.D. 0.53 mm |
Warranty Period: 12 months
Features
-
High injection precision and stable performance
-
Fully function and humanized design
-
Easy to operate, simple and intuitive interface
-
The pump is light and durable, and occupies little space
Order Information

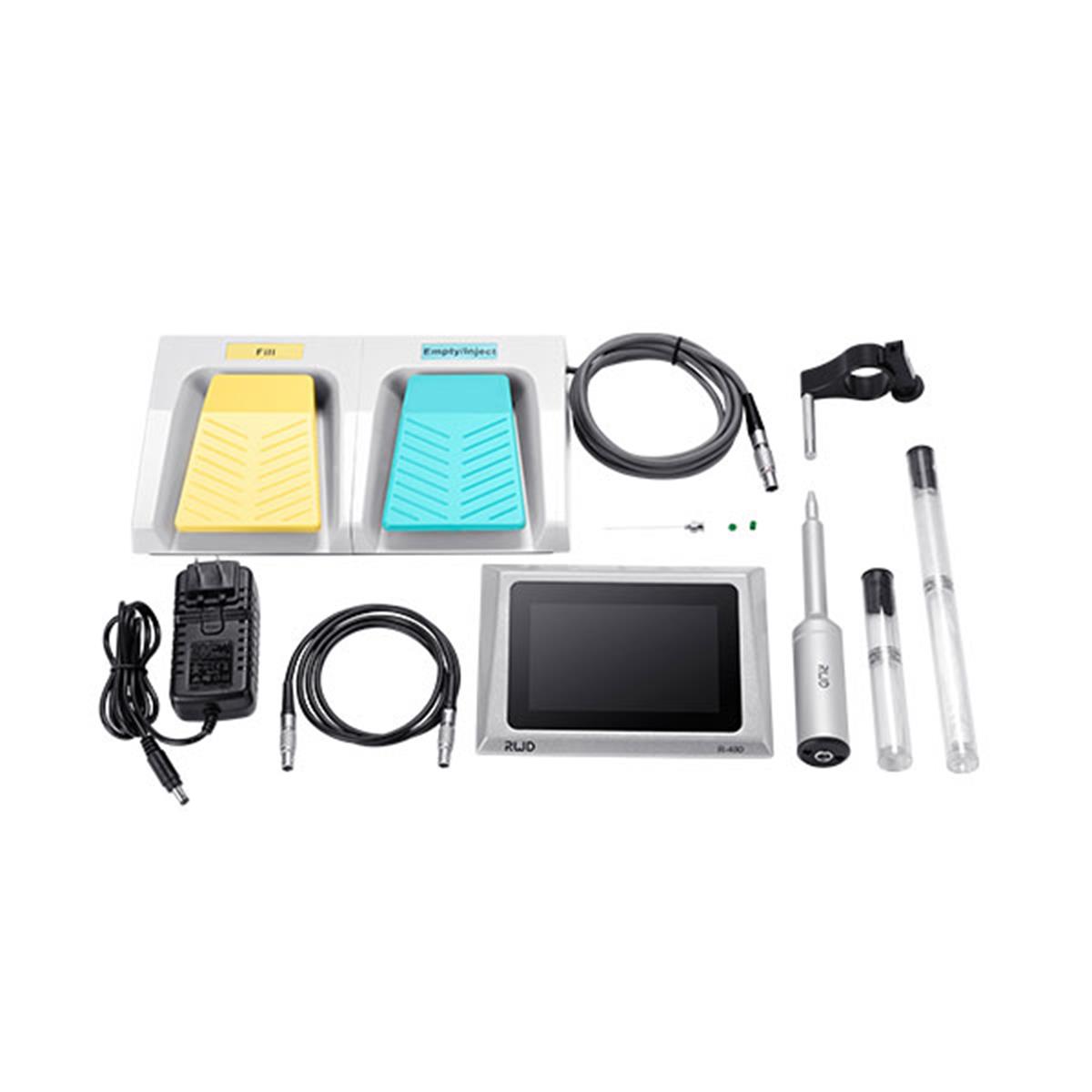

| Name | Model | Standard/Optional | Quantity | Usage | Link |
| Nanoliter Injection Pump | RWD-R-480 | N/A | 1 | Designed for high-precision microinjection, with nanoliter volume injection using fine glass capillaries | Current Link |
| Injection unit | N/A | Standard | 1 | For connecting glass electrodes and performing operations such as injection |
N/A |
| Control unit | N/A | Standard | 1 | For setting parameters and controlling the injection unit to perform the corresponding operations |
N/A |
| Connection cable | N/A | Standard | 1 | For connection between the injection unit and the control unit |
N/A |
| 3.5″ (8.89 cm) glass electrode | RWD-GC-3.5 | Standard | 100 | Outer diameter: 1.14 mm; inner diameter: 0.53 mm |  |
| 7″ (17.78 cm) glass electrode | RWD-GC-7 | Standard | 100 | Outer diameter: 1.14 mm; inner diameter: 0.53 mm | |

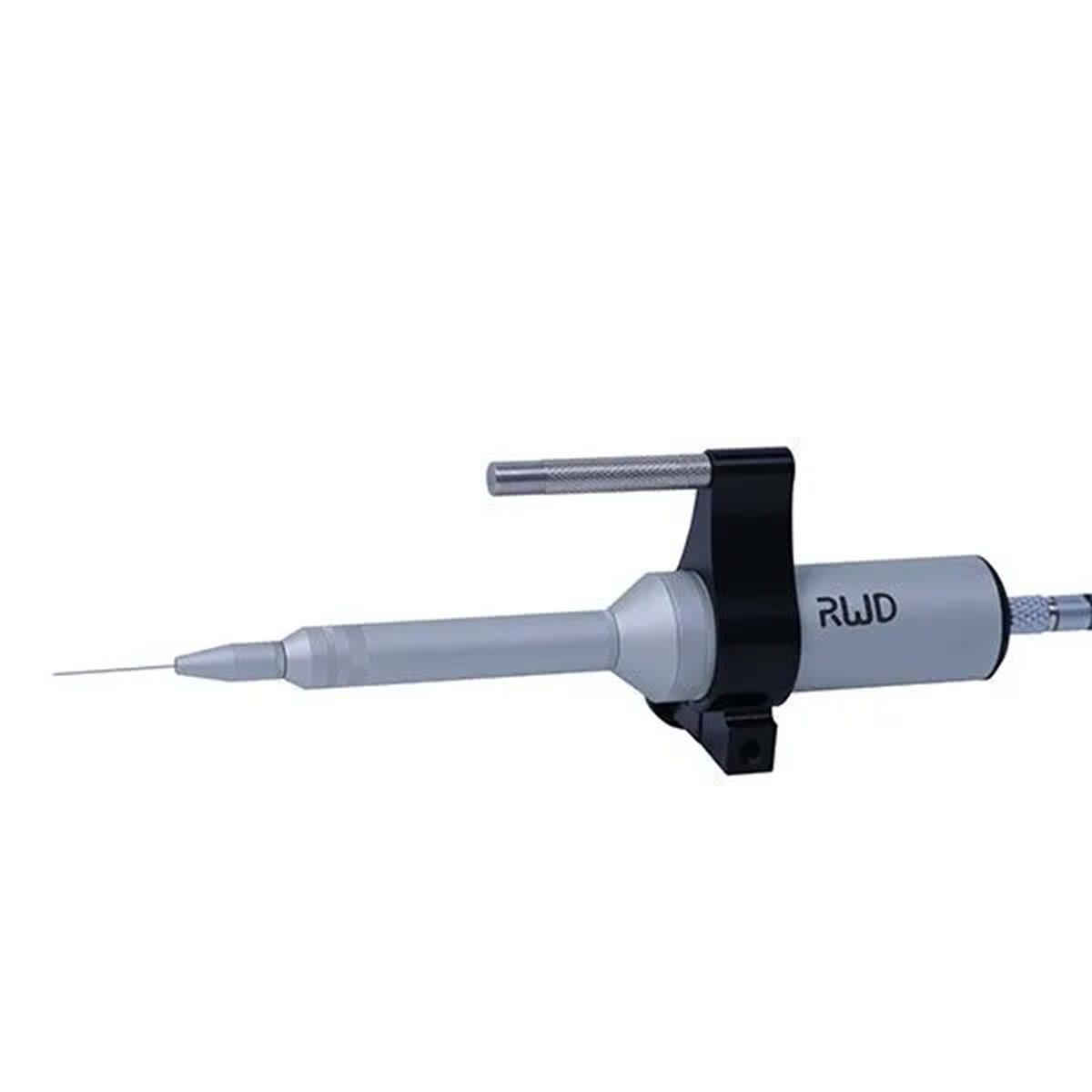

| Universal adapter for all nanojects | RWD-R480-SF | Standard | 1 | For use in conjunction with stereotaxic and micro-manipulator |
N/A |
| Power adapter | N/A | Standard | 1 | For access to power supply | N/A |
| Filling needle | R480-FN | Standard | 1 | For oil fifilling | N/A |
| Sealing material | RWD-R480-SM | Standard | 1 | For replacing the sealing material inside the injection unit |
|
| Foot switch and connection cable | RWD-R480-FS | Optional | 1 | For controlling injection, emptying and other operations of the injection unit |
N/A |

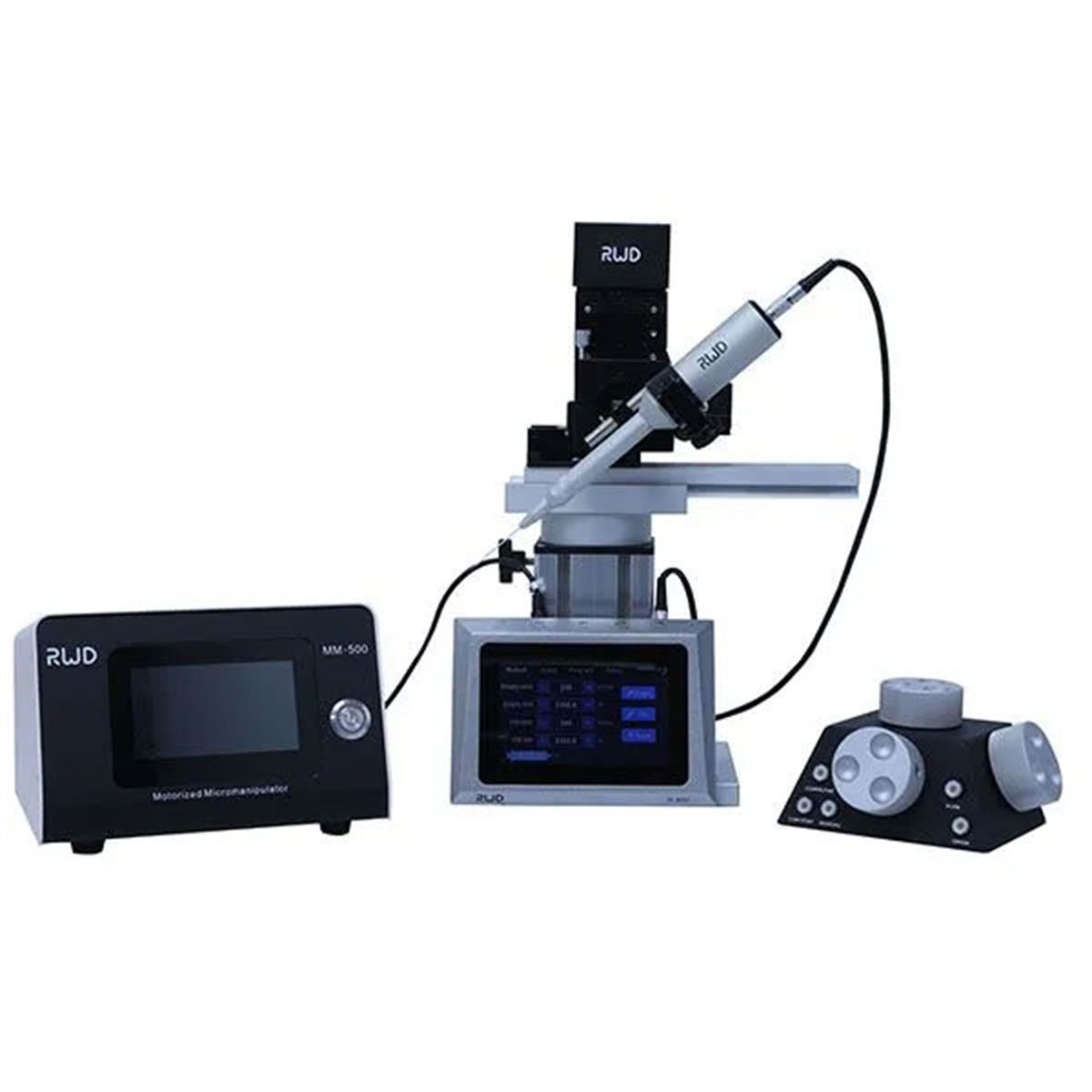

| Dedicated fastener for micro-manipulation | RWD-R480-AFM | Optional | 1 | A special accessory equipped with RWD electric micro manipulator |
N/A |

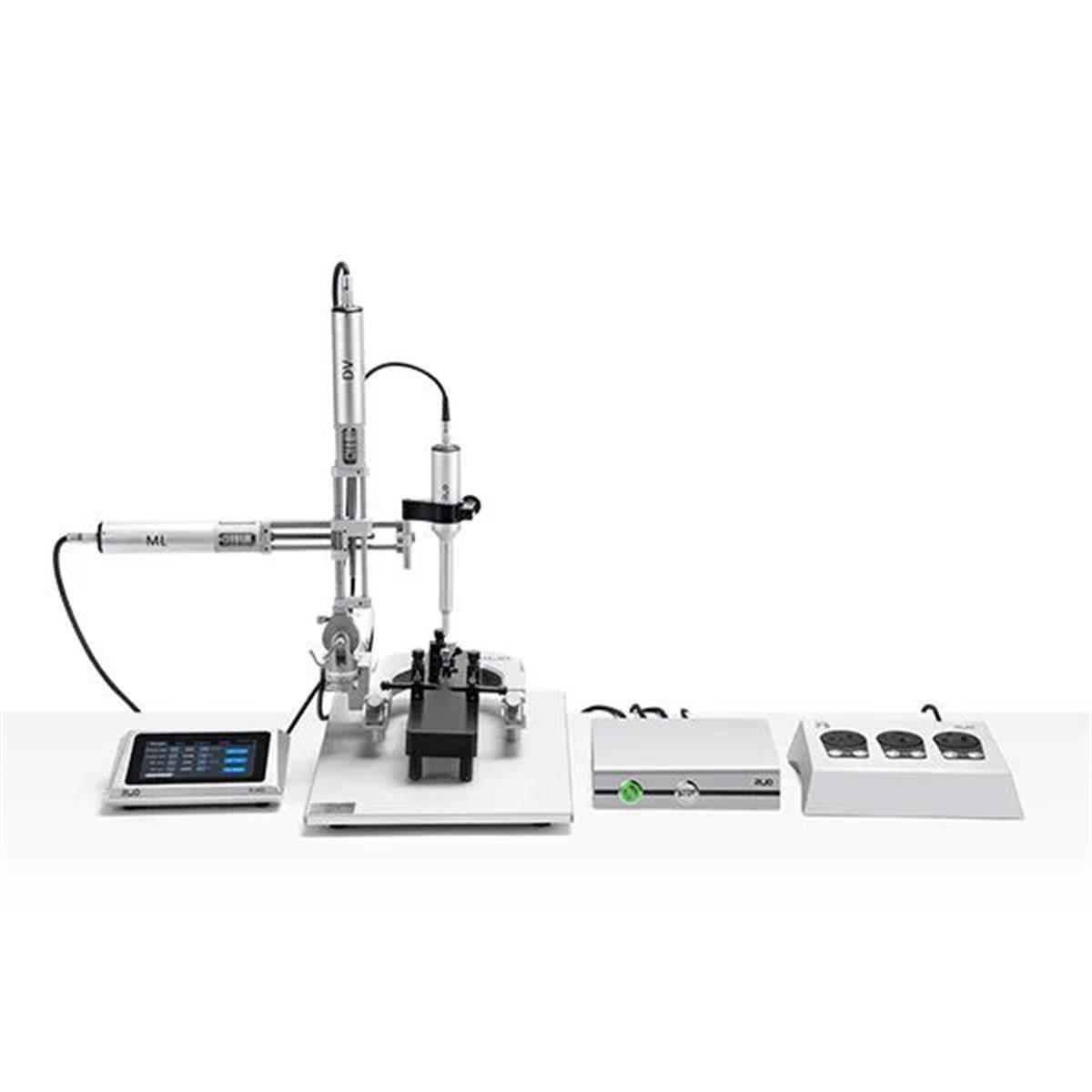

| V attachment | RWD-68207 | Optional | 1 | Accessory equipped with stereotaxic instrument | |
