Spectrometer

Product#: BM-Spectro

$0.00

Select BM-Spectro

see below the table

Availability:

Ships in 48 hours

Description
Reviews (0)

Spectrophotometer

Cat No.	Description	Link
BM-NS1000	SmartDrop™ L Nano Spectrophotometer	115V
		230V
BM-NS1010	SmartDrop™ X Nano Spectrophotometer	115V
		230V

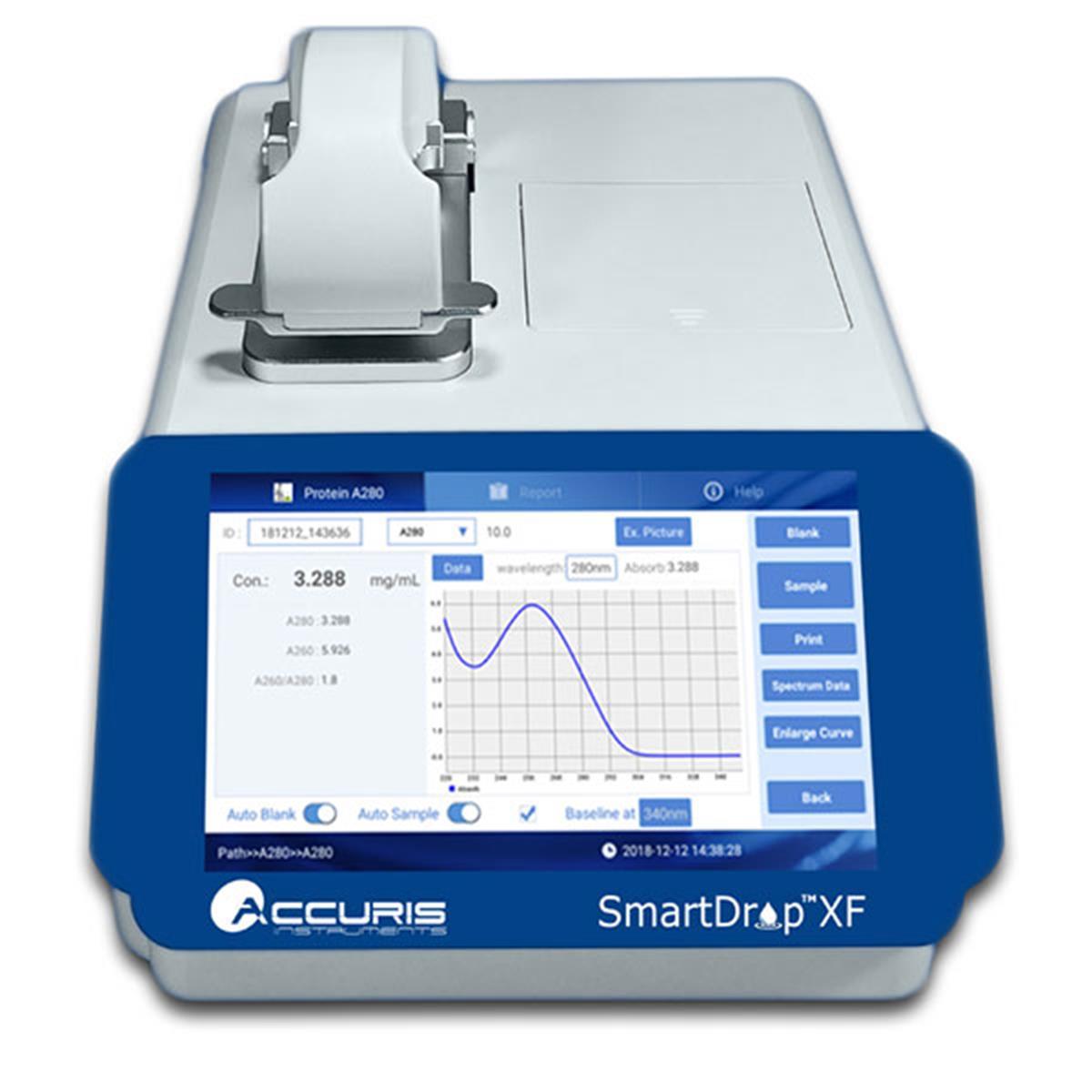

BM-NS1020	SmartDrop™ XF Nano Spectrophotometer	115V
		230V

Accessories

Cat No.	Description	Link
BM-F1001-T	0.5mL Fluorescence Detection Tubes, pack of 250 * Ask for High Sensitivity DNA Quantification Kit /or Broad Range dsDNA Quantification Kit (available now)
BM-NS1000-C	Additional Standard-Size Cuvettes, pack of 2
BM-NS1000-PA	Extra paper roll for SmartDrop internal printer, Pk 3
BM-F1000-BR-100	Broad Range dsDNA Quantification Kit, 100 assays (SmartDrop)
BM-F1000-HS-100	High Sensitivity DNA Quantification Kit, 100 assays (SmartDrop)

Specifications

Model	SmartDrop L (NS1000)	SmartDrop X (NS1010)	SmartDrop XF (NS1020)
Display	7-inch touch screen	7-inch touch screen	7-inch touch screen
Minimum sample size	1.0µl – 2.0µl	0.5µl – 2.0µl	0.5µl – 2.0µl
Path length	0.5mm	0.2mm, 1.0mm	0.05mm, 0.2mm, 1.0mm
Light source	UV LED	Xenon Flash Lamp	Xenon Flash Lamp
Detector	UV Silicon Photocell	2048 Element Linear Silicon CCD Array	2048 Element Linear Silicon CCD Array
Wavelength	260, 280, & 600nm	200 – 800nm (1nm steps)	200 – 800nm (1nm steps)
Absorbance range	0.2 – 50 A (10mm equivalent)	0.04 – 90 A (10mm equivalent)	0.04 – 300 A (10mm equivalent)
Absorbance precision	0.005 A	0.003 A	0.003 A
Lower limit of detection	dsDNA: 10ng/µl	dsDNA: 2ng/µl; BSA: 0.1mg/ml	dsDNA: 2ng/µl ; BSA: 0.1mg/ml
Upper limit of detection	dsDNA: 2,500ng/µl	dsDNA: 4,500ng/µl; BSA: 135mg/ml	dsDNA: 15,000ng/µl; BSA: 360mg/ml
Detection time	< 6 seconds	< 5 seconds	< 6 seconds
Communication ports	USB for data export	USB for data export	USB for data export
Voltage input	DC 24V, 2A	DC 24V, 2A	DC 24V, 2A
Power	25W	25W	25W
Dimensions (WxDxH)	20.8 x 8.0 x 18.6 cm / 8.2 x 11.0 x 7.3 in.	20.8 x 8.0 x 18.6 cm / 8.2 x 11.0 x 7.3 in.	20.8 x 8.0 x 18.6 cm / 8.2 x 11.0 x 7.3 in.
Weight	3.6 kg / 7.9 lbs	2.8 kg / 6.2 lbs	3.6 kg / 7.9 lbs
Cuvette OD600 detection
Absorbance range	0.0 – 4.0 A	0.0 – 4.0 A	0.0 – 4.0 A
Absorbance stability	[0,3) ≤ 0.5%, [3,4) ≤ 2%	[0,3) ≤ 0.5%, [3,4) ≤ 2%	[0,3) ≤ 0.5%, [3,4) ≤ 2%
Absorbance repeatibility	[0,3) ≤ 0.5%, [3,4) ≤ 2%	[0,3) ≤ 0.5%, [3,4) ≤ 2%	[0,3) ≤ 0.5%, [3,4) ≤ 2%
Absorbance precision	[0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%	[0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%	[0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%
Fluorescence detection
Excitation/Emission	N/A	N/A	460 ± 20nm / 525-570nm
Sensitivity	N/A	N/A	dsDNA: 0.5pg/µl
Linearity	N/A	N/A	R² ≥ 0.995
Repeatibility	N/A	N/A	≤ 1.5%
Stability	N/A	N/A	≤ 1.5%
