KOD -Plus- Mutagenesis Kit
KOD -Plus- Mutagenesis Kit
A site-directed mutagenesis kit — an inverse PCR (iPCR)-based system using high-fidelity KOD DNA polymerase for substitutions, insertions, and deletions, with no phosphorylated primers required.
Description
This kit is an inverse PCR (iPCR)-based site-directed mutagenesis kit using KOD DNA polymerase (1)(2) as a high-fidelity PCR enzyme. This reagent was developed based on a high efficient and efficient PCR reagent, "KOD -Plus- (Code No. TYB-KOD-201)", which consists of KOD DNA polymerase and anti-KOD DNA polymerase antibodies (3) for Hot Start PCR.
This kit enables not only the introduction of point mutations, but also the introduction of large insertions and deletions. The PCR fidelity of KOD -Plus- is greater than Taq DNA polymerase (ca. 80-fold); therefore, unexpected, 2nd-site mutations can be reduced. PCR reactions can be performed using standard PCR primers and do not require phosphorylated primers, because this protocol contains a 'Phosphorylation Step' of PCR products.
Feature
Substitutions, insertions, and deletion mutations.
High efficiency (95% maximum) can be obtained.
Simple protocol facilitates speedy experiments. Phosphorylated primers are not required.
Application
- Substitution (e.g. Point mutation, Point mutation library)
- Deletion (e.g. 1 bp – several kbp deletion)
- Insertion (e.g. Introduction of His-tag sequence) etc.
Storage Conditions

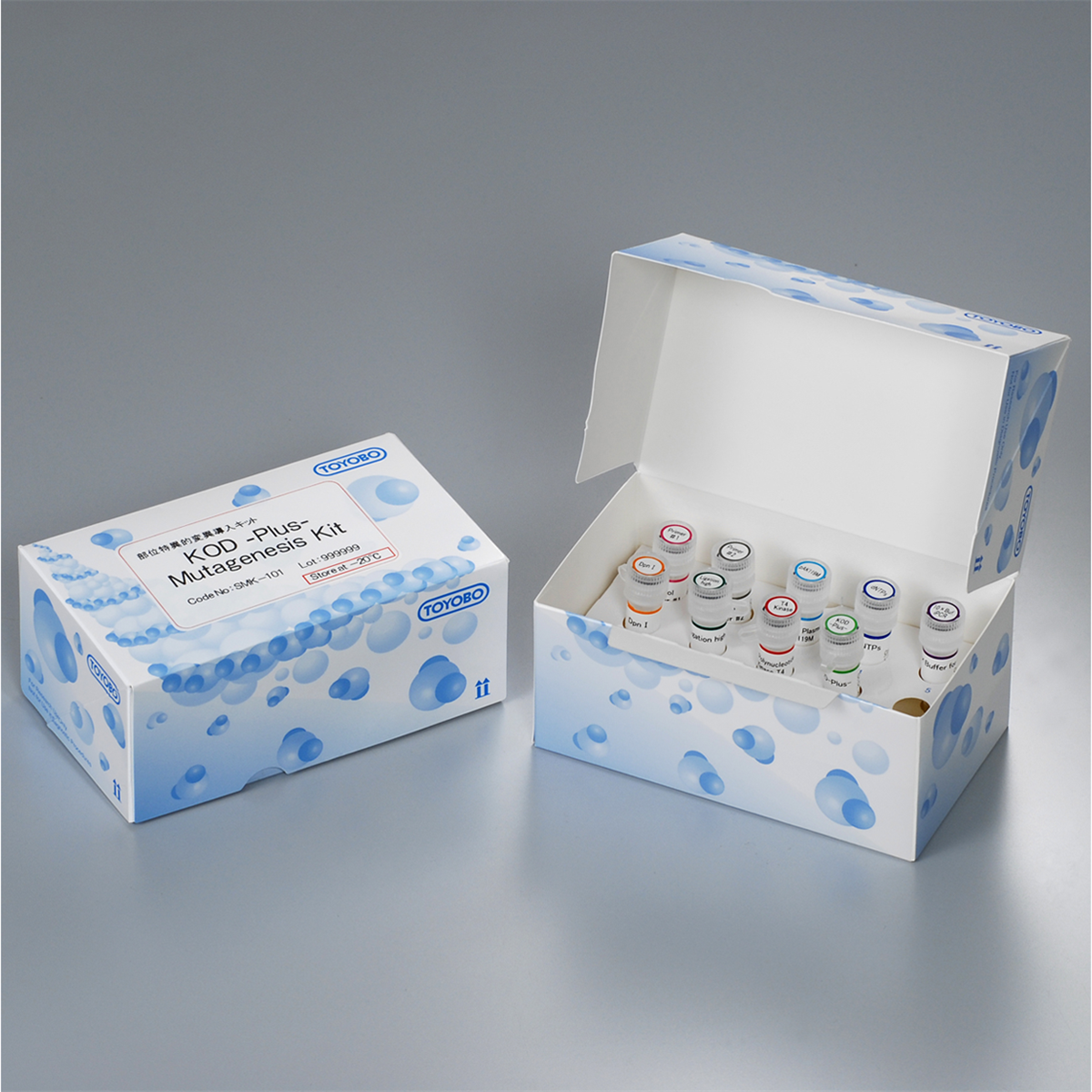

Components
| Component | Volume |
|---|---|
| KOD -Plus- (1 U/µL) | 25 µL |
| 10x Buffer for iPCR | 125 µL |
| 2 mM dNTPs | 125 µL |
| DpnI (10 U/µL) | 50 µL |
| T4 Polynucleotide Kinase (5 U/µL) | 50 µL |
| Ligation high (T4 Ligase + Buffer Mixture) | 250 µL |
| Control Plasmid pAK119M (50 ng/µL) | 10 µL |
| Control Primer #1 (10 pmol/µL) | 10 µL |
| Control Primer #2 (10 pmol/µL) | 10 µL |

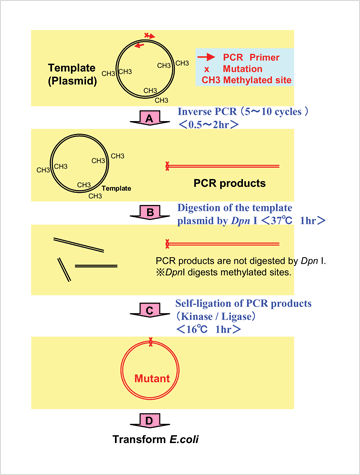

Principle
- A) Inverse PCR of plasmid DNA, using a mutation primer.
- B) Plasmid DNA is digested by Dpn I. Note: Dpn I digests methylated DNA, such as plasmid DNA from typical E. coli cell lines (e.g. JM109 and DH5α).
- C) Self-ligation of PCR products is performed by a reaction with T4 polynucleotide kinase and ligase.
- D) Transformation of E. coli cell lines using self-ligated PCR products.
Application Data
Example 1. Comparison of the efficiency on deletion and insertion experiments
A 90 bp DNA sequence was deleted from a plasmid carrying FLJ32066 gene (7.3 kb) using KOD -Plus- Mutagenesis Kit [Code No. TYB-SMK-101] and compared with a kit from an alternative company (company A). In parallel, 18 bp-DNA cording a 6×His-tag sequence was inserted into the plasmid. As shown in Tables 1 and 2, the expected mutants were successfully obtained using the KOD -Plus- Mutagenesis Kit.
| Number of clones tested | Number of clones with the mutation | Expected percentage of clones with the mutation | |
|---|---|---|---|
| KOD -Plus- Mutagenesis Kit | 16 | 14 | 88% |
| Company A (non - PCR method) | 16 | 7 | 44% |
| Number of clones tested | Number of clones with the mutation | Expected percentage of clones with the mutation | |
|---|---|---|---|
| KOD -Plus- Mutagenesis Kit | 16 | 15 | 94% |
| Company A (non - PCR method) | 16 | 0 | 0% |
Example 2. Frequency of the unexpected mutation (2nd mutation)
A 2,000 bp region in the plasmids from mutated clones was obtained from a control reaction (8 cycles) using Control plasmid (4.3 kb), Control primer #1, and Control primer #2 attached with KOD -Plus- Mutagenesis Kit [Code No. TYB-SMK-101] were sequenced. As shown in Table 1, the number of unexpected mutations was found to be approximately 1 base per 48,000 bases.
| Expected mutation rate (%) | Number of clones tested | Total number of bases sequenced | Number of unexpected mutations (2nd mutation) | Rate of unexpected mutations (2nd mutation) (%) | |
|---|---|---|---|---|---|
| KOD -Plus- Mutagenesis Kit | >80% | 24 | 48,000 | 1 | 2.08 |
| Company A (non - PCR method) | >80% | 24 | 48,000 | 2 | 4.16 |
References
- Takagi M, Nishioka M, Kakihara H, Kitabayashi M, Inoue H, Kawakami B, Oka M, and Imanaka T., Appl Environ Microbiol., 63: 4504-10 (1997)
- Hashimoto H, Nishioka M, Fujiwara S, Takagi M, Imanaka T, Inoue T and Kai Y, J Mol Biol., 306: 469-77 (2001)
- Mizuguchi H, Nakatsuji M, Fujiwara S, Takagi M and Imanaka T, J Biochem., 126: 762-8 (1999)
