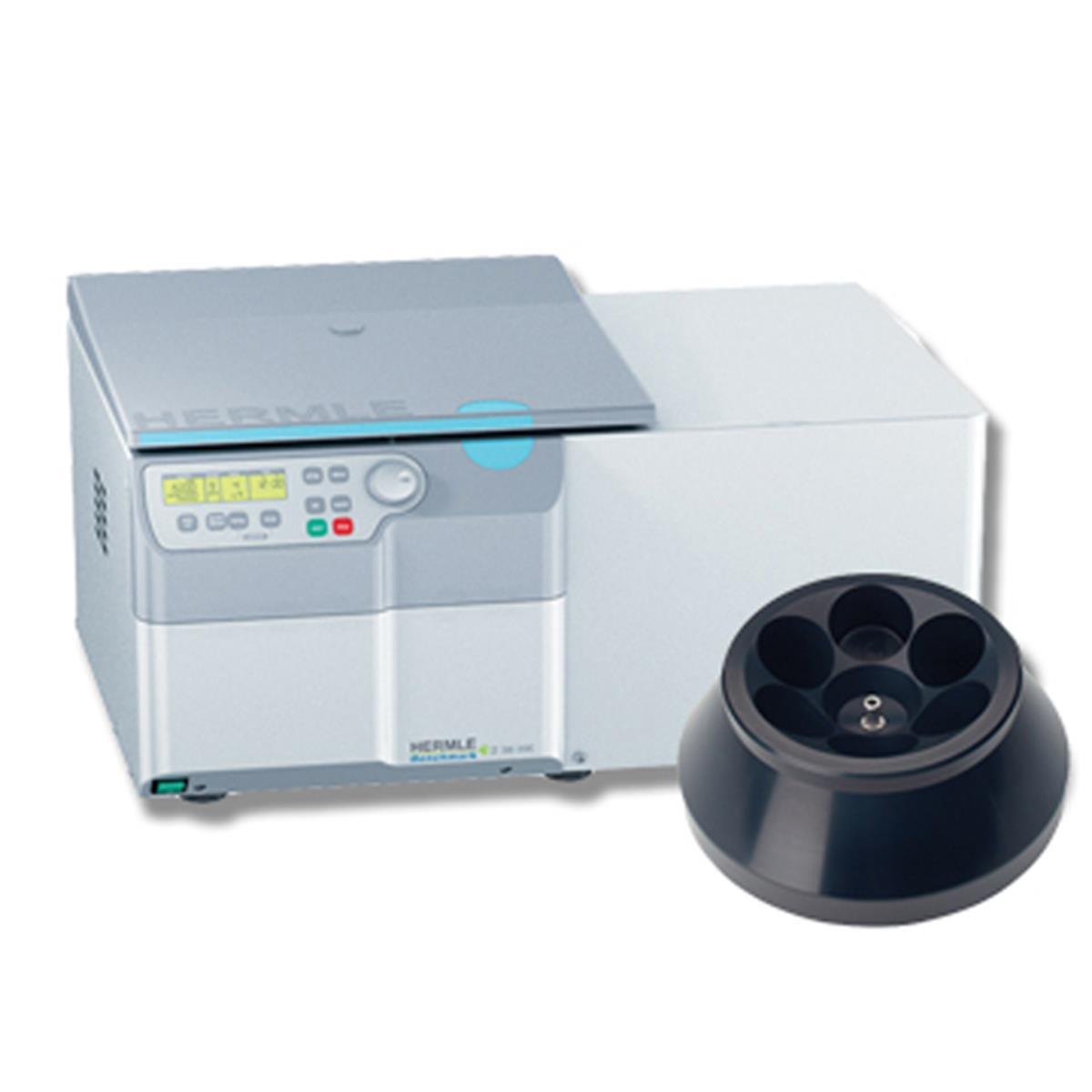

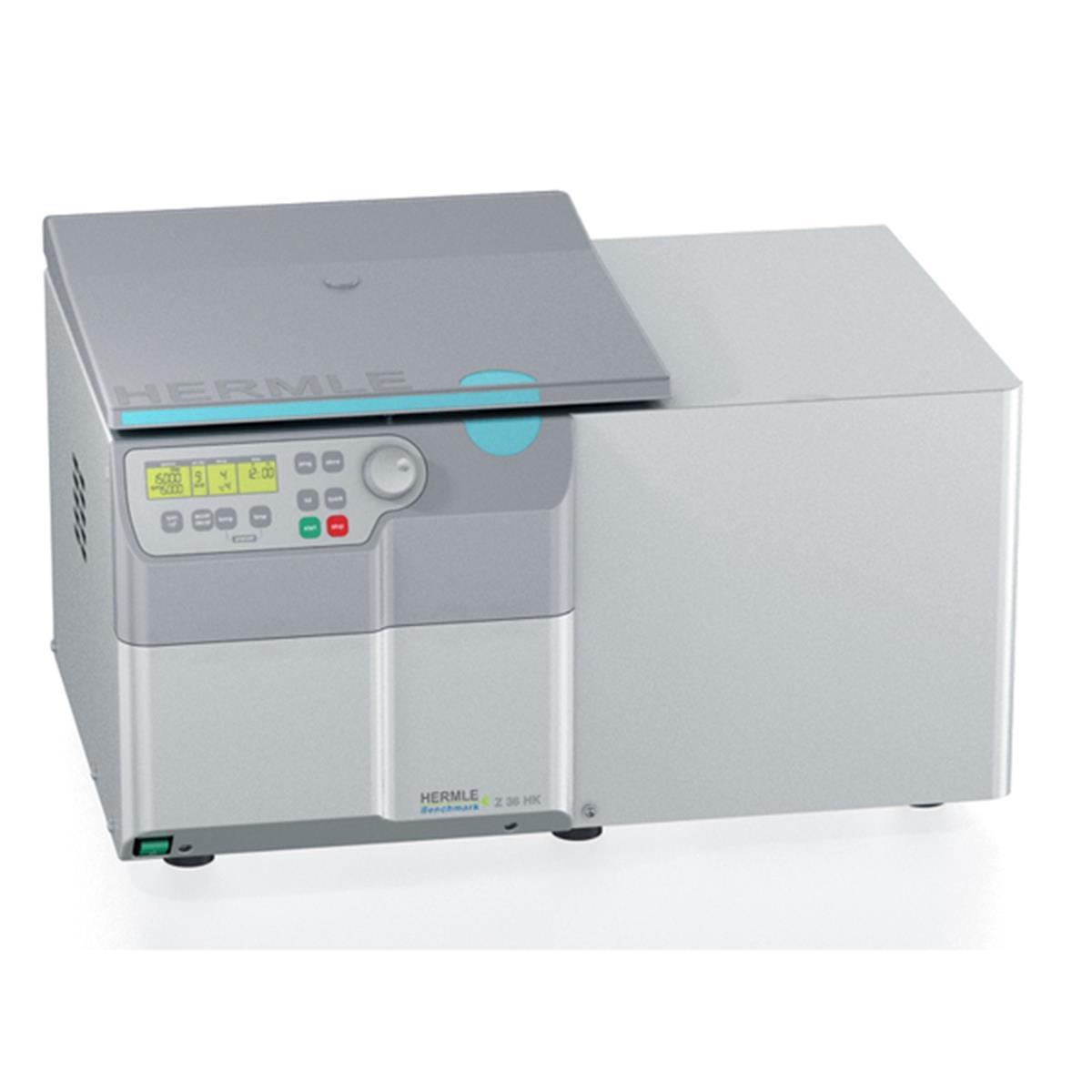

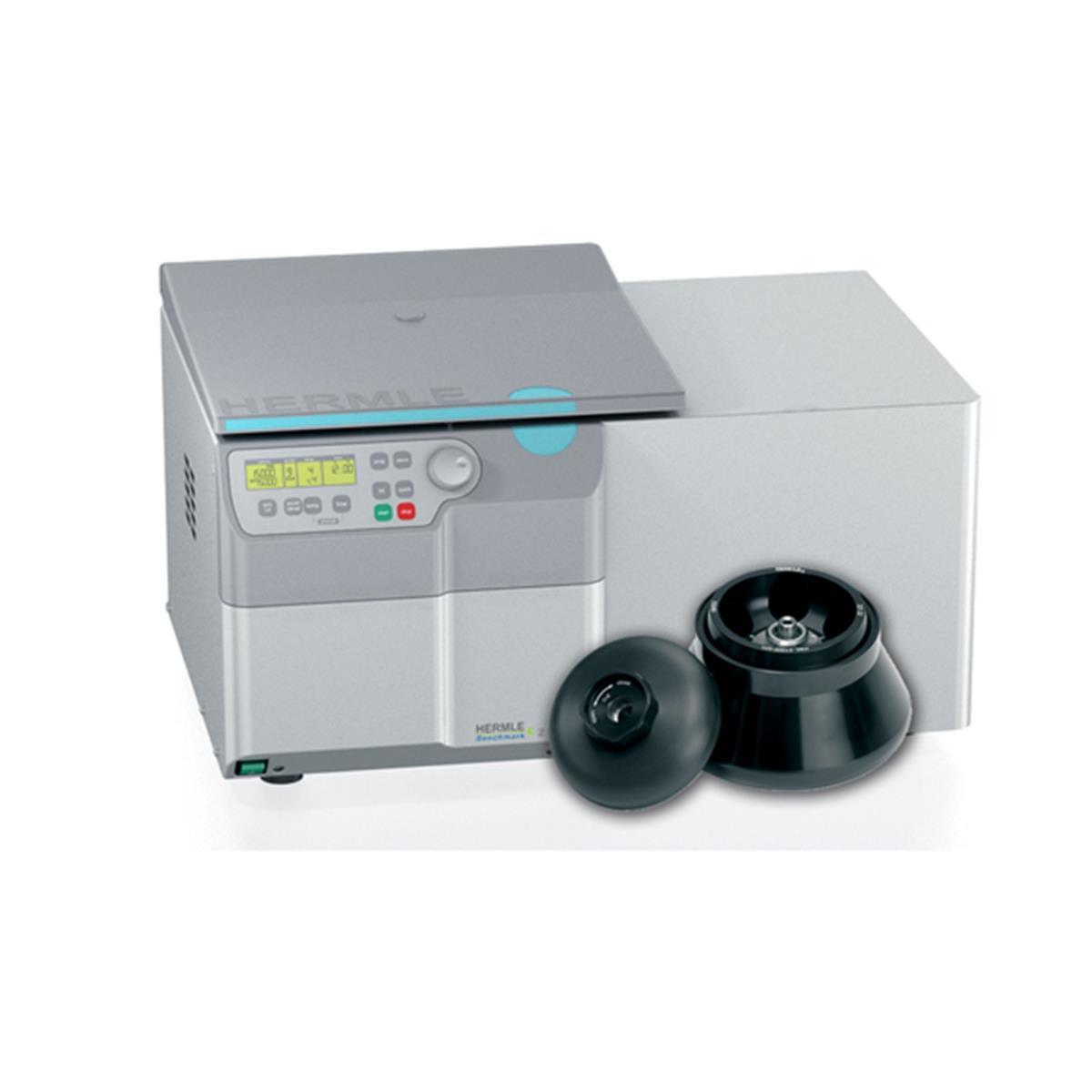

Hermle Z36-HK Refrigerated Super Speed Centrifuge, 115V
Z36 HK Refrigerated Super Speed Centrifuge
Cat No: BM-Z036-HK
- Benchtop design, with the speed/power of a floor model
- Super-Speed capability, up to 65,395 xg
- Wide variety of high speed rotor options
Description
The Z36 HK is the result of many years of experience in the design of universal centrifuges, high speed centrifuges and compact microcentrifuges. The result is a “Super-Speed” centrifuge with unmatched performance among benchtop centrifuges. A robust motor drive powers a variety of high speed angled rotors to speeds that would generally only be achievable in large, floor-standing ultra centrifuges. 2.0ml microtube samples can reach forces above 65,000xg, while 50ml samples, as high as 41,410xg.

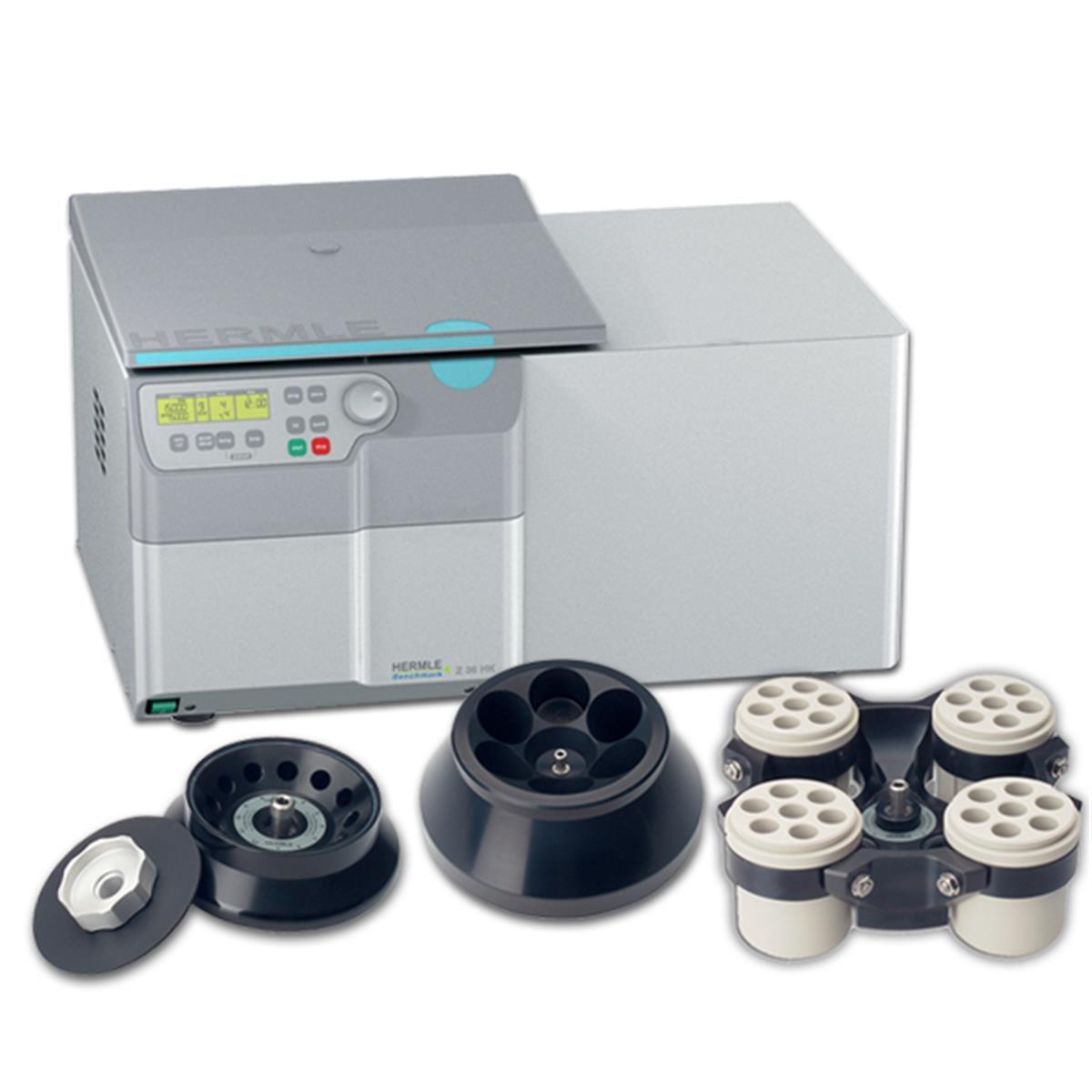

In addition to its high speed capabilities, the Z36 HK doubles as a universal centrifuge with a 4 x 250ml swing out rotor (offering inserts for all common tube sizes) as well as a 2 x 3 position swing-out microplate rotor. Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone.
Specifications
|
Speed Range
|
200 to 30,000 rpm
|
|
Max. RCF
|
65,395 xg
|
|
Max. Capacity
|
6 x 250ml
|
|
Temp. Range
|
-20°C to 40°C
|
|
Dimensions
|
28.1 x 20 x 16.5 in.
71.4 x 50.8 x 42 cm. |
|
Timer
|
up to 99 hr, 59min and continuous
|
|
Weight
|
200 lbs (91 kg)
|
|
Electrical
|
120V, 60HZ, 1800W
|
| Model |
Cat No.
|
Description
|
 |
BM-Z036-HK
|
Z36-HK Refrigerated Centrifuge, 115V
|
|
BM-Z036-HK-E
|
Z36-HK Refrigerated Centrifuge, 230V
|
|
 |

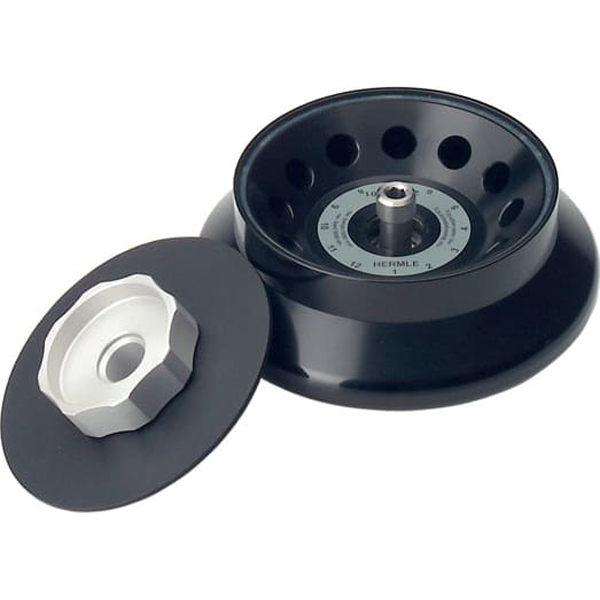

BM-Z326-1220-36
|
12 x 1.5/2.0mL rotor (Z36-HK only)
|
|
|
BM-Z36-04-HS
|
High Speed 0.2-0.4mL adapter for 2.0mL rotors, 6/pk
|
|
|
BM-Z36-05-HS
|
High Speed 0.5mL adapter for 2.0mL rotors, 6/pk
|
|
|
BM-Z36-20-HS
|
High Speed 1.5mL adapter for 2.0mL rotors, 6/pk
|
 |

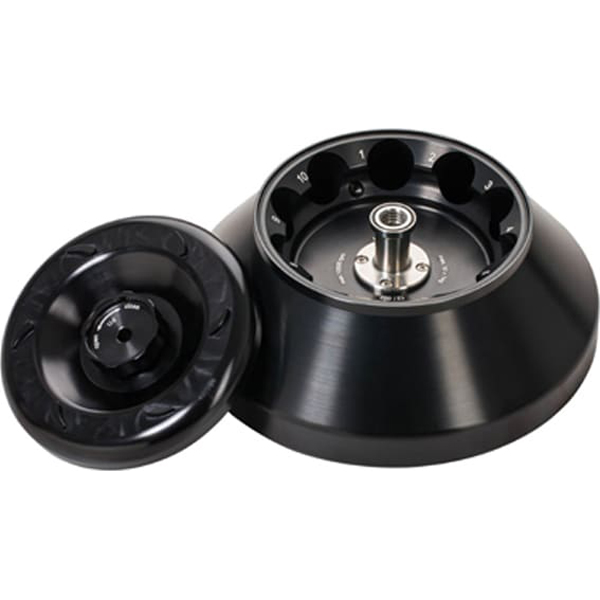

BM-Z326-1050-36
|
10 x 50mL conical rotor (Z36-HK only)
|
 |
BM-Z326-0650-HS-36
|
6 x 50mL round rotor (Z36-HK only)
|
 |
BM-Z326-0485-36
|
4 x 85mL rotor (Z36-HK only)
|
 |

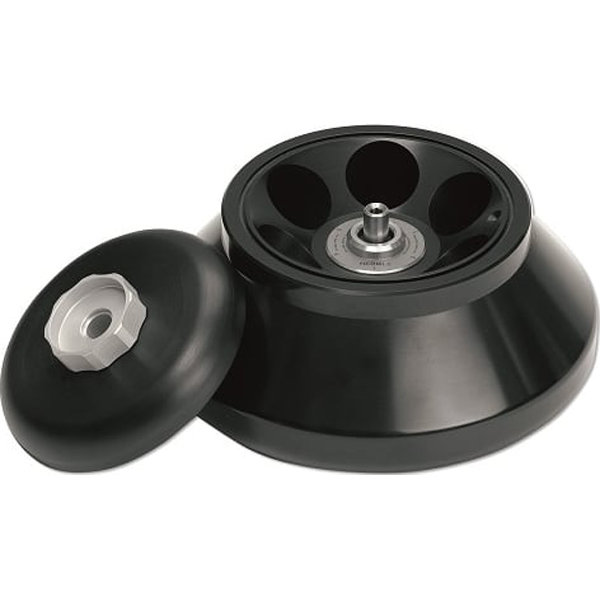

BM-Z326-0685-36
|
6 x 85mL High Speed rotor (Z36-HK only)
|
 |
BM-Z326-3020H-36
|
30 x 1.5mL rotor, hermetically sealed (Z36-HK only)
|
 |
BM-Z326-2010-36
|
20 x 10mL High Speed rotor (Z36-HK only)
|
 |
BM-Z326-3015-36
|
30 x 15mL rotor (Z36-HK only)
|
 |

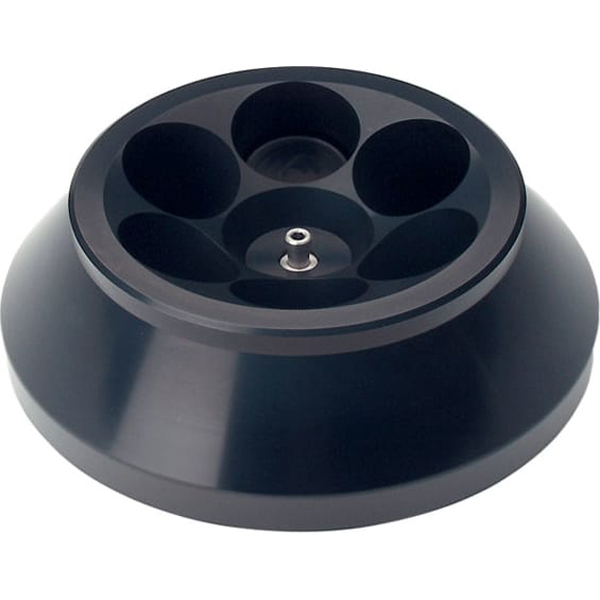

BM-Z326-06250-36
|
6 x 250mL angle rotor (Z36-HK only)
|
 |
BM-Z326-02MP-36
|
2 place swing out microplate rotor (Z36-HK only)
|
 |
BM-Z326-250-36
|
4 x 250mL swing out rotor (Z36-HK only)
|
