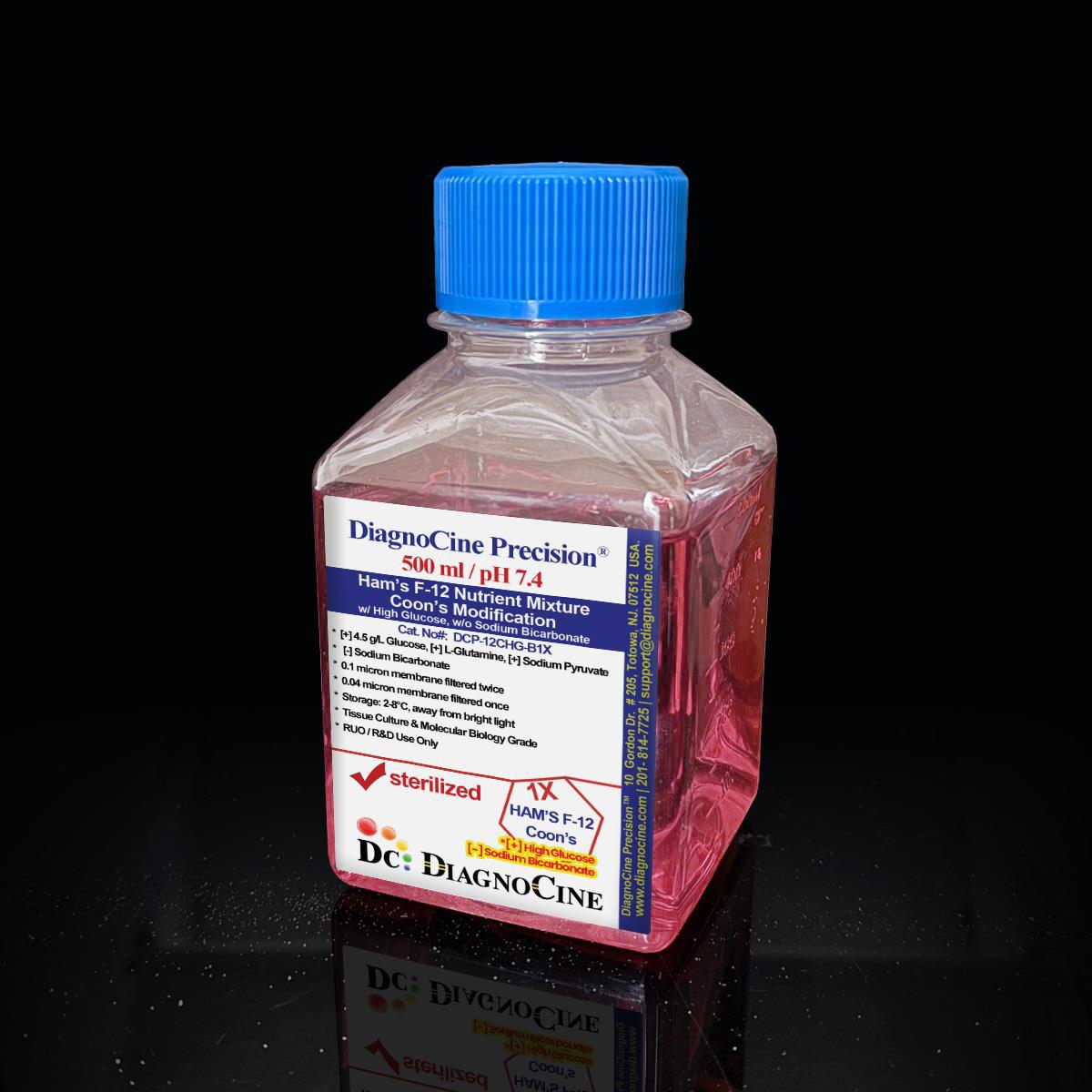

FluxMPS™ Ham's F-12 Nutrient Mixture, Coon's Modification with High Glucose w/o Sodium Bicarbonate: 1X Liquid

FluxMPS™ Ham's F-12 Nutrient Mixture, Coon's Modification with High Glucose w/o Sodium Bicarbonate: 1X Liquid

FluxMPS™ DCP-12CHG-B1X is a Microfluidics Suitable, quadruple-stage ultra-filtered (0.1 µm ×2 + 0.04 µm ×2) Ham's F-12 Nutrient Mixture, Coon's Modification, High Glucose formulation engineered for microphysiological systems (MPS), organ-on-a-chip (OoC), and microfluidic tissue models. A quadruple-stage train (0.1 µm ×2 + 0.04 µm ×2) reaches a 0.04 µm final cut-off, five times finer than the 0.22 µm membranes used for conventional sterile filtration. Formulation: [+] L-Glutamine, [+] Phenol Red, [+] Calcium, [+] Magnesium, [+] High Glucose, [+] Sodium Pyruvate | [-] Sodium Bicarbonate.

• Ham's F-12 Nutrient Mixture, Coon's Modification with High Glucose (4500 mg/L D-Glucose), formulated without sodium bicarbonate for CO₂-independent culture
• Quadruple-stage sequential filtration: 0.1 µm prefiltration I → 0.04 µm final filtration I → 0.1 µm prefiltration II → 0.04 µm final filtration II (polish)
• Endotoxin release specification < 0.05 EU/mL (LAL, USP <85>), controlled per manufacturing batch
• Contains L-Glutamine (292 mg/L), Sodium Pyruvate (220 mg/L), Calcium and Magnesium salts, and Phenol Red pH indicator (1.24 mg/L)
• 49 ingredients verified per lot across inorganic salts, amino acids, vitamins, and other supplements including zinc, putrescine, hypoxanthine, and thymidine
• Manufactured under an ISO 13485:2016 quality management system; final QA at the Diagnocine R&D Center, Totowa, NJ, USA
• Custom pH, salts, and nutrient adjustments available on request — contact support@diagnocine.com

Engineered where standard media fails

Conventional 0.22 µm–filtered media passes mycoplasma, subvisible particulates, and endotoxin fragments that clog microfluidic channels and corrupt sensor signals. FluxMPS™ reduces these failure modes with four-stage sub-0.04 µm filtration.

Quadruple-stage filtration system

Four serial filtration stages — two paired prefilter/final-filter cycles — reaching a final 0.04 µm polish under aseptic fill conditions, delivering mycoplasma-retentive, sub-micron purity substantially beyond what conventional 0.22 µm filtered media can achieve.

1. 1

   0.1 µm Prefiltration I

   Removes large aggregates and particulates; protects the first 0.04 µm cartridge.

2. 2

   0.04 µm Final filtration I

   First 0.04 µm pass; retains sub-micron particulates and microaggregates that pass a 0.22 µm filter.

3. 3

   0.1 µm Prefiltration II

   Second, dedicated prefilter protecting the second 0.04 µm cartridge.

4. 4

   0.04 µm Final filtration II — Polish

   Ultimate polishing filter; aseptic fill & finish.

Designed for next-generation cell models

FluxMPS™ DCP-12CHG-B1X supports demanding platforms from single-channel microfluidic chips to multi-organ body-on-a-chip systems.

Automated Bioreactors & Robotics

Optional 0.01 µm (10 nm) ultra-filtered MPS Grade variant available on request for automated bioreactor perfusion and robotic liquid handlers.

• Total Particulate Exclusion: 10 nm filtration removes nanoparticulate aggregates
• Valve & Sensor Protection: Eliminates micro-fouling of solenoid valves and inline optical sensors
• Extended Perfusion Stability: Consistent nutrient delivery over weeks-long culture

Inquiry Required: Contact support@diagnocine.com for the 0.01 µm MPS Grade variant.

Analytical release specifications

Every lot released against the full specification matrix. CoA: support@diagnocine.com.

Full composition (mg/L)

49 ingredients verified per lot with CAS numbers for full raw-material traceability. Ham's F-12 Coon's Modification contains zinc, putrescine, hypoxanthine, and thymidine in addition to standard amino acids and vitamins.

Manufacturing & compliance

Every FluxMPS™ product is manufactured and released under a rigorous multi-layer quality system spanning raw materials, in-process controls, and final-product testing.

How DCP-12CHG-B1X compares

FluxMPS™ DCP-12CHG-B1X vs. conventional 0.22 µm–filtered Ham's F-12 Coon's Modification High Glucose formulations.

Comparison figures from published supplier specifications, accessed 2026-09-02. Suppliers that publish no numeric endotoxin specification are shown as "Not specified".

Frequently asked questions

Common questions about FluxMPS™ DCP-12CHG-B1X.

Supporting literature

Key peer-reviewed publications supporting Microfluidics Suitable, ultra-filtered media in organ-on-a-chip and microfluidic research.

1. Huh D, et al. Reconstituting organ-level lung functions on a chip. Science. 2010;328:1662–1668. doi:10.1126/science.1188302
2. Bhatia SN, Ingber DE. Microfluidic organs-on-chips. Nat Biotechnol. 2014;32:760–772. doi:10.1038/nbt.2989
3. Ham RG. Clonal growth of mammalian cells in a chemically defined, synthetic medium. Proc Natl Acad Sci USA. 1965;53:288–293. doi:10.1073/pnas.53.2.288
4. Novak R, et al. Robotic fluidic coupling and interrogation of multiple vascularized organ chips. Nat Biomed Eng. 2020;4:407–420. doi:10.1038/s41551-019-0497-x
5. Jang KJ, et al. Human kidney proximal tubule-on-a-chip for drug transport and nephrotoxicity assessment. Integr Biol. 2013;5:1119–1129. doi:10.1039/c3ib40049b
6. Schimek K, et al. Integrating biological vasculature into a multi-organ-chip microsystem. Lab Chip. 2013;13:3588–3598. doi:10.1039/c3lc50217a
7. Luni C, et al. High-efficiency cellular reprogramming with microfluidics. Nat Methods. 2016;13:446–452. doi:10.1038/nmeth.3832
8. Sung JH, et al. Microfabricated mammalian organ systems and their integration into models of whole animals and humans. Lab Chip. 2013;13:1201–1212. doi:10.1039/c3lc41017j
