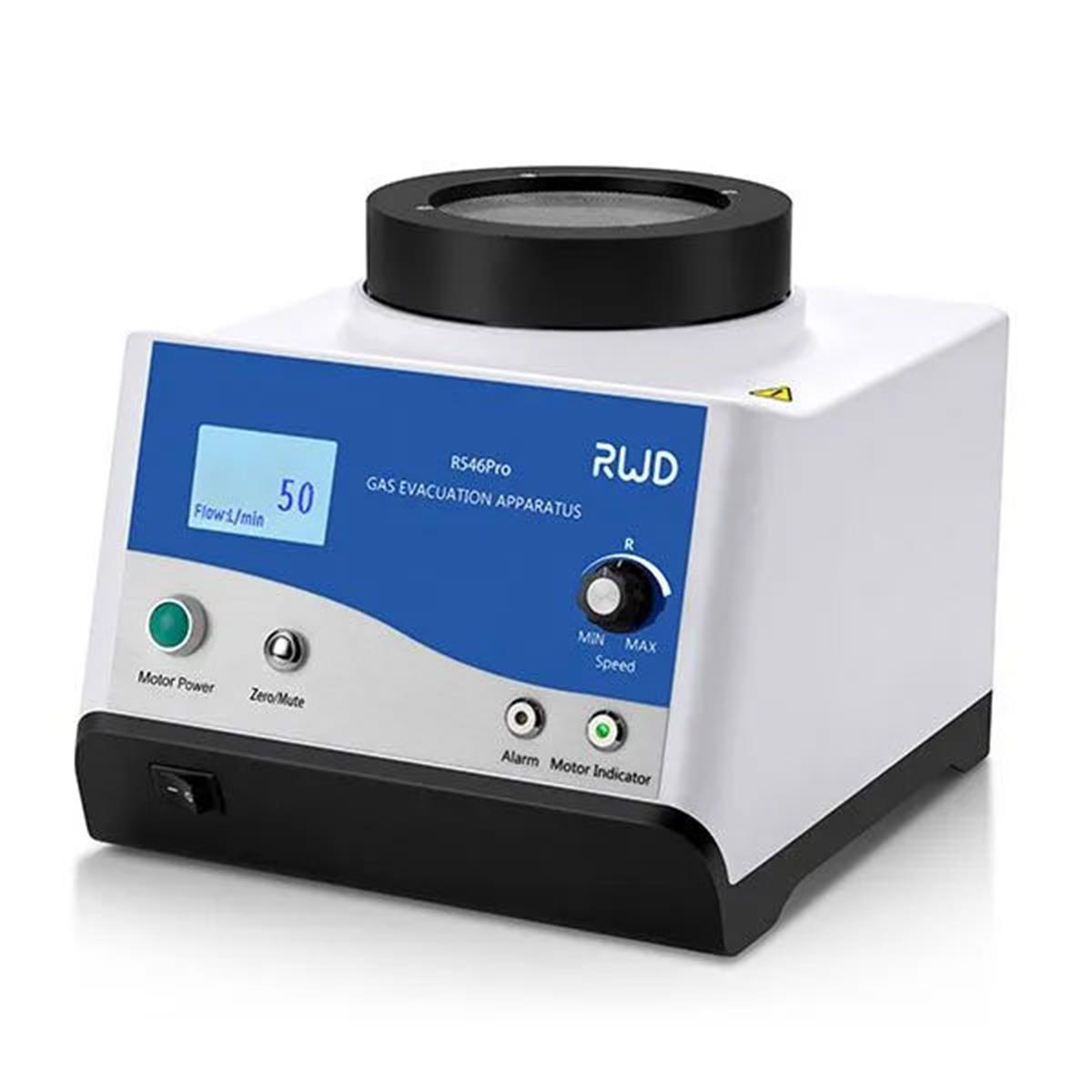

Gas Evacuation Apparatus with Weight Monitoring,110-240V

The R546Pro Gas Evacuation Apparatus (GEA) is a state-of-the-art device engineered to safely and actively remove waste gases generated during inhalation anesthesia procedures in laboratory and veterinary settings. Designed for maximum efficiency, the R546Pro accommodates waste gas supply from up to five anesthesia stations—such as cone masks, concentric tubing masks, and stereotaxic frame nosecone masks—by pulling the waste gas through an activated charcoal canister, allowing filtered air to be safely re-circulated into the room.


• Exquisite, Portable Design:
  The compact and lightweight construction (232mm W × 200mm D × 184mm H) makes the device easy to carry and integrate into any laboratory environment.

• Wide Flow Rate Range:
  Adjustable exhaust flow from 8 to 60 LPM, with real-time monitoring and display on an LED screen for precise control and flexibility.

• Low Noise Operation:
  Advanced noise reduction system keeps operational noise below 50 dB, with a one-click mute function for an even quieter working environment.

• Multi-Station Support:
  Efficiently manages waste gas from 1 to 5 masks simultaneously, making it ideal for high-throughput research and multi-animal procedures.

• No Venting Hood Required:
  Active evacuation system eliminates the need for an external fume hood, simplifying installation and saving space.

• Integrated Weight Monitoring:
  Online weighing system (1-2000g) displays the real-time weight of the gas filter canister directly on the LED screen, ensuring timely replacement and optimal performance.

• Dual Overweight Alarms:
  Two-level alarms at 990g and 1010g alert users when the canister approaches or exceeds safe capacity, preventing accidental overuse.

• Universal Power Supply:
  Compatible with 100–240V, 50/60Hz for global laboratory use
