ZF Plate, 1 piece
Product#: FNK-HDK-ZFA101-02a-s
$145.99
Availability:
Ships in 1-2 Weeks
inform VIP Customers that the following products are expected to have longer delivery times due to the switch to make-to-order production of the plates that form the base of the products.
ZF plate
Cat. No.: HDK-ZFA101-02a-s-1 pcs
Size: 1 piece
Description

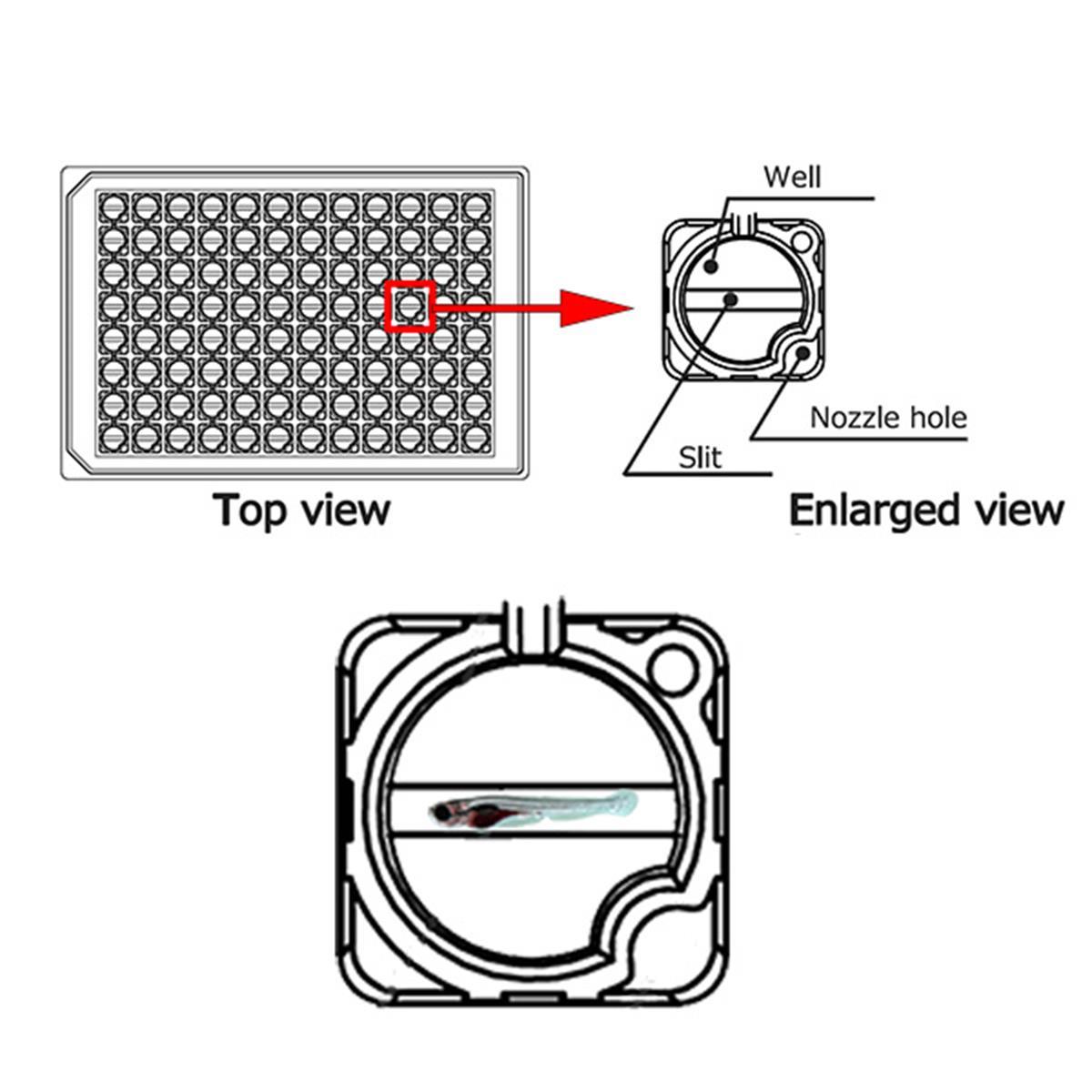

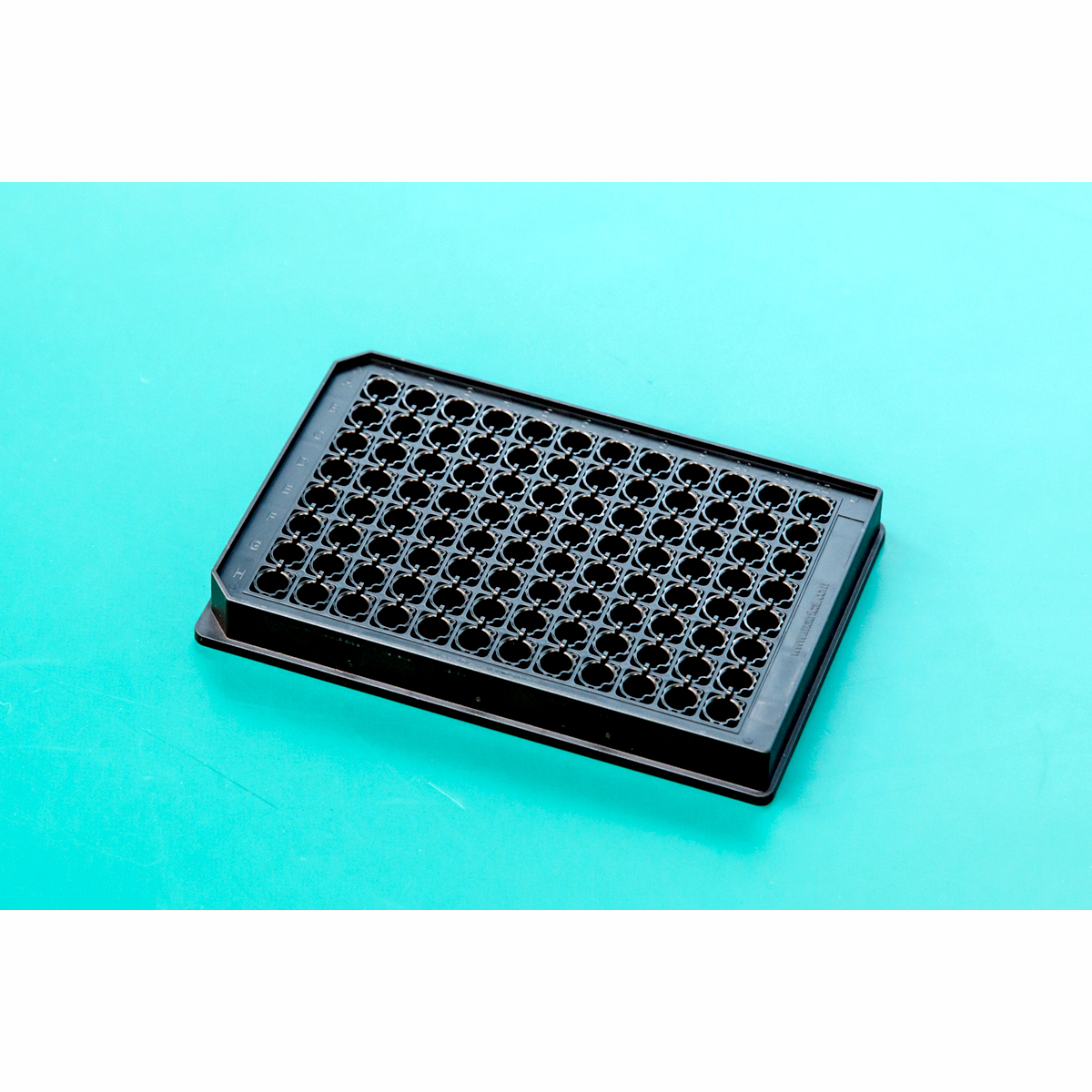

ZF Plate is a 96 well microplate optimized for drug screening using zebrafish. In case of the conventional microplate, small zebrafish had been sorted in each wells manually. However, ZF plate is an innovative microplate being able to sort zebrafish automatically. It can automate the time-consuming work and reduce the sorting time in half. Additionally, the plate is equipped with a glass bottom plate with excellent optical characteristics enabling more efficient quantitative chemical screening using zebrafish.
※The sort rate is arranged in a horizontal row and, refers to the percentage of individuals that can be taken from the body side.
- No manual alignment work required! Alignment rate of 70% or more!
- Revolutionary 96-well automatic alignment microplate! !!
How to use ZF plate
Subject: Anesthetized zebrafish (approx. 3dpf to 6dpf)
| Used items | Procedure |
|
|
Specifications
| Model Cat. No. | FNK-HDK-ZFA101-02a-s | FNK-HDK-ZFA101-02a |
| Size | 1 piece | 5 pieces |
| Plate size (mm) | 127.76 (W) x 85.48 (L) x 14.35 (H) | |
| Weight(g) | without lid:72/with lid:95 | |
| Applicable standards | ANSI / SLAS-1 ~ 4 (96 well) | |
| Maximum capacity per well (μl) | 250 | |
| Plate material/color | Polystyrene/black | |
| Bottom material/thickness (mm) | Slica glass • 0.17 | |
| Operating temprature | 0 ~ 40oC | |
| Storage temprature | 4 ~ 25oC | |
| Sterilized Yes/No | No | |
| Link |  |
|
 |
*More Detaile size info. >>Click here << Please, Ask us, support@diagnocine.com |
Citation Reference
- Linsley, J. W., Shah, K., Castello, N., Chan, M., Haddad, D., Doric, Z., Wang, S., Leks, W., Mancini, J., Oza, V., Javaherian, A., Nakamura, K., Kokel, D., & Finkbeiner, S. (2021). Genetically encoded cell-death indicators (GEDI) to detect an early irreversible commitment to neurodegeneration. Nature Communications, 12(1), 5284. https://doi.org/10.1038/s41467-021-25549-9
Reference, Compatible devices
And the microscope that can micro plate of observation, Brooks, Inc. models fir Matrical microplates is available.
| Molecular Devices | ImageXpress Micro XLS |
| ImageXpress Velos | |
| Essen Instruments | IncuCyte |
| Bio-Rad | Ultramark |
| GE | IN Cell Analyzer 1000 |
| IN Cell Analyzer 3000 | |
| Li-Cor | Aerius |
| Life Technologies | EVOS Auto Imaging System |
| EVOS FL Imaging System | |
| EVOS XL Core Imaging System | |
| PerkinElmer | ViewLux |
Support for fluorescent and bright field
It was taken by "ImageXpress Micro XSL" of Molecula Devices, LLC.
