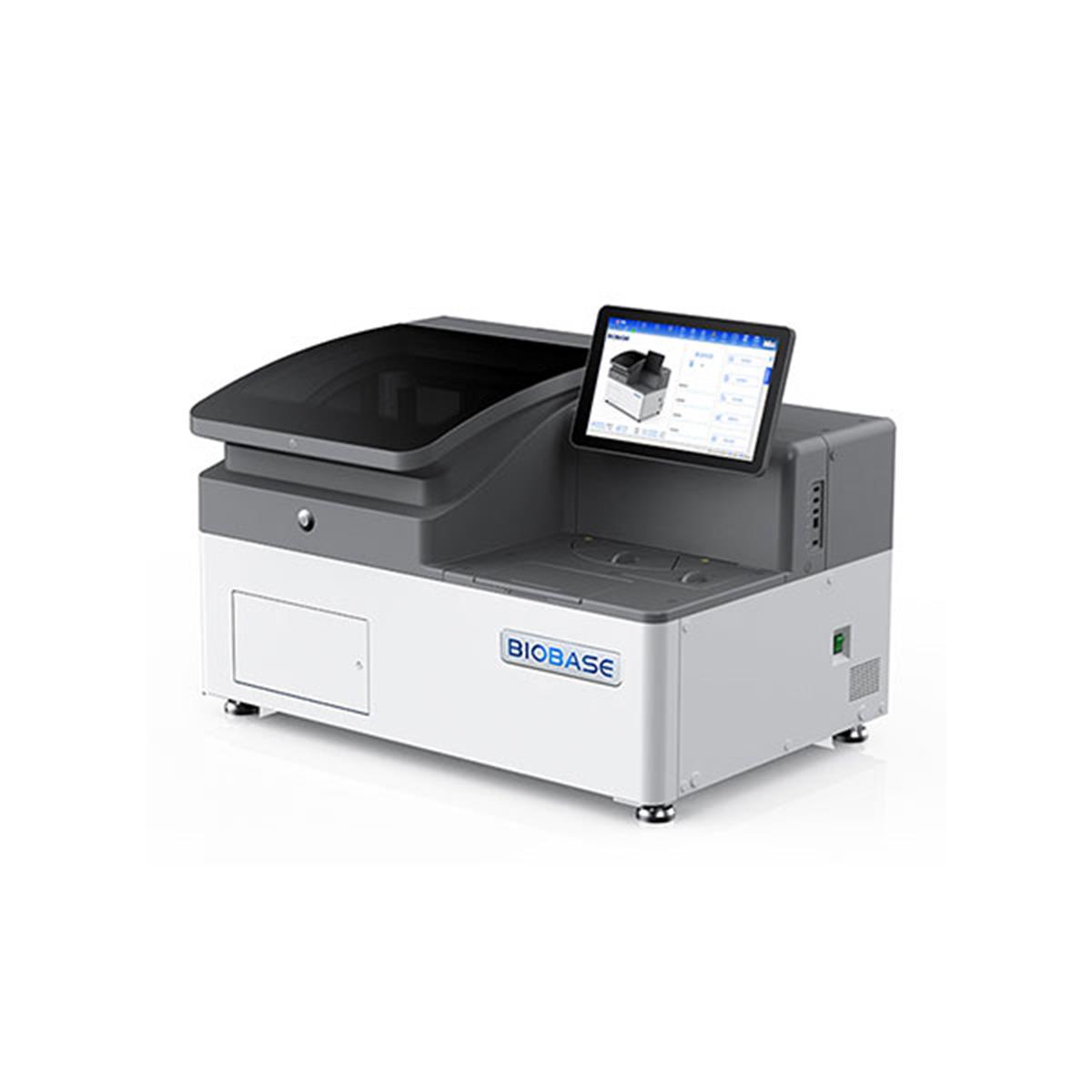

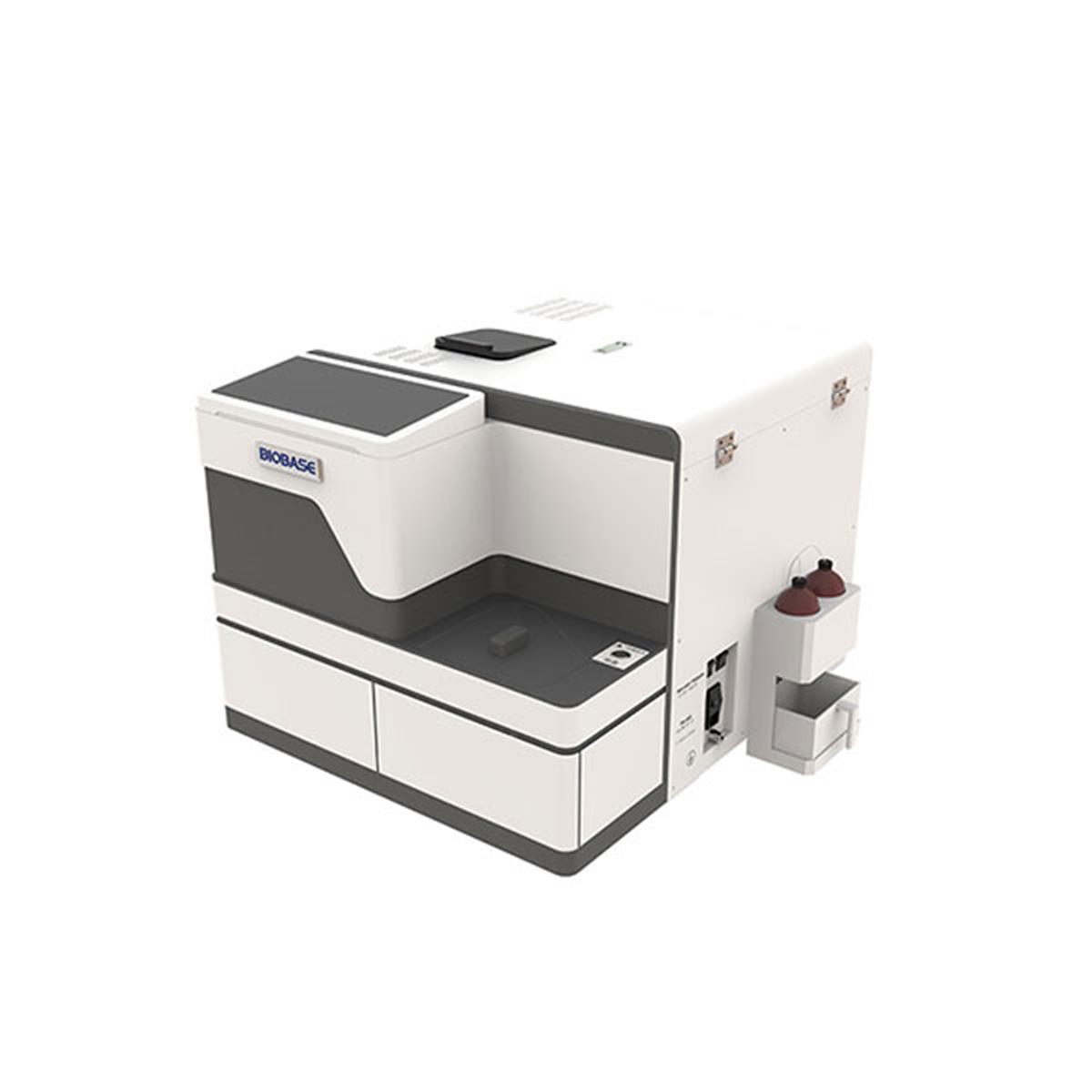

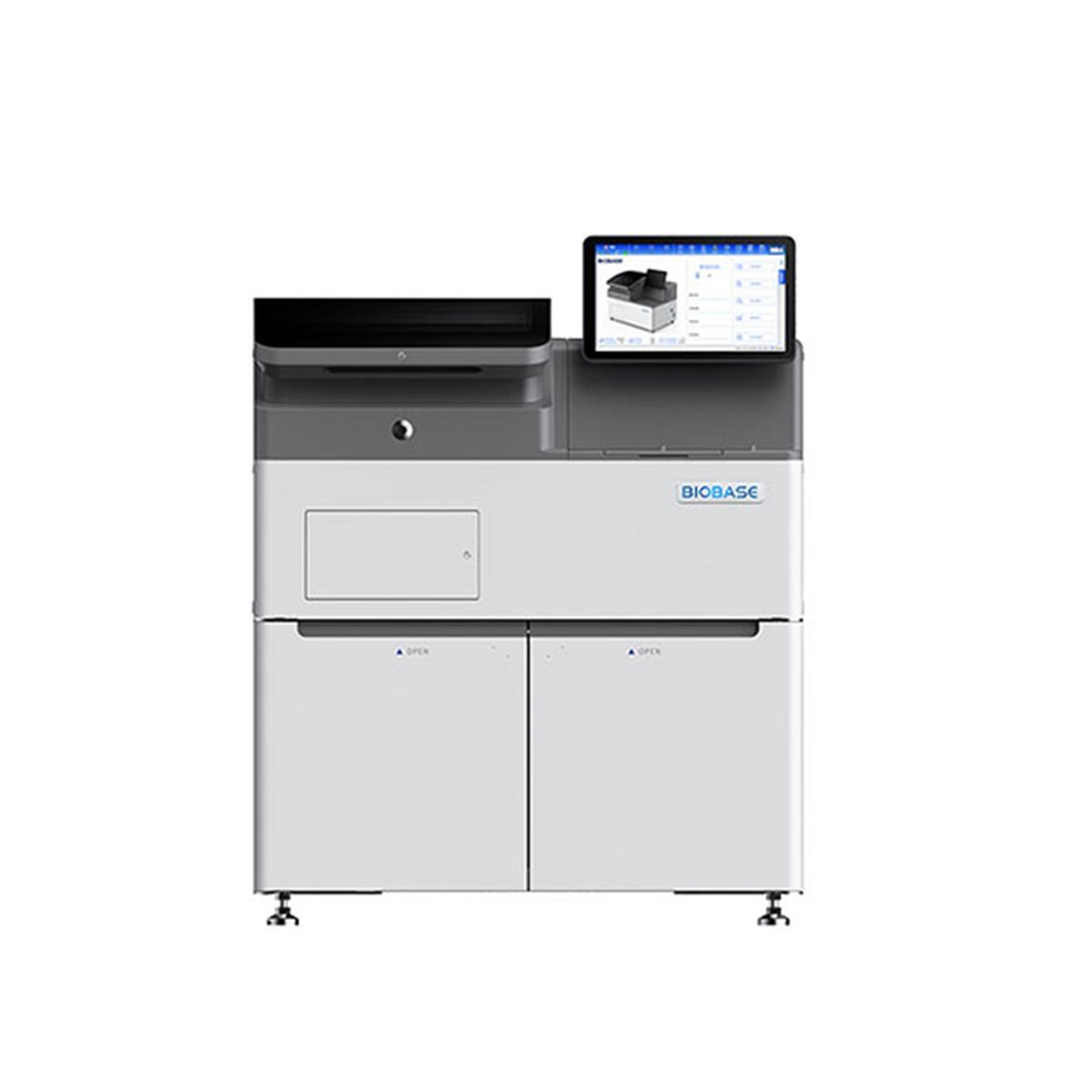

Automatic Chemiluminescence Immunoassay System

Product#: DCBio-ACIS
$45,000.00

Model

  • BKI1100
  • BKI2200
Availability:
Ships in 24 hours

Automatic Chemiluminescence Immunoassay System


Cat. No. DCBio-ACIS_BKI1100, DCBio-ACIS_BKI2200

Introduction:

The chemiluminescence immunoassay system uses magnetic particle separation technology, which uses magnetic particles as antibody carriers, which can be evenly distributed in the liquid phase reaction system, with faster reaction speed and higher efficiency. Using enzymatic chemiluminescence method, the light signal is more stable. A new generation of enzymatic substrates, with higher sensitivity and faster luminescence.

Compared with the international brands, the chemiluminescence immunoassay reagents have good consistency, the coincidence rate can reach more than 95%, and the detection precision can reach CV<2%.


Features

  • Sample Tray:
Disc design, up to 60 samples loading capacity per batch
The position of sample, standard product and quality control positions can be edited
Support emergency function.
  • Reagent Tray:
Patented semiconductor refrigeration technology
Up to 30 reagent position on board with refrigeration at 2-8℃
Up to 30 items can be tested at the same time.


  • Washing and mixing module:
Three-level cleaning mode, higher cleaning efficiency;
Non-contact mixing to avoid cross-contamination.


  • Sample Probe:
Excellent rinsing system make carry-over ≤10-5
Liquid-level and blood coagulation detection system
Intelligent anti-collision function
Sampling volume: 15ul-100ul
  • RV Loading Module:
Independent reaction vessel
Up to 1200 pcs per batch with continues loading
Automatically supply reaction vessel
Intelligently detect the amount of RV


  • Incubation plate:
80 incubation positions
Constant 37°C incubation

  • Instrument Software:
Flexible sample test mode: STAT function, automatic dilution, reset function, continuous loading
Reagent management: the remaining amount, calibration validity, expiry date management
Consumables management: continuous monitoring and low-level warning
Result management: store search, print and statistics, automatic unit conversion function
LIS/HIS connection
Auto daily maintenance



Models:
Technical Parameter:

  Model   BKI1100     BKI2200
  Throughput   80T/H   120T/H
  Principle   Magnetic particle enzymatic chemiluminescence
  Modes of Operation   Random, Batch and STAT
  Separation method   Magnetic separation technology
  Sample Positions   60 (Each position could be used as an emergency position)
  Reagent Positions   30 pcs (2-8℃ refrigeration)
  Incubation Positions   50   80
  Time to 1st Result   18 Minutes
  Sample Volume   15-100ul
  Detection Precision   CV≤5%
  Carry-over Rate   ≤10-5
  Correlation Coefficient   r≥0.99
  Calibration Stability   28 Days
  Calibration Type   6/7-point calibration
  Software System   Windows 7/8/10, 32 or 64 bit
  Bi-direction, support HL7 protocol
  Intuitive User Interface, Intelligent Data Management
  Interface   TCP/IP Network interface
  Other Function   Liquid level detection
  Anti-collision function
  Sample barcode scanning
  Reagent radio frequency identification
  Intelligent alarm prompt
  Power Supply   AC110/220V,50/60Hz
  External Size (W*D*H)   1120*735*513mm   1305*770*1150mm
  Net Weight   130Kg   220Kg
  Package Size (WD*H)   1303*873*854mm   1608*898*1534mm
  Gross Weight   180kg   294kg



Reagent Menu:

  Thyroid                                                  Anemia
  TSH   FERRITIN
  TT4   VB12
  TT3   FA
  FT4
  FT3   Liver fibrosis
  TgAb   CⅣ
  TPOAb   LN
  TG   HA
  Anti-TSHR   PIIINP
  CT
  SHBG   Hypertension
    ALD
  Fertility   ACTH
  β-HCG   Cortisol
  E2   Renin
  P
  T   Growth
  PRL   GH
  FSH
  LH   Bone Metabolism
  DHEA-S   BGP
    25-OH-Vit-D
  Tumor marker   iPTH
  CA125
  CA15-3   Pepsinogen
  CA199   PGII
  AFP
  CEA   Kidney Function
  t-PSA   β2-MG
  f-PSA
    Rheumatism
  Diabetes   Anti-CCP
  C-P
  INS   Pregnancy
    FE3
  Cardiac marker   PAPP-A
  cTnI   Free-β-HCG
  CK-MB   Inflammation
  MYO   PCT
  NT-proBNP   IL-6
