Anesthesia Adaptor for 10-20g Mouse, Tube Included

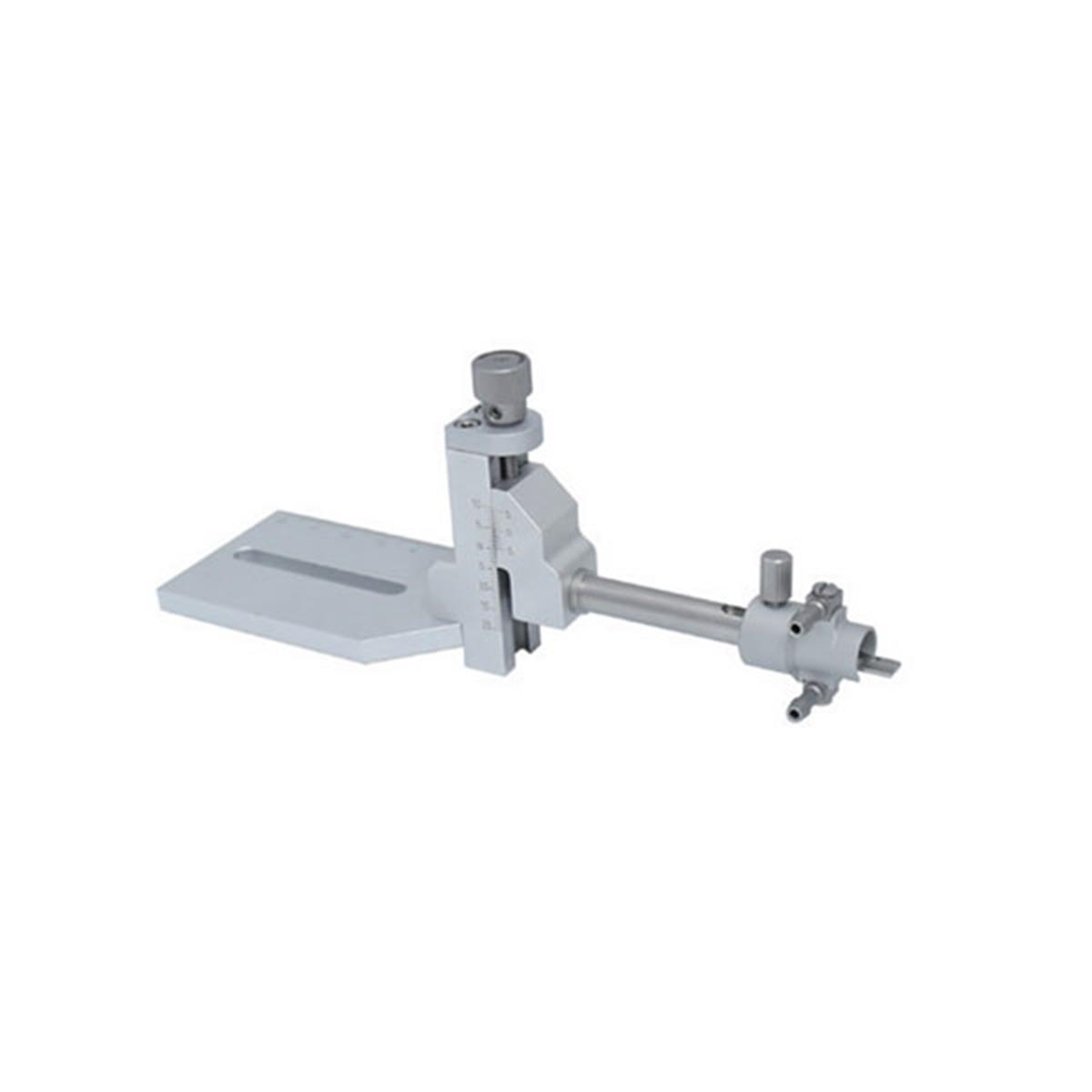

The RWD-68077-S Anesthesia Adaptor is engineered for mice weighing 10-20 grams. It features an integrated anesthesia mask and includes tubing for direct connection to anesthesia systems. This adaptor enables secure and adjustable head positioning with a vertical adjustment range of 30 mm (-20 mm to +10 mm) and an adjustment accuracy of 100 μm, ensuring precise alignment for delicate procedures. The front and rear adjustment range is 43.5 mm, accommodating various experimental setups. The mask’s inlet and outlet are designed for a 3 mm inner diameter tube, facilitating effective anesthetic gas administration.

Features

• Designed for 10-20g mice

• Integrated anesthesia mask and tubing

• Vertical adjustment range: 30 mm (-20 mm to +10 mm)

• Adjustment accuracy: 100 μm

• Front/rear adjustment range: 43.5 mm

• Inlet/outlet for 3 mm inner diameter tube
