pFAST-G02 Vector(for Academic)
pFAST-G02 Vector(Academic / Commercial Entities)
Cat. No. IN3-VEC32
Store at -20°C
Size 10µg
| Product No. | Entity | Size | Link |
| FNK-IN3-VEC32-C | Commercial | 10µg |  |
| FNK-IN3-VEC32-A | Academic | 10µg | |
Description
Plasmid vector for plant transformation
This is a binary vector series cloned with Gateway® system. In transformation of Arabidopsis thaliana by the Agrobacterium method, it is possible to select transformed seeds under a fluorescent microscope by expressing seed-specific GFP, and the selection can be performed in a short time. It can be used for expression by any promoter, high expression, RNA silencing (RNAi) and promoter analysis.
It is a Gateway® binary vector for high gene expression, and can be used for functional analysis of genes and preparation of plants with high expression of target gene. Seed-specific GFP fluorescence makes it possible to screen for transformation selection and homoheterogeneity. You can use it with confidence because it has been used at Kyoto University.
|

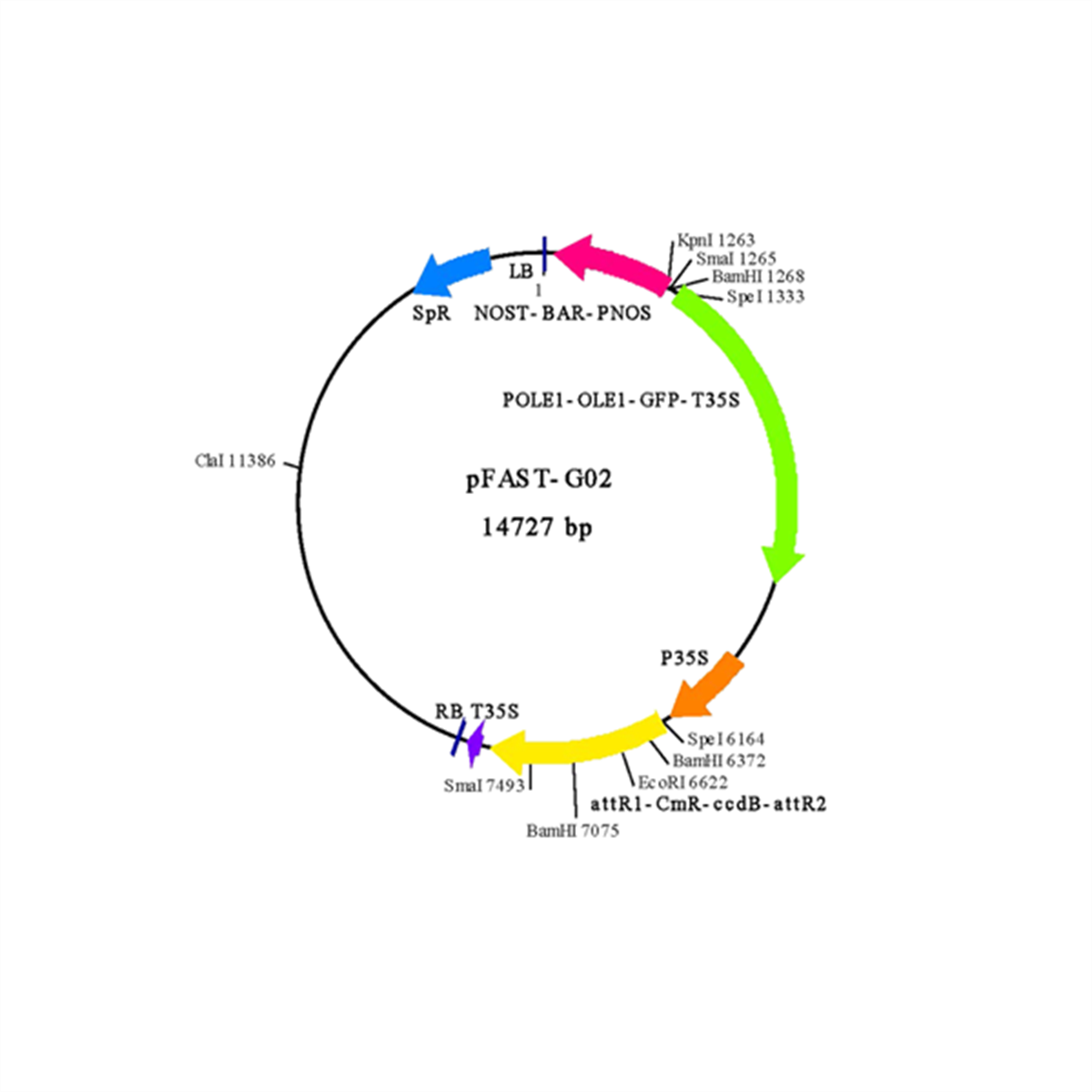

Name |
Position |
|
Left border (LB) |
1-26 |
|
NOS terminator (NOST) |
117-373 |
|
BAR |
393-944 |
|
NOS promoter (PNOS) |
965-1237 |
|
OLE1 promoter (POLE1) |
1369-2812 |
|
OLE1-GFP fusion protein (OLE1-GFP) |
2813-4342 |
|
35S terminator (T35S) |
4626-4445 |
|
35S promoter (P35S) |
5245-6076 |
|
attR1 |
6175-6299 |
|
CmR |
6408-7067 |
|
ccdB |
7409-7714 |
|
attR2 |
7755-7879 |
|
35S terminator (T35S) |
7978-8097 |
|
Right border (RB) |
8193-8217 |
Feature
- High expression by CaMV 35S promoter
- Gateway® cassette is linked between CaMV35S promoter and CaMV35S terminator
- In Arabidopsis thaliana, GFP is expressed in a seed-specific manner, and it is possible to select transformed seeds under a fluorescence microscope
- Can distinguish homoheteroes with fluorescence intensity
- Time to obtain T2 homozygotes is shortened compared to antibiotic selection
- Selection marker for E. coli / Agrobacterium: SpR (spectinomycin / streptomycin resistance)
- Selection marker of plant: Bar (Bialaphos resistant)
Form
How to use
- Create an entry clone into which the target gene has been introduced * 1. There are several methods for producing entry clones, but we recommend BP reaction * 3 with PCR product and donor vector * 2. (Selection of E. coli is derived from resistant antibiotic of donor vector. In addition, competent cells should use DH5α * 4 with transformation efficiency of 10 ^ 10 or more)
- Perform LR * 5 reaction with the entry clone prepared in 1. and this vector (destination vector) to prepare an expression clone. (Please use the specified drug for each vector for selection in transformation, and use competent cells with DH5α * 4 with transformation efficiency of 10 ^ 10 or more)
- Transform the expression clone prepared in 2. into Agrobacterium and infect the plant.
* 1 Please refer to Thermo Fisher Scientific's HP for details.
* 2 Thermo Fisher Scientific pDONR Gateway / Zeo vector (Zeocin resistant)
* 3 Gateway BP Clonase Enzyme Mix manufactured by Thermo Fisher Scientific
* 4 Thermo Fisher Scientific Library Efficiency DH5α Competent Cell
* 5 Gateway LR Clonase enzyme mix manufactured by Thermo Fisher Scientific
Reference
- Shimada T et al., Plant J. (2010) 61 (3): 519-528.
