VentStar Small Animal Ventilator
Product#: RWD-R415
$4,560.00
Availability:
Ships in 1-2 Weeks

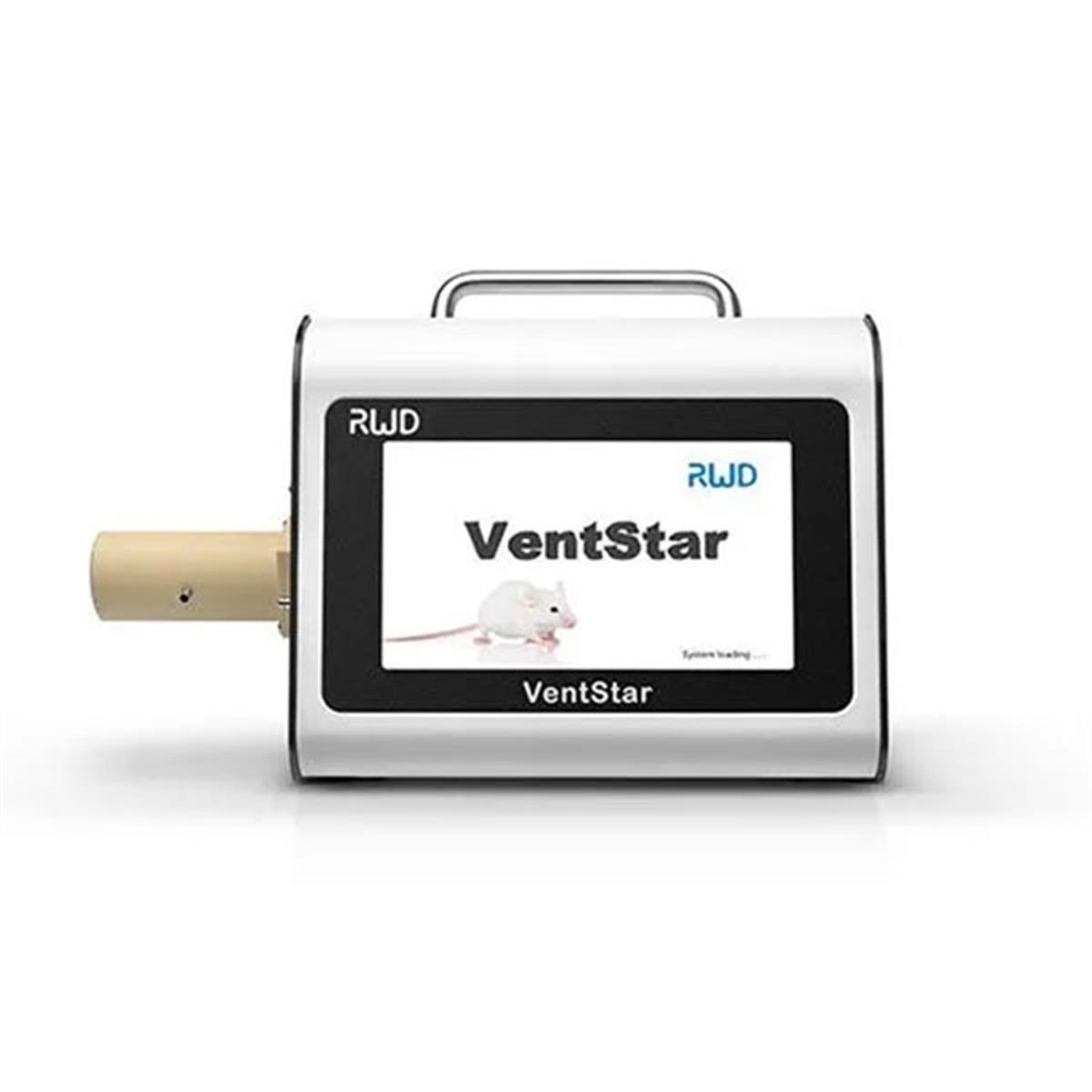

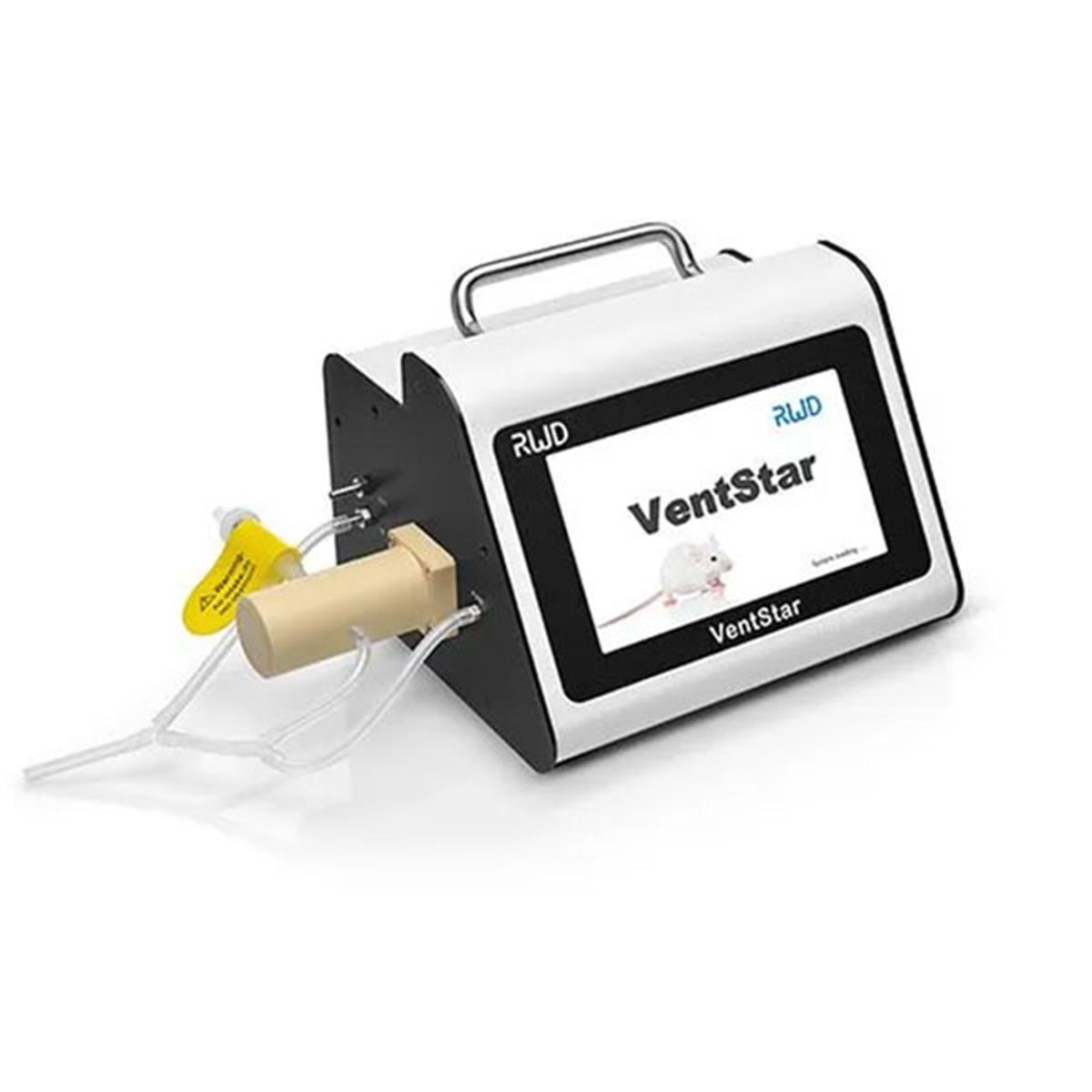

VentStar Small Animal Ventilator
Cat No.: RWD-R415Description
The VentStar Small Animal Ventilator is an advanced mechanical ventilator engineered for precise respiratory support of laboratory animals weighing 10 g to 1 kg, including mice, rats, and guinea pigs. Ideal for medical research, preclinical trials, and veterinary procedures, the R415 provides safe, effective intermittent positive pressure ventilation (IPPV) with both volume control (VCV) and pressure control (PIPCV) modes. A touch-screen interface enables intuitive operation, fully customizable ventilation parameters (including animal weight input), real-time tracheal pressure curves, and intelligent safety alarms, optimizing reproducibility and animal care in experimental protocols.
Features
-
Automated Weight-Based Settings: Input animal weight for smart, auto-calculated ventilation parameters.
-
Dual Mode Operation: Supports both VCV and PIPCV for research versatility
-
Real-Time Monitoring: Tracheal pressure waveform display for precise ventilatory assessment
-
Touchscreen Control: 7" LCD interface with wide viewing angle and intuitive navigation
-
Safety & Usability: Comprehensive alarm system with sound, text, and error codes
-
Compact & Portable: Space-saving footprint with robust design for laboratory workflows
Technical Parameters
|
Suggested Weight Range |
10g - 1kg |
| Species | Mouse, Rat, Guinea Pig |
| Tidal Volume Range (TV) | 0.05ml - 5ml; Resolution: 0.001ml |
| Peak Inspiratory Pressure (PIP) | 1 - 50cmH2O; Resolution: 1 cmH2O
Accuracy: ±0.7 cmH2O |
| PEEP | 0 - 10 cmH2O; Resolution: 1 cmH2O |
| Breath Rate (bpm) | 10 - 300 bpm |
| I:E Ratio | 20 - 80% |
| Sigh Breath | Frequency: Every 10 - 999 or Manual;
Volume: 0 - 20% of tidal volume (volume mode) or PIP (pressure volume) |
| Display | 7’’ LCD touchscreen, resistive |
| Remote Communication | RS-485 |
| Power Supply | 100 - 240VAC, 50/60Hz |
| Input Power | 24V DC, 40W Max (adaptor) |
| Safety Alarms | Over-/Under-pressure, occlusion, high PEEP |
| Dimensions | 320 x 210 x 180mm |
| Weight | 5.1kg |
| Operating Temperature | 4 - 40℃ (40 -104°F) |
| Operating Humidity | 20 - 80%, non-condensing |
| Storage Temperature & Humidity | -10 - 70℃ (14 -158°F); 20 - 80% RH, non- condensing |
Order Information
| Cat No. | Product Description | Link |
| RWD-R415 | Small Animal Ventilator | Current Link |
| RWD-R415-AP (optional) | Accessory package for Anesthesia and Ventilator | .png) |
