Stereotaxic for Small Animals, SGL M. (Basic module)

Cat No.: RWD-68801 Description

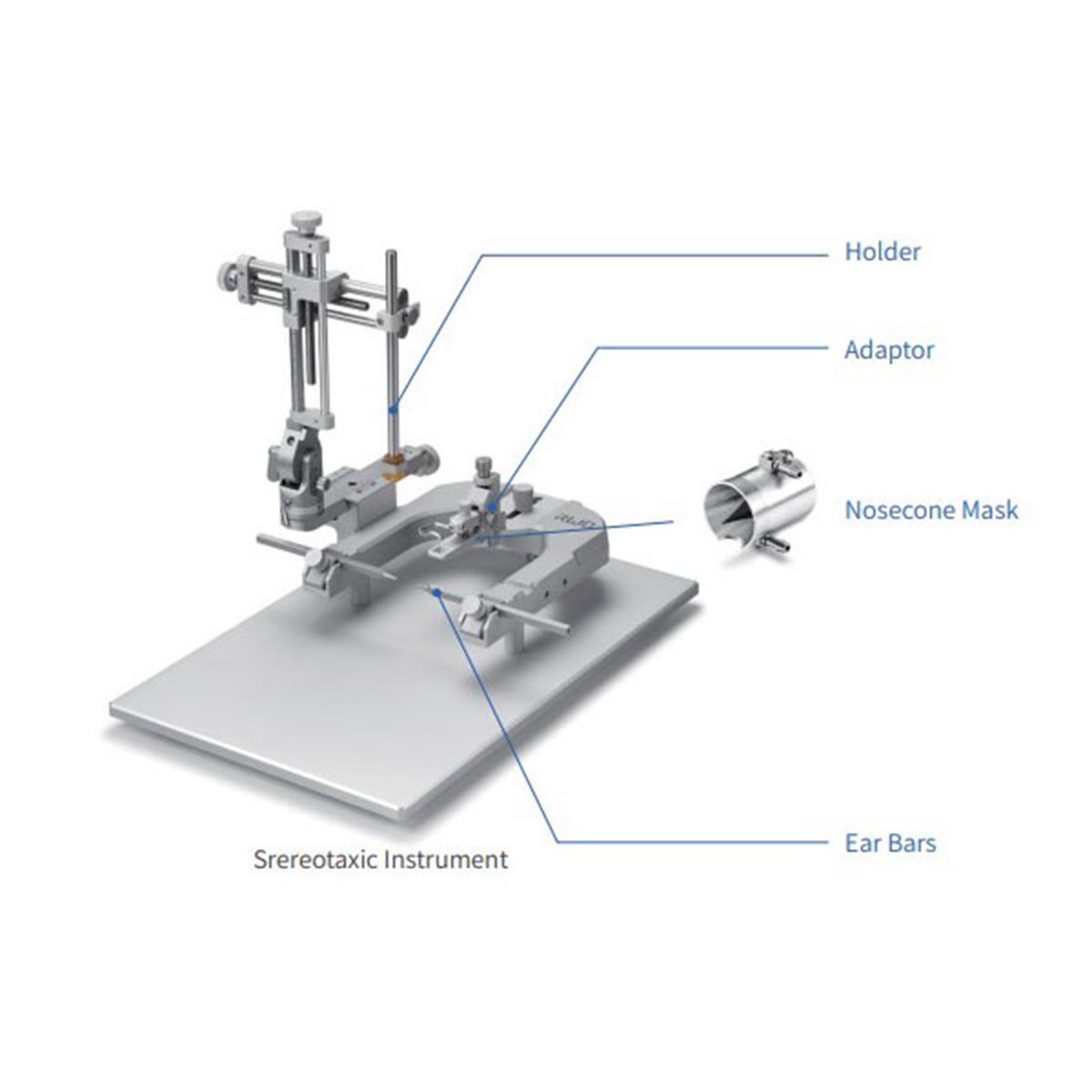

The 68801 Standard Stereotaxic Instrument is a high-precision apparatus designed for neuroscience research, providing exceptional stability and accuracy for stereotaxic procedures in laboratory animals. Featuring 100 micron (0.1mm) resolution and a classic "U"-shaped frame design, this single-manipulator system enables researchers to precisely target specific brain regions for injections, electrode placement, lesioning, and other neurosurgical interventions.


Features:

• Laboratory-Grade Precision: Achieves 0.1mm (100 micron) resolution in all dimensions, essential for accurate targeting of small brain structures in rodents and other laboratory animals.
• Comprehensive Range of Motion: 80mm working distance in each dimension with 180° vertical rotation and 360° horizontal rotation, allowing access to virtually any brain region.
• Superior Mechanical Engineering: Dual-lead screw design ensures stable, accurate, and smooth manipulation with minimal backlash, preventing drift during delicate procedures.
• Temperature-Resistant Performance: Maintains accuracy and flexibility across variable laboratory temperatures, ensuring consistent results during extended protocols.
• Anti-Error Design Elements: Features a unique anti-clockwise UP mark engraved on the knob to prevent incorrect operation, critical for experimental reproducibility.
• Enhanced Stability Mechanisms: Separate vertical lock and fixing knob ensure accurate function at any angle, while the ear bar locked plate pressing system (rather than clamping) provides superior stability.
• Ergonomic Workflow Optimization: The 28mm distance between knob and U-frame creates precise lateral rotation operating space, while laser-engraved scales enable comfortable reading during procedures.
• Versatile Animal Compatibility: Accommodates a wide range of animals through optional adaptors for rats, mice, rabbits, guinea pigs, birds, and cats, supporting diverse research applications.

Technical Specifications:

• Resolution: 0.1mm (100 micron)

• Working Distance: 80mm in all axes (anterior-posterior, medial-lateral, dorsal-ventral)

• Vertical Rotation: 180° with locking at any angle

• Horizontal Rotation: 360° with locking at any angle

• Base Plate Dimensions: 400mm × 255mm, accommodating various animal sizes

• Manipulator: Single 3-axis manipulator (left-handed)

Standard Configuration Includes:

• 68861N base

• 68401 3-axis manipulator (left)
