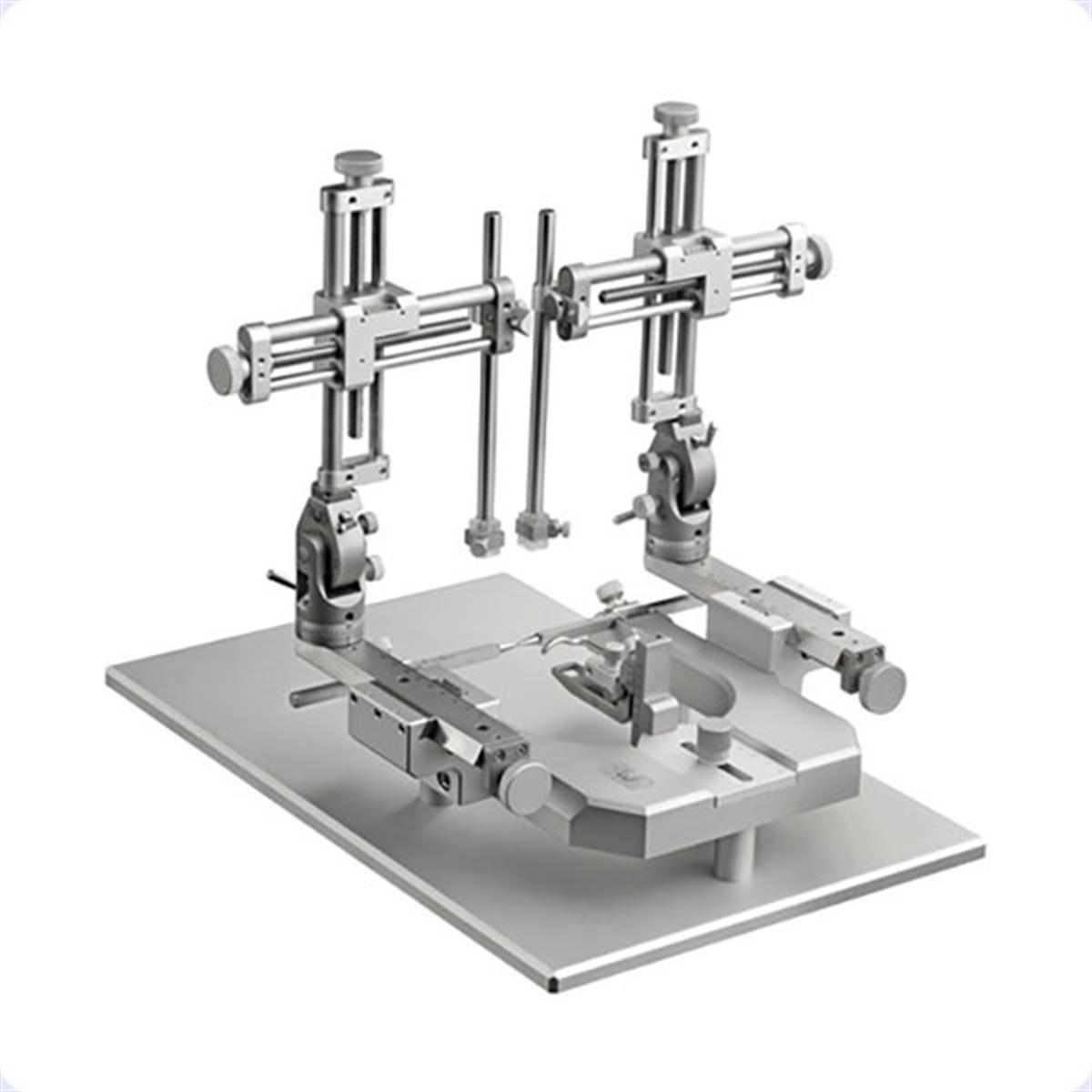

Stereotaxic for Small Animals, Dual M. (Basic module)

Cat No.: RWD-68802 Description

The 68802 Standard Stereotaxic Instrument is a high-precision, dual-manipulator system designed for advanced neuroscience research requiring simultaneous bilateral or comparative brain procedures. Featuring 100 micron (0.1mm) resolution and a robust "U"-shaped frame design, this instrument provides exceptional stability for stereotaxic procedures in laboratory animals. The dual manipulator configuration enables researchers to perform bilateral brain targeting, comparative procedures, or simultaneous recording and manipulation with uncompromised precision.


Features:

• Dual Manipulator Configuration: Features both left (68401) and right (68402) 3-axis manipulators for bilateral or simultaneous procedures, expanding experimental capabilities beyond single-manipulator systems.
• Laboratory-Grade Precision: Achieves 0.1mm (100 micron) resolution in all dimensions, essential for targeting small brain structures with high accuracy.
• Comprehensive Range of Motion: 80mm working distance in each dimension with 180° vertical rotation and 360° horizontal rotation, enabling access to virtually any brain region from multiple angles.
• Superior Mechanical Engineering: Dual-lead screw design ensures stable, accurate, and smooth manipulation with minimal backlash, preventing drift during delicate procedures.
• Temperature-Resistant Performance: Maintains accuracy and flexibility across variable laboratory temperatures, ensuring consistent results during extended protocols.
• Anti-Error Design Elements: Features a unique anti-clockwise UP mark engraved on the knob to prevent incorrect operation, critical for experimental reproducibility.

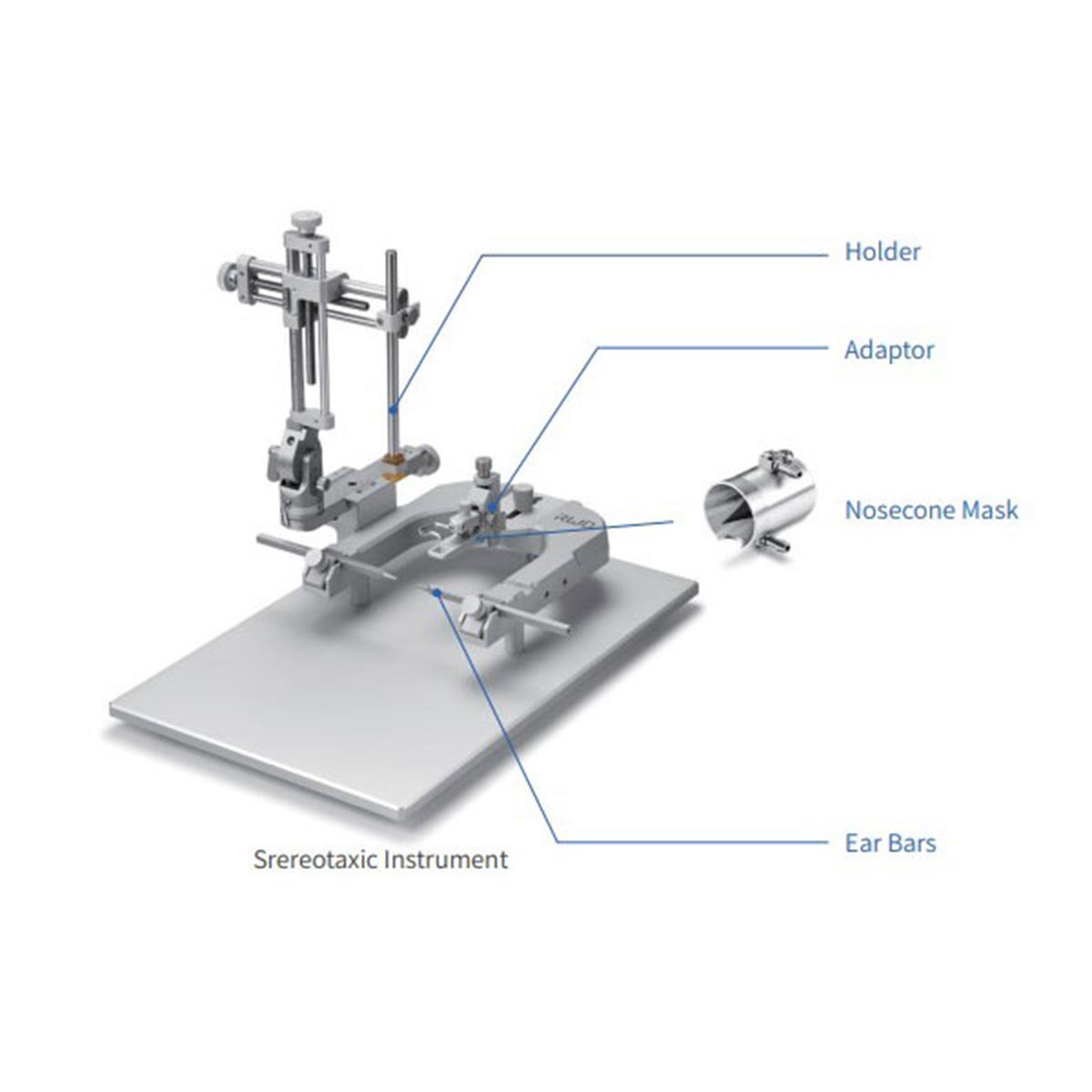

• Enhanced Stability Mechanisms: Separate vertical lock and fixing knob ensure accurate function at any angle, while the ear bar locked plate pressing system (rather than clamping) provides superior stability.
• Ergonomic Workflow Optimization: The 28mm distance between knob and U-frame creates precise lateral rotation operating space, while laser-engraved scales enable comfortable reading during procedures.
• Versatile Animal Compatibility: Accommodates a wide range of animals through optional adaptors for rats, mice, rabbits, guinea pigs, birds, and cats, supporting diverse research applications.

Technical Specifications:

• Resolution: 0.1mm (100 micron)

• Working Distance: 80mm in all axes (anterior-posterior, medial-lateral, dorsal-ventral)

• Vertical Rotation: 180° with locking at any angle

• Horizontal Rotation: 360° with locking at any angle

• Base Plate Dimensions: 400mm × 255mm, accommodating various animal sizes

• Manipulator: Dual 3-axis manipulators (left and right)

Standard Configuration Includes:

• 68861N base

• 68401 3-axis manipulator (left)

• 68402 3-axis manipulator (right)
