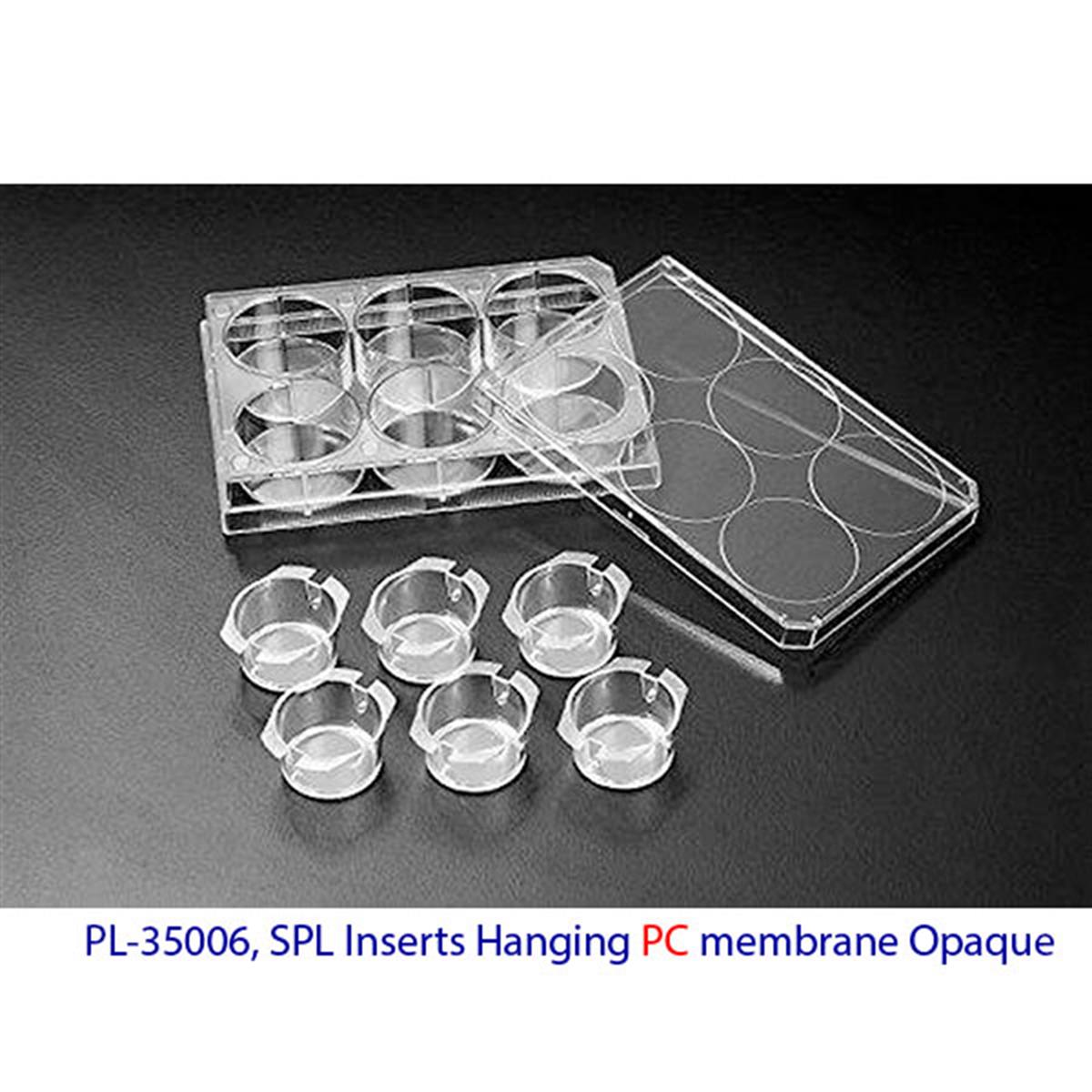

SPL Inserts Hanging PC membrane Opaque, 24 mm diameter, 0.40 µm pore, Sterile, Package 6 inserts in 6 wells plate, Case of 4 Plate

Cat. No.: PL-35006


Description:

SPLInsert™ products closely mimic in vivo environment, providing improved attachment, growth and differentiation of various cell types. With their permeable property, inserts are convenient and effective tool for diverse research areas such as transportation and invasion studies. Specially selected track-etched membranes of three different pore sizes (0.4, 3.0 and 8.0 μm) are used for SPLInsert™ products. Track-etched membranes ensure precise pore size distribution and consistent pore density, providing well-controlled experimental parameters.


Applicable experiments: invasion, migration, transportation, drug uptake, epithelial polarization, chemotaxis, co-culture, toxicity study and in vivo barrier modeling

• Distance from membrane to the bottom of the well:  24well Insert 1.3 mm
• Nominal membrane thickness: 10 ~ 23 μm
• Frame material: Polystyrene (PS)
• Packed in cell culture-treated cell culture plates

• Non – pyrogenic
• Non – cytotoxic
• DNase / RNase – free
• Human DNA – free

Polycarbonate (PC): stain-free, low background interference
Polyethylene terephthalate (PET): high chemical resistance and low protein binding property


Cat.No.	Type/Sterile	Membrane	Membrane Pore Size(μm)	Membrane Diameter(mm)	Growth Area(cm2)	Working Volume (ml)	Optical Properties	Packaging	info.
PL-35006	6 Inserts / 6 Well Plate/Sterile	PC	0.4	24	4.52	1.5~2.5	Opaque	6/24
PL-36006	6 Inserts / 6 Well Plate/Sterile	PET	0.4	24	4.52	1.5~2.5	Opaque	6/24

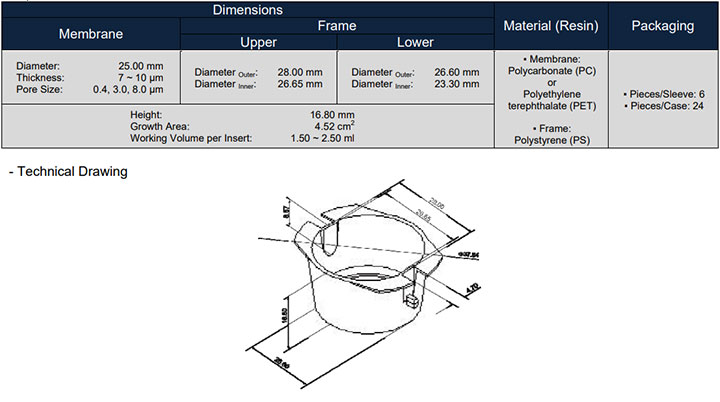

Specifications & Technical Drawing- Cell Culture Insert 6 well type (# PL-35006/PL-36006)
- Specifications



Certification
SPL Life Sciences hereby certifies that the product identified above, inspected to be in compliance with product quality
specification and requirements as documented in our ISO 9001:2015 Quality Management System (K-QA-Q031478)
in Korea.
