Rat Brain Matrix - Sagittal, 1 mm, Stainless Steel, 175-300g

Cat. No.: RWD-68710 Description

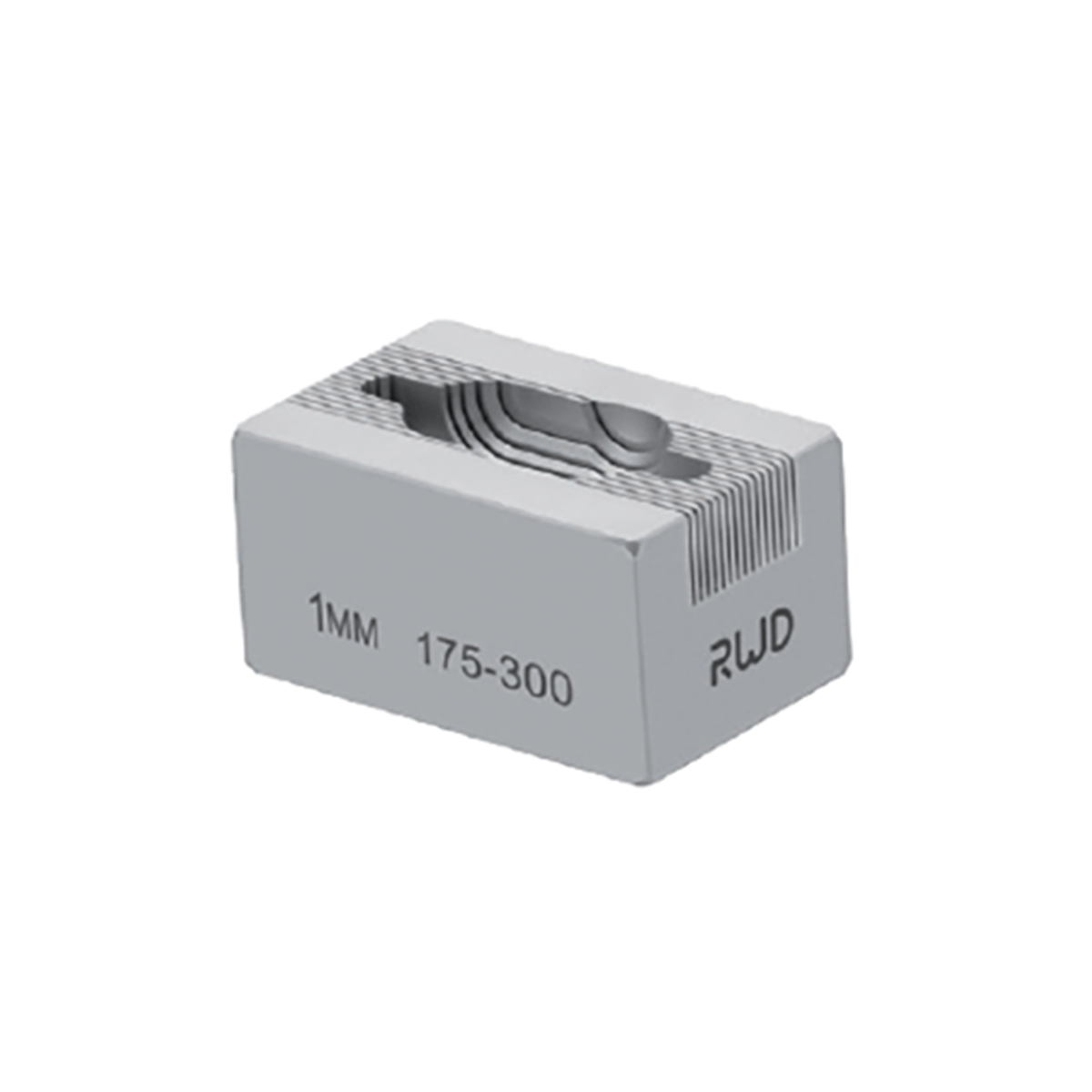

This Rat Brain Matrix is a precision-machined instrument engineered for reproducible sagittal sectioning of rat brains weighing 175-300 grams. Manufactured from high-grade stainless steel, this matrix is built for durability and long-term use in demanding laboratory environments.


Specifications

• Sectioning Precision:
  Enables preparation of uniform sagittal brain slices at 1 mm intervals, supporting accurate anatomical, pathological, and biochemical studies.

• Material and Construction:
  Made from high-grade, electroless-plated stainless steel for strong durability. The matrix can be heated, chilled, autoclaved, and scrubbed, withstanding harsh chemicals and repeated sterilization without surface degradation or loss of precision.

• Design Details:

  • Compatible with rat brains weighing 175-300 g

  • Slice orientation: Sagittal

  • Slice interval: 1 mm

  • Anatomically proportioned channels for precise blocking

  • Includes olfactory and spinal notches for accurate alignment and orientation

  • Central sagittal channel for splitting left and right hemispheres

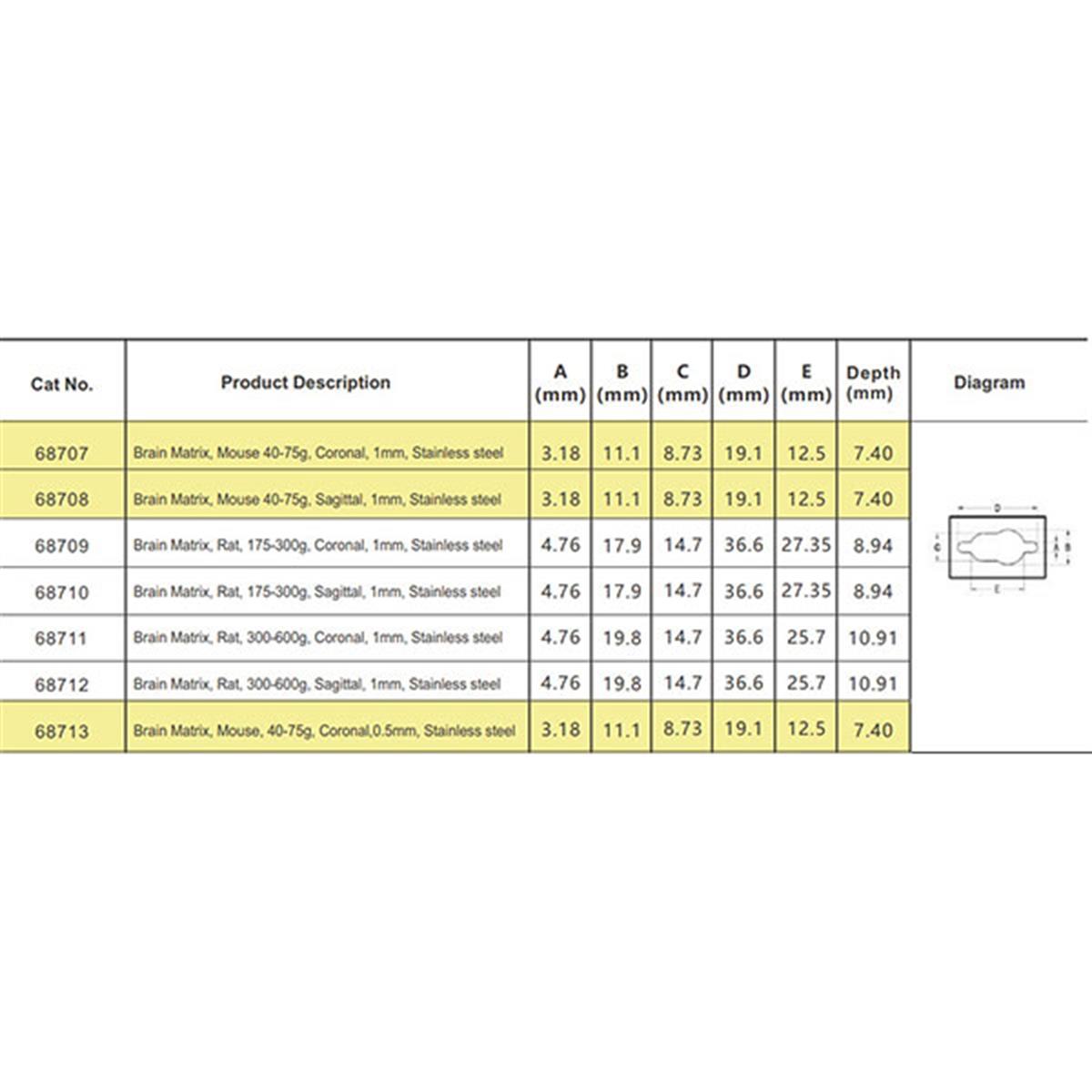

  • Dimensions:

    • A: 4.76 mm

    • B: 17.9 mm

    • C: 14.7 mm

    • D: 36.6 mm

    • E: 27.35 mm

    • Depth: 8.94 mm

• Applications:

  • Preparation of sagittal brain sections for histology, neuroanatomy, TTC staining, and molecular analysis

  • Dissection and blocking prior to microtome sectioning

  • Isolation of discrete brain regions for biochemical or molecular assays

  • Suitable for both fresh and fixed tissue; can be chilled or frozen for tissue preservation
