Precision Quality to Your Research verified ISO 13485 Certified | SBA WOSB | NJ MWBE · NYC MWBE · Illinois BEP arrow_forward View Details

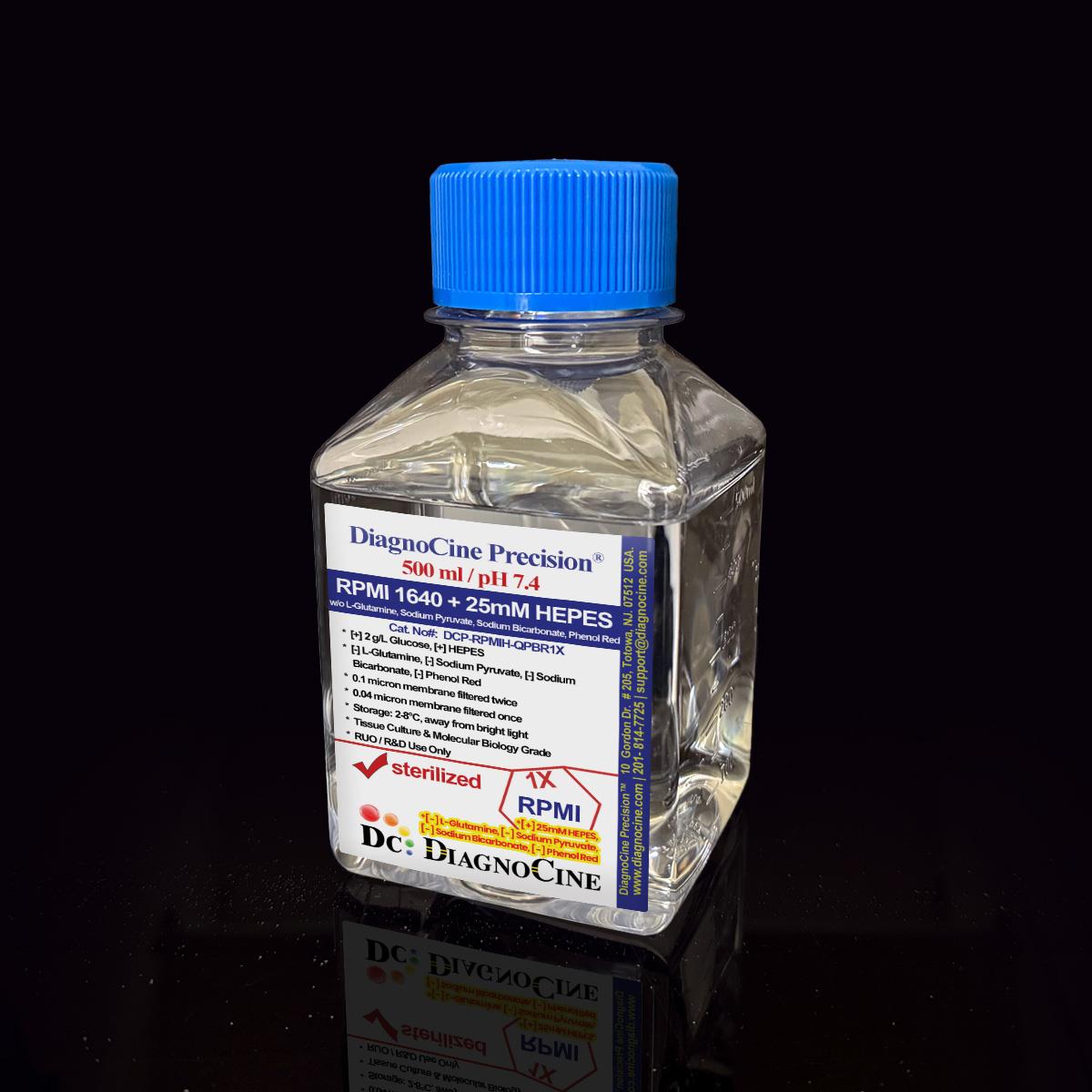

FluxMPS™ RPMI 1640 Medium with 25mM HEPES w/o L-Glutamine, Sodium Pyruvate, Sodium Bicarbonate, Phenol Red: 1X Liquid

Product#: DCP-RPMIH-QPBR1X
$49.50
DCP-RPMIH-QPBR1X
Availability:
Ships in 1-2 Weeks

warning For Research Use Only (RUO). Not intended for clinical, diagnostic, or therapeutic use in humans.
verified ISO 13485 Certified Manufacturing

FluxMPS™ RPMI 1640 Medium with 25mM HEPES w/o L-Glutamine, Sodium Pyruvate, Sodium Bicarbonate, Phenol Red: 1X Liquid

Contains 25 mM HEPES Contains Calcium Contains Magnesium Contains 2.0 g/L Glucose Without L-Glutamine Without Sodium Bicarbonate Without Phenol Red Without Sodium Pyruvate

FluxMPS™ DCP-RPMIH-QPBR1X is a Microfluidics Suitable, quadruple-stage ultra-filtered (0.1 µm ×2 + 0.04 µm ×2) 1X liquid RPMI 1640 + 25 mM HEPES formulation engineered for hematopoietic and lymphocyte-derived cell models on organ-on-a-chip (OoC) and microphysiological system (MPS) platforms. This ultra-minimal HEPES-buffered format omits L-glutamine, sodium pyruvate, sodium bicarbonate and phenol red, giving researchers full control over nitrogen source, secondary carbon input, and CO₂ buffering strategy. The quadruple-stage filtration train reaches a 0.04 µm final cut-off — five times finer than the 0.22 µm membranes used in conventional sterile filtration — supporting mycoplasma-retentive processing and microfluidic channel compatibility.

  • Formulation: RPMI 1640 + 25 mM HEPES with 2.0 g/L glucose; L-glutamine, sodium pyruvate, sodium bicarbonate and phenol red all omitted for full researcher control
  • HEPES buffering (25 mM, pKa 7.3 at 37°C) supports CO₂-independent culture, holding pH near 7.2–7.4 during open-bench handling and flow cytometry preparation
  • Glutathione (reduced, 1.0 mg/L) included — antioxidant/redox support for redox-sensitive lymphocyte and hematopoietic cell models
  • Quadruple-stage filtration train (0.1 µm ×2 + 0.04 µm ×2) reaches a 0.04 µm final cut-off — five times finer than the 0.22 µm membranes used for conventional sterile filtration
  • Endotoxin release specification < 0.05 EU/mL (LAL, USP <85>), controlled per manufacturing batch, to limit TLR4-driven activation artefacts in immune cell assays
  • Manufactured under an ISO 13485:2016 quality management system with full lot traceability; final QC performed at Diagnocine, Totowa, NJ
  • Custom pH, HEPES concentration, and component modifications available on request — support@diagnocine.com
CAT. NO.
DCP-RPMIH-QPBR1X | Cell Culture Media UNSPSC: 41116155 | Commodity: Molecular biology and cell culture growth media | (UNv260801)
RPMI 1640 + 25mM HEPES — 1X Liquid
  • Formulation[+] 25 mM HEPES, [+] Calcium, [+] Magnesium, [+] 2.0 g/L Glucose | [-] L-Glutamine, [-] Sodium Bicarbonate, [-] Phenol Red, [-] Sodium Pyruvate
  • Glucose2000 mg/L (2.0 g/L)
  • HEPES25 mM (pKa 7.3 at 37°C)
  • AppearanceColorless to pale yellow, clear solution
  • pH (USP <791>)7.4
  • Osmolality (USP <785>)230–270 mOsm/kg H2O
  • Endotoxin (USP <85>)< 0.05 EU/mL
  • Filtration0.1 µm ×2 + 0.04 µm ×2 (Quadruple-stage)
  • Storage2–8°C, protect from light
  • Shelf Life12 months from date of manufacture, unopened
ISO 13485:2016 USP <85> <785> <788> RUO
Why FluxMPS™

Engineered where standard media fails

Conventional 0.22 µm–filtered RPMI passes mycoplasma-sized particles, subvisible particulates, and endotoxin fragments that can activate TLR4 and confound immune cell assays. FluxMPS™ is built to reduce these failure modes.

filter_alt

Microchannel-safe purity

0.04 µm final filtration and USP <788> particulate compliance support particulate-controlled media for suspension immune cell OoC and flow cytometry workflows.

science

Immune cell metabolic control

A defined 2.0 g/L glucose input with glutathione, balanced amino acids and vitamins supports controlled glycolytic flux studies in lymphocyte and hematopoietic cell models.

water_drop

Ultrapure-grade water

Type 1 water (18.2 MΩ·cm) with trace-metal and organic-carbon (TOC) control minimizes non-specific interference in sensitive immune cell culture.

visibility

Low background for imaging

Quadruple-stage filtration lowers the particulate baseline for confocal microscopy and biosensor readouts in flow cytometry and immune cell imaging workflows.

shield

Low endotoxin specification

Release specification < 0.05 EU/mL (LAL, USP <85>) is set to minimize the risk of LPS-driven TLR4 activation artefacts in T cell and NK cell assays.

tune

Customization on demand

pH, nutrient concentrations, HEPES, and component modifications available. Contact support@diagnocine.com.

Purity Architecture

Quadruple-stage filtration system

Four serial filtration stages — two dedicated prefilter/final-filter pairs — reach a final 0.04 µm polish.

  1. 1

    0.1 µm Prefiltration I

    Large particulate, cell debris and protein aggregate removal; protects the first 0.04 µm cartridge.

  2. 2

    0.04 µm Final filtration I

    First 0.04 µm pass; retains sub-micron particulates and microaggregates that pass a 0.22 µm filter.

  3. 3

    0.1 µm Prefiltration II

    Second dedicated prefilter, protecting the second 0.04 µm cartridge.

  4. 4

    0.04 µm Final filtration II — Polish

    Ultimate polishing filter; aseptic fill & finish.

Performance vs. conventional media

The quadruple-stage train (0.1 µm ×2 + 0.04 µm ×2) reaches a 0.04 µm final cut-off — five times finer than the 0.22 µm membranes used for conventional sterile filtration.

4
Serial filtration passes (0.1 µm ×2 + 0.04 µm ×2)
0.04
µm final pore size — sub-mycoplasma polishing
Sterility & Mycoplasma: No growth after 14-day incubation (USP <71>). Mycoplasma risk is controlled by 0.1 µm mycoplasma-retentive filtration (not tested per lot); mycoplasma organisms are typically 0.2–0.3 µm in diameter.
Grade: This product is Microfluidics Suitable, filtered to a 0.04 µm final cut-off. It is not an MPS Grade product — that designation is reserved for the 0.01 µm ultra nano-filtered line, which adds 0.02 µm and 0.01 µm stages after the 0.04 µm polish. For applications requiring the 0.01 µm cut-off, contact support@diagnocine.com.
FluxMPS DCP-RPMIH-QPBR1X RPMI 1640 with 25mM HEPES Quadruple-stage filtration system (0.1 micron x2 plus 0.04 micron x2) for organ-on-a-chip and microfluidic cell culture applications - Diagnocine
Figure 1. FluxMPS™ Quadruple-stage filtration system (0.1 µm ×2 + 0.04 µm ×2).
© Diagnocine® — DCP-RPMIH-QPBR1X
Applications

Immune cell OoC and hematopoietic applications

FluxMPS™ DCP-RPMIH-QPBR1X — RPMI 1640 + 25mM HEPES — delivers 0.04 µm filtered purity for hematopoietic cells and related OoC applications.

Automated Bioreactors & Robotics

Next-Generation System Uptime

An optional 0.01 µm (10 nm) MPS Grade variant of this formulation is available on request for automated bioreactors and robotic culture systems.

  • Total Particulate Exclusion: 0.01 µm filtration removes nanoparticulate aggregates
  • Valve & Sensor Protection: Reduces micro-fouling in automated perfusion systems
  • Extended Perfusion Stability: Consistent nutrient delivery over long-duration culture

Inquiry Required: Contact support@diagnocine.com for the 0.01 µm MPS Grade variant.

Immunology

T Cell & Lymphocyte Culture

RPMI 1640 is the standard base medium for primary T cells, B cells, NK cells, and monocytes. FluxMPS™ 0.04 µm filtration reduces particulate load implicated in TLR4 activation artefacts.

T cellsB cellsNK cellsPBMC
Cancer Biology

Leukemia & Lymphoma Lines

RPMI supports NCI-60 cancer lines, Jurkat, Raji, K562, HL-60, and hematopoietic cancer lines where DMEM would alter proliferation and signaling.

JurkatRajiK562HL-60
Microfluidics

Immune Cell OoC

0.04 µm filtered RPMI for tumor-immune interaction chips, vascular-immune OoC, and lymph node-on-chip models built on microphysiological systems (MPS).

Tumor-immune chipLymph node OoCMPS
Immunotherapy

CAR-T & TIL Expansion

A low endotoxin release specification (<0.05 EU/mL) is set to minimize the risk of LPS-driven T cell activation artefacts in CAR-T manufacturing and TIL expansion protocols.

CAR-TTILTCR-T
Metabolomics

Immune Cell Metabolic Flux

Bicarbonate-free, phenol red-free defined RPMI base compatible with Agilent Seahorse XF T cell metabolic assays, glycolysis stress tests, and ¹³C isotope tracing of lymphocyte activation states.

Seahorse XF¹³C tracingGlycolysis
Live-Cell Imaging

Flow Cytometry & Confocal

Phenol red-free formulation reduces background absorbance for PE-channel flow cytometry and confocal imaging of immune cells; reduced particulate baseline supports biosensor readouts.

Flow cytometryConfocalELISA
Technical Specifications

Analytical release specifications

Every lot released against the full specification matrix. CoA: support@diagnocine.com.

Physical & Chemical Parameters
Parameter Specification
Formulation [+] 25 mM HEPES, [+] Calcium, [+] Magnesium, [+] 2.0 g/L Glucose | [-] L-Glutamine, [-] Sodium Bicarbonate, [-] Phenol Red, [-] Sodium Pyruvate
Appearance Colorless to pale yellow, clear solution
Glucose 2000 mg/L (2.0 g/L)
HEPES 25 mM (pKa 7.3 at 37°C)
pH USP <791> 7.4
Osmolality USP <785> 230–270 mOsm/kg H2O
Total ingredients 38 components across 4 categories
Sterility, Purity & Safety
Parameter Specification
Endotoxin USP <85> BET < 0.05 EU/mL (see § Quality Assurance for batch-release testing)
Sterility USP <71> No growth / 14 days
Mycoplasma 0.1 µm mycoplasma-retentive filtration (not tested per lot)
Particulate ≥10 µm USP <788> Method 1 NMT 25/mL
Particulate ≥25 µm USP <788> Method 1 NMT 3/mL
Water purity Type 1, 18.2 MΩ·cm
Manufacturing std. ISO 13485:2016
Fill environment ISO Class 5 (Class 100)
Storage, Handling & Logistics
Parameter Specification
Storage temperature 2–8°C, protect from light
Freeze-thaw Do not freeze
Shelf life 12 months from date of manufacture, unopened
Shipping condition Cold pack
CO₂ requirement CO₂-independent — 25 mM HEPES alone maintains pH 7.2–7.4 at 37°C
Raw Materials & Regulatory Traceability
Parameter Specification
Raw material grade Reagent / cell culture grade
Traceability Full lot traceability per ISO 13485
Manufacturing QMS ISO ISO 13485:2016 certified
UNSPSC 41116155 — Molecular biology and cell culture growth media (UNv260801)
Regulatory alignment 21 CFR Part 820 (QMSR) aligned
Production method Micro-batch, per-lot QC release
Intended use Research Use Only (RUO)
Formulation

Full composition (mg/L)

RPMI 1640 + 25mM HEPES: 38 ingredients verified per lot with CAS numbers for full raw-material traceability. This formulation contains glutathione (antioxidant) and a balanced profile of vitamins and amino acids suited to lymphocyte and hematopoietic cell culture.

Component CAS Number mg/L
INORGANIC SALTS
Calcium nitrate tetrahydrate 13477-34-4 100.000
Magnesium sulfate anhydrous 7487-88-9 48.840
Potassium chloride 7447-40-7 400.000
Sodium chloride 7647-14-5 6000.000
Sodium phosphate dibasic anhydrous 7558-79-4 800.000
Component CAS Number mg/L
AMINO ACIDS
Glycine 56-40-6 10.000
L-Arginine hydrochloride 1119-34-2 241.000
L-Asparagine 70-47-3 50.000
L-Aspartic acid 56-84-8 20.000
L-Cystine dihydrochloride 30925-07-6 65.200
L-Glutamic acid 56-86-0 20.000
L-Histidine hydrochloride monohydrate 5934-29-2 20.960
L-Hydroxyproline 51-35-4 20.000
L-Isoleucine 73-32-5 50.000
L-Leucine 61-90-5 50.000
L-Lysine hydrochloride 657-27-2 40.000
L-Methionine 63-68-3 15.000
L-Phenylalanine 63-91-2 15.000
L-Proline 147-85-3 20.000
L-Serine 56-45-1 30.000
L-Threonine 72-19-5 20.000
L-Tryptophan 73-22-3 5.000
L-Tyrosine Disodium Salt 69847-45-6 28.830
L-Valine 72-18-4 20.000
Component CAS Number mg/L
VITAMINS
Choline chloride 67-48-1 3.000
D-Biotin 58-85-5 0.200
D-Ca-Pantothenate 137-08-6 0.250
Folic acid 59-30-3 1.000
Niacinamide 98-92-0 1.00
Pyridoxine hydrochloride 58-56-0 1.00
Riboflavin 83-88-5 0.200
Thiamine hydrochloride 67-03-8 1.000
Vitamin B12 68-19-9 0.005
i-Inositol 87-89-8 35.000
p-Amino benzoic acid (PABA) 150-13-0 1.000
OTHERS
D-Glucose 50-99-7 2000.000
Glutathione reduced 70-18-8 1.000
HEPES 7365-45-9 5958.00
Custom formulation: Contact support@diagnocine.com for DCP-RPMIH-QPBR1X modifications.
Quality Assurance

Manufacturing & compliance

Every FluxMPS™ product is manufactured and released under a multi-layer quality system.

verified

ISO 13485:2016 Quality Management

Manufactured under ISO 13485:2016-certified suppliers. Final QA at Diagnocine R&D Center, Totowa, NJ, USA.

water_drop

Ultrapure Type 1 Water

18.2 MΩ·cm with trace-metal and organic-carbon (TOC) control.

biotech

ISO Class 5 Fill & Finish

Aseptic fill in validated ISO Class 5 (Class 100) laminar-flow workstations.

assignment

Micro-Batch Precision

Small-batch, per-lot tested — no blending; Certificate of Analysis available per batch.

Endotoxin — USP <85> BET

LAL assay; release specification < 0.05 EU/mL.

Particulate — USP <788> Method 1

Light obscuration; NMT 25/mL (≥10 µm), NMT 3/mL (≥25 µm).

Osmolality — USP <785>

Target: 230–270 mOsm/kg H2O.

Documentation & CoA

Full CoA with raw-material traceability available on request.

Batch-level quality control. Endotoxin is controlled per manufacturing batch rather than per unit. Every batch is tested before release and must meet the release specification:
  • Endotoxin — LAL assay, USP <85> Bacterial Endotoxins Test; assay sensitivity 0.005 EU/mL; release specification < 0.05 EU/mL
  • pH, osmolality, conductivity, appearance and clarity
  • Sterility
A Certificate of Analysis is available on request at support@diagnocine.com.
Product Comparison

How DCP-RPMIH-QPBR1X compares

FluxMPS™ DCP-RPMIH-QPBR1X vs. conventional 0.22 µm-filtered RPMI formulations.

Parameter DCP-RPMIH-QPBR1X (FluxMPS™) Conventional RPMI 1640 + 25mM HEPES (0.22 µm filtered) Standard DMEM/RPMI (0.22 µm filtered)
Grade Microfluidics Suitable Not specified Not specified
Ultra-minimal RPMI 1640 + HEPES-only — CO₂-independent, all metabolic inputs researcher-defined check_circle Yes cancel No cancel No
Final filtration pore size 0.04 µm 0.22 µm 0.22 µm
Number of filtration stages 4 (Quadruple) 1 1
Mycoplasma-retentive filtration check_circle Yes (0.1 µm) cancel No cancel No
HEPES (25 mM) check_circle Yes cancel Usually no cancel No
Endotoxin (release specification) FluxMPS™ — < 0.05 EU/mL Corning classical liquid media — < 0.25 EU/mL
Sigma-Aldrich DMEM complete medium — ≤ 2 EU/mL
Gibco classical DMEM — Not specified (recorded per lot)
USP <788> particulate tested check_circle Yes cancel No cancel No
Water quality Type 1, 18.2 MΩ·cm Purified water Purified water
Manufacturing QMS ISO 13485:2016 ISO 9001 or none ISO 9001 or none
Microfluidic channel compatible check_circle Yes cancel Risk of clogging cancel Risk of clogging
Custom formulation available check_circle Yes cancel No cancel No

Comparison figures from published supplier specifications, accessed 2 September 2026. Suppliers that publish no numeric endotoxin specification are shown as "Not specified".

FAQ

Frequently asked questions

Common questions about FluxMPS™ DCP-RPMIH-QPBR1X — RPMI 1640 + 25mM HEPES.

Yes. DCP-RPMIH-QPBR1X is processed through a quadruple-stage filtration system reaching a 0.04 µm final pore size. This RPMI 1640 formulation is Microfluidics Suitable and used in immune cell OoC, tumor-immune interaction chips, and lymphocyte perfusion models on microphysiological system (MPS) platforms.
FluxMPS™ uses four sequential filters — 0.1 µm prefiltration I, 0.04 µm final filtration I, 0.1 µm prefiltration II, and 0.04 µm final filtration II (polish) — reaching a 0.04 µm final cut-off, five times finer than the 0.22 µm membranes used in conventional sterile filtration.
This ultra-minimal formulation removes L-glutamine, sodium pyruvate, sodium bicarbonate and phenol red, leaving glucose and HEPES as the only added carbon/buffering inputs. This gives researchers complete control over nitrogen source, secondary carbon source, and CO₂ buffering strategy — useful for studies isolating single metabolic variables. To complete the medium for routine culture, add L-glutamine (2–4 mM, or a stable dipeptide substitute) and sodium pyruvate (1 mM) as needed; add sodium bicarbonate only if switching to a CO₂ incubator, since this HEPES-buffered format is designed for CO₂-independent culture.
No. This formulation is CO₂-independent — 25 mM HEPES alone maintains pH 7.2–7.4 at 37°C, without a bicarbonate/CO₂ buffering system.
Yes. Add FBS (typically 5–10%), serum-free supplements, growth factors, or antibiotics as required. When adding serum or protein-containing supplements, filter through a 0.2 µm low-protein-binding PES or PVDF membrane — not 0.04 µm, which retains IgM, VLDL and much of the lipoprotein fraction of serum. Contact support@diagnocine.com for custom co-formulation.
FluxMPS™ DCP-RPMIH-QPBR1X carries a release specification of < 0.05 EU/mL, verified by LAL assay (USP <85>, assay sensitivity 0.005 EU/mL) on every manufacturing batch before release. Endotoxin is controlled per batch, not per unit; a Certificate of Analysis is available on request. Low endotoxin matters for immune cell work because LPS activates TLR4/NF-κB, which can alter lymphocyte activation state independently of experimental conditions.
Yes. A full CoA per batch covers: appearance, pH (USP <791>), osmolality (USP <785>), sterility (USP <71>), endotoxin (USP <85>), mycoplasma-retentive filtration, particulate count (USP <788> Method 1), and raw-material traceability. Request at support@diagnocine.com.
Scientific References

Supporting literature

Key publications supporting RPMI 1640 + 25mM HEPES in immune cell culture and OoC applications.

  1. Moore GE, et al. Culture of normal human leukocytes. JAMA. 1967;199:519–524. doi:10.1083/jcb.1.3.273
  2. Huh D, et al. Reconstituting organ-level lung functions on a chip. Science. 2010;328:1662–1668. doi:10.1126/science.1188302
  3. Bhatia SN, Ingber DE. Microfluidic organs-on-chips. Nat Biotechnol. 2014;32:760–772. doi:10.1038/nbt.2989
  4. Novak R, et al. Robotic fluidic coupling and interrogation of multiple vascularized organ chips. Nat Biomed Eng. 2020;4:407–420. doi:10.1038/s41551-019-0497-x
  5. Jang KJ, et al. Human kidney proximal tubule-on-a-chip. Integr Biol. 2013;5:1119–1129. doi:10.1039/c3ib40049b
  6. Schimek K, et al. Integrating biological vasculature into a multi-organ-chip microsystem. Lab Chip. 2013;13:3588–3598. doi:10.1039/c3lc50217a
  7. Luni C, et al. High-efficiency cellular reprogramming with microfluidics. Nat Methods. 2016;13:446–452. doi:10.1038/nmeth.3832
  8. Sung JH, et al. Microfabricated mammalian organ systems. Lab Chip. 2013;13:1201–1212. doi:10.1039/c3lc41017j

Related Products

Recently Viewed

FluxMPS™ Iscove's Modified Dulbecco's Medium (IMDM), High Glucose with 25mM HEPES w/o L-Glutamine, Phenol Red: 1X Liquid

$44.00
Satisfaction
Quality Rating
Value Rating
Style Rating

X
