Regular Cooling on ice	Cooling by using Ice On
Gap between ice and tube makes cooling efficiency low	Higher cooling efficiency Great thermal conductiviy of cold by aluminium. No gap between tube and rack - rapid cooling

Common in Type 1 and Type 2

• Tubes will not be touched directly with water and ice
• Made of aluminum and its surface is processed not to be rusted for the long time use.
• Compactly designed just like putting into the small bucket.
• Can be piled on and in a refrigerator or freezer, they can be used as racks of sample tubes.

Type 1 Feature:

• Can contain 24 tubes of 1.5 ml
• Numbers (1-8) and alphabets (A to C) are inscribed on the surface. Easy to be sortedout in order.

Type 2 Features:

• Can contain 96 tubes of 0.2 ml or 12x0.2 ml 8-tube strips or 8x0.2 ml 12-tube strips or 1x0.2 ml 96-well plate and 6 tubes of 0.5ml and 4 tubes of 1.5 ml.

Easy to be separated from tubes of 1.5 ml or of 0.5ml to tubes of0.2 ml.

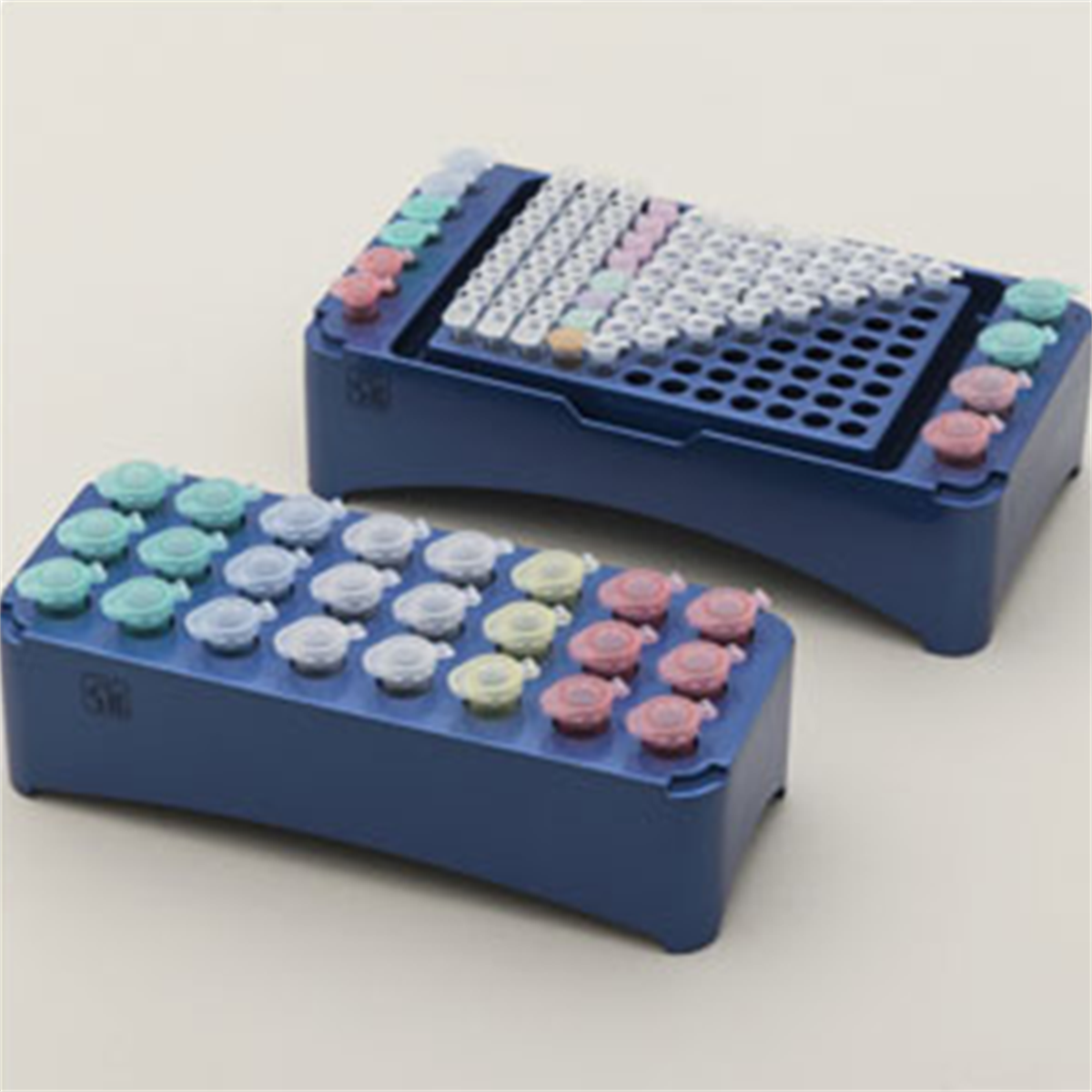

Aluminum made rack for Refrigeration of sample tubes
Better effect can be obtained than direct insertion of the tubes into the ice.
Just putting the tubes into the ICE ON and setting it on ice will make quicker refrigeration and the temperature of the sample liquid can be maintained lower.

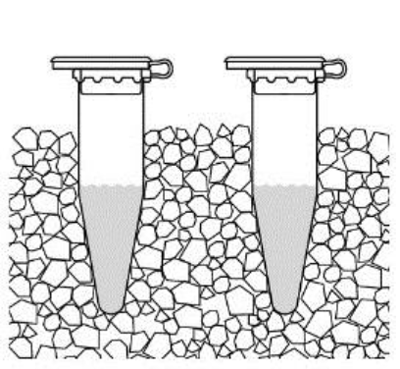

In Case of direct insertion of the sample tubes into ice:
Even in the crashed ice, air space can be born between tubes and ice, which makes the sample tubes bad effectiveness in refrigeration.

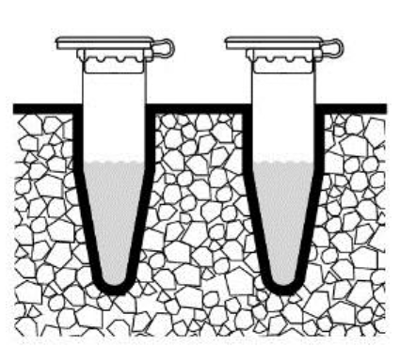

In Case of setting the rack on ice after putting the sample tubes in ICE ON:
Because of its good conductivity of aluminum made ICE ON, wherever the part of it being touched with ice, the temperature of ice will quickly be transmitted to the restof the parts of rack.

As the tubes and its aluminum part are being touched without any space, same effectiveness can be obtained just like no space being existed between ice and whole parts of tube and consequently refrigeration effectiveness becomes good and the temperature of the sample liquid of the tubes inside the ICE ON becomes lower than the one you put them directly into ice. (Same condition as you just put the tubes into ice and water.)

Features

• Tubes do not directly touch to water or ice.
• Made of Aluminium.
• Surface-treated for avoiding corrosion.
• Compact Size
• Stackable

Product	Ice On Type I	Ice On Type II
Cat. No.	FNK-IO-1	FNK-IO-2
Material	Aluminum Diecast	Aluminum Diecast
Storage	1.5 ml tube x 24	0.2 ml tube x96 (0.2 ml 8-strip x12, 0.2 ml 12-strip x8 or 0.2 ml 96well plate x1) and 0.5 ml tube x 6 and 1.5 ml tube x 4
Size	169 × 69 × 47 mm	177 × 95 × 47 mm
Weight	300 g	470 g
Link	Current Link
