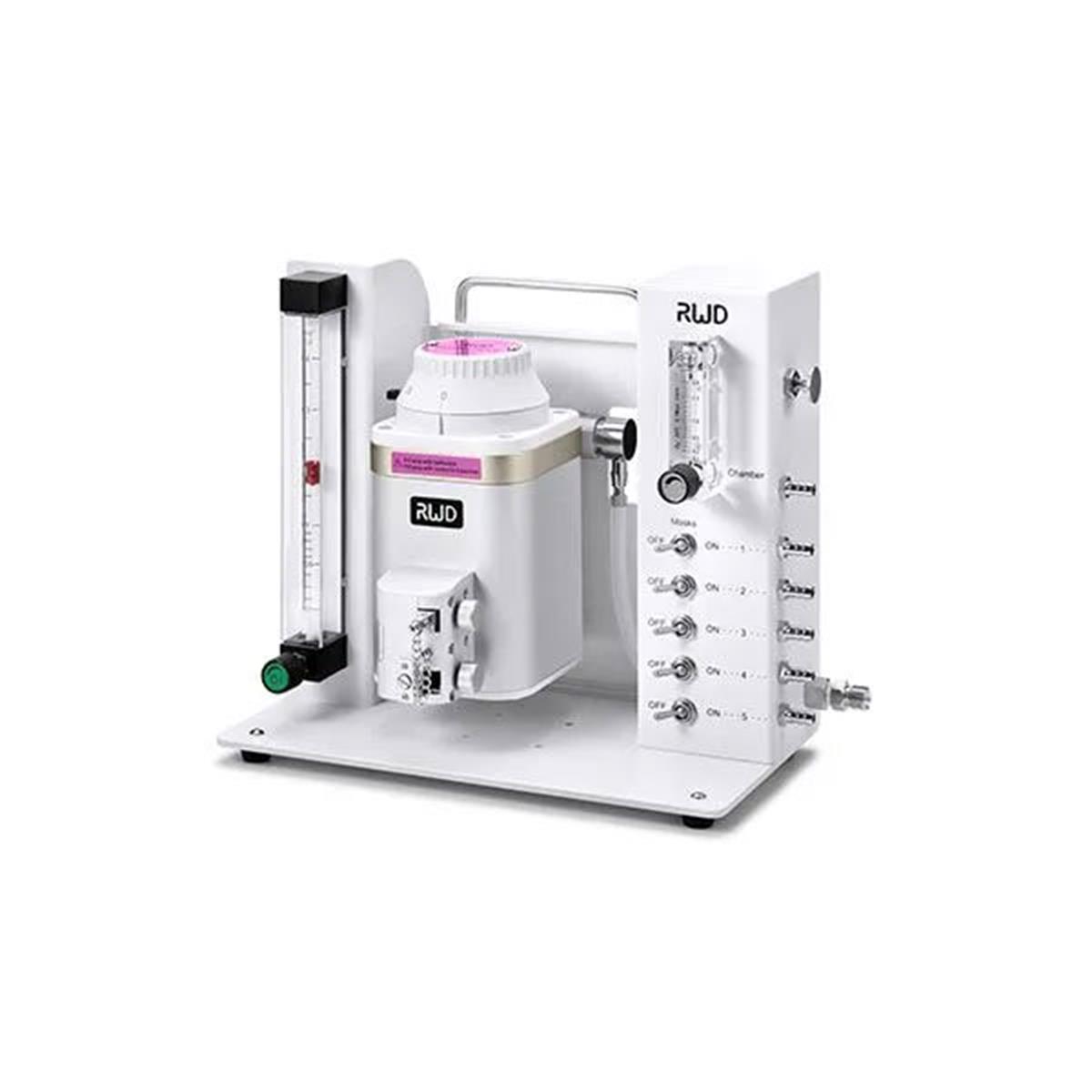

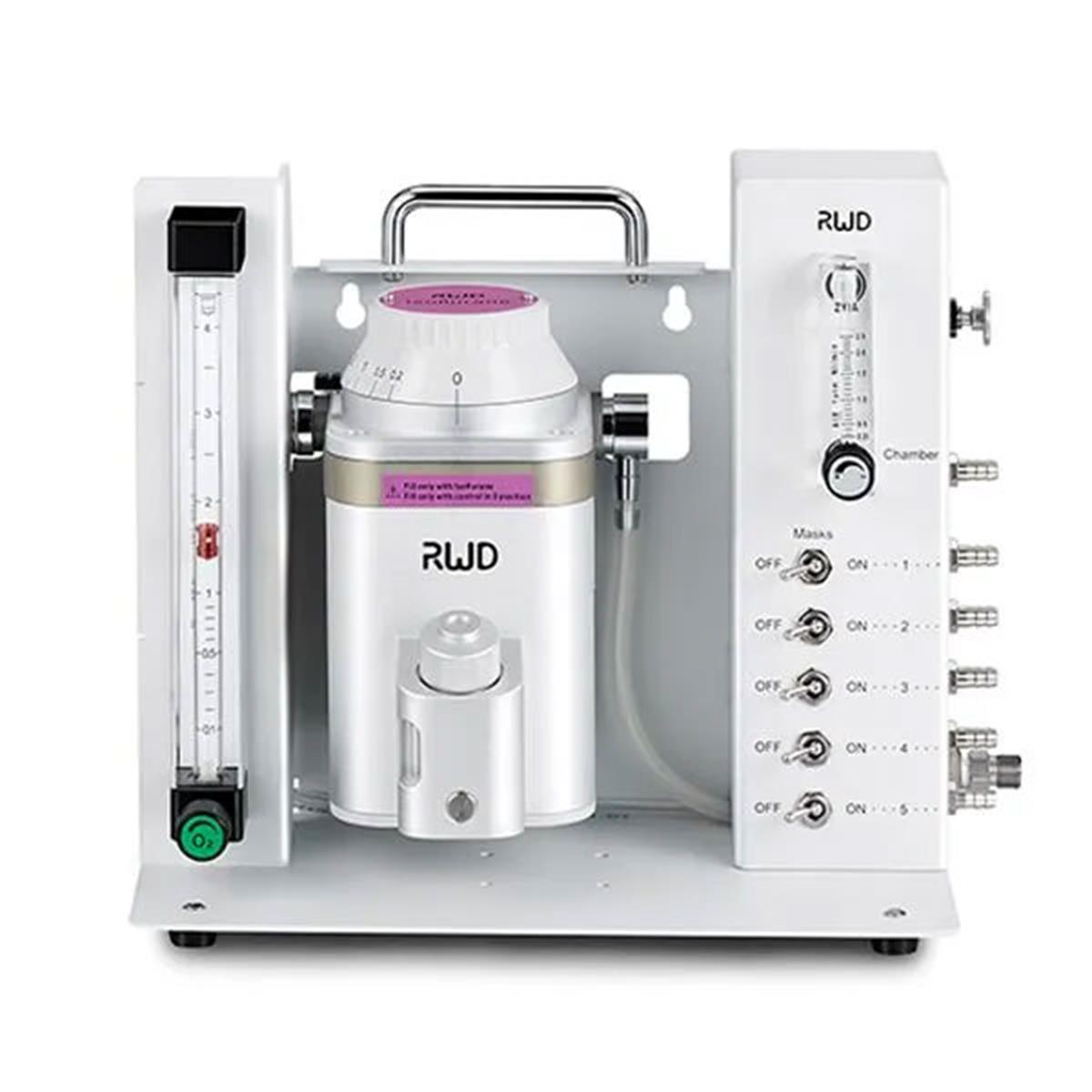

R550 Multi-Channel Small Animal Anesthesia System (Isoflurane, Easy-Fill)

Cat No.: RWD-R550IE


Description

The R550 Multi-output Small Animal Anesthesia Machine is an advanced laboratory anesthesia system designed for the simultaneous anesthesia of up to five small animals—including rats, mice, hamsters, guinea pigs, rabbits, and cats (up to 7 kg each). Each of the five channels is independently controlled, allowing precise adjustment for individual animals and maximizing research efficiency. The system is equipped with a high-accuracy vaporizer (Easy Fill), independent flow control for both induction chamber and mask channels, and robust safety features, making it ideal for high-throughput preclinical research and veterinary labs.

Applications

• Simultaneous anesthesia for multiple small animals in research labs

• Preclinical drug testing, surgery, and physiological studies

• Efficient workflow in animal facilities, universities, and veterinary clinics

• Suitable for induction, maintenance, and recovery phases of anesthesia

Technical Specifications


Model	RWD-R550IE
Applicable Animals	Rats, mice, hamsters, guinea pigs, rabbits, cats (≤7kg)
Number of Channels	1-5 (independently controlled)
O₂ Flowmeter Range	0-4 L/min
Induction Chamber Flow	0-2.0 L/min (independent control)
O₂ Flush	10 L/min
Anesthesia Concentration Range	0-5% (isoflurane)
Accuracy Range	< 10%
Durability	Toggle switch >100,000 cycles
