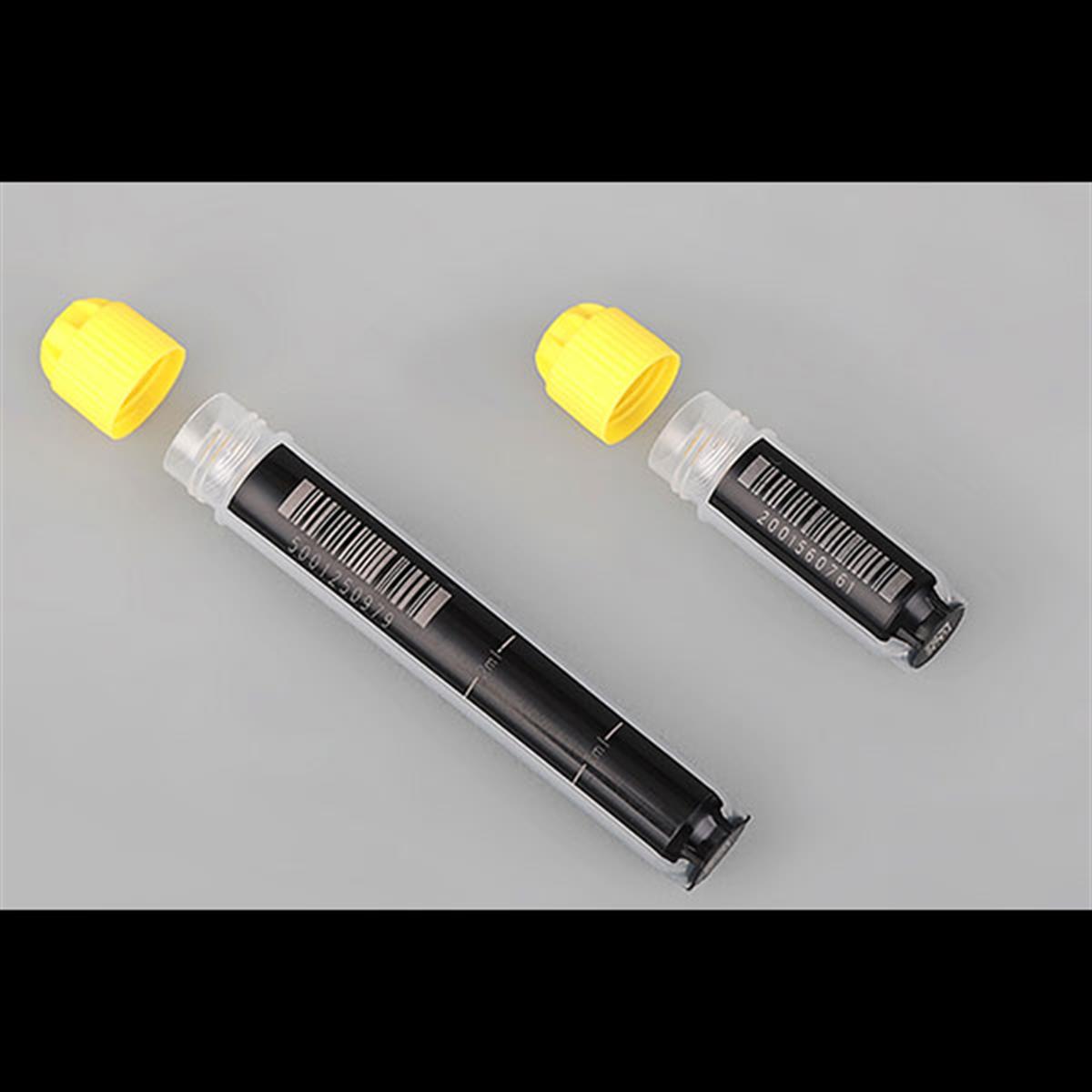

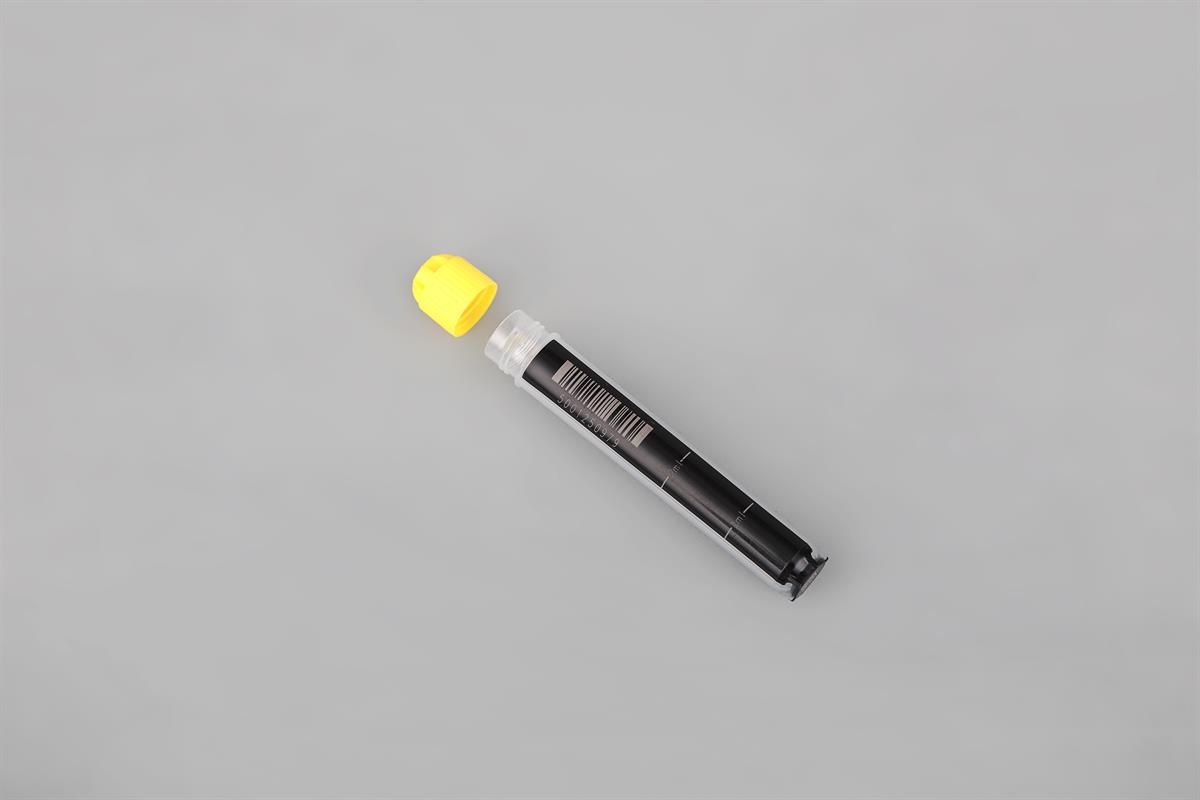

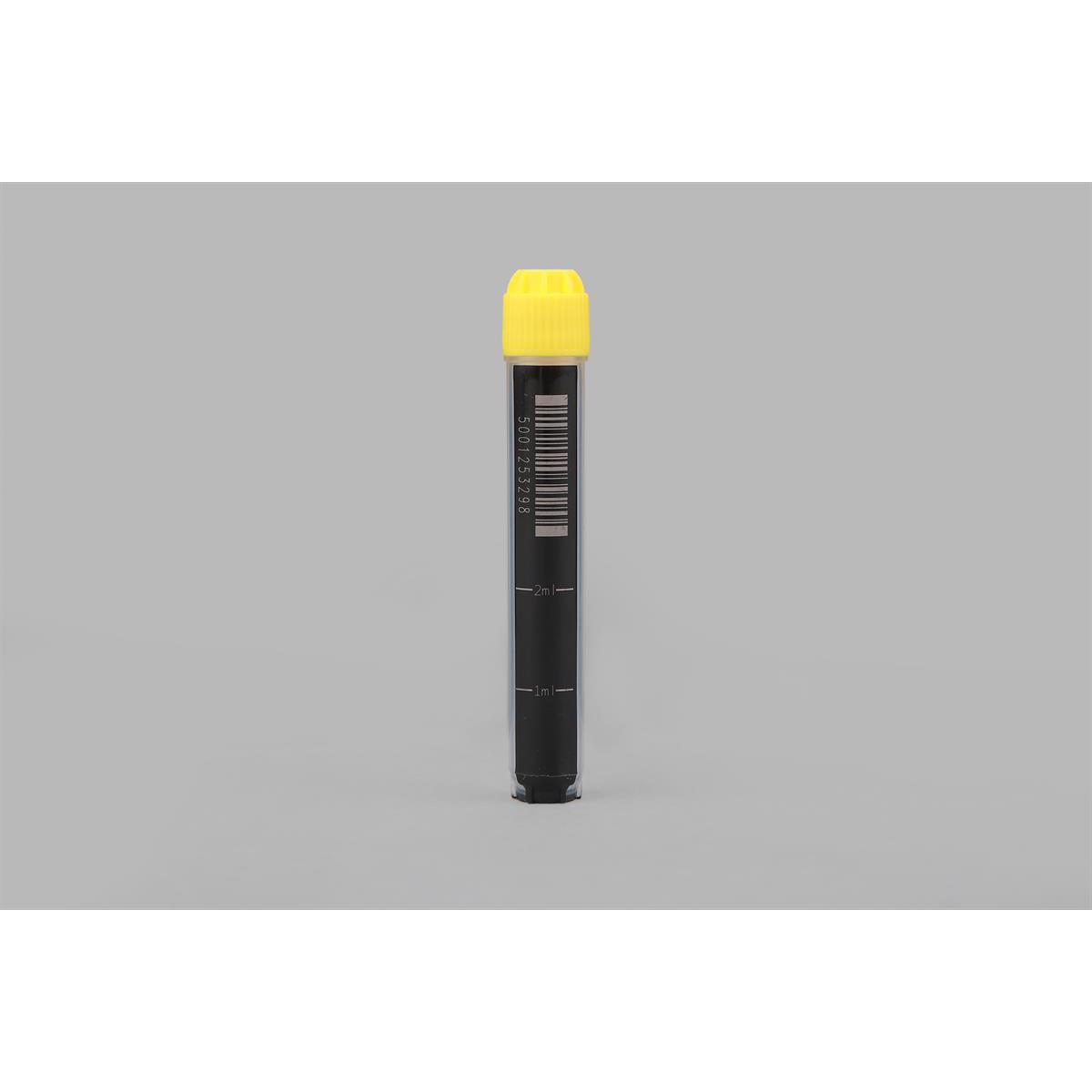

2D barcode on bottom, and 1D barcode on side, 4.0ml Cryovials compatible with Brooks system, External threaded, Caps separated, Sterile, 48 tubes/pk, 48 caps/pk, 480/cs

Cat. No.: NST-614047


Feature


• Volume：   4.0 mL


• Cap Style：  External thread, Caps separated


• Sterile, compatible with Brooks system


• Bulk packaging: 48/pk, 480/cs



---



*more info. 3D Barcode Cryogenic Vials NEST®

Cat. No.: *see the below table

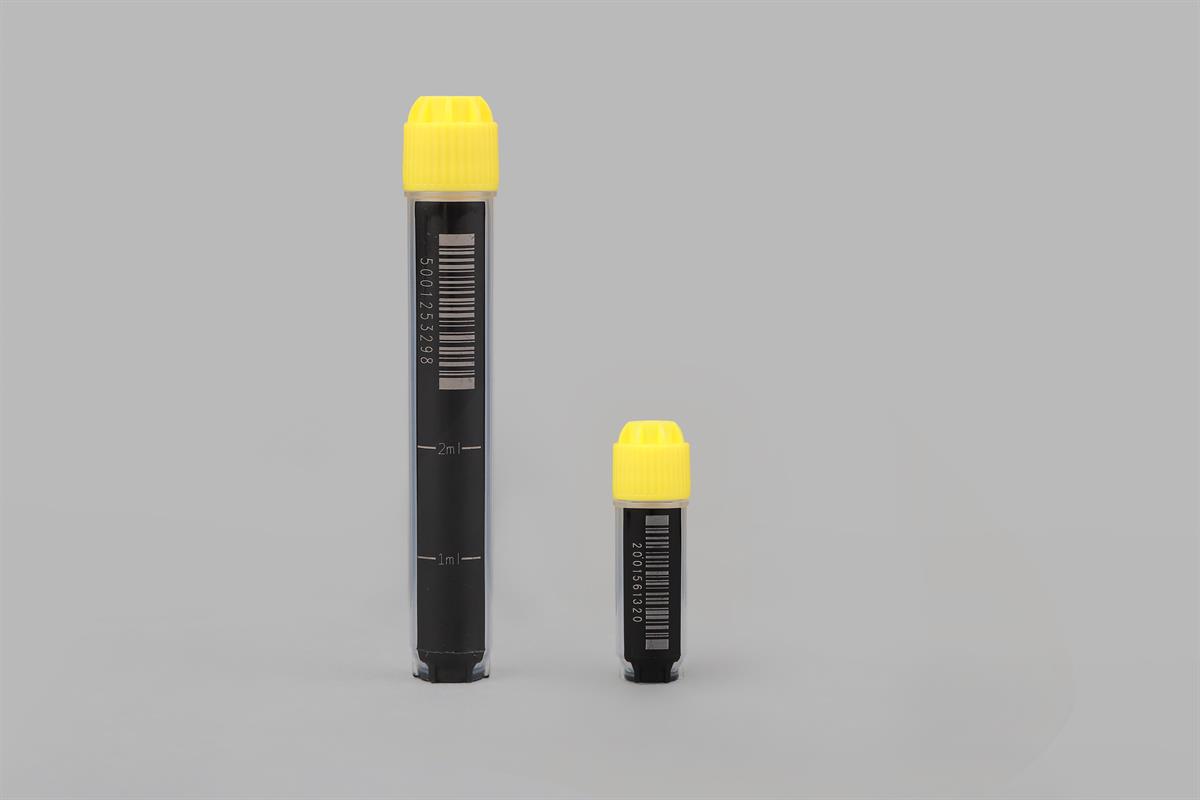

Volume：   1.8mL   |   1.9mL   |   4.0mL

Cap Style：  External thread   |   Double Cap With Lock

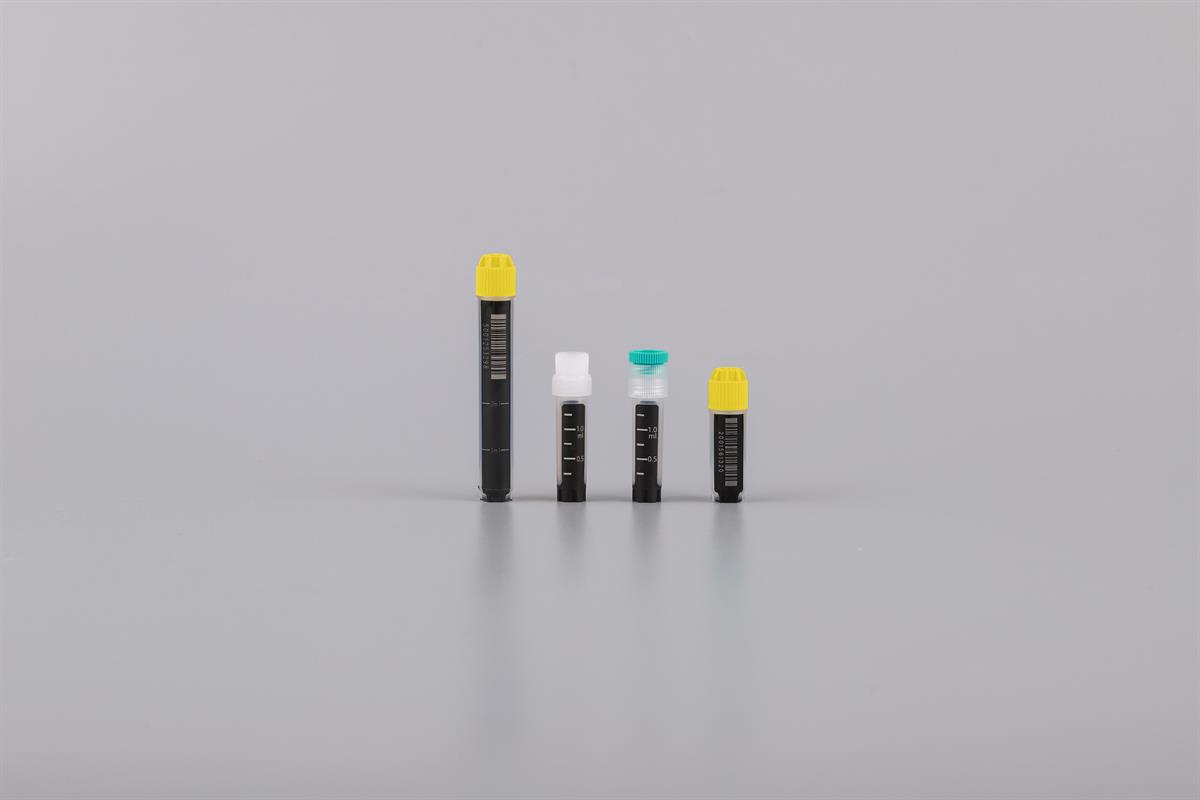

3D Barcode Cryogenic Vials Series Introduction：

The two-color vial body of an integrated injection molding can realize multi-code tracking, and it can support the traceability of samples and data sharing among multiple users, laboratories and automation, making the warehousing and ex-warehousing of samples more convenient and faster, while ensuring the safety of the sample storage process.


Three-code-in-one (digital code, barcode, QR code)

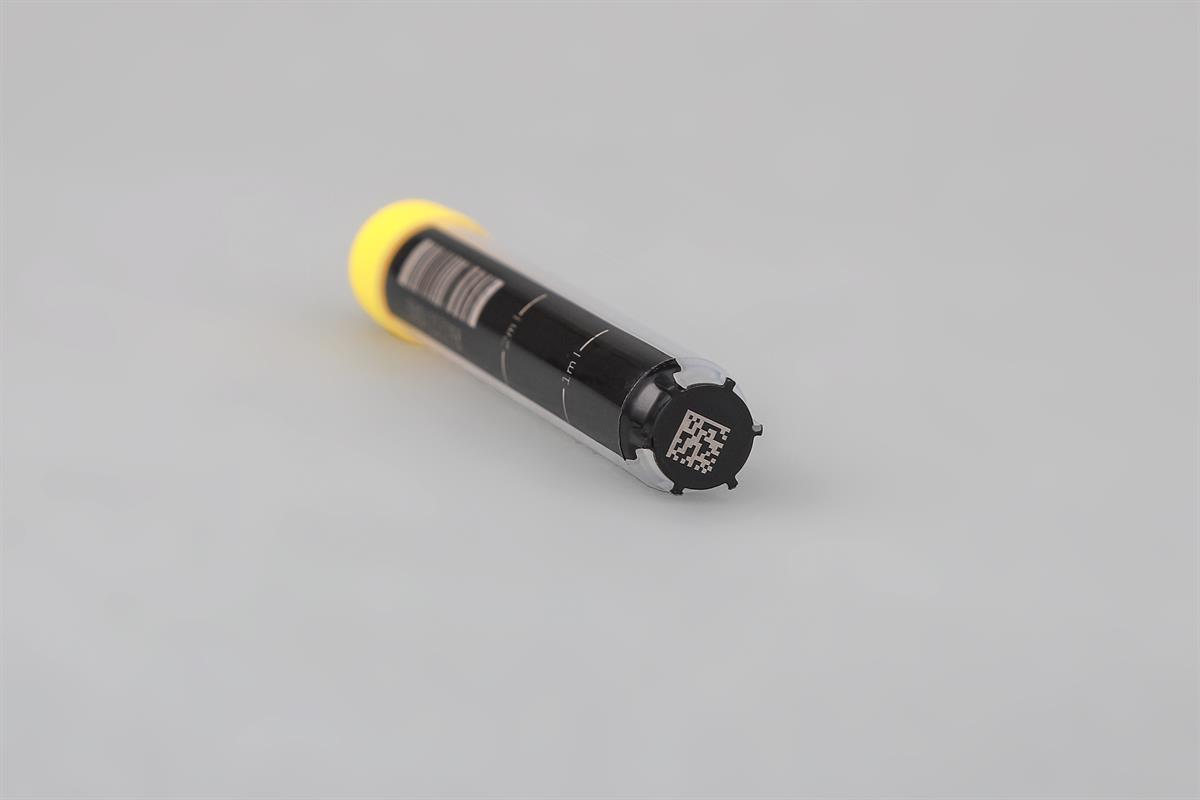

The vial has laser-etched international standard DATAMATRIX 2D code at the bottom.

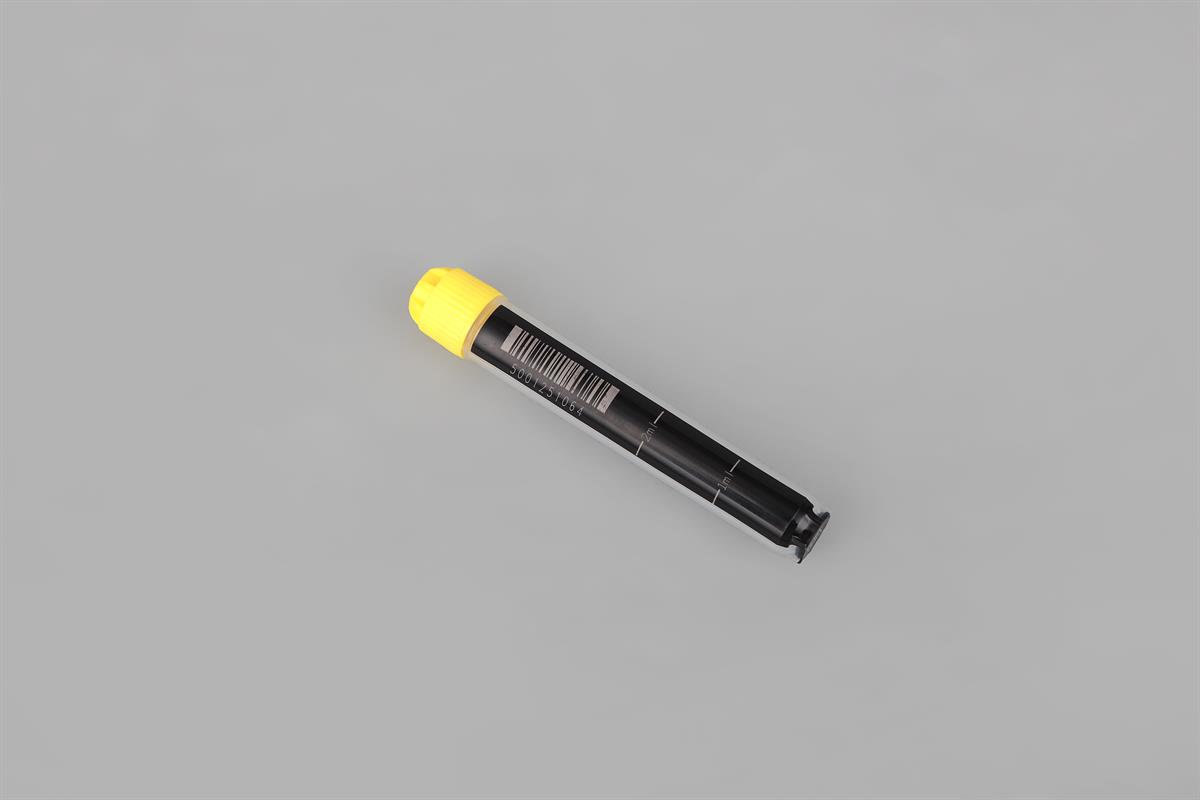

The barcode and digital code at the side are anti-fading, anti-deforming, wear proof and resist DMSO and other organic solvents; 100% clear and readable.


Material Characteristics

1.   The vial body is made of medical-grade cryogenic polypropylene (PP), which meets USP Class-6 standards and the vial cap is made of high density polyethylene (HDPE), so that the vial is recommended to be used in -196℃ liquid nitrogen phase;
2.   DNase/RNase free, non-endotoxin;
3.   Electron beam sterilization, SAL = 10^-6.


NEST® brand advantages: Testing and control in strict accordance with quality requirements

1. Low-temperature test: -80℃ cryogenic freezing test, -196℃ liquid nitrogen test;
2. Sealing test;
3. Sterility test;
4. Endotoxin test, DNA and RNA enzyme test.


3D Barcode Cryogenic Vial, SBS Format

The product meets the SBS standard and provides an effective safety guarantee and management for biological sample libraries and other warehouses of various chemicals and biological products stored at low temperatures.

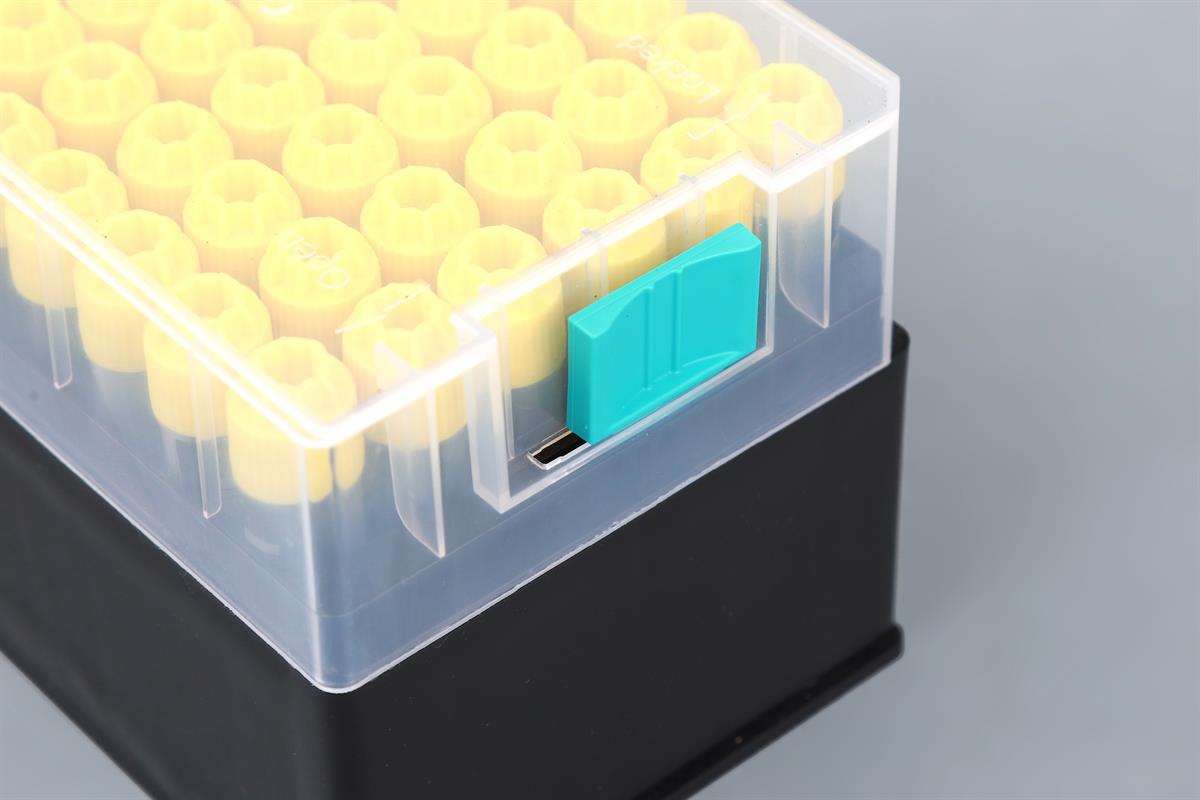

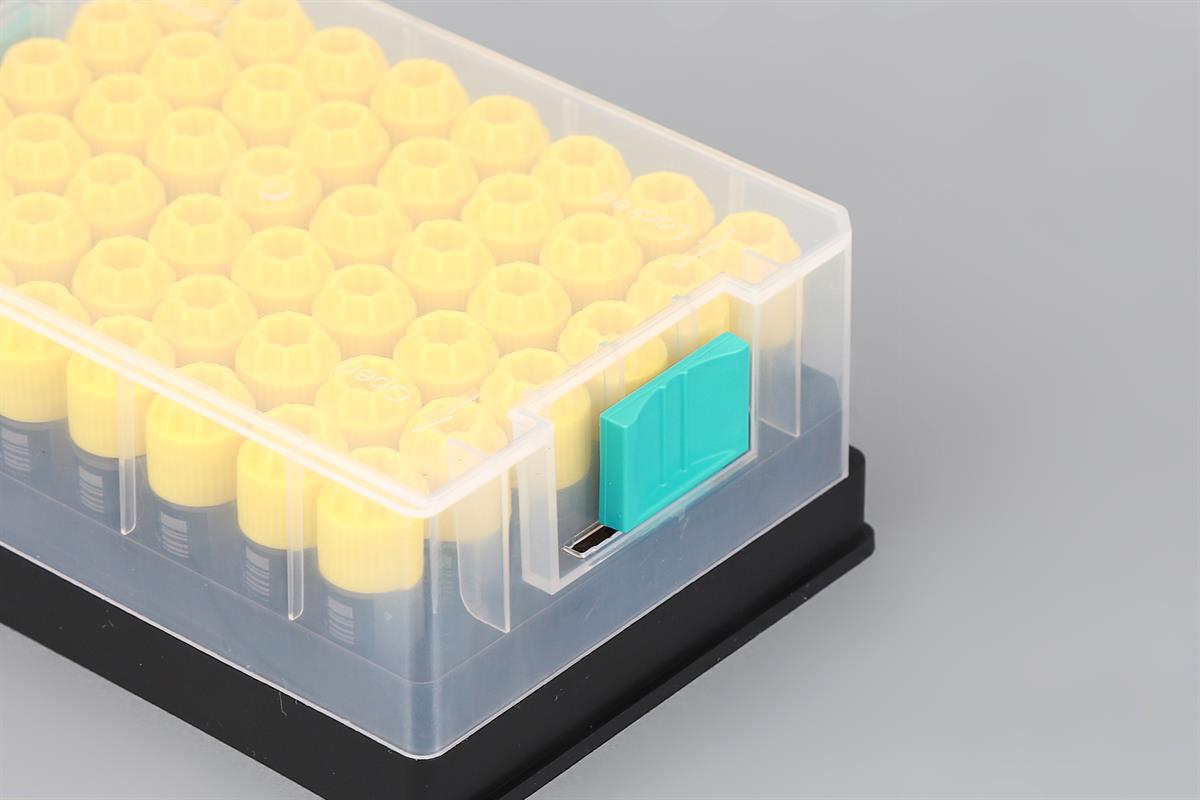

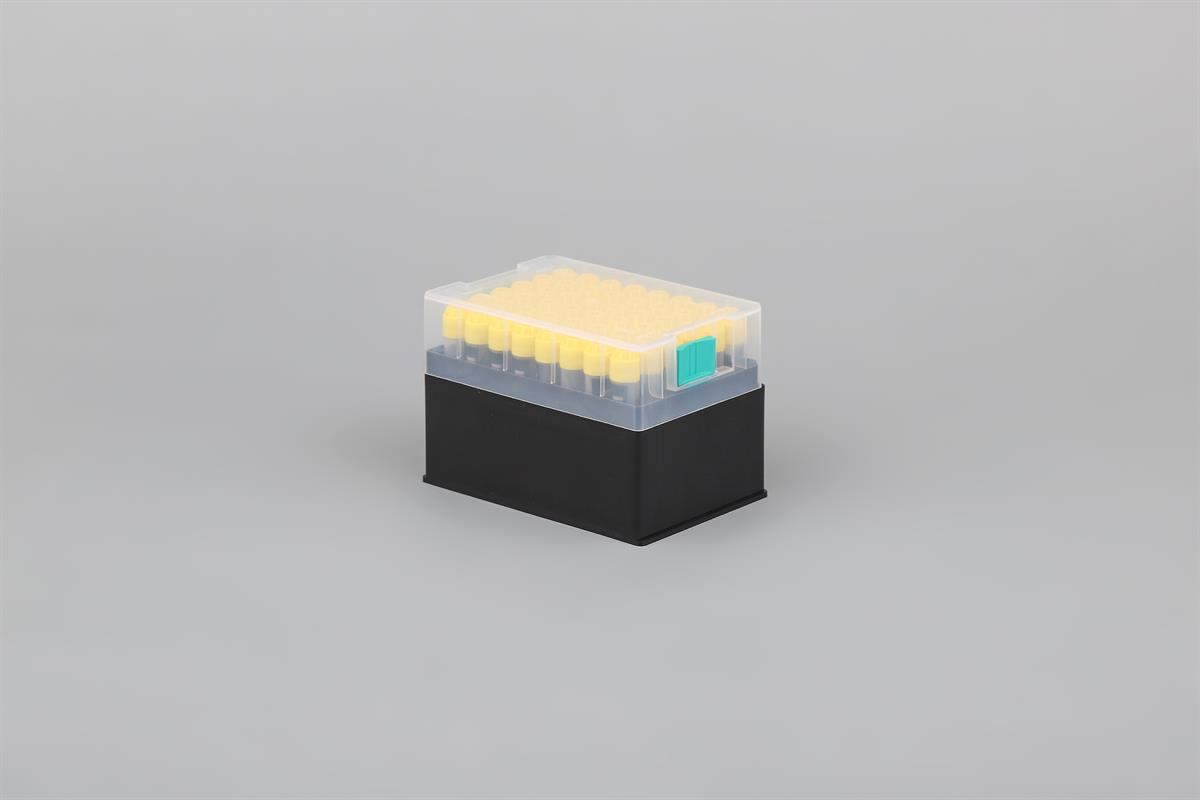

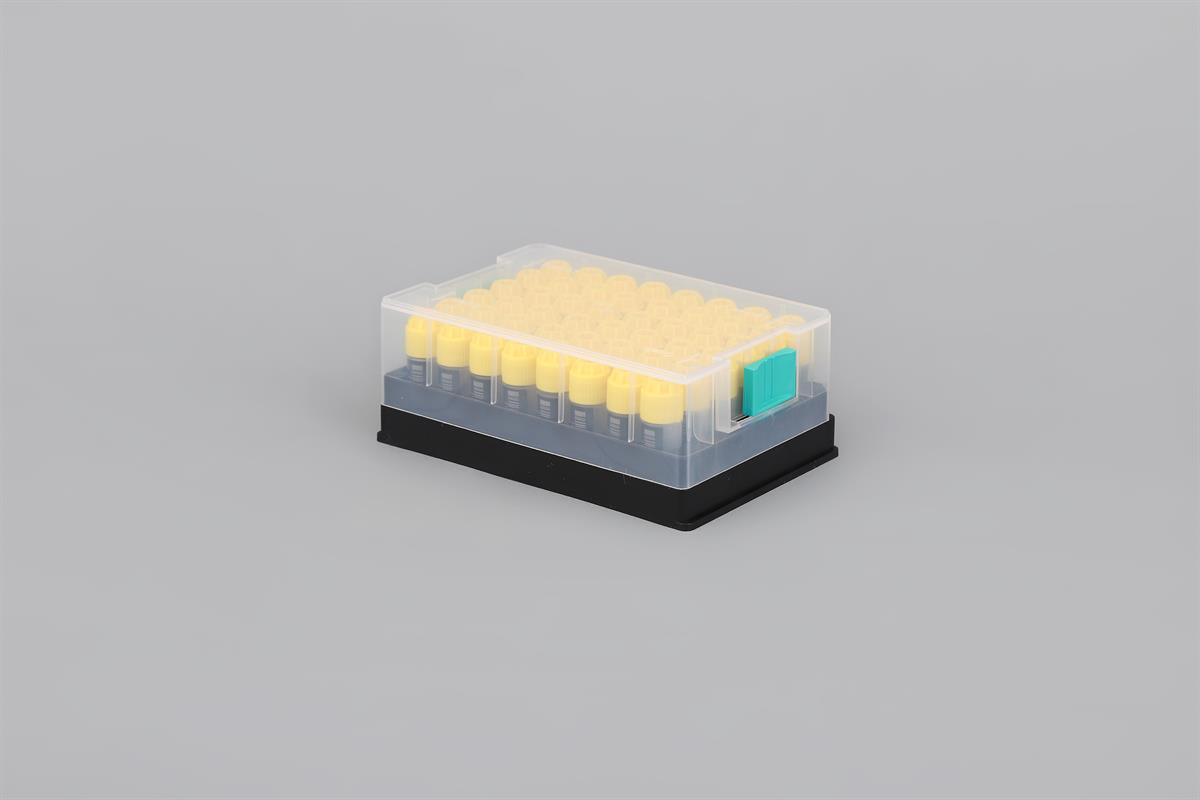

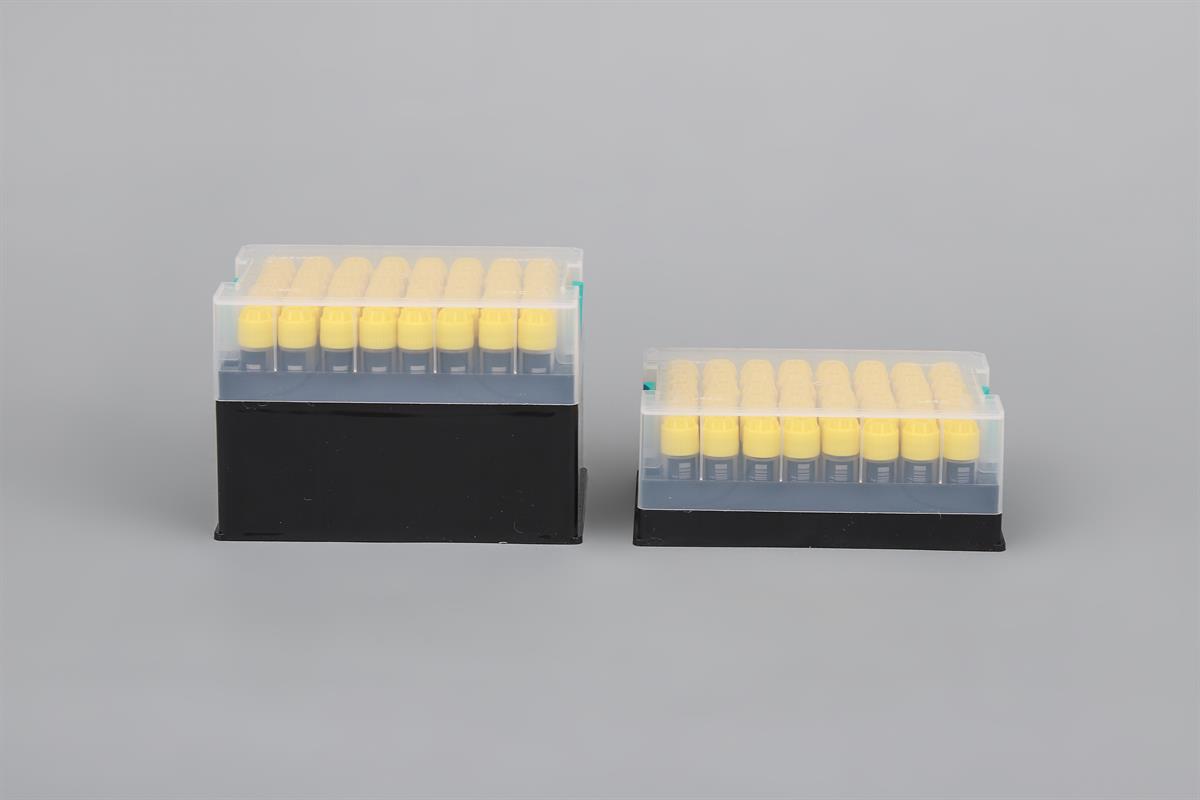

 3D Barcode Cryogenic Vial, SBS Format , Compatible with Brooks system


Cat. No.	3D Barcode Cryogenic Vial,  SBS Format, Self-Standing, Sterile,  Compatible with Brooks system	Volume      (1.9/4.0 ml)	Pack	order
NST-612041	External Thread, Caps on, Bulk packaging	1.9 mL	48/Pk, 480/Cs
NST-612047	External Thread, Caps Separated, Bulk packaging	1.9 mL	48 Vials/Pk, 48 Caps/Pk, 480/Cs
NST-614041	External Thread, Caps on, Bulk packaging	4.0 mL	48/Pk, 480/Cs
NST-614047	External Thread, Caps Separated, Bulk packaging	4.0 mL	48 Vials/Pk, 48 Caps/Pk, 480/Cs

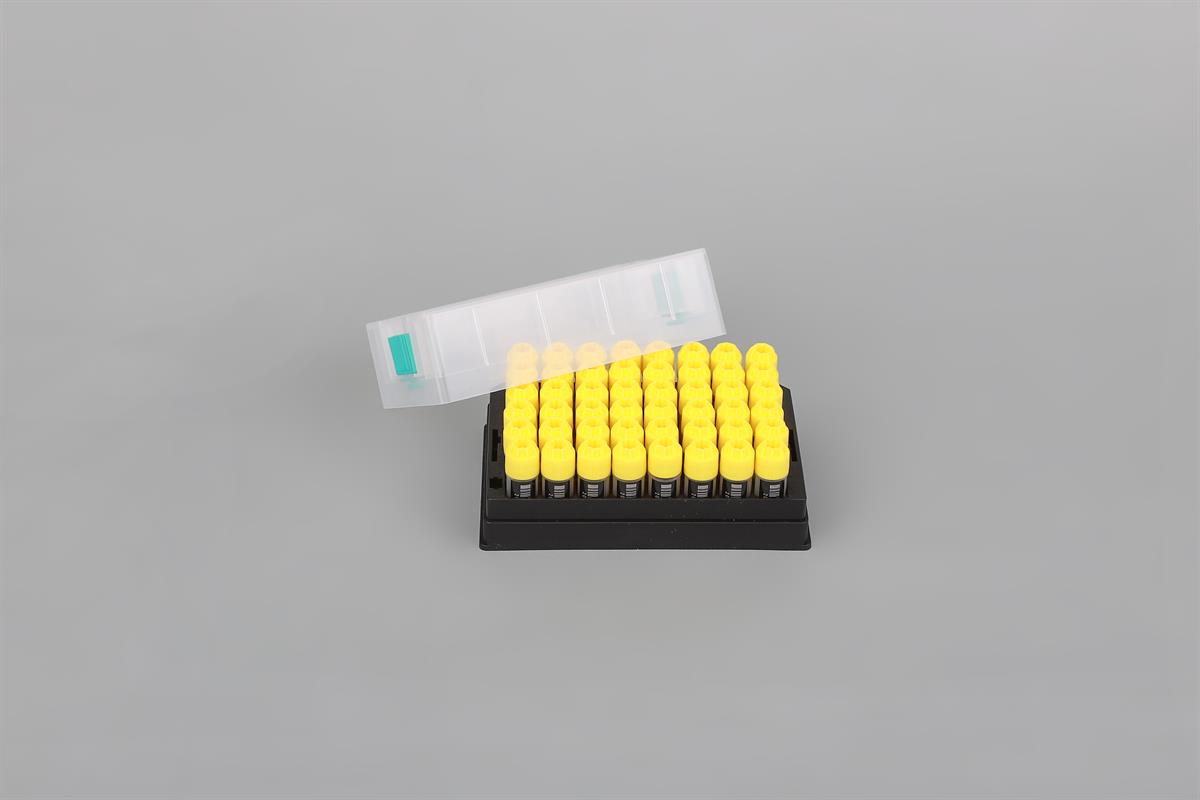

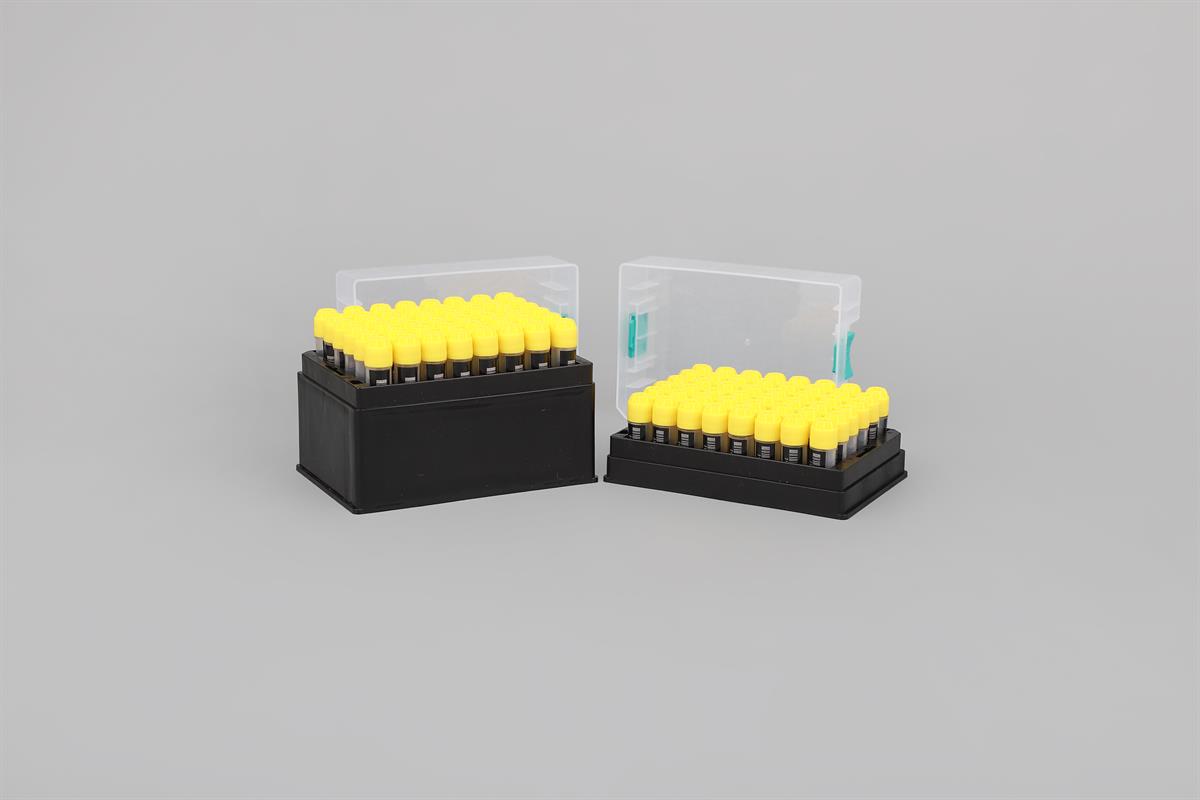

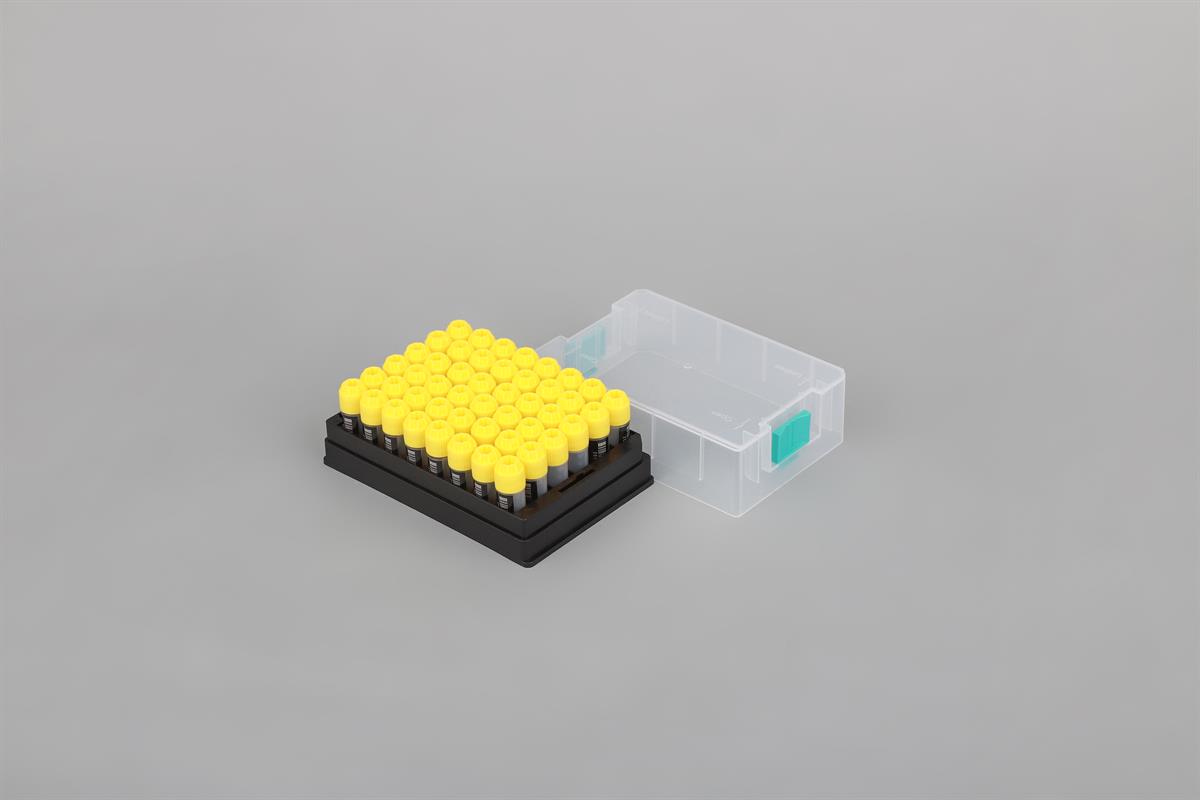

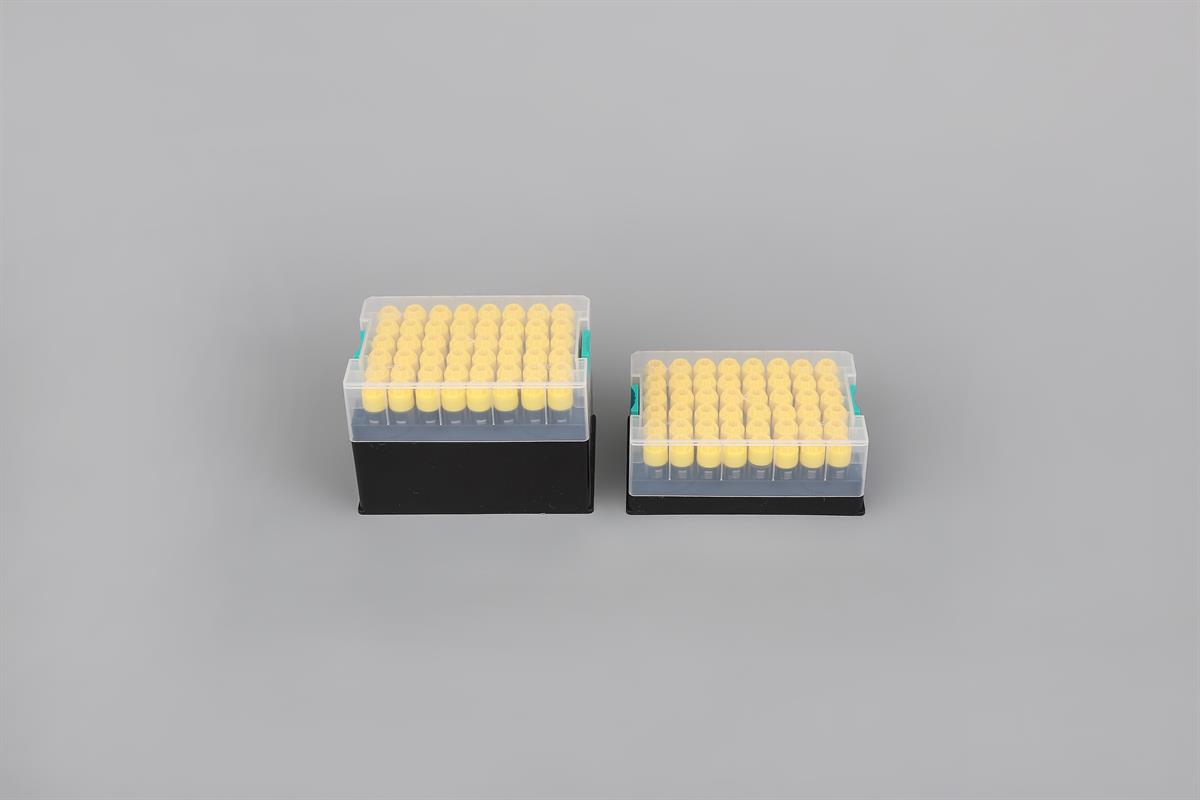

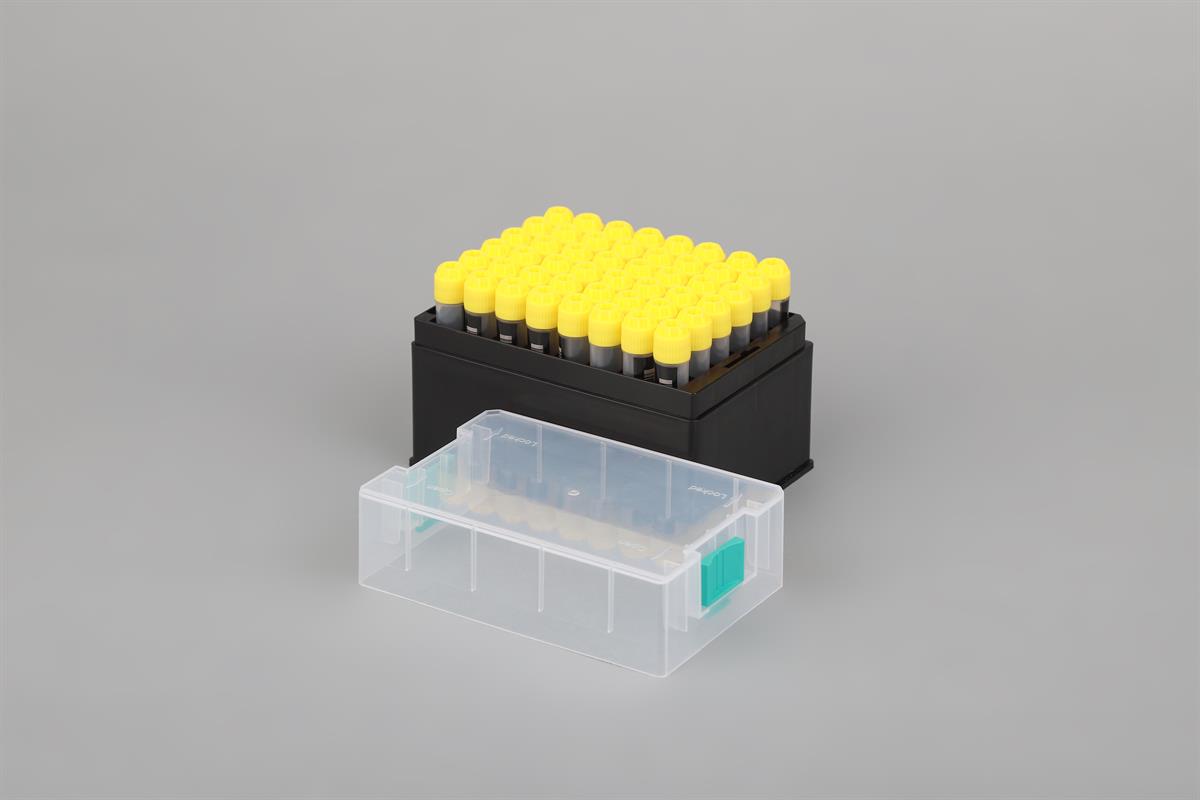

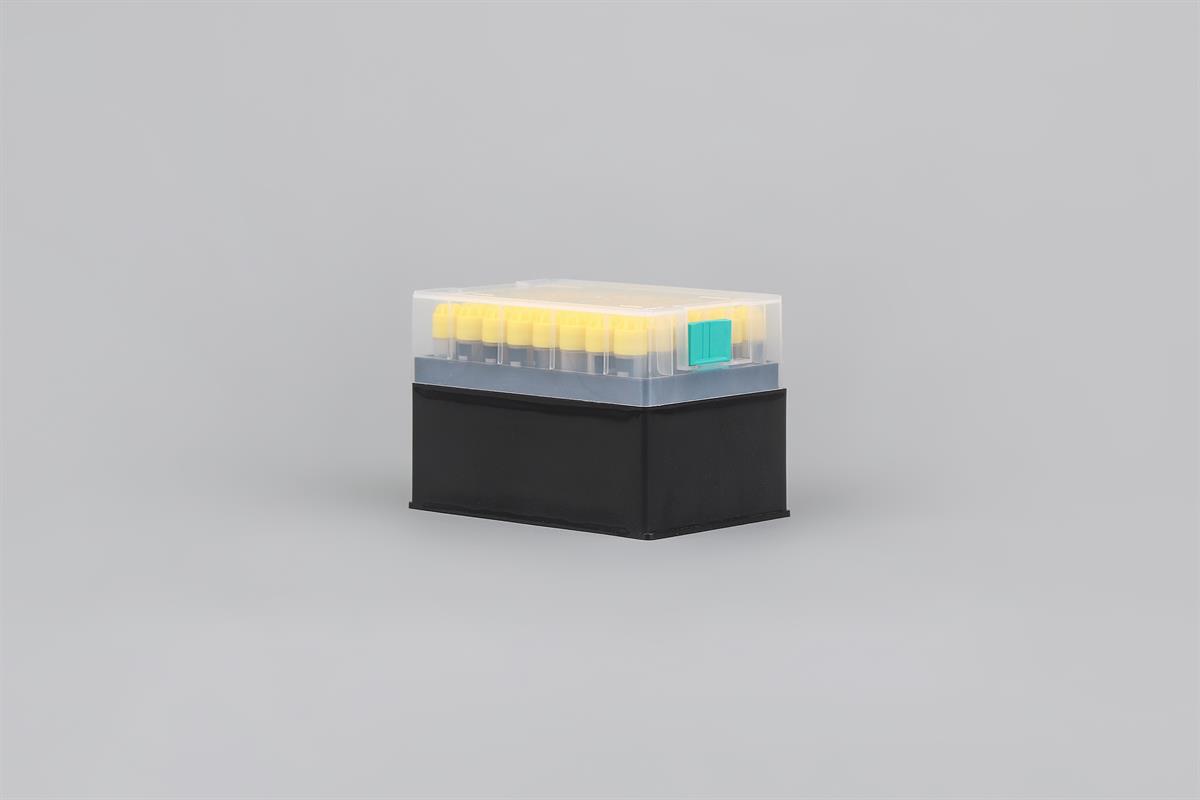

NST-612051	External Thread, Caps on, Racked (6x8/rack)	1.9 mL	48/Rac.,480/Case
NST-614051	External Thread, Caps on, Racked (6x8/rack)	1.9 mL	48/Rac.,480/Case

3D Barcode 1.8 mL Cryogenic Vial

The size of the vial body is suitable for the common freezing boxes in the market, which is convenient for customers to use.




Characteristics of External Thread, Double Secure Cap



1.  Excellent sealing performance: permanent reversal prevention;

2.  High storage safety: the inside forms a closed and isolated space separated from the outside without leakage, favorable for storage and transportation.

3.  Memory of use history: the middle cover will be punctured when taking sample out, that is, leave a use mark. This function is to ensure the original fidelity of the sample;

4.  Convenient sampling without contamination: the soft rubber sealing layer can be punctured with a pipette tip or a syringe needle. The outer cover won’t be contaminated by the sample, ensuring safety of the personnel and environment.



3D Barcode 1.8 mL Cryogenic Vial

Cat. No.	3D Barcode 1.8 mL Cryogenic Vial, Self-Standing, External Thread	Volume	Pack	order
NST-627102	Double Secure Cap, Racked (10x10/rack)	1.8 mL	10*10/Rack, 10 racks /Cs, 1000 vials/Cs
NST-627002	10x10/rack, Racked (10x10/rack)	1.8 mL	10*10/Rack, 10 racks /Cs, 1000 vials/Cs
NST-627101	Double Secure Cap, Bulk packaging (50/pk, 2000/cs)	1.8 mL	50/Pk, 2000Cs
NST-627001	Bulk packaging (50/pk, 2000/cs)	1.8 mL	50/Pk, 2000Cs

Precautions:

1.  After the cryogenic vial is taken out of the liquid nitrogen, its bottom should be wiped with a dry towel, so that the QR code can be better identified;

2.  The freezing storage sample size should not exceed the maximum working volume required by the cryogenic vial;

3.  During the freezing storage, the vial cap must be tightened, to prevent liquid nitrogen from entering during the freezing process;

4.  Before the cryogenic vial is taken out of the liquid nitrogen, proper protective measures should be taken first, to avoid causing safety problems in the laboratory.



Warning!
Do not use cryogenic vials for storage in the liquid phase of liquid nitrogen. Only store vials in the vapor phase above the liquefied gas. Always use appropriate safety equipment when removing vials from cryogenic storage.
Refrigeration: The lowest temperature can withstand -196°C (with screw cap). All our polypropylene pipes are suitable for low temperature storage, except for liquid nitrogen.
