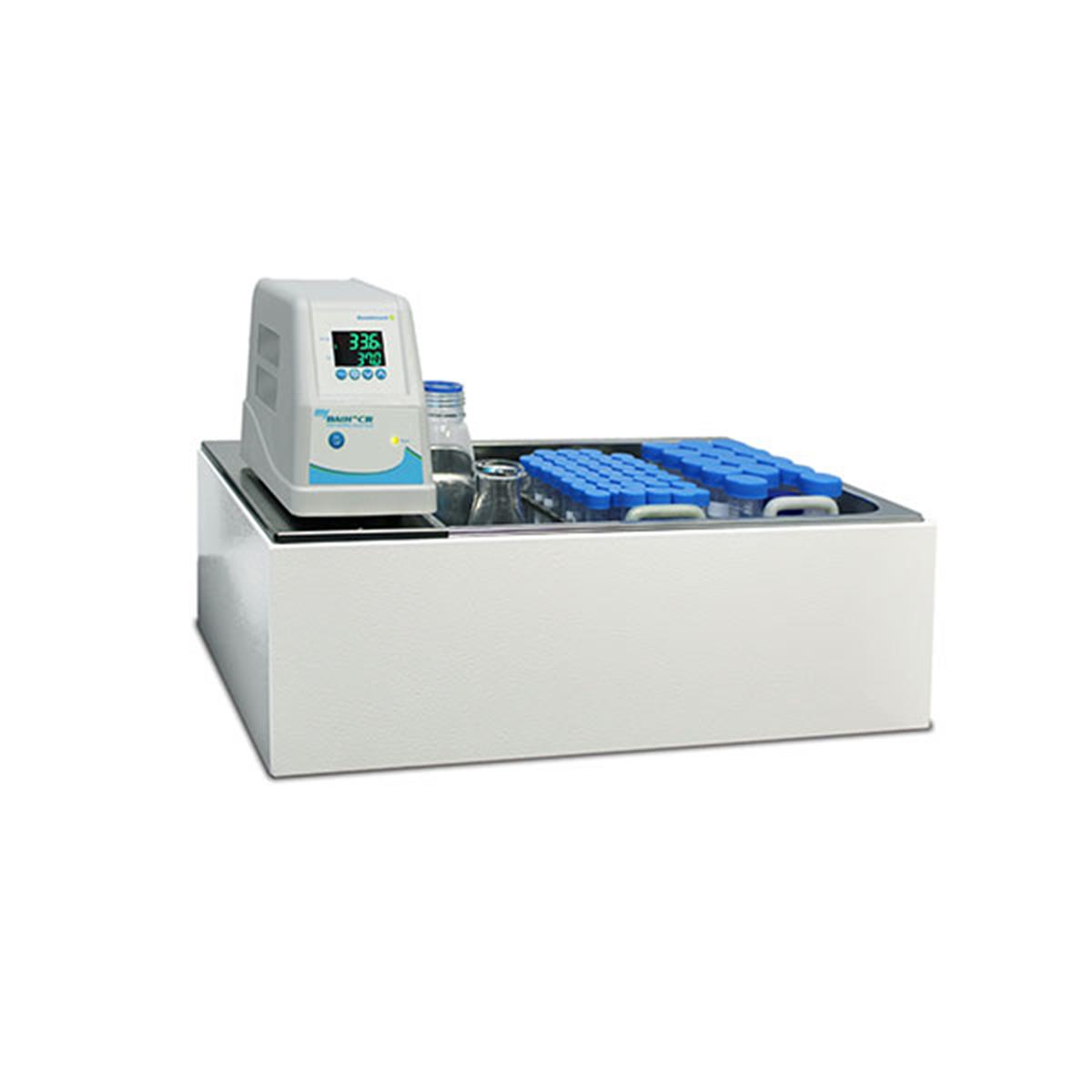

myBath™ 20L CR Circulating Water Bath, 115V
myBath™ 20L CR Circulating Water Bath, 115V
Cat. No.: BM-B2023-20
Details: 20L, CR, 115V
Description:
Benchmark’s myBath™ CR circulating water baths offer the same accuracy and convenience of our static myBath™ series, but with faster heat ramping and enhanced stability/uniformity. With constant circulation, water temperature is uniform throughout the chamber, eliminating “cold-spots” and allowing for quick recovery following insertion of frozen samples.
The myBath™ CR utilizes digital PID processing control that accurately maintains and adjusts the temperature to the set parameters. Once the desired temperature has been programmed, the instrument begins to heat, while indicating both the set and actual temperatures on the large, digital display.
The chamber and heating coil are constructed of stainless steel, resulting in easy cleaning. Optional accessories are available for securing test-tubes and an optional gabled lid can be purchased to improve efficiency.
- Constant water circulation, ensures even temperature distribution
- Digital PID processing for precise temperature control
- Stainless steel Chamber and Circulating Coil
- Optional gabled cover and stainless steel test tube racks(Max. Tube Capacity: 123 x 15mL\ 45 x 50mL tubes for 20L Circulating Water Bath )
Specifications:
|
Temperature Range:
|
Ambient +5° to 100°C
|
|
Temperature stability:
|
±0.2°C
|
|
Temperature Uniformity:
|
±0.1°C
|
|
Exterior (WxDxH) (10L):
|
13.2 x 10.8 x 11.9 in
|
|
Exterior (WxDxH) (20L):
|
21.2 x 13.4 x 11.9 in
|
|
Chamber (WxDxH) (10L):
|
11.8 x 9.4 x 6 in
|
|
Chamber (WxDxH) (20L):
|
19.2 x 11.4 x 6 in
|
|
Weight (10L):
|
19.8 lbs/ 9 kg
|
|
Weight (20L):
|
25.3 lbs/ 11.5 kg
|
|
Electrical:
|
115V or 230V 50-60Hz
|
|
Power Consumption:
|
1200W
|
|
Warranty:
|
2 years
|
Order Information
| Model | Cat No. | Description | Link |
 |
BM-B2023-20 | myBath™ 20L CR Circulating Water Bath, 115V | Current Link |
| BM-B2023-20-E | myBath™ 20L CR Circulating Water Bath, 230V |  |
Additional Products
| Model | Cat No. | Description | Link |
 |
BM-B2000-2 | MyBath 2L Digital Water Bath, 115V | |
| BM-B2000-2-E | MyBath 2L Digital Water Bath, 230V | |
|
 |
BM-B2000-4 | MyBath 4L Digital Water Bath, 115V | |
| BM-B2000-4-E | MyBath 4L Digital Water Bath, 230V | |
|
 |
BM-B2000-8 | MyBath 8L Digital Water Bath, 115V | |
| BM-B2000-8-E | MyBath 8L Digital Water Bath, 230V | |
|
|
BM-B2000-12 | MyBath 12L Digital Water Bath, 115V | |
| BM-B2000-12-E | MyBath 12L Digital Water Bath, 230V | |
|
 |
BM-B2023-10 | myBath™ 10L CR Circulating Water Bath, 115V | |
| BM-B2023-10-E | myBath™ 10L CR Circulating Water Bath, 230V | |
Gable lid for Circulating Bath
| Model | Cat No. | Description | Link |
 |
BM-B2023-GL10 | Gable lid for 10L circulating bath, each | |
 |
BM-B2023-GL20 | Gable lid for 20L circulating bath, each | |
| Model | Cat No. | Description | Link |
 |

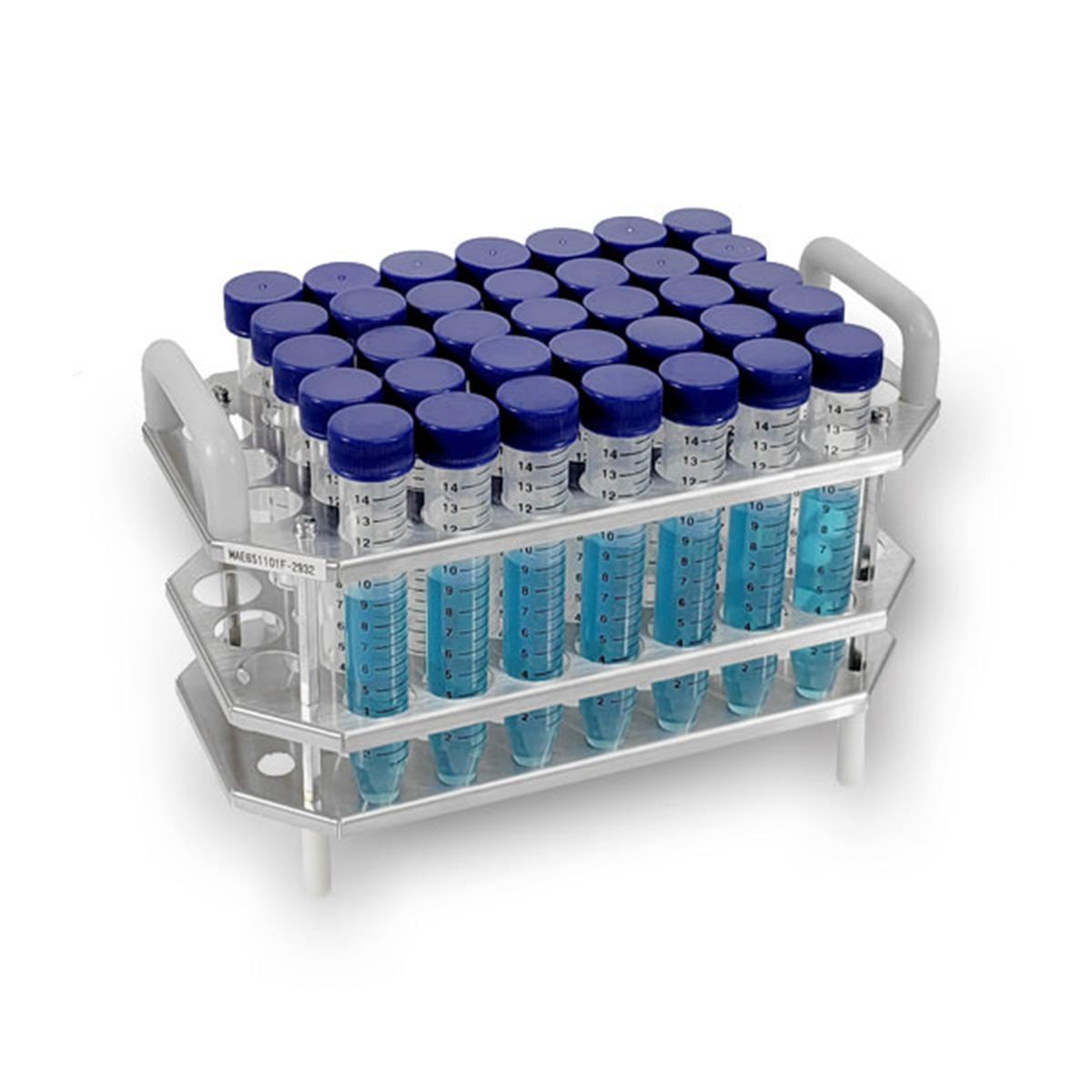

BM-B2000-4-T150 | Test tube rack for: 41 x 15mL tubes | |
 |

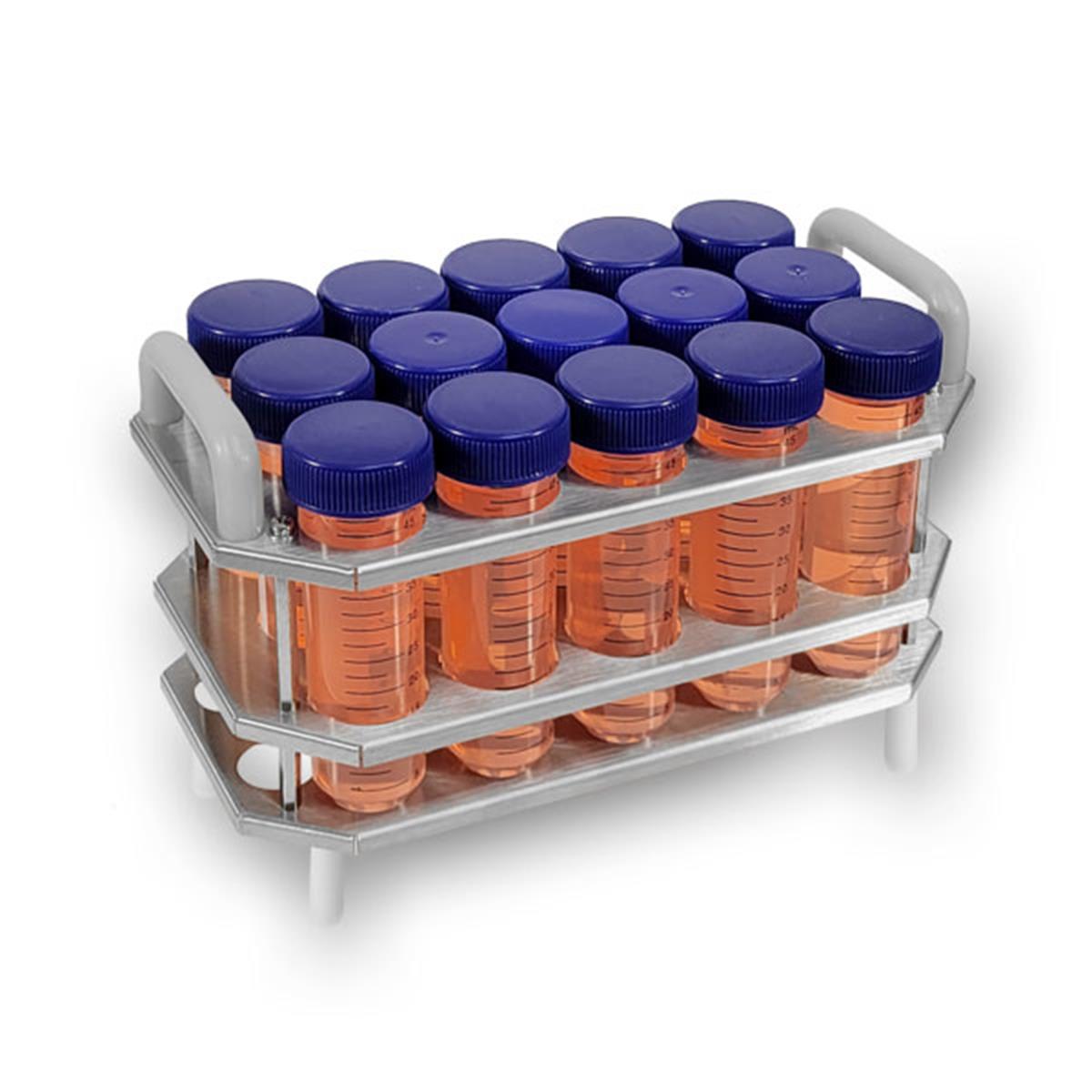

BM-B2000-4-T500 | Test tube rack for: 15 x 50mL tubes | |
