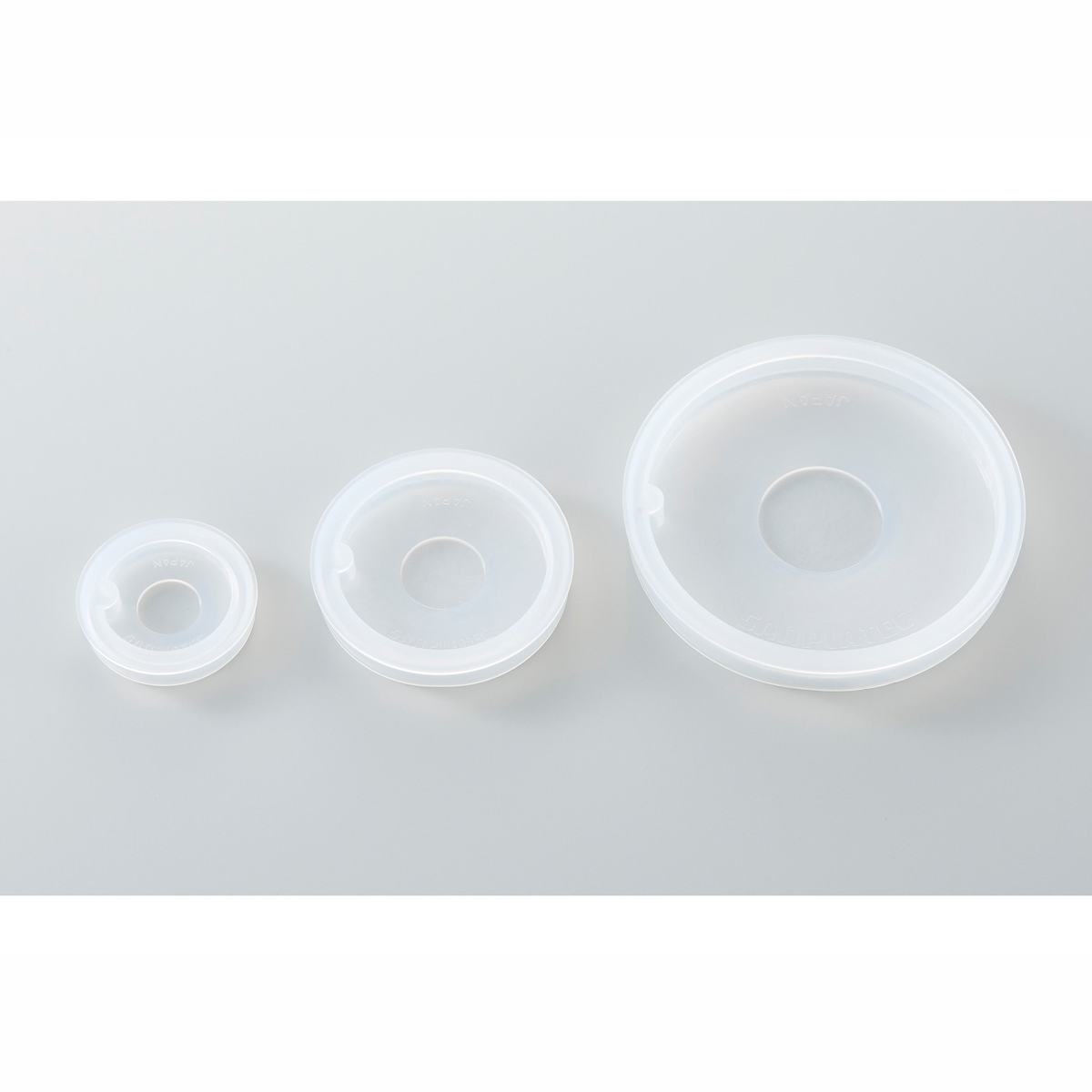

iP-TEC® Dish Cover / Well Plate Cover

Open vessel Live Transportation Device
Using Medical Silicone Rubber without cytotoxic effect (United States Pharmacopoeia USP Class V1, ISO 10993-5 compliant)
We solve problems about self-adhesive film cover. This cover does not use adhesive, you do not have to worry touching risk culture medium. Possible to smooth open, we can avoid contamination risk also. Cover consists of 2 parts. thin part, necessary to ventilation, thick part, sealing vessel. Possible to seal smoothly at vessel opening with ultra low hardness. Cover enables less quantity of culture medium with its shape, prevents flapping. Also prevents cell and biomedical tissue at the time of transportation.

*Have finished sterilzation. *Package separately. *It can be used alcohol. *It can be used autoclave.


	Product ID	Description	Size(mm)	Material	Quantity	Link
	FNK-28504	suitable for φ35	dia.42.3 x 8H	Medical grade silicone	1 pc
	FNK-28505	suitable for φ35			10 pc
	FNK-28506	suitable for φ60	dia.62 x 9H		1 pc
	FNK-28507	suitable for φ60			10 pc
	FNK-28508	suitable for φ90	dia.95.5 x 11H		1 pc
	FNK-28509	suitable for φ90			10 pc

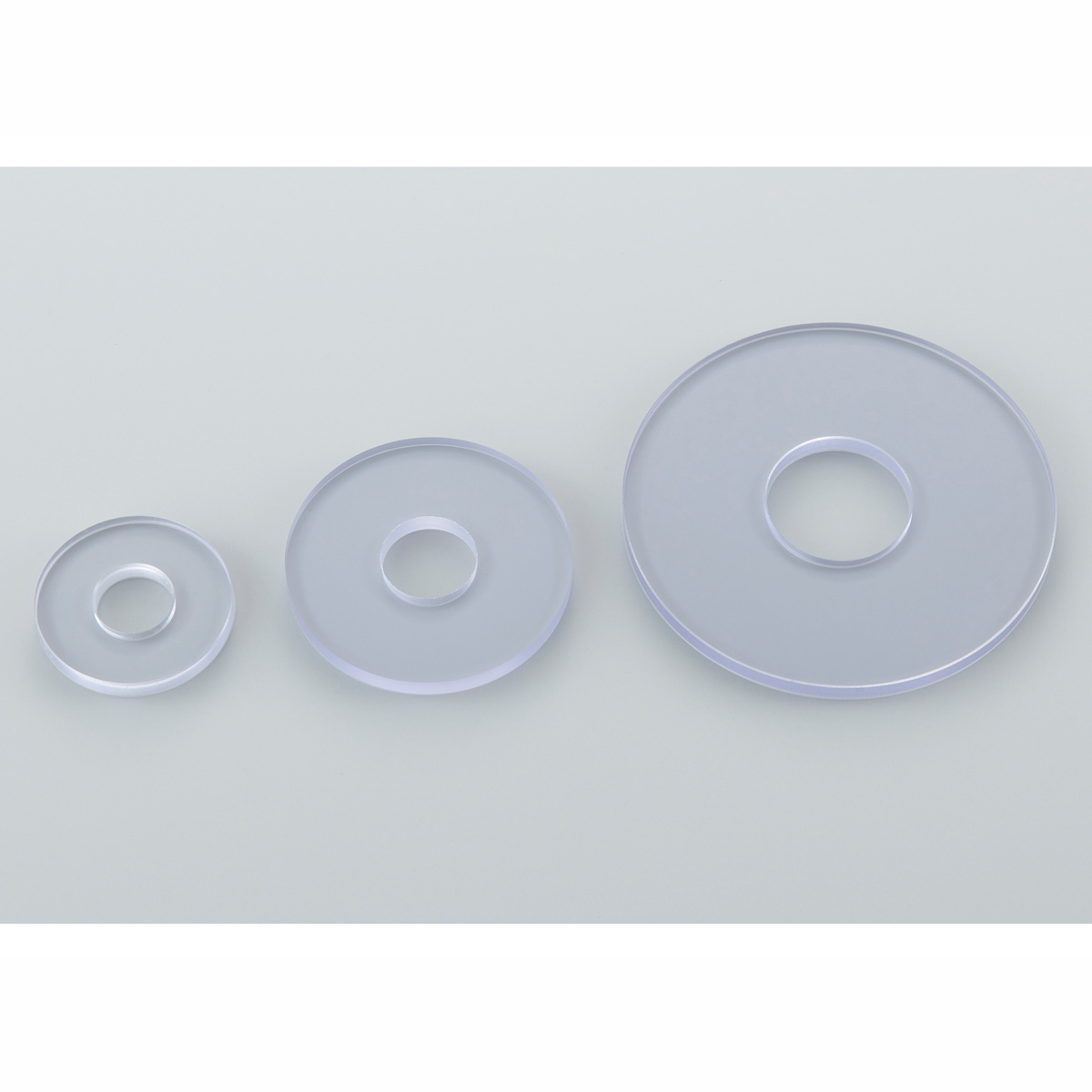

iP-TEC® Plank for Dish / Well Plate

Features

This is a tertiary bag custom made for hand-carry when the researchers themselves transport the cells.
We solve problems about self-adhesive film cover. This cover does not use adhesive, you do not have to worry touching risk culture medium. Possible to smooth open, we can avoid contamination risk also.
Cover consists of 2 parts. thin part, necessary to ventilation, thick part, sealing vessel. Possible to seal smoothly at vessel opening with ultra low hardness.
Cover enables less quantity of culture medium with its shape, prevents flapping. Also prevents cell and biomedical tissue at the time of transportation.

*nonsterile. *Package separately. *It can be used alcohol. *Caution can not be used autoclave.

Dish


	Product ID	Description	Size(mm)	Material	Quantity	Link
	FNK-28510	suitable for φ35	dia.43 x 5H	PVC	1 pc
	FNK-28511	suitable for φ35			10 pc
	FNK-28512	suitable for φ60	dia.63 x 5H		1 pc
	FNK-28513	suitable for φ60			10 pc
	FNK-28514	suitable for φ90	dia.96 x 5H		1 pc
	FNK-28515	suitable for φ90			10 pc

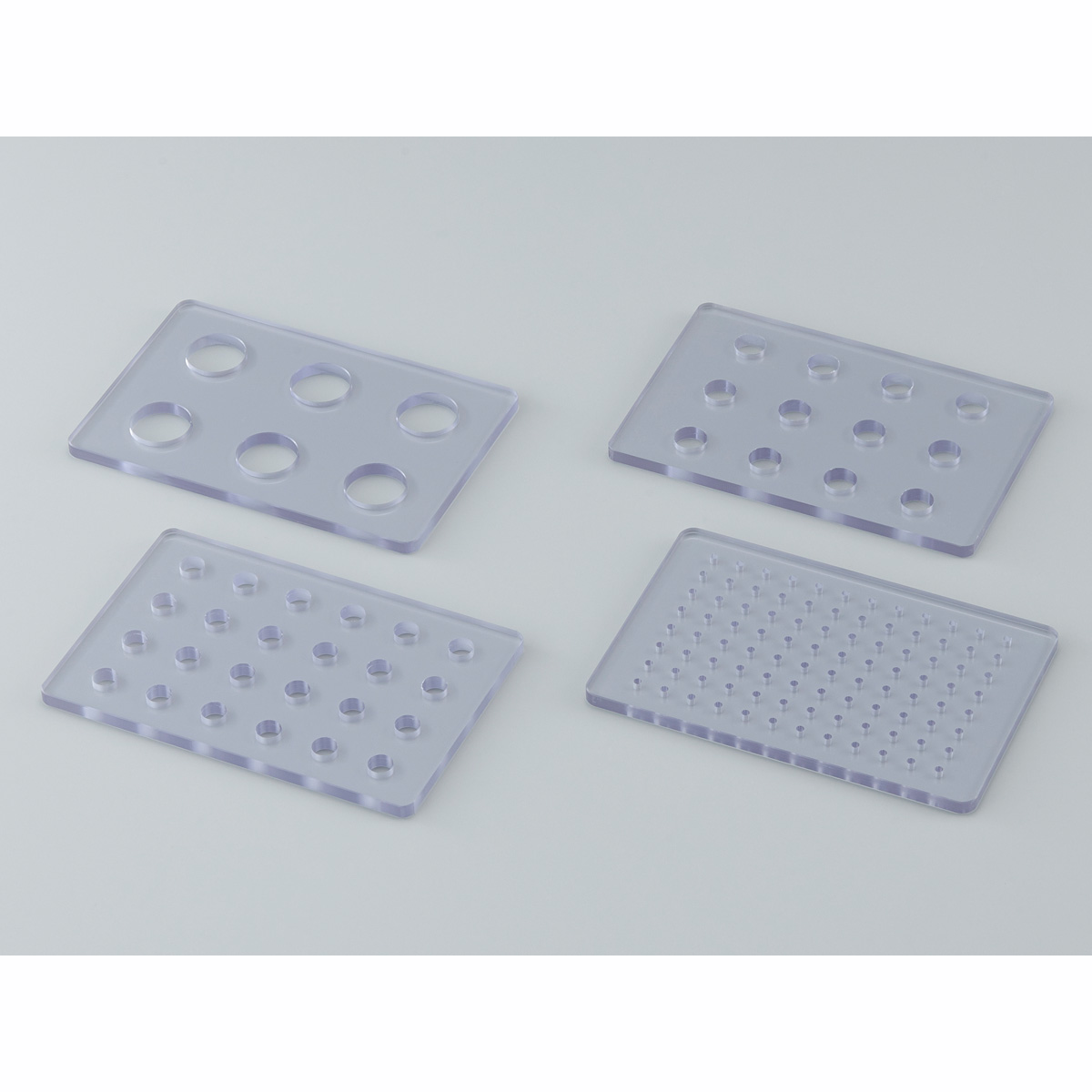

Plates


	Product ID	Description	Size(mm)	Material	Quantity	Link
	FNK-28496	suitable for 6 well	128 x 85 x 5H	PVC	1 pc
	FNK-28497	suitable for 6 well			10 pc
	FNK-28498	suitable for 12 well	128 x 85 x 5H		1 pc
	FNK-28499	suitable for 12 well			10 pc
	FNK-28500	suitable for 24 well	128 x 85 x 5H		1 pc
	FNK-28501	suitable for 24 well			10 pc
	FNK-28502	suitable for 96 well	128 x 85 x 5H		1 pc
	FNK-28503	suitable for 96 well			10 pc

• Reticulate s tructure keeps high gas permeabilit y, cushioning characteristics and holdability
• It has a net-like structure, ensuring high gas permeability and cushioning property, and even higher holdability.
• We prepare two types of thickness according to the height of the container(Dish, Well Plate) to be used.

	Product ID	Thickness	Material	Quantity	Link
	FNK-28530	20 mm	Elastomer	1 pc
	FNK-28531	30 mm	Elastomer	1 pc

Description

When transporting cells in the culture medium, cells may come off unless the medium is fully filled in the flask. However, it requires high cost to do it. iP-TEC Flask-25, a specially designed flask, decreases medium volume without changing its incubation area.

Primary container developed exclusively for iPS cell live transportation Flash-25 Mini Scraper
After incubating iPS cell, when transporting in live condition, there is a risk that culture medium in flask get crisped and cell scaled. By filling a flask with culture medium it can be transported in safety without undulating. Yet, this will make the amount of culture medium increase and cost more with the conventional flask. To solve this, we created the revolutionary form which minify the amount of culture medium without changing its incubation area.

• The design is user friendly for pipette and scraper.
• Safely stackable.
• Have finished hydrophillic treatment of culture surface and sterilization.
• Plug-seal type
• Culture area:25cm2
• Have finished hydrophillic treatment of culture surface and sterilization
• TOP: PE, BODY: Polystyrene
• Plug-seal type
• 10pcs in one set with zipper seal
• Capacity: 30ml

• culture medium iundulated.
• culture medium get dried when tilted.

• culture medium always stable.
• incubation surface does not get dried.

Picture	Product ID	Volume (mL)	Cell Growth area (cm2)	Cap Style	Recommended Medium Volume (mL)	Treat	Packing Unit	Link
	FNK-28445	30	25	Vent Cap	5-7.5	Yes	100 (10 bagx10)
