SureTherm CO2 Incubator 180L with High Heat Decontamination
SURETHERM CO₂ INCUBATOR, 180 LITER WITH HIGH HEAT DECONTAMINATION
Cat. No.: BM-H3565-180HD
Features:
- Internal Microscope option
- Precision temperature Control
- Excellent accuracy and recovery
- Heated door and door frame
Description
Cell cultures depend on optimized growth conditions in order to thrive. With precise temperature and CO₂ control, Benchmark’s SureTherm™ Incubators provide the perfect environment for your cultures. All SureTherm™ Incubators feature a proprietary heat distribution system that combines six sided heating with a low speed internal fan. Air is circulated uniformly throughout the chamber without air exchange from the external environment. This results in a controlled, protected environment with minimal temperature fluctuations (within 0.1°C).

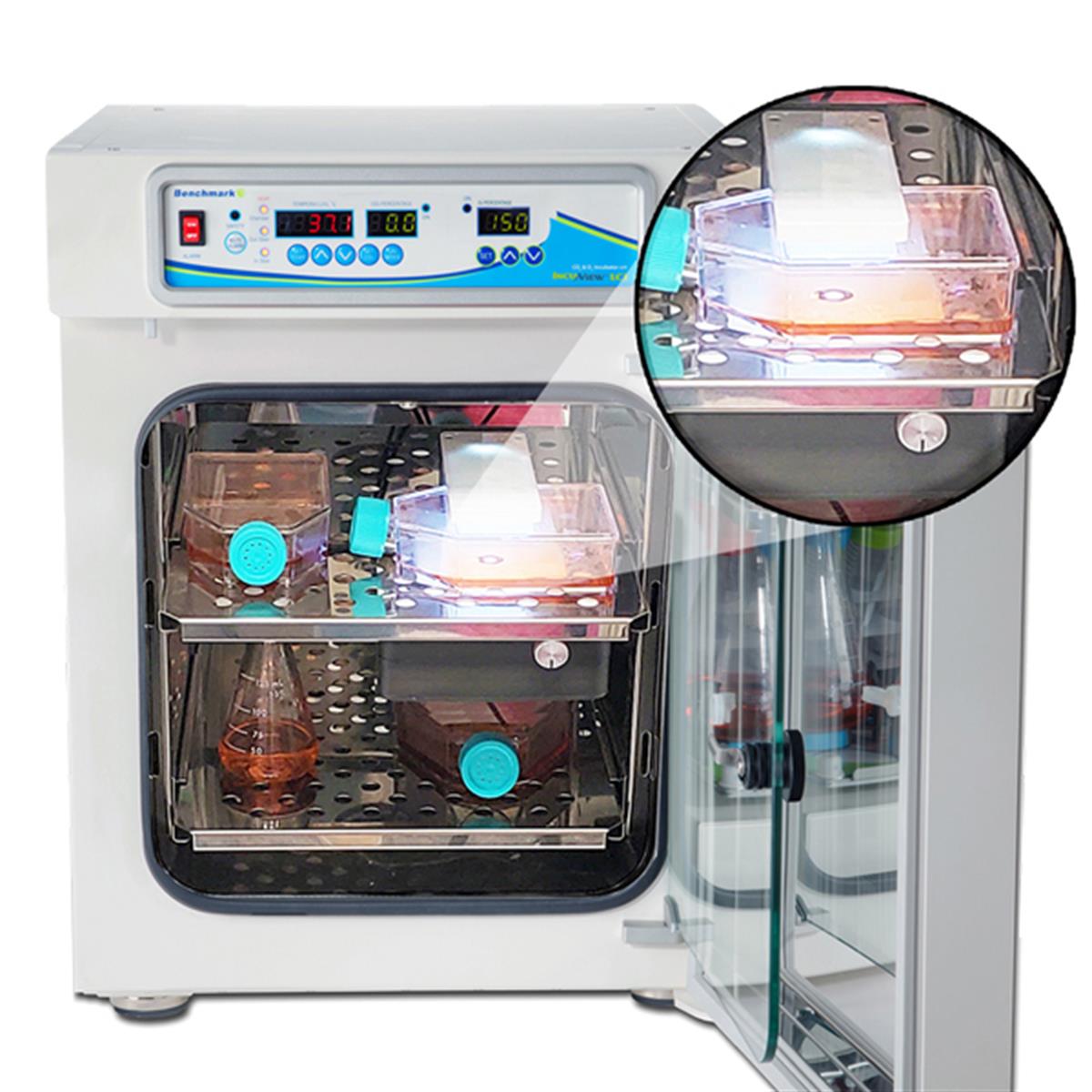

These are the first and only incubators equipped with our (patent pending) IncuView™ LCI (Live Cell Imaging) technology for viewing cells in “real time”. An internal microscope and large, external display allow cells to be viewed without removal from the incubator, eliminating the inherent temperature fluctuations and risk of contamination. Cells are easily viewed on the large, integrated display or viewed locally or remotely with a wifi enabled phone, tablet or computer.*
* Cell viewing requires optional IncuView Integrated Microscope Shelf (Item H3565-45-LCI or H3565-180-LCI.)
Specifications
|
Temperature Range:
|
Ambient +5° to 60°C
|
|
Temperature Accuracy:
|
±0.1°C
|
|
Temperature Uniformity:
|
± 0.4°C*
|
|
Temperature Increments:
|
0.1°C
|
|
Temperature Stability:
|
0.1°C
|
|
CO₂ Range:
|
0 to 20%
|
|
CO₂ Increment:
|
0.1%
|
|
CO₂ Accuracy:
|
± 0.1%
|
|
CO₂ Sensor:
|
Dual Beam IR CO₂ Sensor
|
|
Heat Decontamination:
|
No
|
|
Chamber Dimensions: (W x D x H)
|
18.7 x 20.8 x 28 in. / 47.3 x 52.8 x 71 cm
|
|
Chamber Volume:
|
180 Liters
|
|
Split Inner Door:
|
No
|
|
Chamber Material
|
Stainless Steel
|
|
Exterior Dimensions: (W x D x H)
|
22 x 26.2 x 37.2 in. / 56 x 66.5 x 94.5 cm
|
|
Weight:
|
172lbs / 78kg
|
|
Electrical:
|
120V or 230V 50-60Hz
|
|
Power Consumption:
|
420W
|
|
Warranty:
|
2 Years
|
Order Information
| Cat No. | Description | Link |
| BM-H3565-180HD | SureTherm CO2 Incubator, 180L w/ High Heat Decontamination |  |
Optional Accessories
| Model | Cat No. | Description | Link |
 |
BM-H3565-180-LCI | IncuView Integrated Microscope Shelf, 180L (for H3565-180, 180HD, and 180HDO2 only) | |
 |
BM-H3565-O2REG | Optional O2 gas regulator | |
| BM-H2300-REG | Optional CO2 gas regulator | |
Additional "SureTherm" Products
| Model | Cat No. | Description | Link |
 |
BM-H3565-180 | SureTherm CO2 Incubator, 180L w/ Three Shelves | |
| BM-H3565-180HDO2 | SureTherm CO2 Incubator, 180L w/ High Heat Decontamination, split window door, O2 control | |
|
| BM-H3565-45 | SureTherm CO2 Incubator, 45L | |
