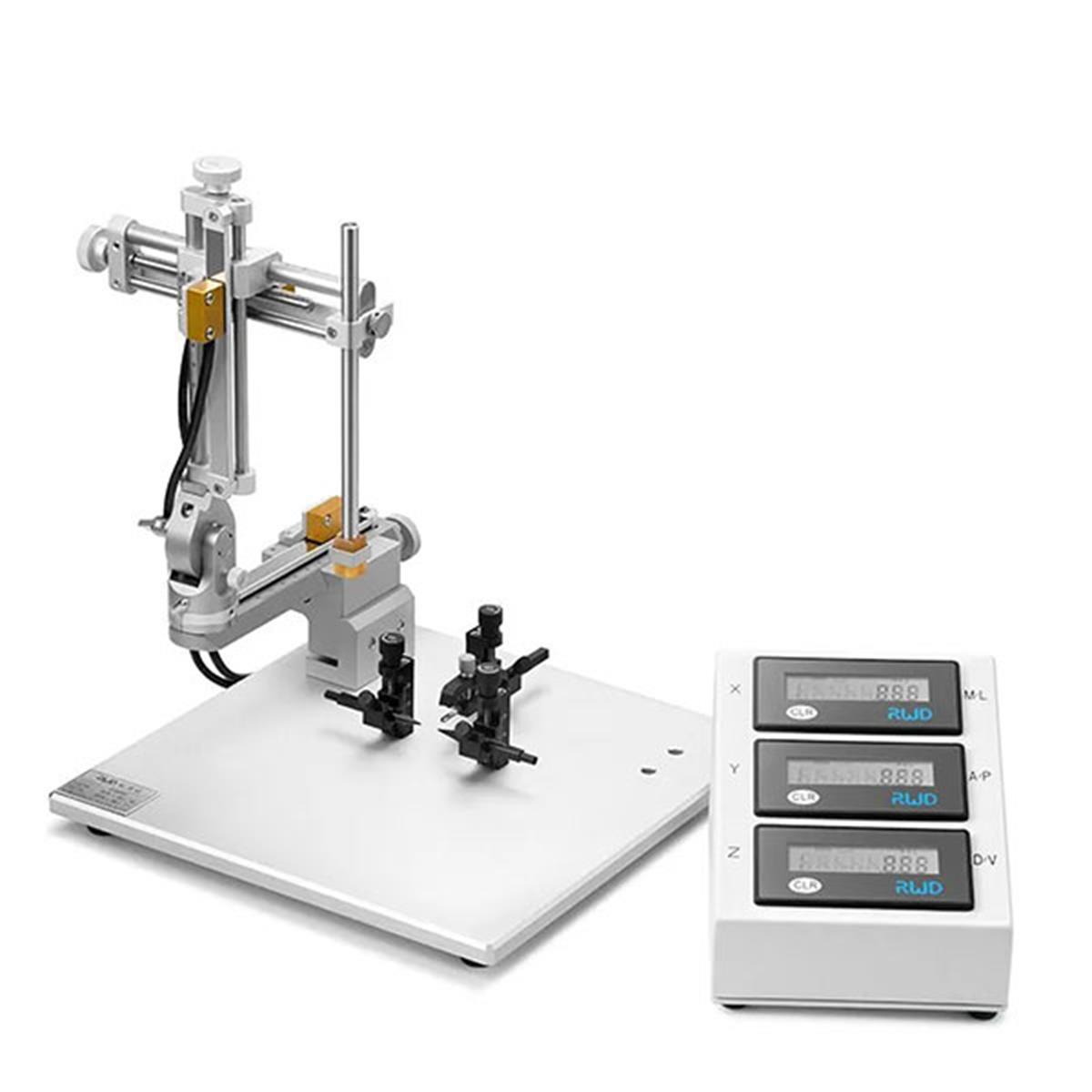

Stereotaxic for Mouse, Digital and Portable, Single Manipulator (Basic module)

Cat No.: RWD-68807 Description

The 68807 Digital Portable Mouse Stereotaxic Instrument represents a significant advancement in precision stereotaxic technology, combining 10μm digital accuracy with a space-efficient portable design optimized specifically for mouse neuroscience research. This single-manipulator system eliminates the traditional U-shaped frame, dramatically expanding the operational workspace while providing exceptional targeting precision through its digital displacement measurement system. Ideal for laboratories requiring both high accuracy and space efficiency, the 68807 offers real-time digital coordinate display and one-key zero reset functionality for streamlined experimental procedures.


Features:

• High-Precision Digital Measurement:
  Features a sealed electronic sensor system with 10μm (0.01mm) resolution across all three axes, critical for targeting small brain structures and nuclei with exceptional accuracy.

• One-Key Zero Reset Function:
  Allows researchers to set any position (such as Bregma or Lambda) as the reference zero point, eliminating secondary readings and complex calculations for coordinate-based targeting.

• Interference-Free Electronics:
  Powered by AA batteries rather than AC power, eliminating electronic noise interference that could compromise sensitive electrophysiological recordings and neurophysiological measurements.

• Innovative Open Architecture Design:
  The adapter-block design that replaces the traditional U-frame creates substantially more workspace around the animal, improving access for surgical instruments, microscopes, and imaging equipment.

• Precision Skull Leveling System:
  Independent height adjustment for both palate clip (0–20mm) and ear bars (0–20mm) enables precise dorsal-ventral alignment of the mouse skull—critical for accurate stereotaxic targeting based on brain atlases.

• Specialized Polymer Ear Bars:
  Utilizes lightweight polyoxymethylene resin ear bars with laser-engraved 1mm resolution scales and four distinct fixation points, providing secure yet atraumatic head fixation while minimizing tissue damage compared to metal alternatives.

• Enhanced Stability Engineering:
  Dual-lead screw design ensures smooth, stable, and accurate manipulation with minimal backlash, preventing drift during delicate stereotaxic procedures.

Technical Specifications:

• Digital Resolution: 10μm (0.01mm) in all three axes

• Display Type: LCD, real-time coordinate display

• Base Dimensions: 255mm × 255mm (specialized mouse platform)

• Vertical Adjustment Range (Palate Clip): 20mm (0–20mm)

• Vertical Adjustment Range (Ear Bars): 20mm (0–20mm)

• Working Distance: 80mm in all axes (anterior-posterior, medial-lateral, dorsal-ventral)

• Vertical Rotation: 180° with locking at any angle

• Horizontal Rotation: 360° with locking at any angle

• Power Source: AA batteries (eliminates electronic interference)

• Ear Bar Material: Polyoxymethylene resin with 1mm resolution laser-engraved scales

• Ear Bar Fixation: Plate pressing system instead of clamping for enhanced stability
