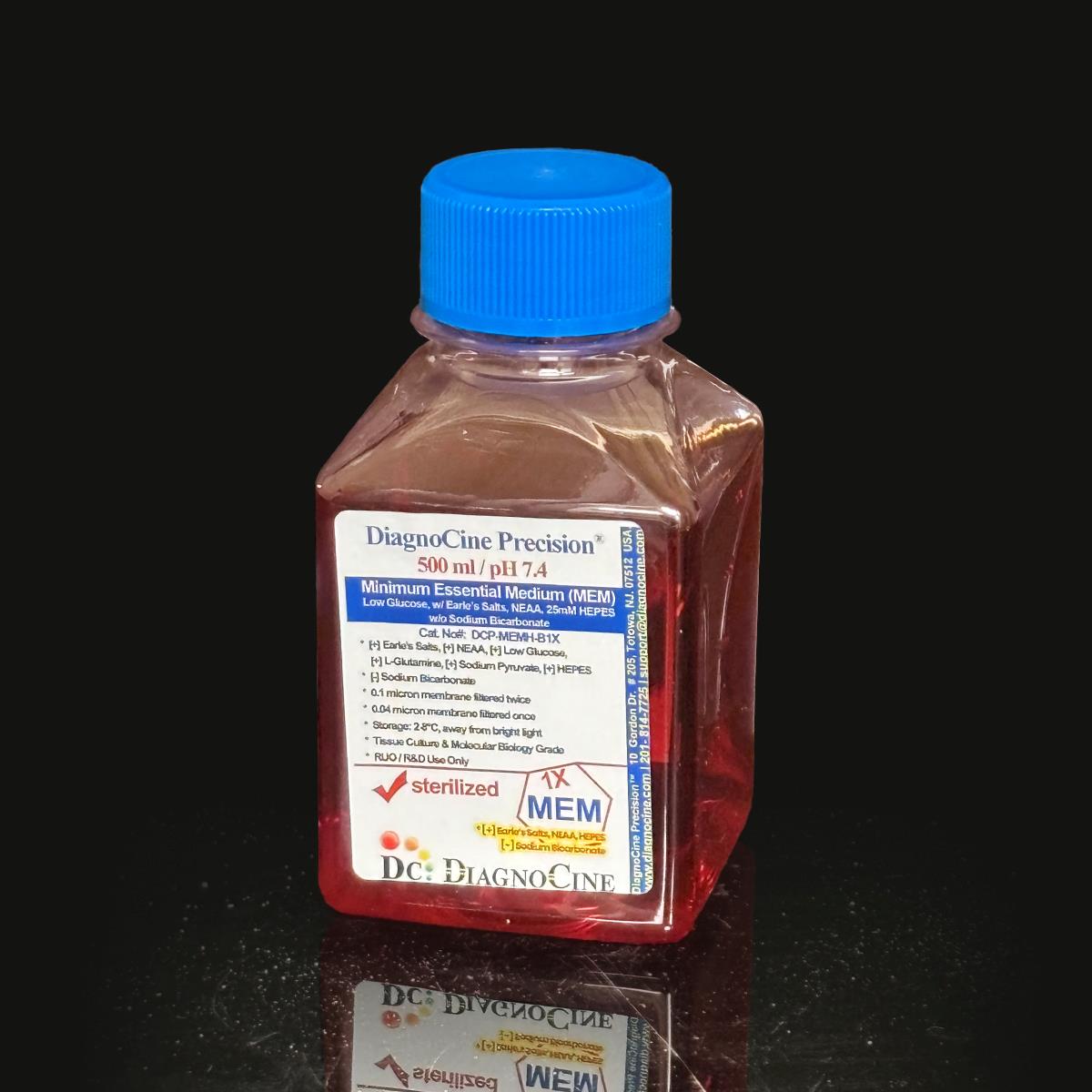

FluxMPS™ Minimum Essential Medium (MEM), Low Glucose, NEAA & 25mM HEPES w/o Sodium Bicarbonate: 1X Liquid

Product#: DCP-MEMH-B1X
$49.50
DCP-MEMH-B1X
Availability:
Ships in 1-2 Weeks

warning For Research Use Only (RUO). Not intended for clinical, diagnostic, or therapeutic use in humans.
verified ISO 13485 Certified Manufacturing

FluxMPS™ Minimum Essential Medium (MEM), Low Glucose, NEAA & 25mM HEPES w/o Sodium Bicarbonate: 1X Liquid

Contains L-Glutamine Contains Phenol Red Contains HEPES Contains Calcium Contains Magnesium Contains Glucose Contains Sodium Pyruvate Without Sodium Bicarbonate

FluxMPS™ DCP-MEMH-B1X is a Microfluidics Suitable, ultra-filtered MEM Low Glucose + NEAA + 25mM HEPES formulation engineered for primary fibroblasts and related primary cell models on organ-on-a-chip (OoC) and microphysiological system (MPS) platforms. Processed through a Quadruple-stage filtration system (0.1 µm ×2 + 0.04 µm ×2) to a 0.04 µm final cut-off, it is formulated with NEAA pre-loaded to reduce metabolic burden on primary cells and buffered with 25 mM HEPES (pKa 7.3 at 37°C) for CO₂-independent pH stability. Formulation: [+] Earle's Salts, [+] NEAA, [+] Low Glucose (1000 mg/L), [+] L-Glutamine, [+] Sodium Pyruvate, [+] Phenol Red, [+] 25mM HEPES | [-] Sodium Bicarbonate.

  • Low Glucose (1.0 g/L) — a physiological carbon source for primary cells sensitive to high-glucose stress
  • NEAA pre-loaded — reduces de novo synthesis burden and ammonia accumulation in primary cell culture
  • 25 mM HEPES (pKa 7.3 at 37°C) — CO₂-independent pH buffering for open-air handling, flow cytometry prep, and atmospheric incubation
  • Sodium bicarbonate omitted by design — HEPES alone provides pH stability without gas supplementation
  • Quadruple-stage filtration (0.1 µm ×2 + 0.04 µm ×2) reaching a 0.04 µm final polish
  • Endotoxin release specification < 0.05 EU/mL, LAL assay per USP <85>
  • Manufactured under an ISO 13485:2016 quality management system; final QC at Diagnocine, Totowa, NJ
  • Custom pH, glucose, HEPES concentration, and component modifications available on request
DCP-MEMH-B1X Cell Culture Media
UNSPSC: 41116155 · Commodity: Molecular biology and cell culture growth media · (UNv260801)
Minimum Essential Medium (MEM), Low Glucose, NEAA & 25mM HEPES w/o Sodium Bicarbonate: 1X Liquid
  • Media familyMEM Low Glucose + NEAA + 25mM HEPES
  • Glucose1000 mg/L (1.0 g/L, Low Glucose)
  • HEPES25 mM (5958 mg/L), pKa 7.3 at 37°C
  • NEAAPresent
  • Formulation[+] Earle's Salts, [+] NEAA, [+] Low Glucose, [+] L-Glutamine, [+] Sodium Pyruvate, [+] Phenol Red, [+] 25mM HEPES
    [-] Sodium Bicarbonate
  • AppearanceOrange-to-red colored, clear solution
  • pH (USP <791>)7.4
  • Osmolality (USP <785>)235 – 275 mOsm/kg H₂O
  • Endotoxin (USP <85>)< 0.05 EU/mL
  • Filtration0.1 µm ×2 + 0.04 µm ×2

Available sizes: 500 mL, 1000 mL

ISO 13485:2016 USP <85> <785> <788> RUO
Why FluxMPS™

Engineered for primary cell culture where standard media fails

MEM with Earle's Salts is a foundational primary-cell medium — but conventional 0.22 µm filtered MEM passes mycoplasma-scale organisms, subvisible particulates, and higher endotoxin than a formulation destined for primary cells and microfluidic channels can tolerate. FluxMPS™ addresses these failure modes while preserving the full nutritional profile primary cells depend on.

filter_alt

Microchannel-safe purity

0.04 µm final filtration; particulate control aligned to USP <788>. Low-particulate media reduces the risk of chip channel clogging in narrow microfluidic geometries.

biotech

Primary cell–optimized formulation

MEM + Earle's Salts + NEAA: an established base for primary fibroblasts, neurons, epithelial, and vascular cells.

water_drop

HEPES: CO₂-stable pH

25 mM HEPES helps limit pH drift during open-air suspension handling, flow cytometry preparation, and multi-well assay setup outside CO₂ incubators.

shield

Low endotoxin release specification

< 0.05 EU/mL endotoxin release specification — below the TLR4 activation threshold referenced in the endotoxin literature, relevant where LPS-driven fibroblast activation, neuroinflammatory signaling, or epithelial barrier disruption is a concern in primary cell models.

science

NEAA reduces metabolic burden

Pre-loaded NEAA reduces de novo synthesis demand on primary cells, supporting viability in low-serum conditions and reducing ammonia accumulation.

tune

Customization on demand

pH, glucose, HEPES concentration, and component modifications available. Contact support@diagnocine.com.

Purity Architecture

Quadruple-stage filtration system

Four serial filtration stages, run as two dedicated prefilter + final-filter pairs, reaching a final 0.04 µm polish under aseptic fill conditions.

  1. 1

    0.1 µm Prefiltration I

    Large particulate, cell debris, and protein aggregate removal; protects the first 0.04 µm cartridge.

  2. 2

    0.04 µm Final filtration I

    First 0.04 µm pass; retains sub-micron particulates and mycoplasma-scale organisms (0.2–0.3 µm) that a standard 0.22 µm filter does not.

  3. 3

    0.1 µm Prefiltration II

    Second dedicated prefilter, protecting the second 0.04 µm cartridge.

  4. 4

    0.04 µm Final filtration II — Polish

    Ultimate polishing filter; aseptic fill & finish.

Performance vs. conventional media

A quadruple-stage train (0.1 µm ×2 + 0.04 µm ×2) reaches a 0.04 µm final cut-off, five times finer than the 0.22 µm membranes used for conventional sterile filtration.

5×
Cleaner than 0.22 µm media by particulate count
0.04
µm final pore size across 4 filtration passes
Sterility & Mycoplasma: No growth after 14-day incubation (USP <71>). Mycoplasma control is achieved via 0.1 µm mycoplasma-retentive membrane filtration at every production stage (not tested per lot by USP <63>).
Grade: This product is Microfluidics Suitable, filtered to a 0.04 µm final cut-off. It is not an MPS Grade product — that designation is reserved for the 0.01 µm ultra nano-filtered line, which adds 0.02 µm and 0.01 µm stages after the 0.04 µm polish. For applications requiring the 0.01 µm cut-off, contact support@diagnocine.com.
FluxMPS DCP-MEMH-B1X Minimum Essential Medium (MEM) Low Glucose NEAA 25mM HEPES w/o Sodium Bicarbonate quadruple-stage filtration system 0.1 micron x2 plus 0.04 micron x2 for organ-on-a-chip and microfluidic applications Diagnocine
Figure 1. FluxMPS™ Quadruple-stage filtration system (0.1 µm ×2 + 0.04 µm ×2).
© Diagnocine® — DCP-MEMH-B1X
Applications

Primary cell models and OoC applications

FluxMPS™ DCP-MEMH-B1X is formulated for primary fibroblasts and related cell models, with 0.04 µm filtration purity for microfluidic platform compatibility.

Automated Bioreactors & Robotics

Next-Generation System Uptime

An optional 0.01 µm (10 nm) ultra nano-filtered MPS Grade variant of this formulation is available on request for automated bioreactor and robotic handling systems.

  • Total Particulate Exclusion: 0.01 µm filtration removes nanoparticulate aggregates beyond the 0.04 µm Microfluidics Suitable tier
  • Valve & Sensor Protection: Reduces micro-fouling risk in delicate chip geometries
  • Extended Perfusion Stability: Supports consistent nutrient delivery over long-duration culture

Inquiry Required: Contact support@diagnocine.com for the 0.01 µm MPS Grade variant.

Neuroscience

Neuronal Chips & Brain-on-Chip

MEM + Earle's Salts + NEAA + low glucose is a physiologically conservative base for primary cortical neurons, DRG neurons, and iPSC-derived neuronal networks in compartmentalized chips.

Primary neuronsiPSC-NeuronsBrain-on-chip
Epithelial Biology

Epithelium-on-Chip

Low-glucose MEM with NEAA supports primary epithelial cells and barrier integrity in transwell and microfluidic TEER-monitored platforms.

Caco-2A549Primary HBECGut-on-chip
Connective Tissue

Primary Fibroblast & Stromal Models

MEM with NEAA is a classical base for primary dermal, lung, and cardiac fibroblasts in low-serum or serum-free OoC conditions.

Primary fibroblastsLung fibroblastsCardiac fibroblasts
Vascular Biology

Vascular Cell Culture

Earle's salt ionic balance supports vascular smooth muscle cells and primary endothelial co-culture models on vascular-on-chip platforms.

VSMCsPrimary endothelialVascular-on-chip
Microfluidics

Organ-on-a-Chip & MPS

0.04 µm filtered MEM helps reduce particulate clogging risk in sub-100 µm neuronal and epithelial chip microchannels.

OoCToCLoCMPS
Live-Cell Imaging

Microscopy & Optical Sensing

Ultra-low particulate media supports confocal microscopy, TEER sensor monitoring, and biosensor integration on primary cell chips.

ConfocalTEERBiosensors
Technical Specifications

Analytical release specifications

Every batch released against the full specification matrix. CoA: support@diagnocine.com.

Physical & Chemical Parameters
Parameter Specification
Formulation [+] Earle's Salts, [+] NEAA, [+] Low Glucose (1000 mg/L), [+] L-Glutamine, [+] Sodium Pyruvate, [+] Phenol Red, [+] 25mM HEPES | [-] Sodium Bicarbonate
Appearance Orange-to-red colored, clear solution
Glucose 1000 mg/L (1.0 g/L, Low Glucose)
HEPES 25 mM (5958 mg/L), pKa 7.3 at 37°C
NEAA Present
pH USP <791> 7.4
Osmolality USP <785> 235 – 275 mOsm/kg H₂O
Total ingredients 37
Sterility, Purity & Safety
Parameter Specification
Endotoxin USP <85> BET < 0.05 EU/mL
Sterility USP <71> No growth / 14 days
Mycoplasma 0.1 µm mycoplasma-retentive filtration (not tested per lot)
Particulate ≥10 µm USP <788> NMT 25/mL
Particulate ≥25 µm USP <788> NMT 3/mL
Water purity Type 1, 18.2 MΩ·cm
Manufacturing std. ISO 13485:2016
Fill environment ISO Class 5 (Class 100)
Storage, Handling & Logistics
Parameter Specification
Storage temperature 2–8°C, protected from light
Freeze-thaw Do not freeze
Shelf life 12 months from date of manufacture, unopened
Shipping condition Cold pack
CO₂ requirement CO₂-independent — HEPES (25 mM) alone maintains pH in the 7.2–7.4 range at 37°C without gas supplementation
Raw Materials & Regulatory Traceability
Parameter Specification
Raw material grade Reagent / cell culture grade
Traceability Full lot traceability per ISO 13485
Manufacturing QMS ISO ISO 13485:2016 certified
UNSPSC 41116155 · Molecular biology and cell culture growth media (UNv260801)
Regulatory alignment 21 CFR Part 820 (QMSR) aligned
Production method Micro-batch, per-batch QC release
Intended use Research Use Only (RUO)
Formulation

Full composition (mg/L)

MEM Low Glucose + NEAA + 25mM HEPES: 37 ingredients, released per batch, with CAS numbers. NEAA are listed under AMINO ACIDS. HEPES (25 mM = 5958 mg/L, CAS 7365-45-9) is listed under OTHERS.

Component CAS Number mg/L
INORGANIC SALTS
Calcium chloride dihydrate 10035-04-8 265.000
Magnesium sulfate anhydrous 7487-88-9 97.720
Potassium chloride 7447-40-7 400.000
Sodium chloride 7647-14-5 6800.000
Sodium dihydrogen phosphate anhydrous 7558-80-7 122.000
Component CAS Number mg/L
AMINO ACIDS
Glycine 56-40-6 7.500
L-Alanine 56-41-7 8.900
L-Arginine hydrochloride 1119-34-2 126.000
L-Asparagine monohydrate 5794-13-8 15.000
L-Aspartic acid 56-84-8 13.300
L-Cystine dihydrochloride 30925-07-6 31.300
L-Glutamic acid 56-86-0 14.700
L-Glutamine 56-85-9 292.000
L-Histidine hydrochloride monohydrate 5934-29-2 42.000
L-Isoleucine 73-32-5 52.000
L-Leucine 61-90-5 52.000
L-Lysine hydrochloride 657-27-2 72.500
L-Methionine 63-68-3 15.000
L-Phenylalanine 63-91-2 32.000
L-Proline 147-85-3 11.500
L-Serine 56-45-1 10.500
L-Threonine 72-19-5 48.000
L-Tryptophan 73-22-3 10.000
L-Tyrosine disodium salt dihydrate 69847-15-0 51.900
L-Valine 72-18-4 46.000
Component CAS Number mg/L
VITAMINS
Choline chloride 67-48-1 1.000
D-Ca-Pantothenate 137-08-6 1.000
Folic acid 59-30-3 1.000
Nicotinamide 98-92-0 1.000
Pyridoxal hydrochloride 65-22-5 1.000
Riboflavin 83-88-5 0.100
Thiamine hydrochloride 67-03-8 1.000
i-Inositol 87-89-8 2.000
OTHERS
D-Glucose 50-99-7 1000.000
HEPES 7365-45-9 5958.000
Phenol red sodium salt 34487-61-1 11.000
Sodium pyruvate 113-24-6 110.000
Custom formulation: Contact support@diagnocine.com for DCP-MEMH-B1X modifications.
Quality Assurance

Manufacturing & compliance

Every FluxMPS™ product is manufactured and released under a multi-layer quality system.

verified

ISO 13485:2016 Quality Management

Manufactured under ISO 13485:2016-certified facilities. Final QA at the Diagnocine R&D Center, Totowa, NJ, USA.

water_drop

Ultrapure Type 1 Water

18.2 MΩ·cm feedwater, controlled for trace metals and total organic carbon (TOC).

biotech

ISO Class 5 Fill & Finish

Aseptic fill in validated ISO Class 5 (Class 100) laminar-flow workstations.

assignment

Micro-Batch Precision

Small-batch, per-batch tested — no blending; Certificate of Analysis for every batch.

Endotoxin — USP <85> BET

LAL assay; assay sensitivity 0.005 EU/mL; release specification < 0.05 EU/mL.

Particulate — USP <788> Method 1

Light obscuration particle count test: NMT 25/mL (≥10 µm), NMT 3/mL (≥25 µm).

Osmolality — USP <785>

Target: 235 – 275 mOsm/kg H₂O.

Documentation & CoA

Full CoA with raw-material traceability available for every batch on request.

Batch-level quality control. Endotoxin is controlled per manufacturing batch rather than per unit. Every batch is tested before release and must meet the release specification:
  • Endotoxin — LAL assay, USP <85> Bacterial Endotoxins Test; assay sensitivity 0.005 EU/mL; release specification < 0.05 EU/mL
  • pH, osmolality, conductivity, appearance and clarity
  • Sterility
A Certificate of Analysis is available on request at support@diagnocine.com.
Product Comparison

How DCP-MEMH-B1X compares

FluxMPS™ DCP-MEMH-B1X vs. conventional 0.22 µm filtered MEM Low Glucose + NEAA formulations.

Parameter DCP-MEMH-B1X (FluxMPS™) Conventional MEM Low Glucose (0.22 µm filtered) Standard DMEM (0.22 µm)
Grade Microfluidics Suitable Not specified Not specified
MEM + NEAA + HEPES-only buffering — CO₂-independent primary cell OoC use check_circle Yes cancel No cancel No
Final filtration pore size 0.04 µm 0.22 µm 0.22 µm
Number of filtration stages 4 (Quadruple) 1 1
Mycoplasma-retentive filtration check_circle 0.1 µm barrier cancel No cancel No
Endotoxin (release specification) FluxMPS™ — < 0.05 EU/mL Corning classical liquid media — < 0.25 EU/mL
Sigma-Aldrich DMEM complete medium — ≤ 2 EU/mL
Gibco classical DMEM — Not specified (recorded per lot)
HEPES (25 mM) included check_circle Yes cancel Usually no cancel No
NEAA included check_circle Yes Optional add-on cancel No
USP <788> particulate tested check_circle Yes cancel No cancel No
Water quality Type 1, 18.2 MΩ·cm Purified water Purified water
Manufacturing QMS ISO 13485:2016 ISO 9001 or none ISO 9001 or none
Microfluidic channel compatible check_circle Yes cancel Risk of clogging cancel Risk of clogging
Custom formulation available check_circle Yes cancel No cancel No

Comparison figures from published supplier specifications, accessed 2026-09-02. Suppliers that publish no numeric endotoxin specification are shown as "Not specified".

FAQ

Frequently asked questions

Common questions about FluxMPS™ DCP-MEMH-B1X.

Yes. DCP-MEMH-B1X is processed through a Quadruple-stage filtration system reaching a 0.04 µm final pore size, delivering low-particulate media for MPS, OoC, and LoC platforms. The MEM + Earle's Salts + NEAA base with a < 0.05 EU/mL endotoxin release specification is well suited to primary neuronal, epithelial, fibroblast, and vascular OoC platforms.

Sodium bicarbonate is omitted so that 25 mM HEPES alone provides all pH buffering without CO₂ dependency. This supports fully CO₂-independent primary cell culture in atmospheric incubators, open-top neuronal chips, and multi-compartment systems where CO₂ cannot be uniformly controlled. HEPES (pKa 7.3 at 37°C) maintains pH in the 7.2–7.4 range without gas supplementation; no additional buffering component needs to be added.
No. This formulation is CO₂-independent — 25 mM HEPES alone maintains pH in the 7.2–7.4 range at 37°C without gas supplementation, making it suitable for atmospheric incubation and open-air handling.
Yes. Serum and other protein-containing supplements should be pre-filtered through a 0.2 µm low-protein-binding PES or PVDF membrane before addition; a 0.04 µm membrane is not appropriate for serum, as it retains immunoglobulins, lipoproteins, and growth factors. Defined, protein-free additions may be filtered at 0.1 µm.
The release specification is < 0.05 EU/mL, verified by LAL assay (USP <85>) on every manufacturing batch, not per individual unit. Assay sensitivity is 0.005 EU/mL. This is below the TLR4 activation threshold referenced in endotoxin literature, relevant for primary fibroblast, neuronal, and epithelial cultures sensitive to inflammatory activation. See Manufacturing & Compliance for the full batch-release protocol.
Yes. Full CoA per batch covers: appearance, pH (USP <791>), osmolality (USP <785>), sterility (USP <71>), endotoxin (USP <85>), mycoplasma-retentive filtration status, particulate count (USP <788> Method 1), and raw-material traceability. Request at support@diagnocine.com.
Scientific References

Supporting literature

Key publications supporting MEM Low Glucose + NEAA + 25mM HEPES in primary cell OoC applications.

  1. Eagle H. Amino acid metabolism in mammalian cell cultures. Science. 1959;130:432–437. doi:10.1126/science.130.3373.432
  2. Huh D, et al. Reconstituting organ-level lung functions on a chip. Science. 2010;328:1662–1668. doi:10.1126/science.1188302
  3. Bhatia SN, Ingber DE. Microfluidic organs-on-chips. Nat Biotechnol. 2014;32:760–772. doi:10.1038/nbt.2989
  4. Novak R, et al. Robotic fluidic coupling and interrogation of multiple vascularized organ chips. Nat Biomed Eng. 2020;4:407–420. doi:10.1038/s41551-019-0497-x
  5. Campisi M, et al. 3D self-organized microvascular model of the human blood-brain barrier. Biomaterials. 2018;180:117–129. doi:10.1016/j.biomaterials.2018.07.014
  6. Jang KJ, et al. Human kidney proximal tubule-on-a-chip. Integr Biol. 2013;5:1119–1129. doi:10.1039/c3ib40049b
  7. Schimek K, et al. Integrating biological vasculature into a multi-organ-chip microsystem. Lab Chip. 2013;13:3588–3598. doi:10.1039/c3lc50217a
  8. Luni C, et al. High-efficiency cellular reprogramming with microfluidics. Nat Methods. 2016;13:446–452. doi:10.1038/nmeth.3832
  9. Sung JH, et al. Microfabricated mammalian organ systems. Lab Chip. 2013;13:1201–1212. doi:10.1039/c3lc41017j

Related Products

Recently Viewed

Satisfaction
Quality Rating
Value Rating
Style Rating

X
